Square D

9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V

Category Power Blocks & Distribution Blocks

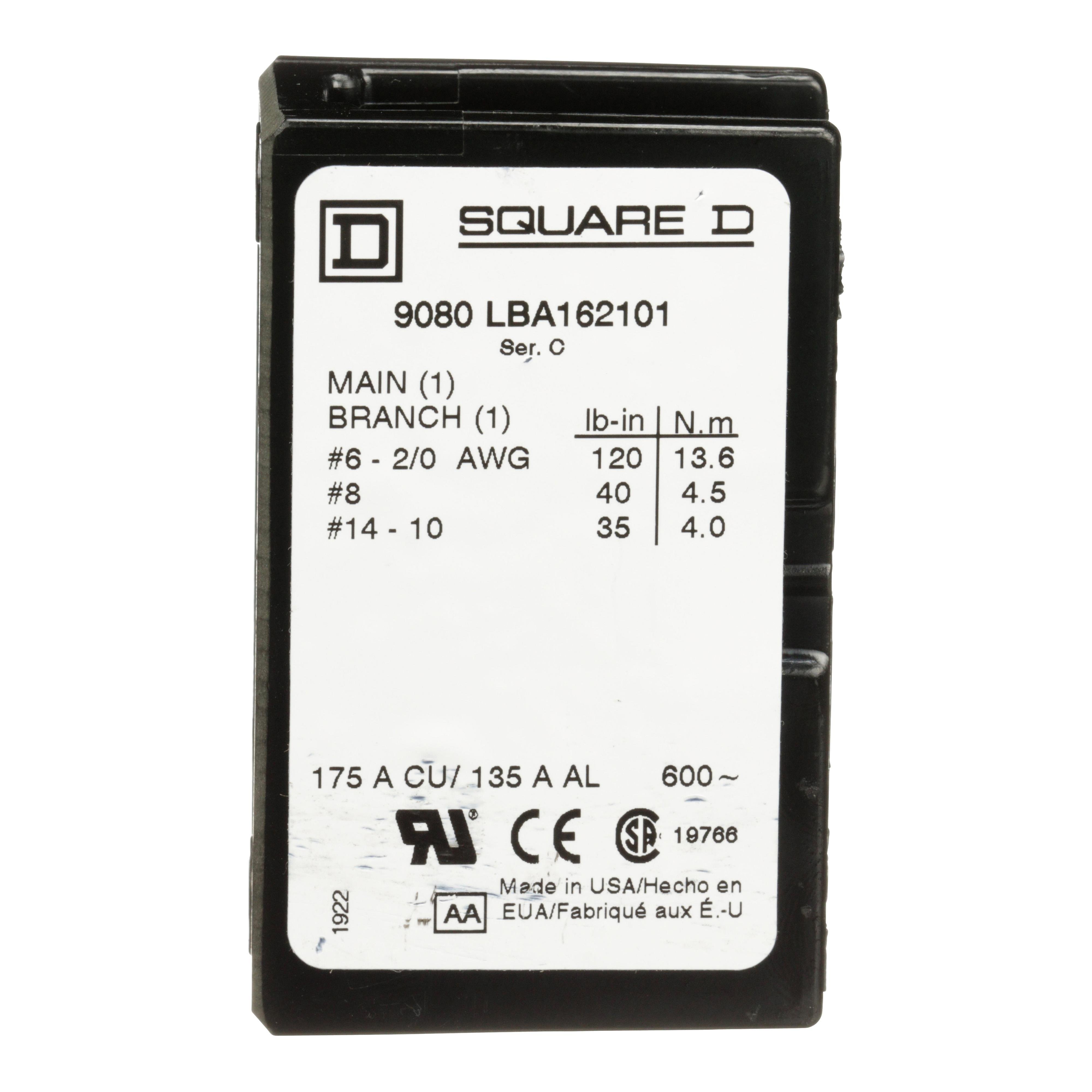

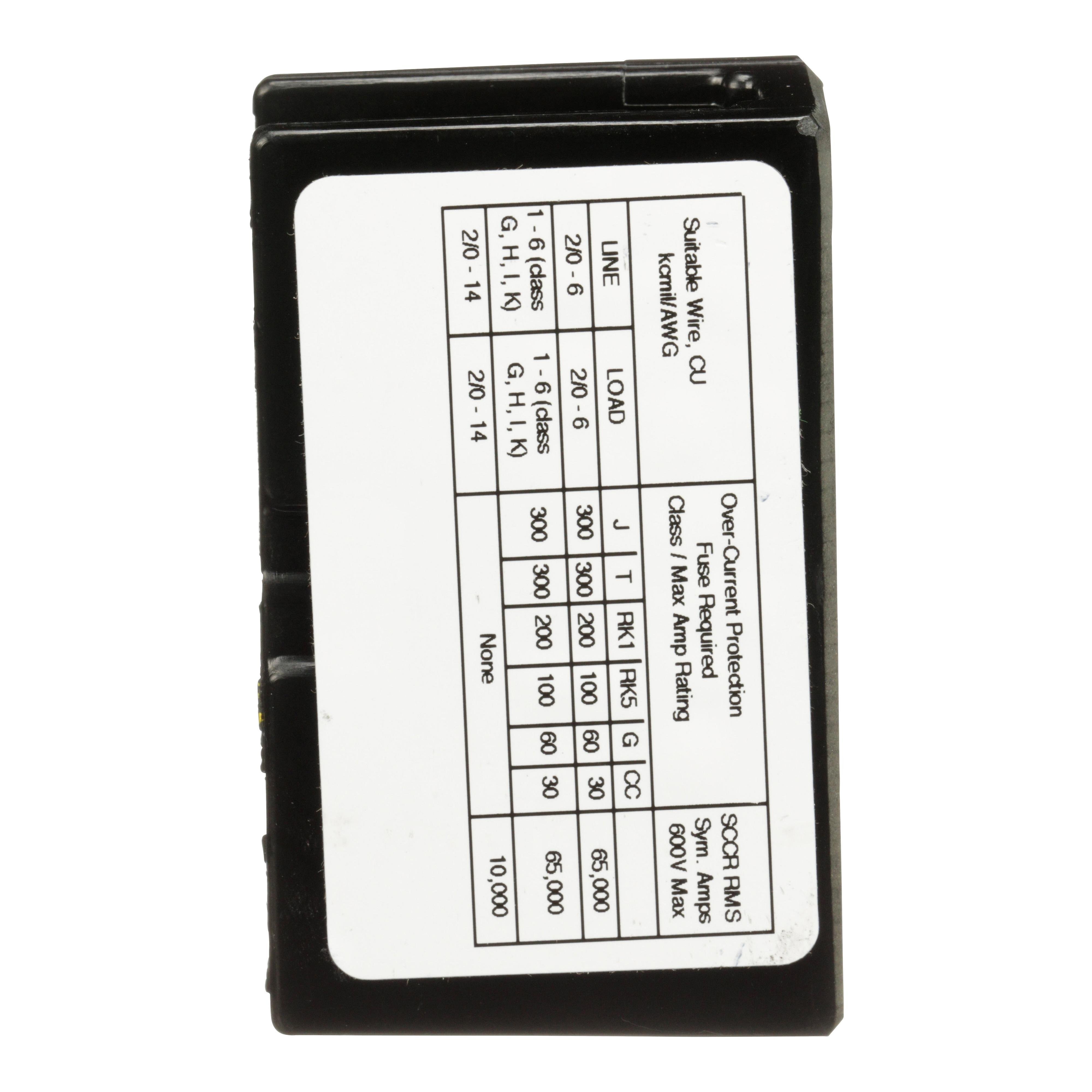

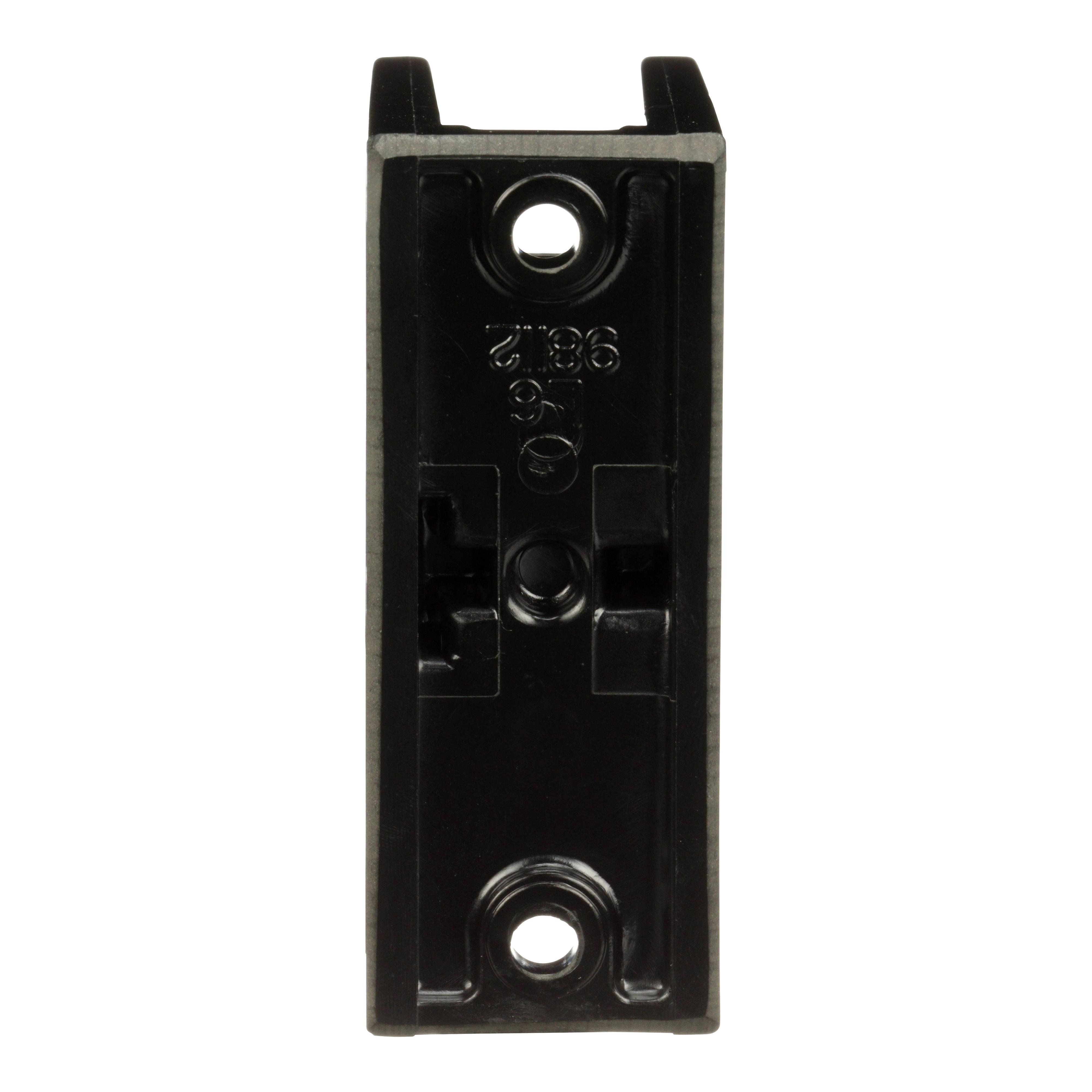

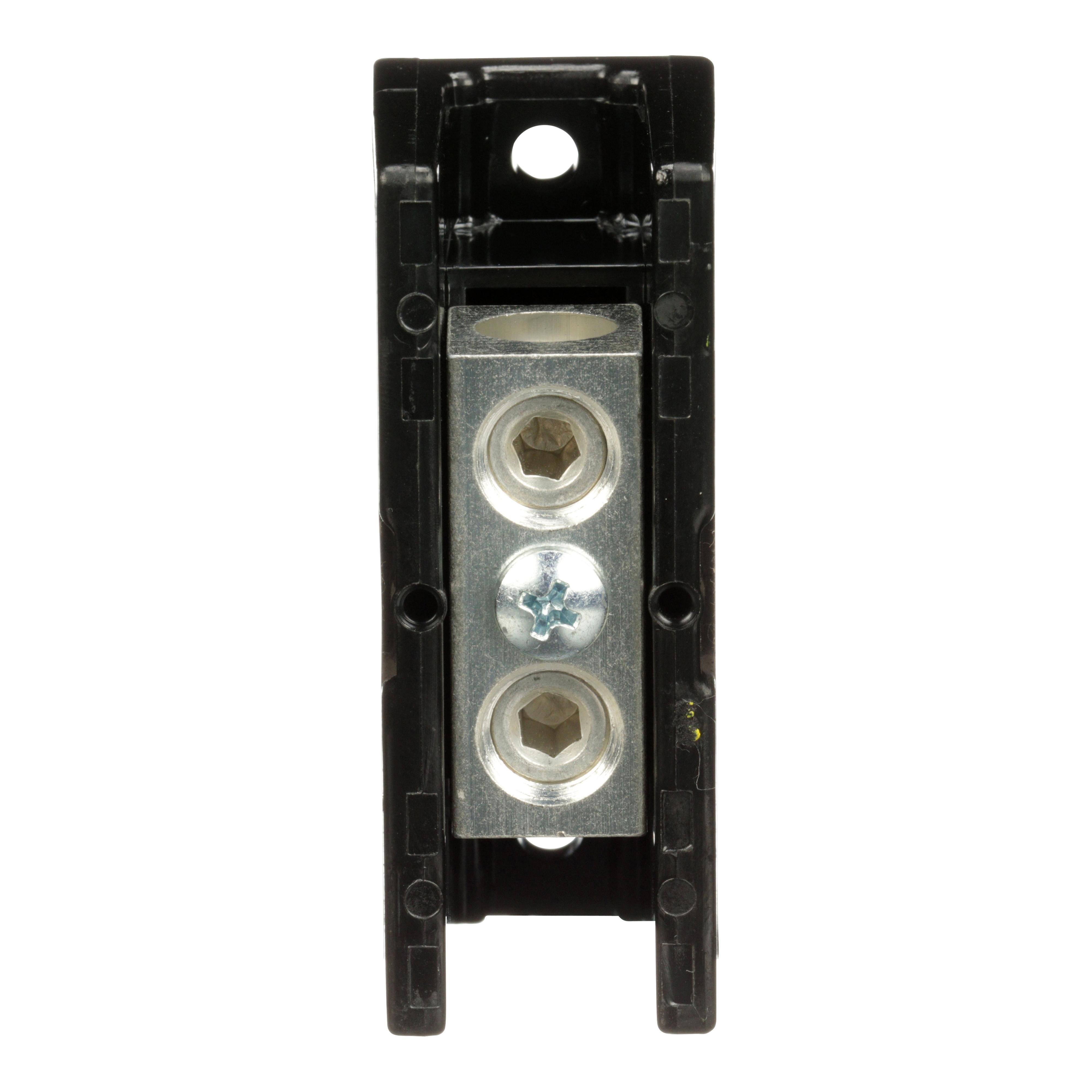

Picture of 9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V Picture of 9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V
Picture of 9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V Picture of 9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V
Picture of 9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V Picture of 9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V
Picture of 9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V Picture of 9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V
Picture of 9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V Picture of 9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V
Square D

9080LBA162101 - Power distribution block, Linergy, 1 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V

Item Code: 690160
Category Power Blocks & Distribution Blocks
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9080LBA162101

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wire. The load side lug is rated to accept one #14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Weight

0.21

Height

1.1

Width

1.78

Length

2.77

AD All Features

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Application

For 9080LB, 9080LB21 power distribution block covers and general purpose applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BLOCK DISTRIBUTION PWR 600VAC/VDC 1 PHEN

AD Item Features 01

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Item Features 02

Has numerous configurations for power distribution and also allows customer save on panel space

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.1000

AD Package Height UOM

IN

AD Package Length

2.7700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

5.5400

AD Package Volume UOM

cu-in

AD Package Weight

0.2100

AD Package Weight UOM

LB

AD Package Width

1.7800

AD Package Width UOM

IN

Brand

Square D

Category

POWER BLOCKS & DISTRIBUTION BLOCKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

135/175

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC/DC

Spec 10 Attribute Value

600

Spec 11 Attribute

Wire Size

Spec 11 Attribute UOM

AWG

Spec 11 Attribute Value

14 to 2/0

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

0.76 in W x 1.62 in D x 2.29 in H

Spec 3 Attribute

Material

Spec 3 Attribute Value

Phenolic

Spec 4 Attribute

Number Of Poles

Spec 4 Attribute Value

1

Spec 5 Attribute

Primary Connections/Pole

Spec 5 Attribute Value

1

Spec 6 Attribute

Secondary Connection/Pole

Spec 6 Attribute Value

1

Spec 7 Attribute

Series

Spec 7 Attribute Value

9080LB

Spec 8 Attribute

Short Circuit Current Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

65

Spec 9 Attribute

Type

Spec 9 Attribute Value

General Purpose Standard
