Square D

9080LBA162104 - Power distribution block, Linergy, 1 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V

Category Power Blocks & Distribution Blocks

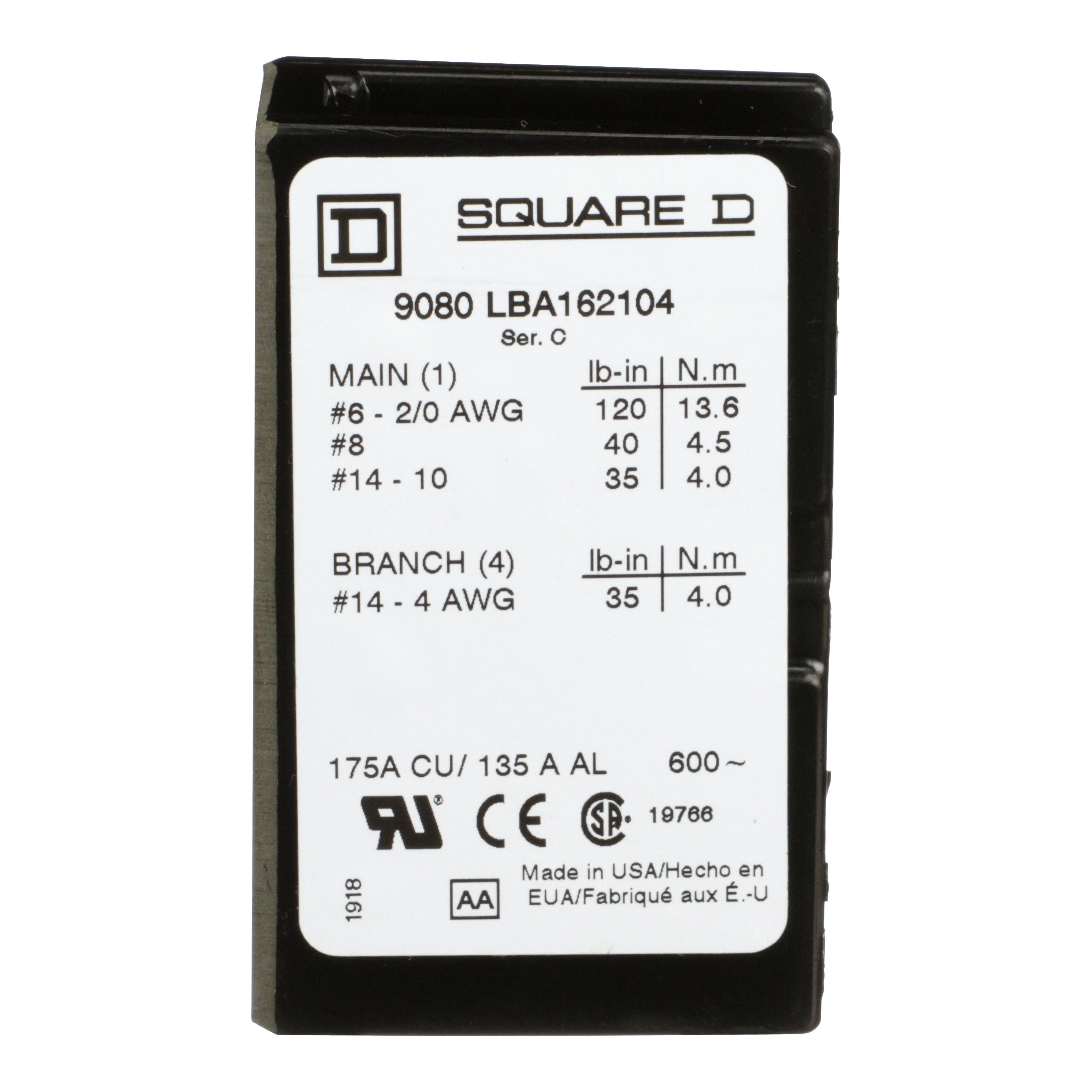

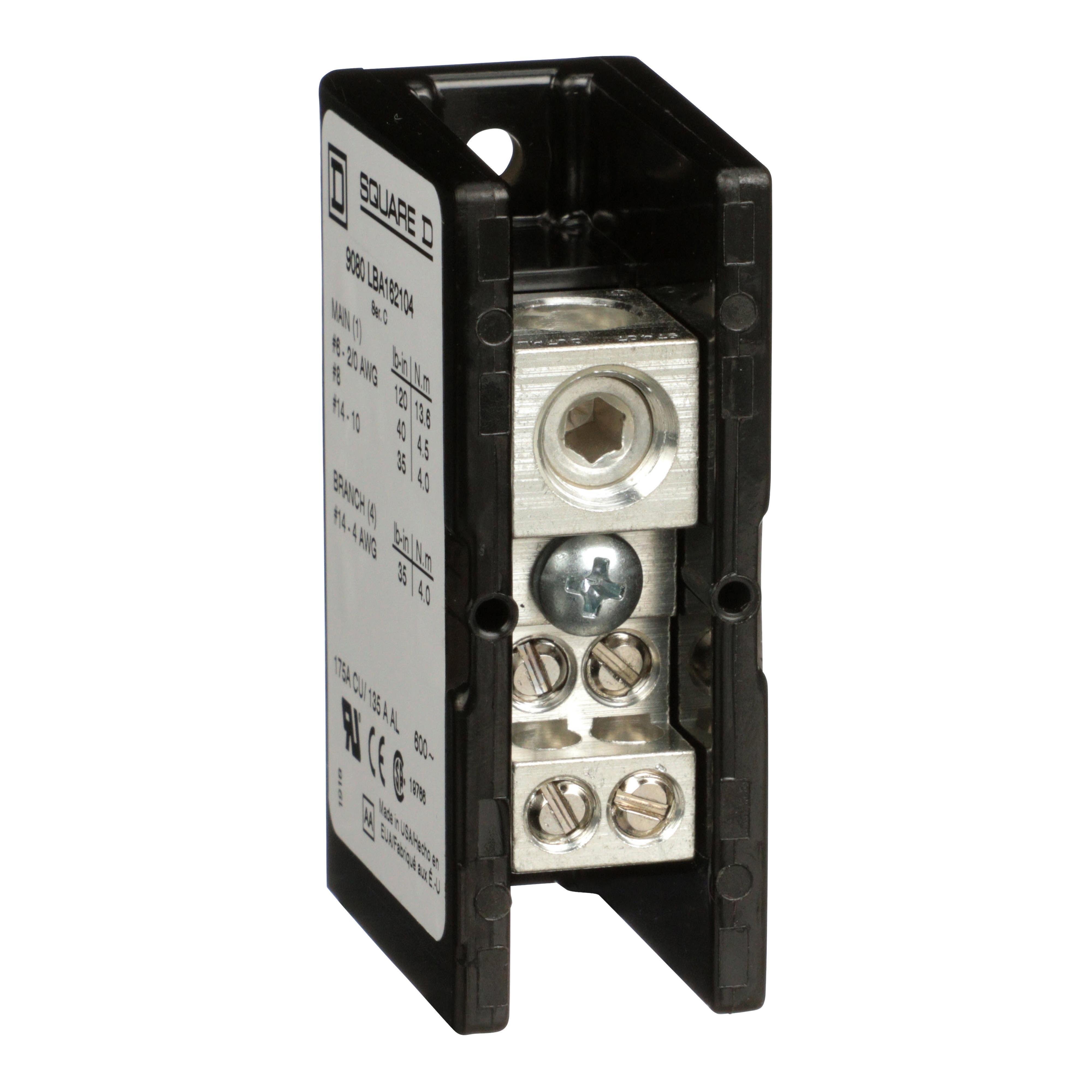

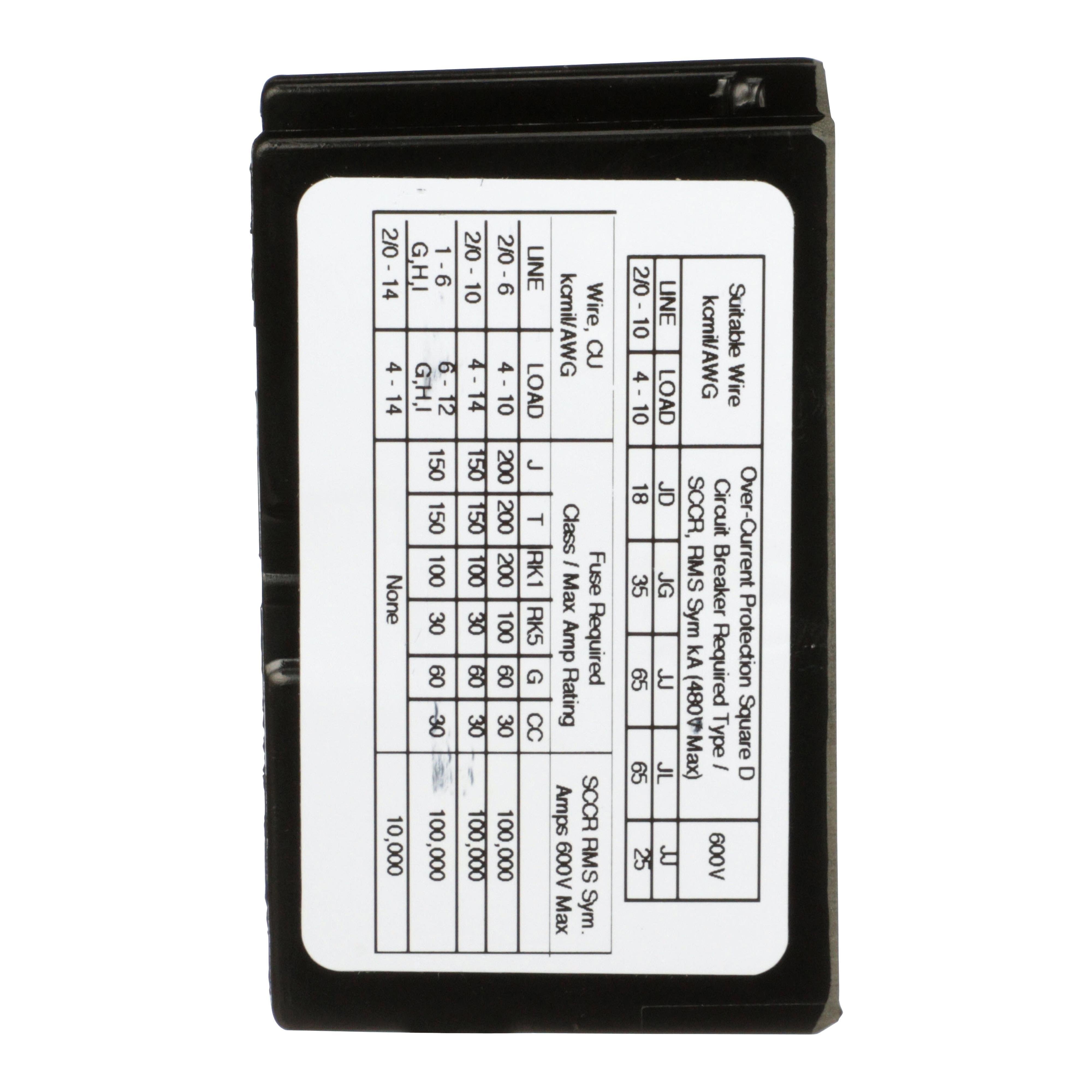

Picture of 9080LBA162104 - Power distribution block, Linergy, 1 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V Picture of 9080LBA162104 - Power distribution block, Linergy, 1 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V
Picture of 9080LBA162104 - Power distribution block, Linergy, 1 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V Picture of 9080LBA162104 - Power distribution block, Linergy, 1 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V
Picture of 9080LBA162104 - Power distribution block, Linergy, 1 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V Picture of 9080LBA162104 - Power distribution block, Linergy, 1 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V
Picture of 9080LBA162104 - Power distribution block, Linergy, 1 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V Picture of 9080LBA162104 - Power distribution block, Linergy, 1 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V
Square D

9080LBA162104 - Power distribution block, Linergy, 1 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V

Item Code: 683715
Category Power Blocks & Distribution Blocks
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9080LBA162104

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Weight

0.22lb

Height

2.9mm

Width

1.09mm

Length

1.78mm

Depth

1.78mm

AD All Features

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Application

9080LB and 9080LB21 Series Power Distribution Block

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BLOCK DISTRIBUTION PWR 600VAC/VDC 1 PHEN

AD Item Features 01

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Item Features 02

The housing is made of general purpose phenolic

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.9000

AD Package Height UOM

IN

AD Package Length

1.7800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

5.7400

AD Package Volume UOM

cu-in

AD Package Weight

0.2200

AD Package Weight UOM

LB

AD Package Width

1.0900

AD Package Width UOM

IN

Brand

Square D

Category

POWER BLOCKS & DISTRIBUTION BLOCKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

135/175

Spec 10 Attribute

Type

Spec 10 Attribute Value

Linergy

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC/DC

Spec 11 Attribute Value

600

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

14 to 2/0 AWG/14 to 4 AWG

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

1.13 in W x 1.78 in D x 2.88 in H

Spec 3 Attribute

Finish

Spec 3 Attribute Value

Tin Plated

Spec 4 Attribute

Material

Spec 4 Attribute Value

Phenolic

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

1

Spec 6 Attribute

Primary Connections/Pole

Spec 6 Attribute Value

1

Spec 7 Attribute

Secondary Connection/Pole

Spec 7 Attribute Value

4

Spec 8 Attribute

Series

Spec 8 Attribute Value

9080LB

Spec 9 Attribute

Short Circuit Current Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

65
