Square D

9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V

Category Power Blocks & Distribution Blocks

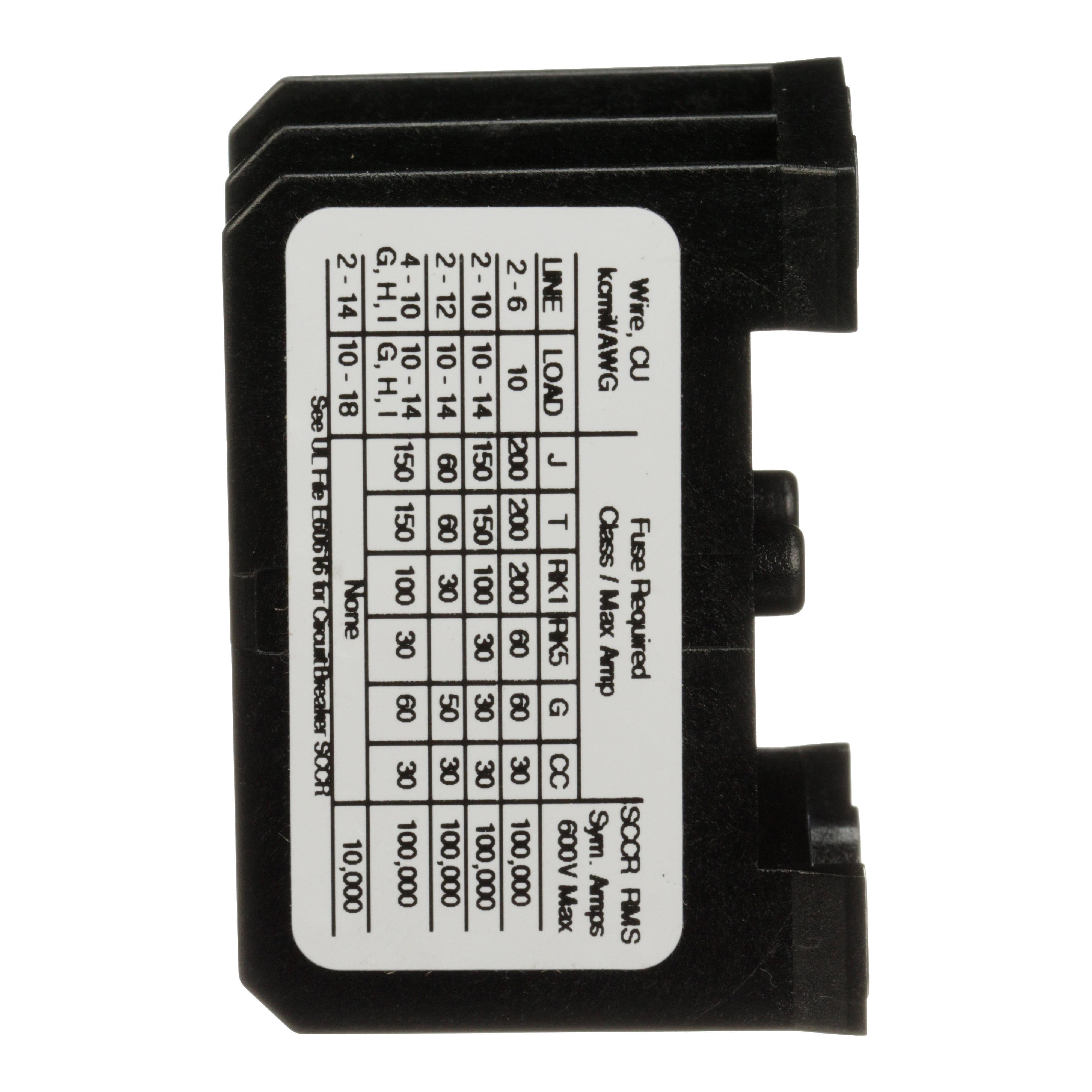

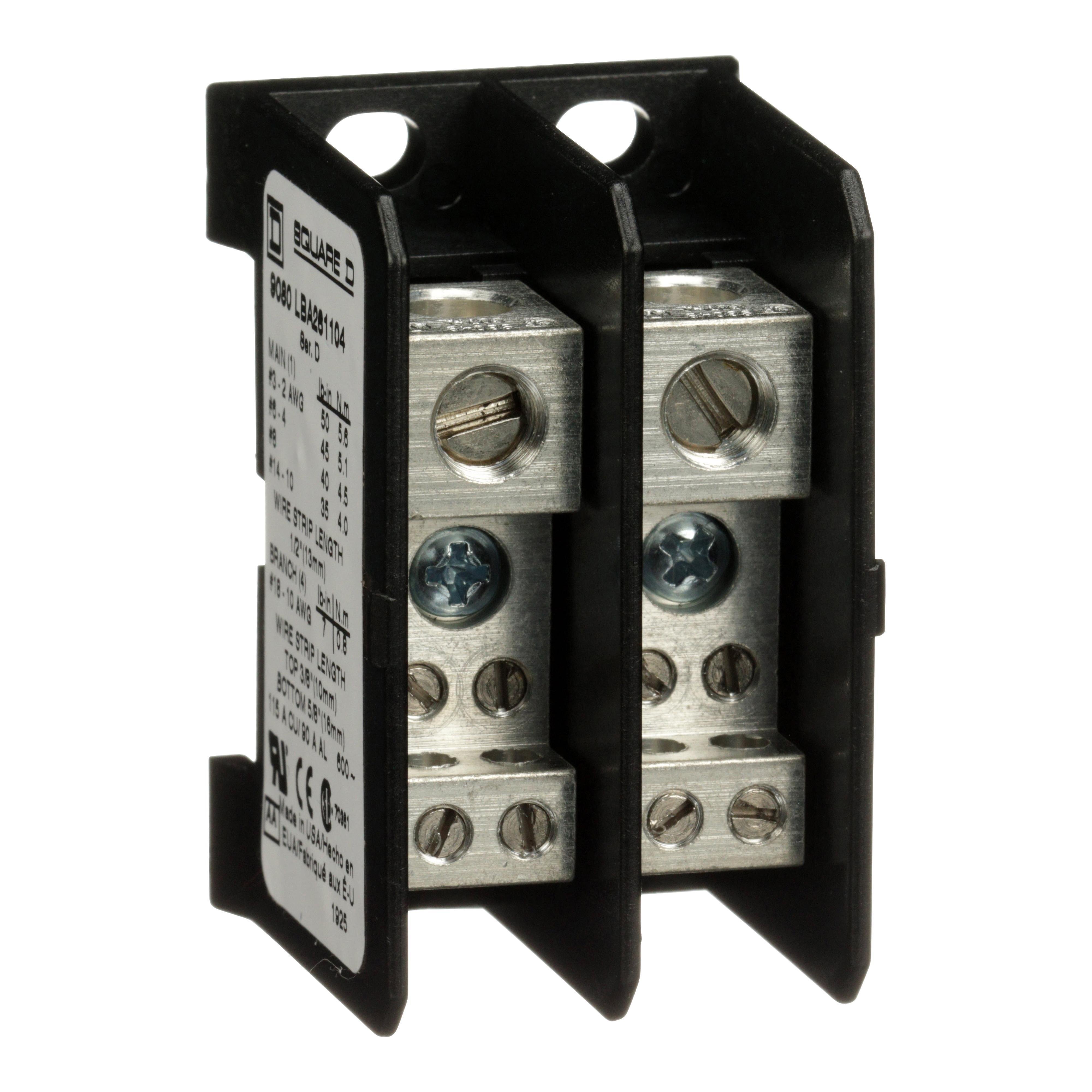

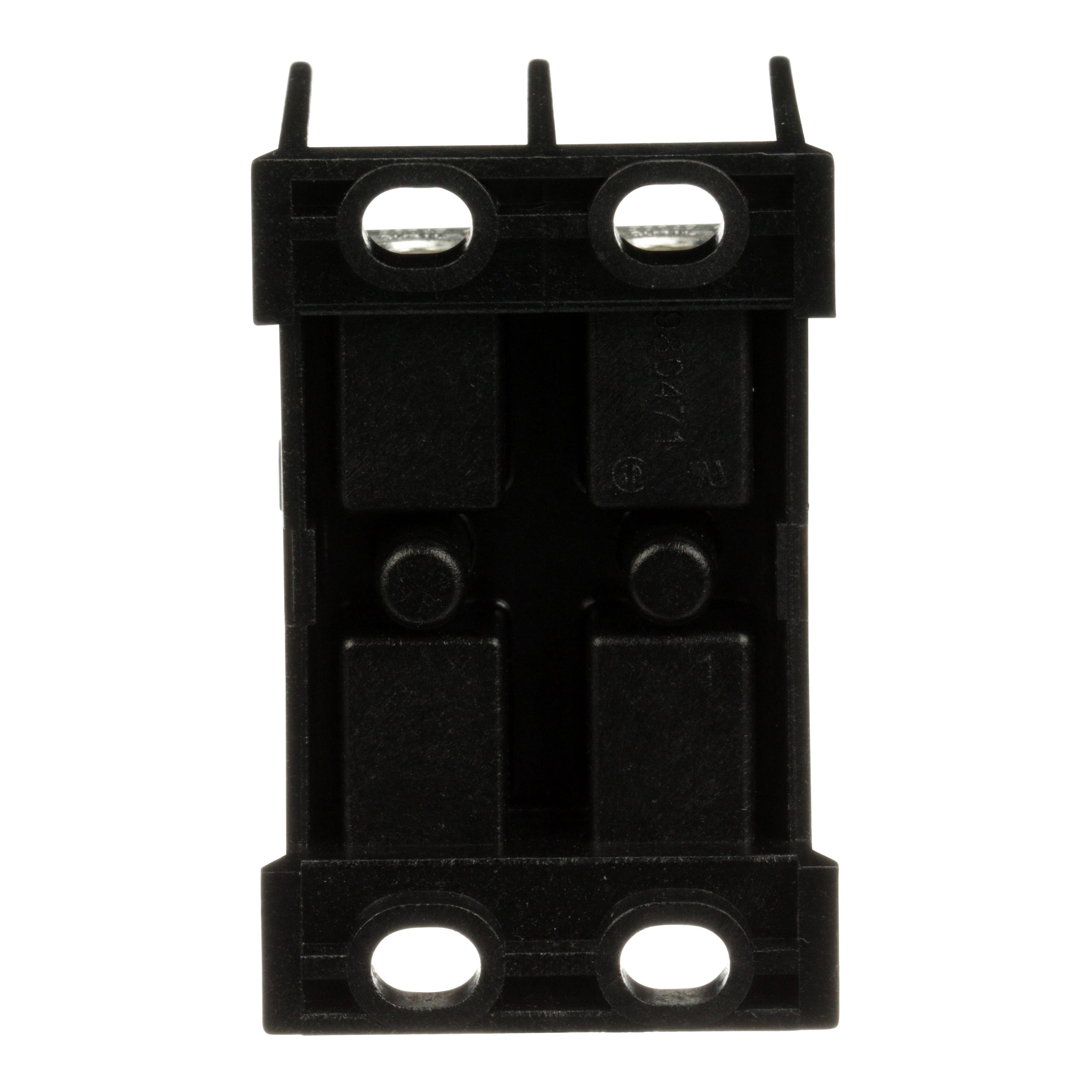

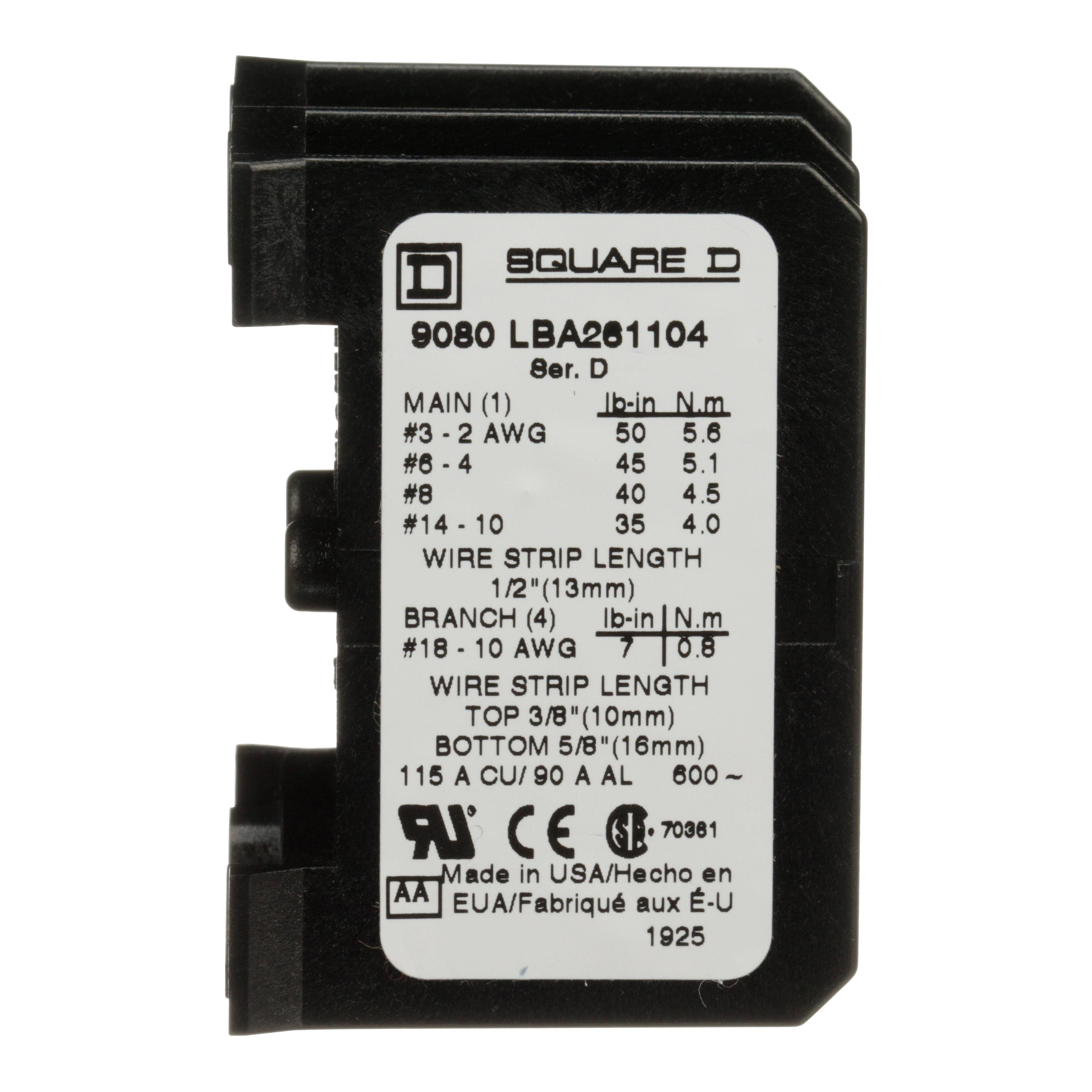

Picture of 9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V Picture of 9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V
Picture of 9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V Picture of 9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V
Picture of 9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V Picture of 9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V
Picture of 9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V Picture of 9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V
Picture of 9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V Picture of 9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V
Square D

9080LBA261104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V

Item Code: 601746
Category Power Blocks & Distribution Blocks
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9080LBA261104

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This two pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #14 to #2 copper or aluminum wire. Each load side lug is rated to accept one #18 to #10 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Weight

0.15lb

Height

1.5mm

Width

1.49mm

Length

2.28mm

Depth

1.62mm

AD All Features

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Application

For 9080LB, 9080LB12 power distribution block covers applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BLOCK DISTRIBUTION PWR MULTI-POLE 2 1

AD Item Features 01

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Item Features 02

Has numerous configurations for power distribution and also allows customer save on panel space

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.5000

AD Package Height UOM

IN

AD Package Length

2.2800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

5.1800

AD Package Volume UOM

cu-in

AD Package Weight

0.1500

AD Package Weight UOM

LB

AD Package Width

1.4900

AD Package Width UOM

IN

Brand

Square D

Category

POWER BLOCKS & DISTRIBUTION BLOCKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

90/115

Spec 10 Attribute

Type

Spec 10 Attribute Value

High Impact Linergy Miniature

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC/DC

Spec 11 Attribute Value

600

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

(1) 14 to 2 AWG, (4) 18 to 10 AWG

Spec 2 Attribute

Color

Spec 2 Attribute Value

Black

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1.4 in W x 1.62 in D x 2.29 in H

Spec 4 Attribute

Material

Spec 4 Attribute Value

Thermoplastic

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

2

Spec 6 Attribute

Primary Connections/Pole

Spec 6 Attribute Value

1

Spec 7 Attribute

Secondary Connection/Pole

Spec 7 Attribute Value

4

Spec 8 Attribute

Series

Spec 8 Attribute Value

9080LB

Spec 9 Attribute

Short Circuit Current Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

65
