Square D

9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V

Category Power Blocks & Distribution Blocks

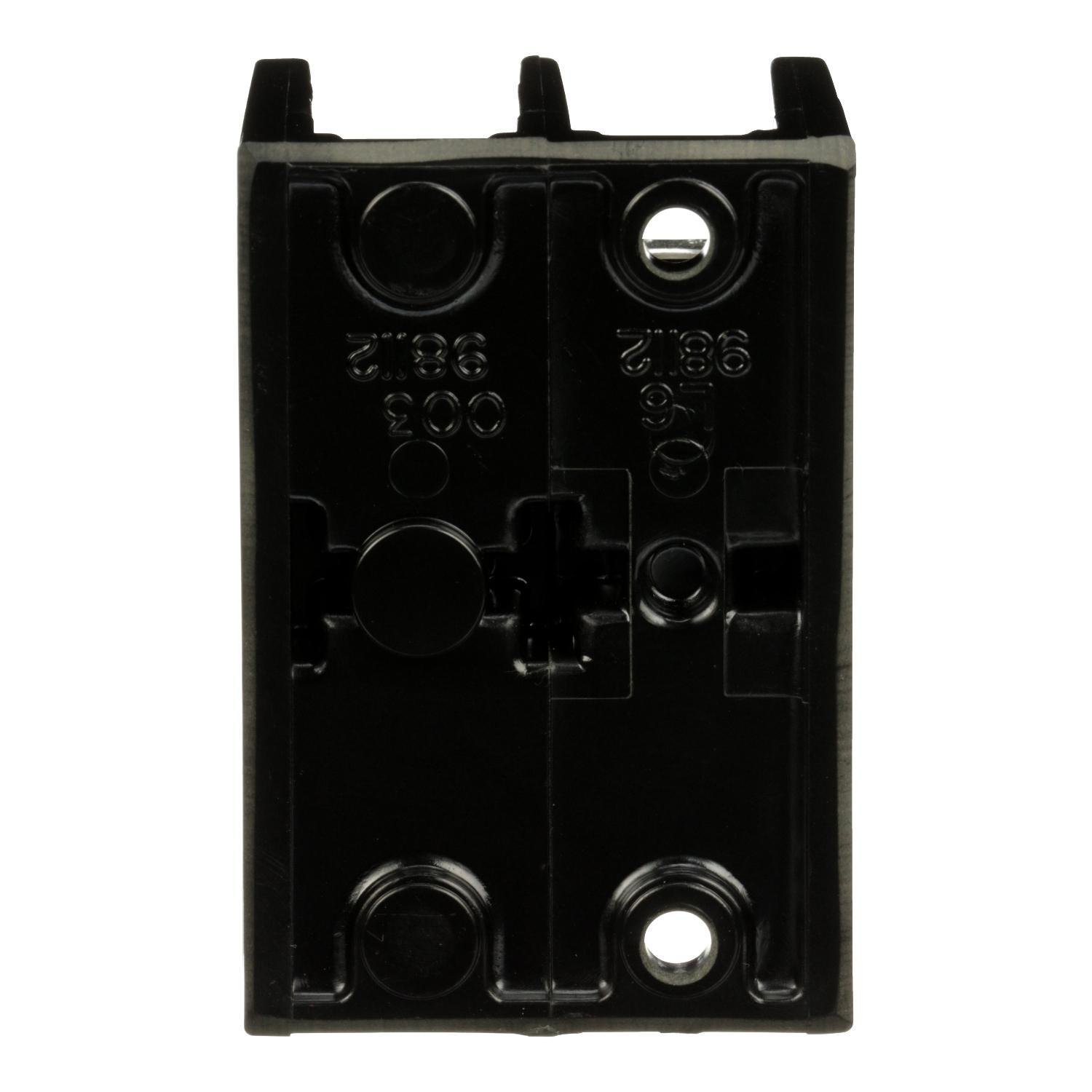

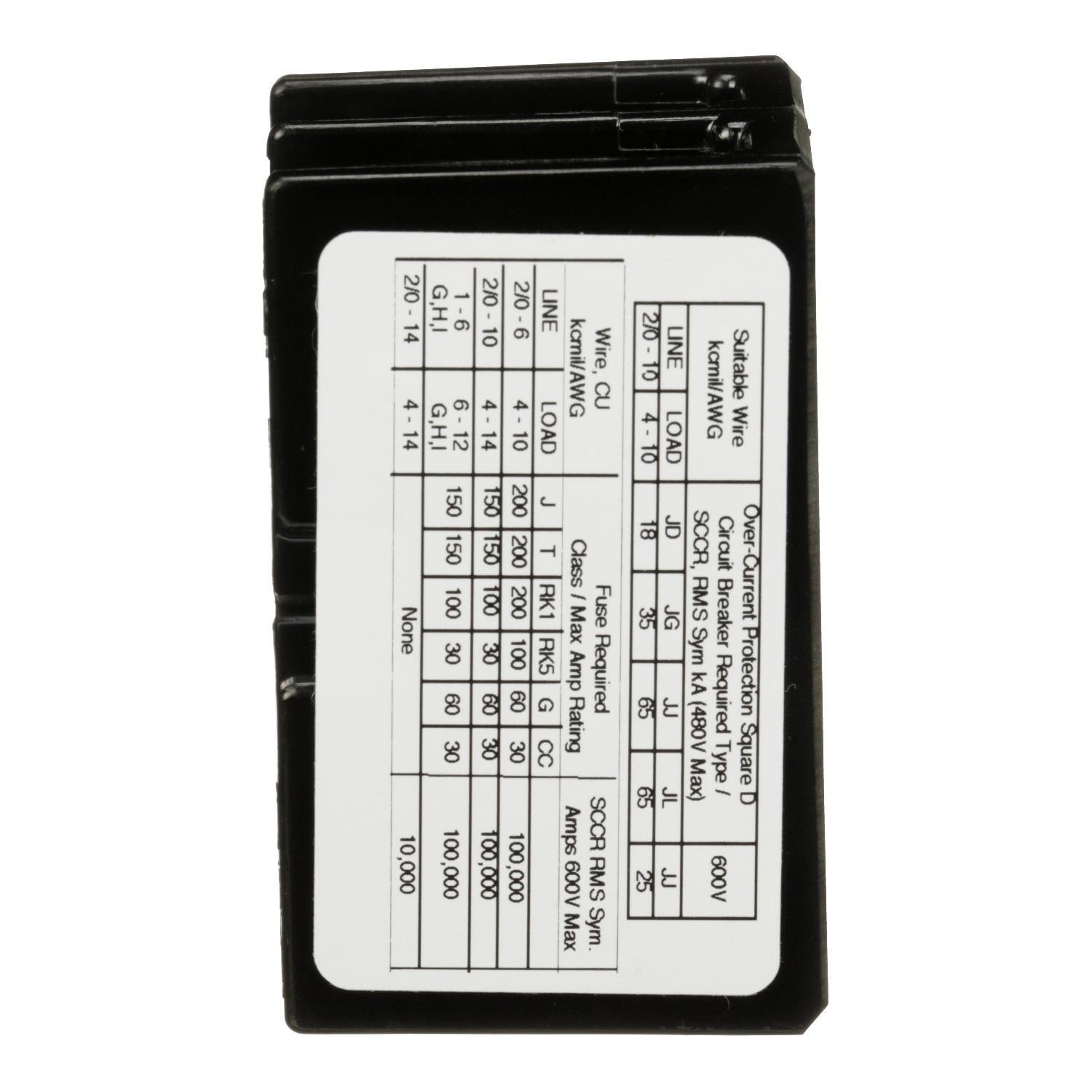

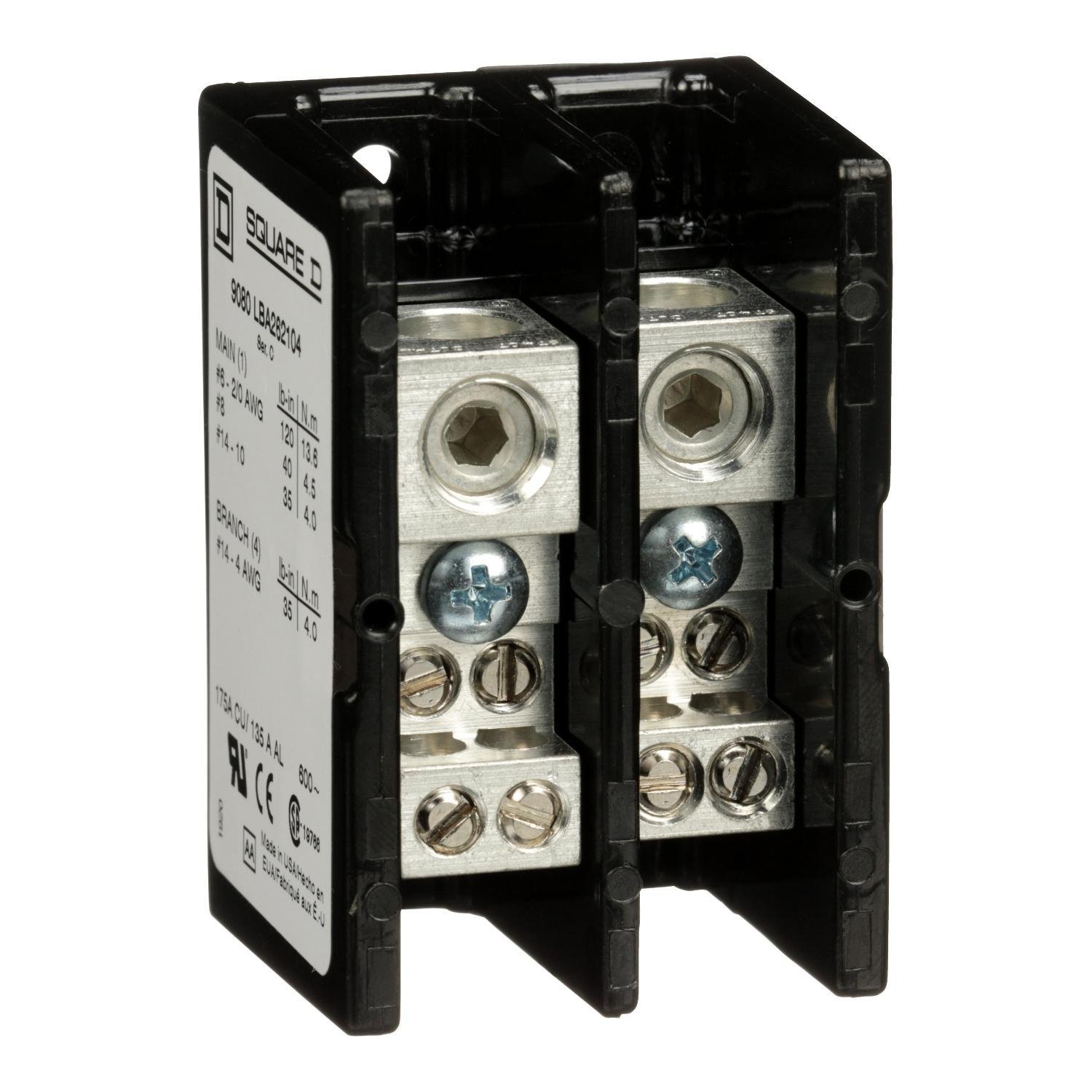

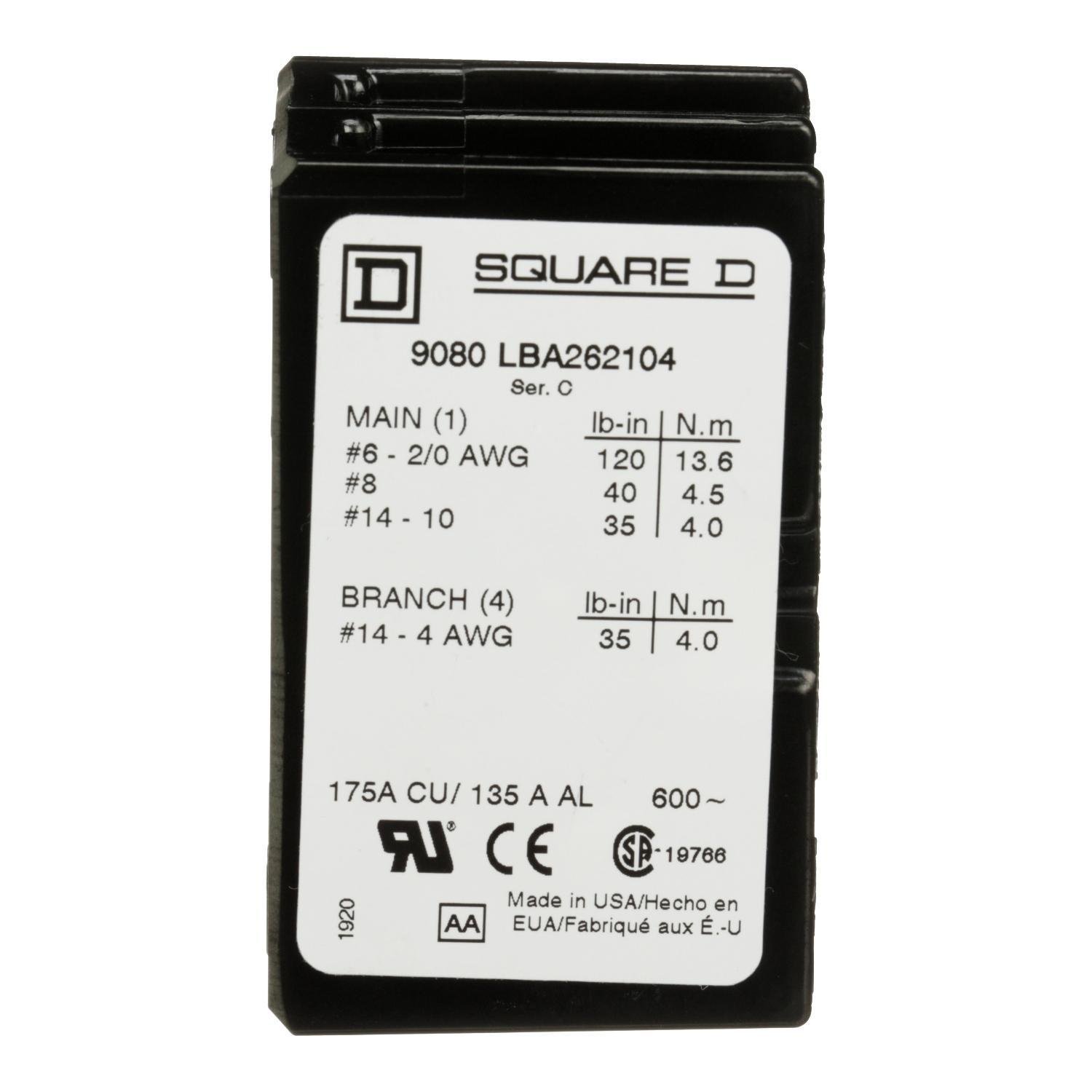

Picture of 9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V Picture of 9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V
Picture of 9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V Picture of 9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V
Picture of 9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V Picture of 9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V
Picture of 9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V Picture of 9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V
Picture of 9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V Picture of 9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V
Square D

9080LBA262104 - Power distribution block, Linergy, 2 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V

Item Code: 561966
Category Power Blocks & Distribution Blocks
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9080LBA262104

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This two pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Weight

0.35lb

Height

1.8mm

Width

1.78mm

Length

2.77mm

Depth

1.78mm

AD All Features

This block is two pole and designed to NEMA standards

AD Application

For 9080LB, 9080LB22 power distribution block covers and general purpose applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BLOCK DISTRIBUTION PWR MULTI-POLE 2 PHEN

AD Item Features 01

This block is two pole and designed to NEMA standards

AD Item Features 02

One lug opening on main side and four on branch side

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.8000

AD Package Height UOM

IN

AD Package Length

2.7700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

9.0700

AD Package Volume UOM

cu-in

AD Package Weight

0.3500

AD Package Weight UOM

LB

AD Package Width

1.7800

AD Package Width UOM

IN

Brand

Square D

Category

POWER BLOCKS & DISTRIBUTION BLOCKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

135/175

Spec 10 Attribute

Type

Spec 10 Attribute Value

General Purpose Linergy Standard

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC/DC

Spec 11 Attribute Value

600

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

(1) 14 to 2/0 AWG, (4) 14 to 4 AWG

Spec 2 Attribute

Color

Spec 2 Attribute Value

Black

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1.94 in W x 1.78 in D x 2.88 in H

Spec 4 Attribute

Material

Spec 4 Attribute Value

Phenolic

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

2

Spec 6 Attribute

Primary Connections/Pole

Spec 6 Attribute Value

1

Spec 7 Attribute

Secondary Connection/Pole

Spec 7 Attribute Value

4

Spec 8 Attribute

Series

Spec 8 Attribute Value

9080LB

Spec 9 Attribute

Short Circuit Current Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

65
