Square D

9080LBA265208 - Power distribution block, Linergy, 2 pole, 2 line, 8 load, 760A Cu, 620A Al, 600V

Category Miscellaneous

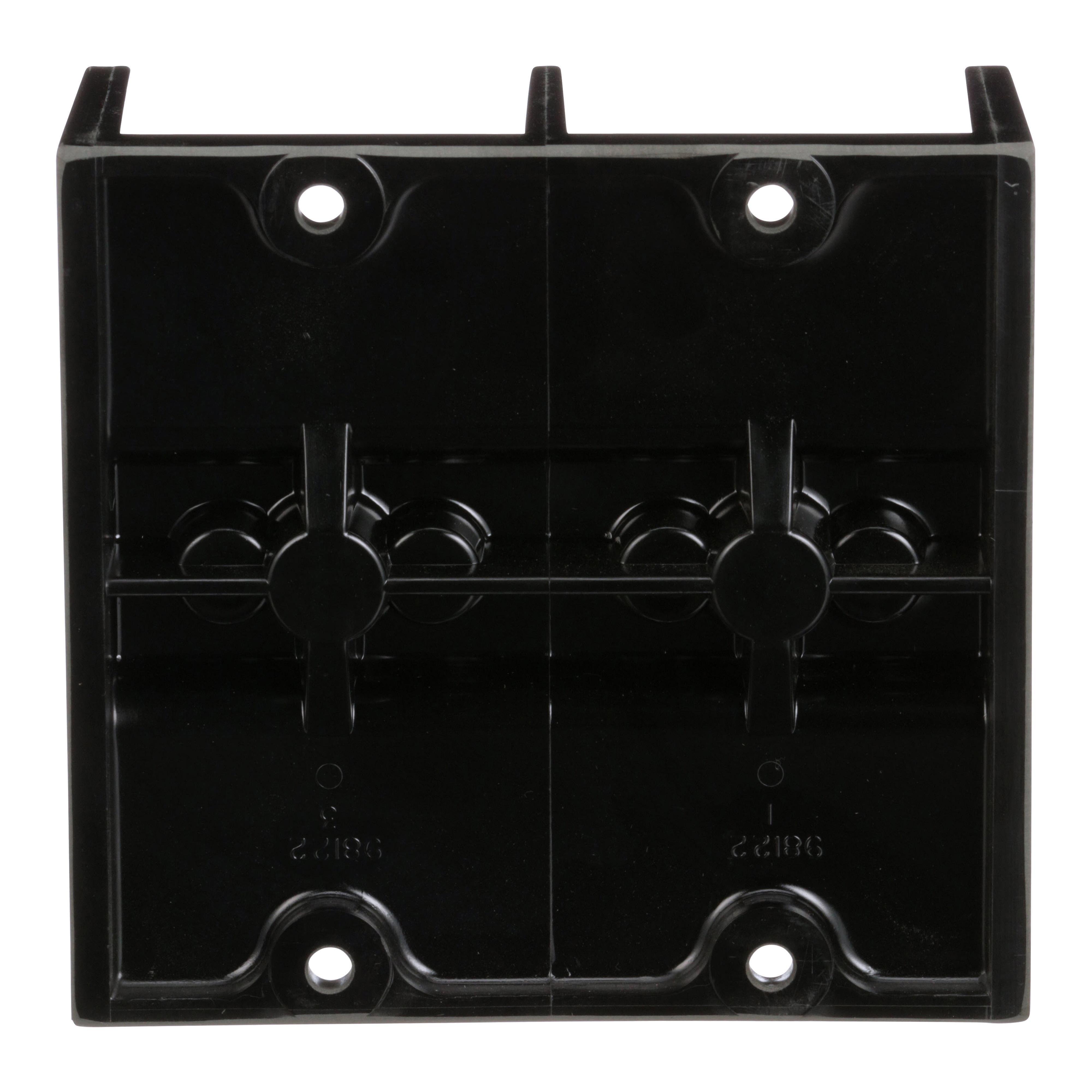

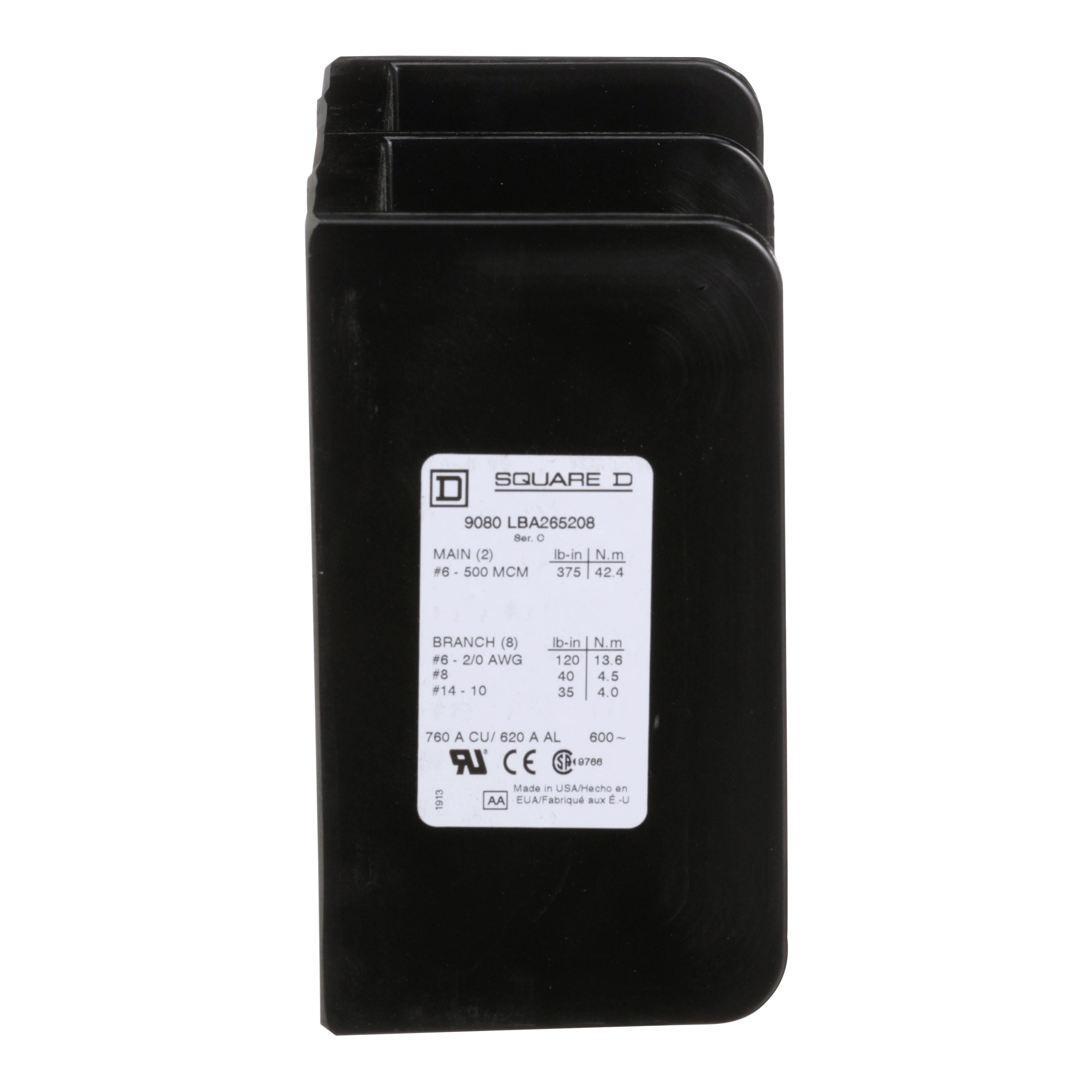

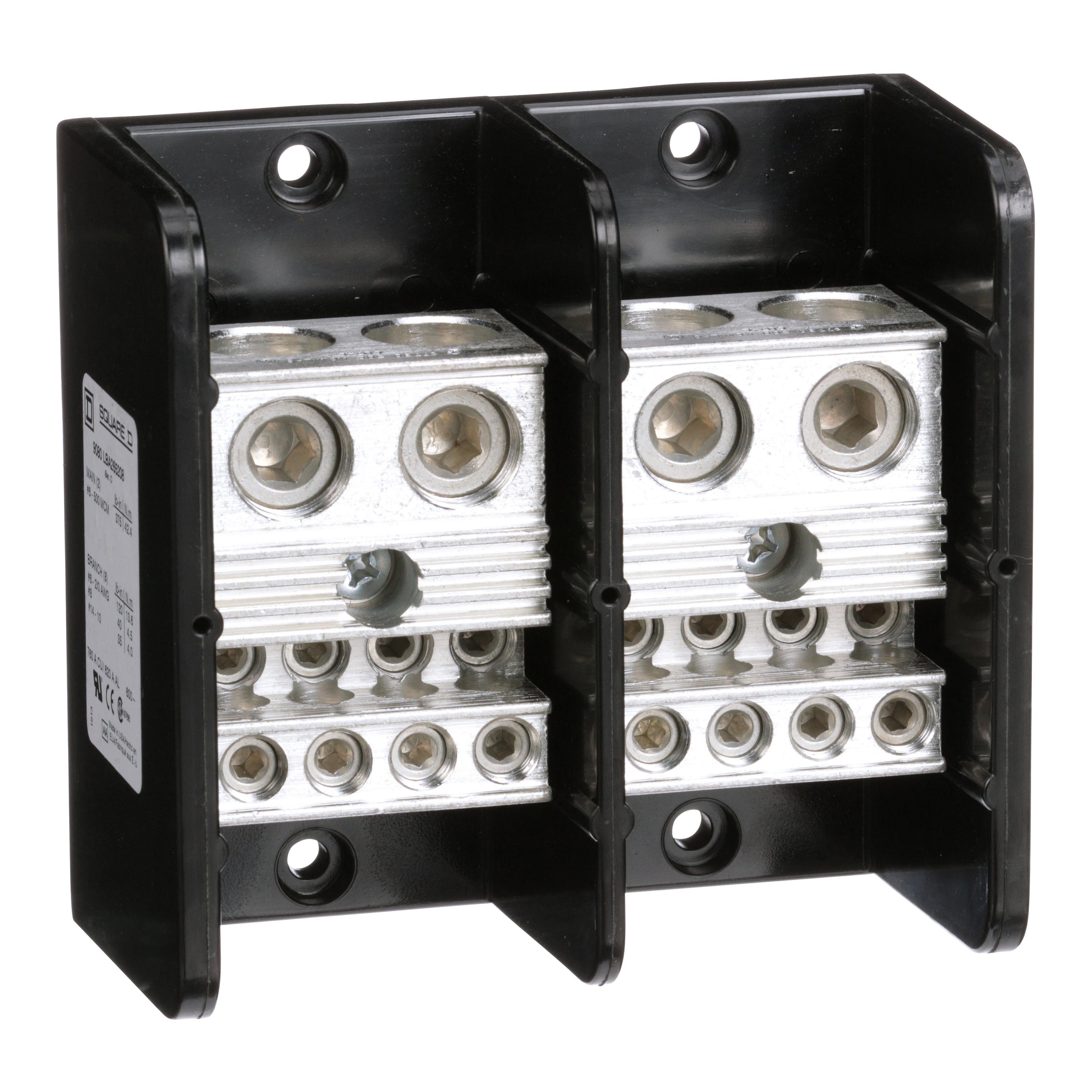

Picture of 9080LBA265208 - Power distribution block, Linergy, 2 pole, 2 line, 8 load, 760A Cu, 620A Al, 600V Picture of 9080LBA265208 - Power distribution block, Linergy, 2 pole, 2 line, 8 load, 760A Cu, 620A Al, 600V
Picture of 9080LBA265208 - Power distribution block, Linergy, 2 pole, 2 line, 8 load, 760A Cu, 620A Al, 600V Picture of 9080LBA265208 - Power distribution block, Linergy, 2 pole, 2 line, 8 load, 760A Cu, 620A Al, 600V
Picture of 9080LBA265208 - Power distribution block, Linergy, 2 pole, 2 line, 8 load, 760A Cu, 620A Al, 600V Picture of 9080LBA265208 - Power distribution block, Linergy, 2 pole, 2 line, 8 load, 760A Cu, 620A Al, 600V
Picture of 9080LBA265208 - Power distribution block, Linergy, 2 pole, 2 line, 8 load, 760A Cu, 620A Al, 600V Picture of 9080LBA265208 - Power distribution block, Linergy, 2 pole, 2 line, 8 load, 760A Cu, 620A Al, 600V
Square D

9080LBA265208 - Power distribution block, Linergy, 2 pole, 2 line, 8 load, 760A Cu, 620A Al, 600V

Item Code: 1207173
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9080LBA265208

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This two pole block has two lug openings on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one #14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Weight

2.64

Height

3.4

Width

5.94

Length

8.72

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9080LBA265208/9080LBA265208.spin

AD All Features

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Alternative Part Number

8051980

AD Application

For 9080LB, 9080LB52 power distribution block covers and general purpose applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

FR

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901157076

AD Gtin

00785901157076

AD IDEA Index ID

8051980

AD Invoice Description

BLOCK DISTRIBUTION MULTI-POLE 600VAC/VDC

AD Item Features 01

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Item Features 02

Has numerous configurations for power distribution and also allows customer save on panel space

AD Item Features 03

The housing is made of general purpose phenolic

AD Keywords

9080LBA265208 Standard Multi-Pole Distribution Block, 600 V AC/DC, 760/620 A, 2 Poles, 4 AWG to 500 kcmil, 14 to 2/0 AWG Al/Cu Wire, Phenolic ; Schneider Electric ; Square D ; 9080LBA265208 ; 9080LBA265208 ; 785901157076 ; Multi-Pole Distribution Blocks

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.4000

AD Package Height UOM

IN

AD Package Length

8.7200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

179.5200

AD Package Volume UOM

cu-in

AD Package Weight

2.6400

AD Package Weight UOM

LB

AD Package Width

5.9400

AD Package Width UOM

IN

AD Part Number Keywords

9080LBA265208 ; 8051980 ; 785901157076 ; 78590115707 ; 00785901157076 ; 0785901157076

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

760/620

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC/DC

Spec 10 Attribute Value

600

Spec 11 Attribute

Wire Size

Spec 11 Attribute Value

4 AWG to 500 kcmil, 14 to 2/0 AWG Al/Cu

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

5.5 in H x 5.88 in W x 3.13 in D

Spec 3 Attribute

Fuse Type

Spec 3 Attribute Value

Class J/T/RK1/RK5/G/CC

Spec 4 Attribute

Material

Spec 4 Attribute Value

Phenolic

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

2

Spec 6 Attribute

Primary Connections/Pole

Spec 6 Attribute Value

2

Spec 7 Attribute

Secondary Connection/Pole

Spec 7 Attribute Value

8

Spec 8 Attribute

Short Circuit Current Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

100

Spec 9 Attribute

Type

Spec 9 Attribute Value

Standard
