Square D

9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V

Category Power Blocks & Distribution Blocks

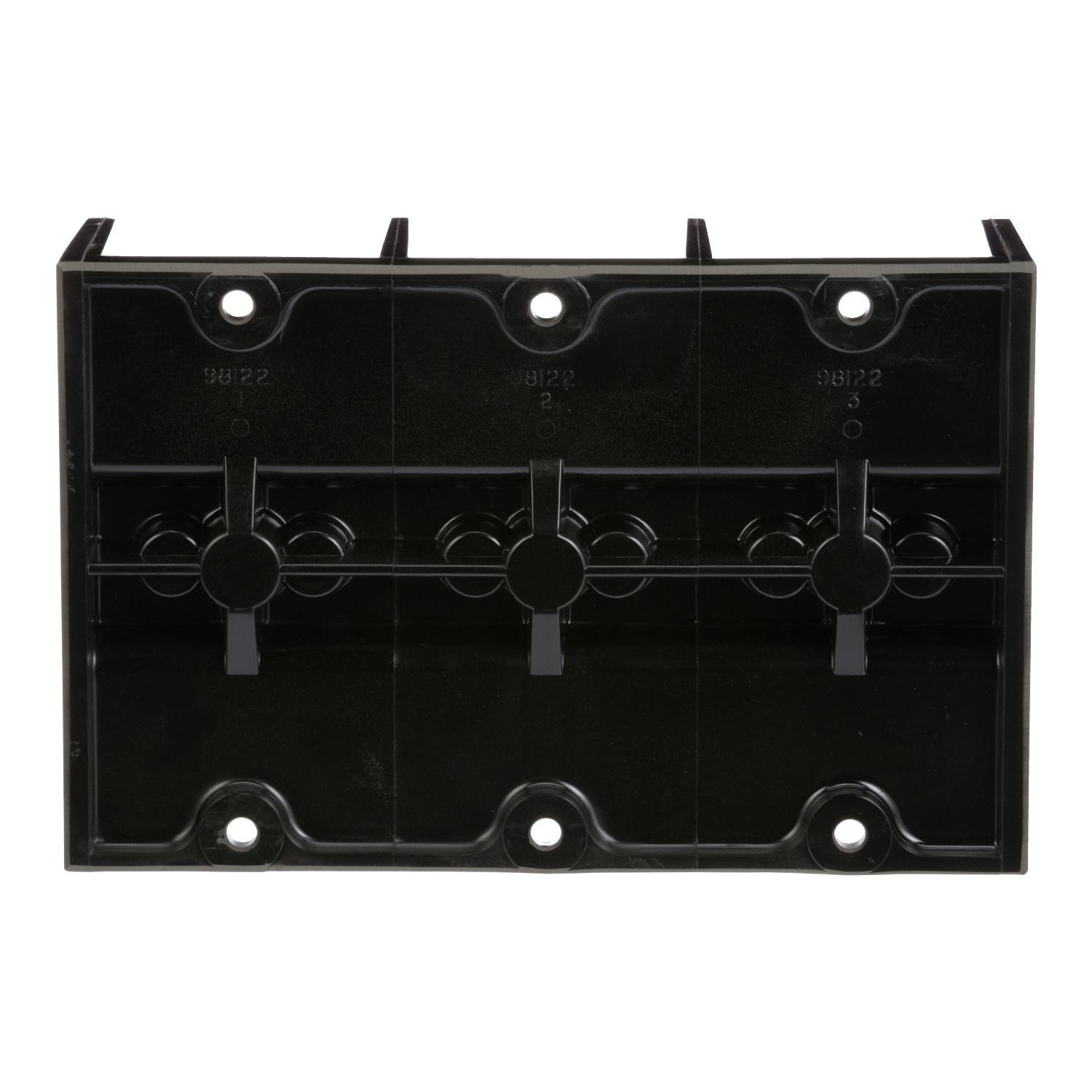

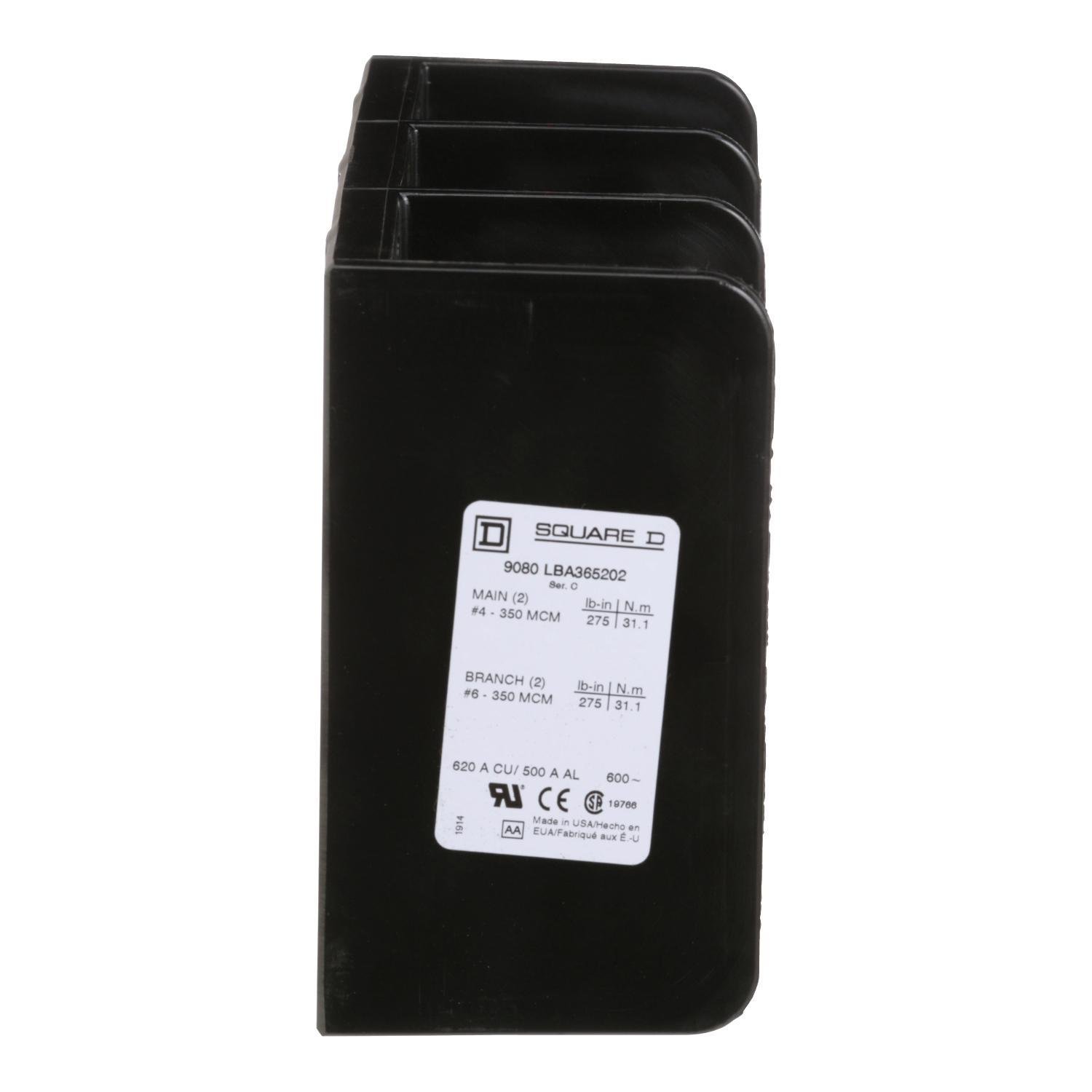

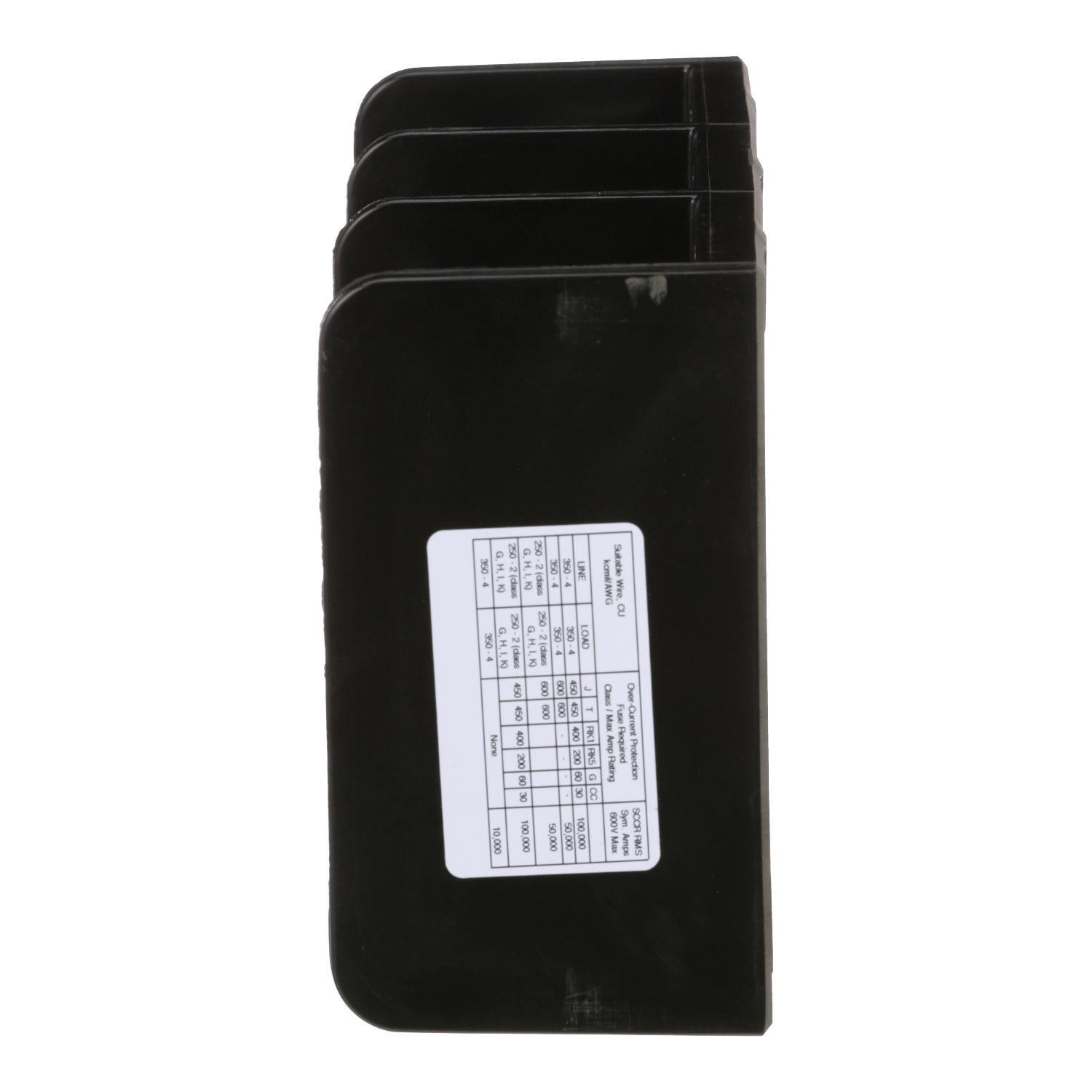

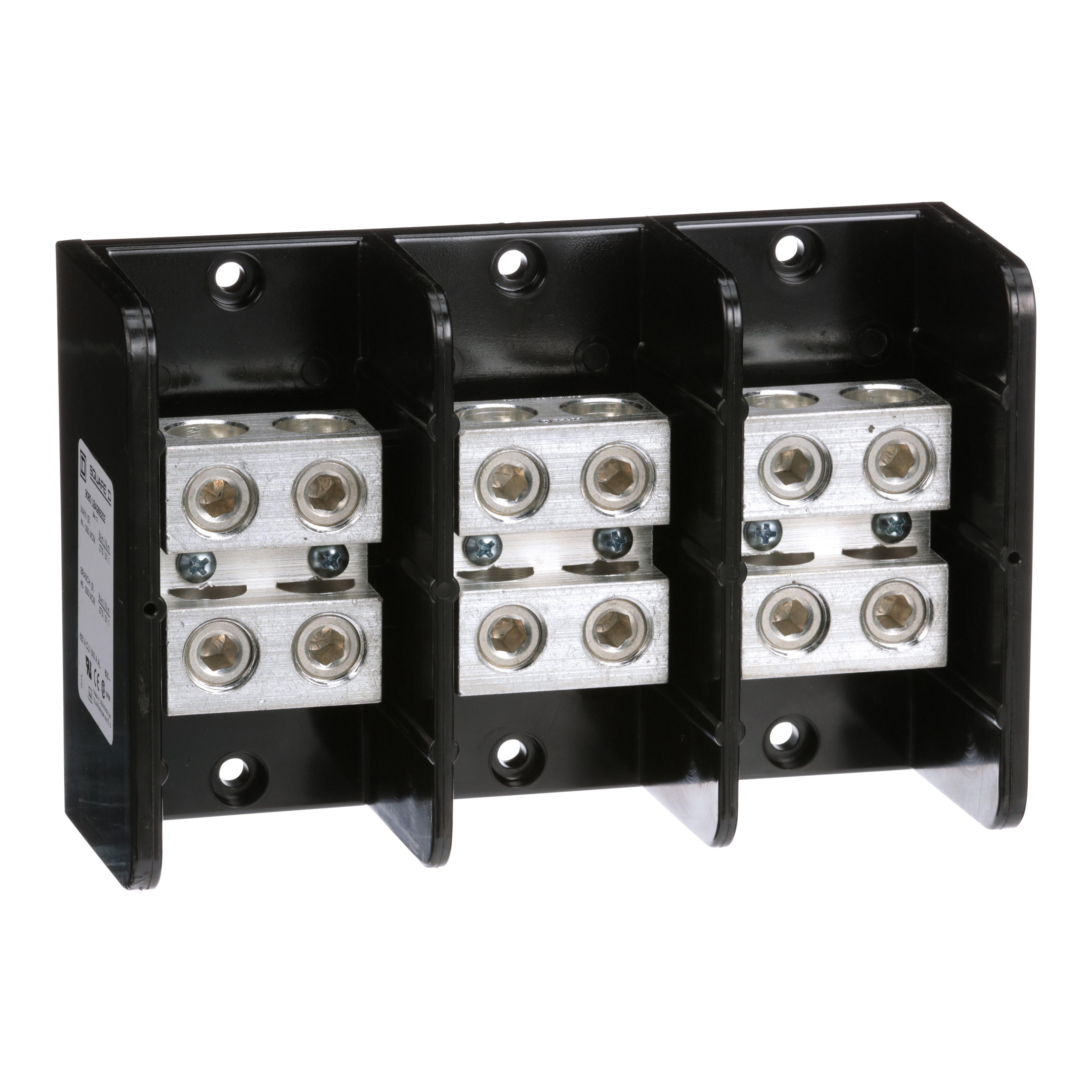

Picture of 9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V Picture of 9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V
Picture of 9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V Picture of 9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V
Picture of 9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V Picture of 9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V
Picture of 9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V Picture of 9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V
Picture of 9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V Picture of 9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V
Square D

9080LBA365202 - Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V

Item Code: 630337
Category Power Blocks & Distribution Blocks
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9080LBA365202

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and two lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 350 kcmil copper or aluminum wire. The load side lugs are rated to accept one #4 to 350 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 620 amperes with copper wire and 500 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Weight

3.08

Height

3.5

Width

5.84

Length

8.82

AD All Features

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Application

For 9080LB, 9080LB53 power distribution block covers and general purpose applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BLOCK DISTRIBUTION PWR MULTI-POLE 3 PHEN

AD Item Features 01

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Item Features 02

Has numerous configurations for power distribution and also allows customer save on panel space

AD Item Features 03

The housing is made of general purpose phenolic

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.5000

AD Package Height UOM

IN

AD Package Length

8.8200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

183.7900

AD Package Volume UOM

cu-in

AD Package Weight

3.0800

AD Package Weight UOM

LB

AD Package Width

5.8400

AD Package Width UOM

IN

Brand

Square D

Category

POWER BLOCKS & DISTRIBUTION BLOCKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

500/620

Spec 10 Attribute

Type

Spec 10 Attribute Value

Linergy

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC/DC

Spec 11 Attribute Value

600

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

(2) 6 AWG to 350 kcmil

Spec 2 Attribute

Color

Spec 2 Attribute Value

Clear

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

8.54 in W x 3.12 in D x 5.5 in H

Spec 4 Attribute

Material

Spec 4 Attribute Value

Phenolic

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

3

Spec 6 Attribute

Primary Connections/Pole

Spec 6 Attribute Value

2

Spec 7 Attribute

Secondary Connection/Pole

Spec 7 Attribute Value

2

Spec 8 Attribute

Series

Spec 8 Attribute Value

9080LB

Spec 9 Attribute

Short Circuit Current Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

100
