Square D

9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V

Category Miscellaneous

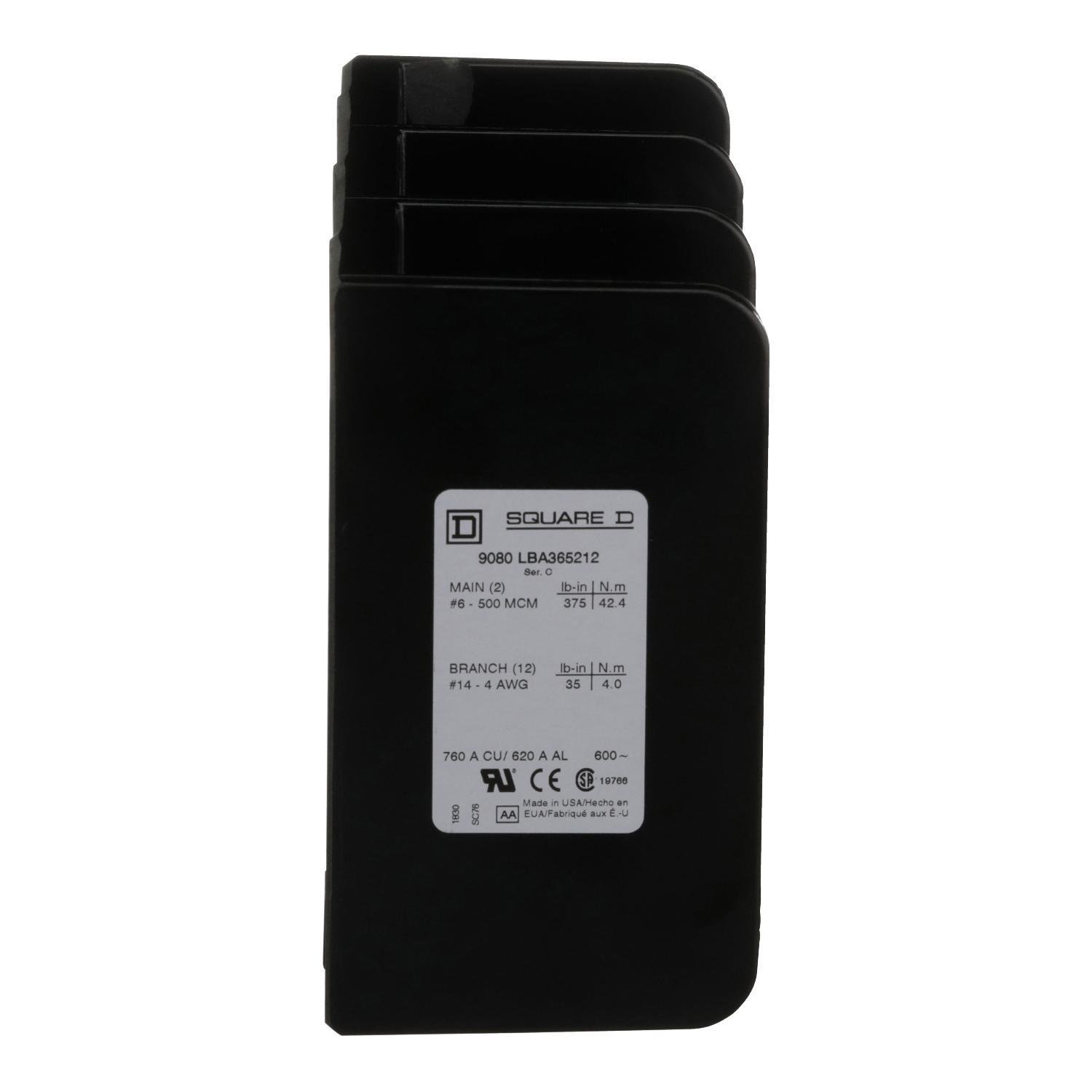

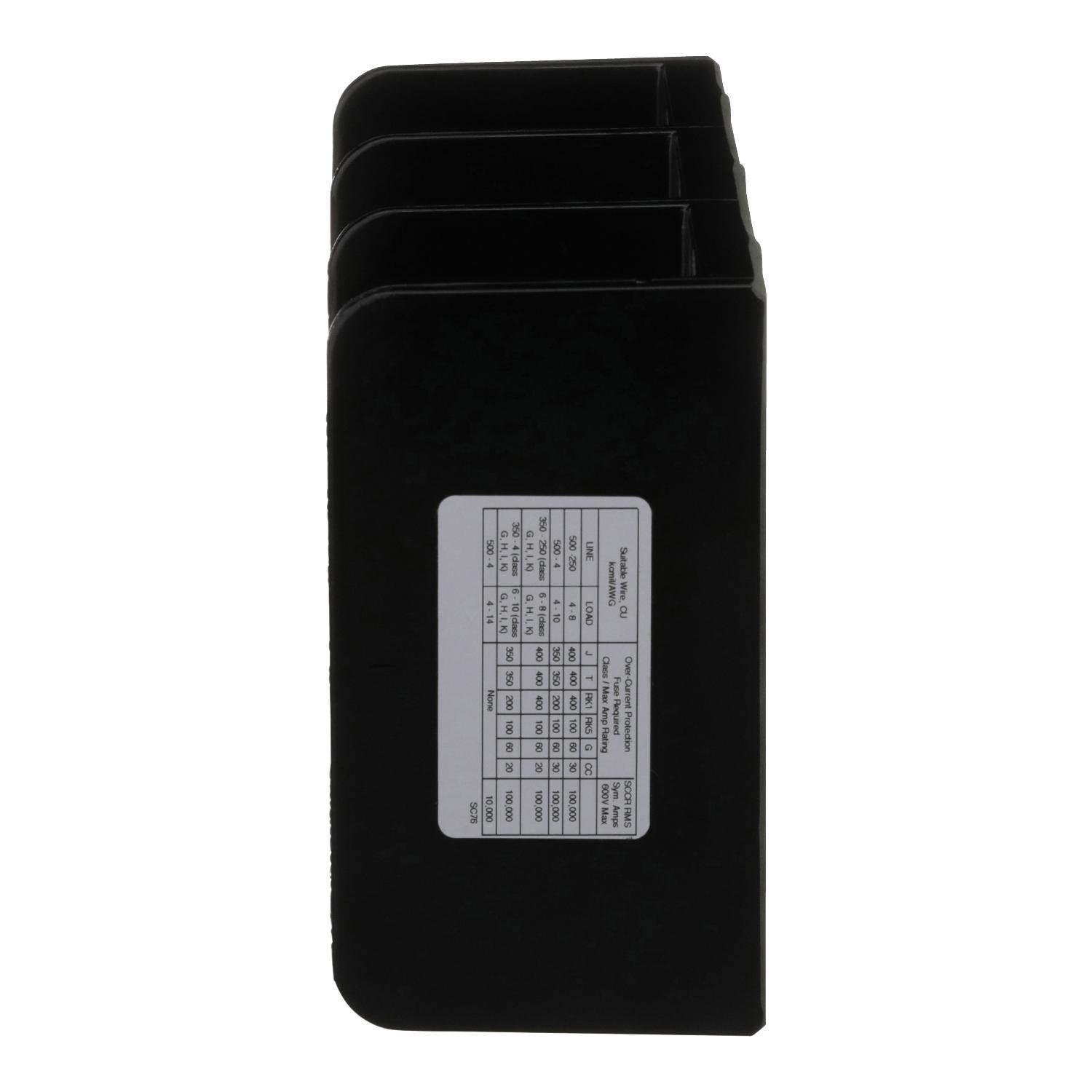

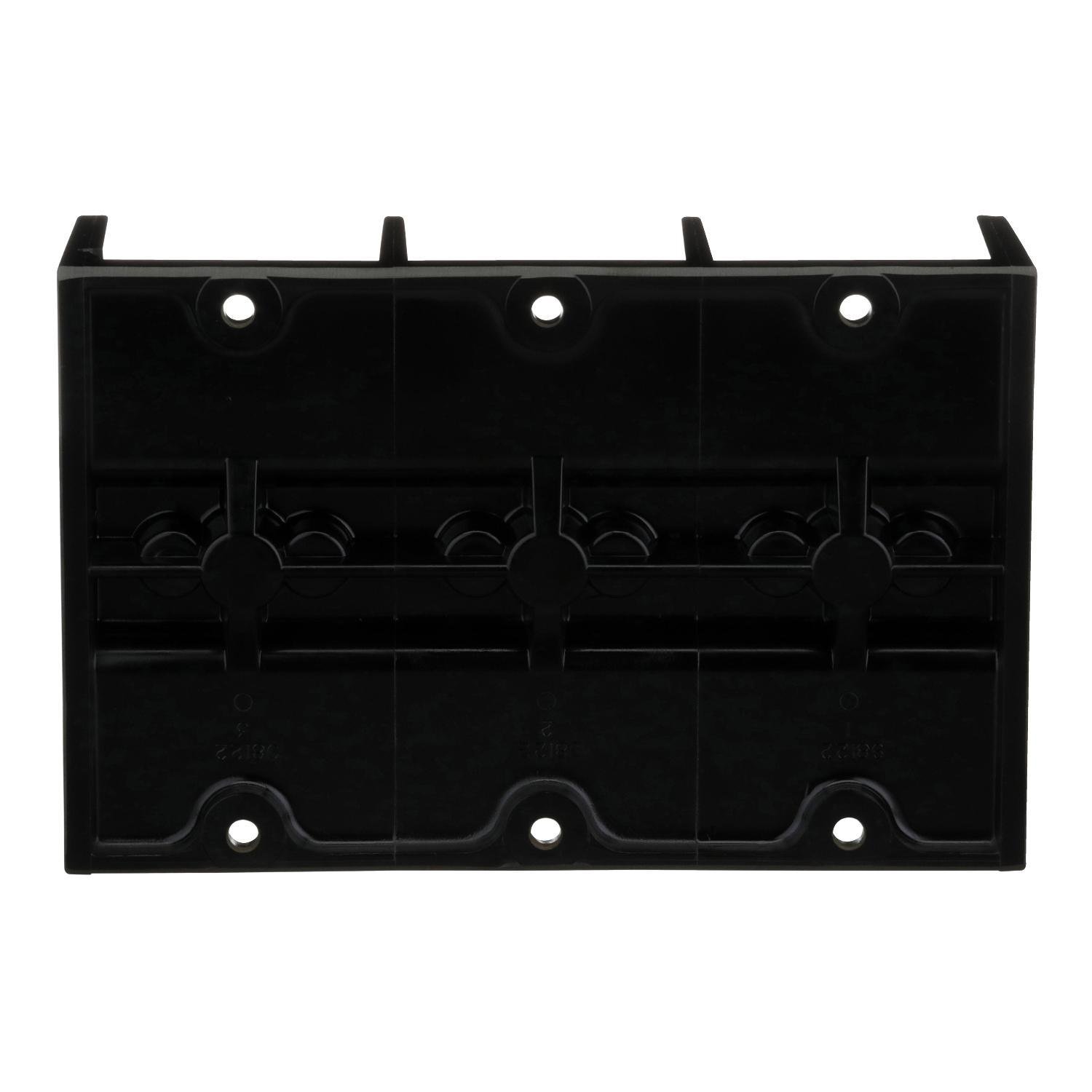

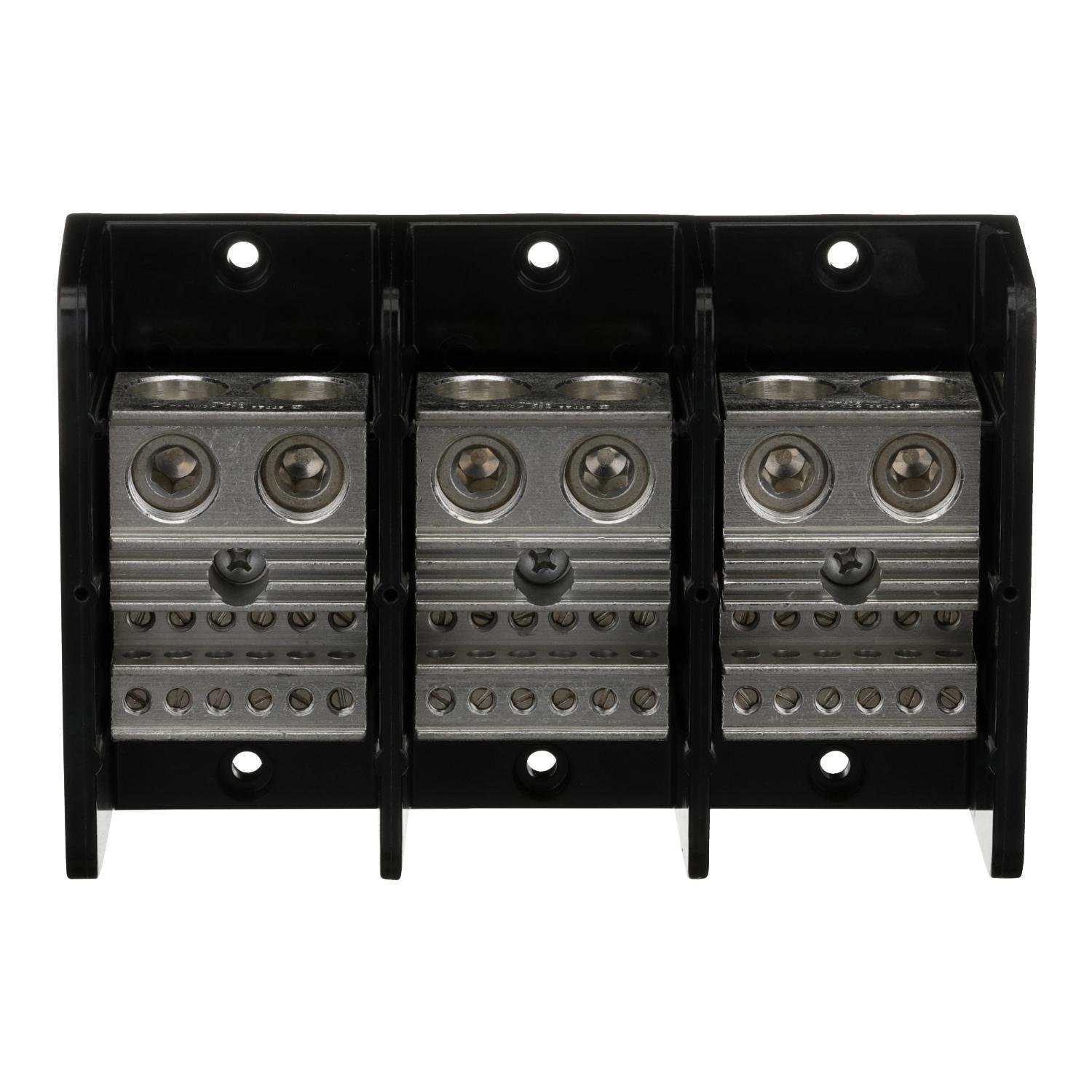

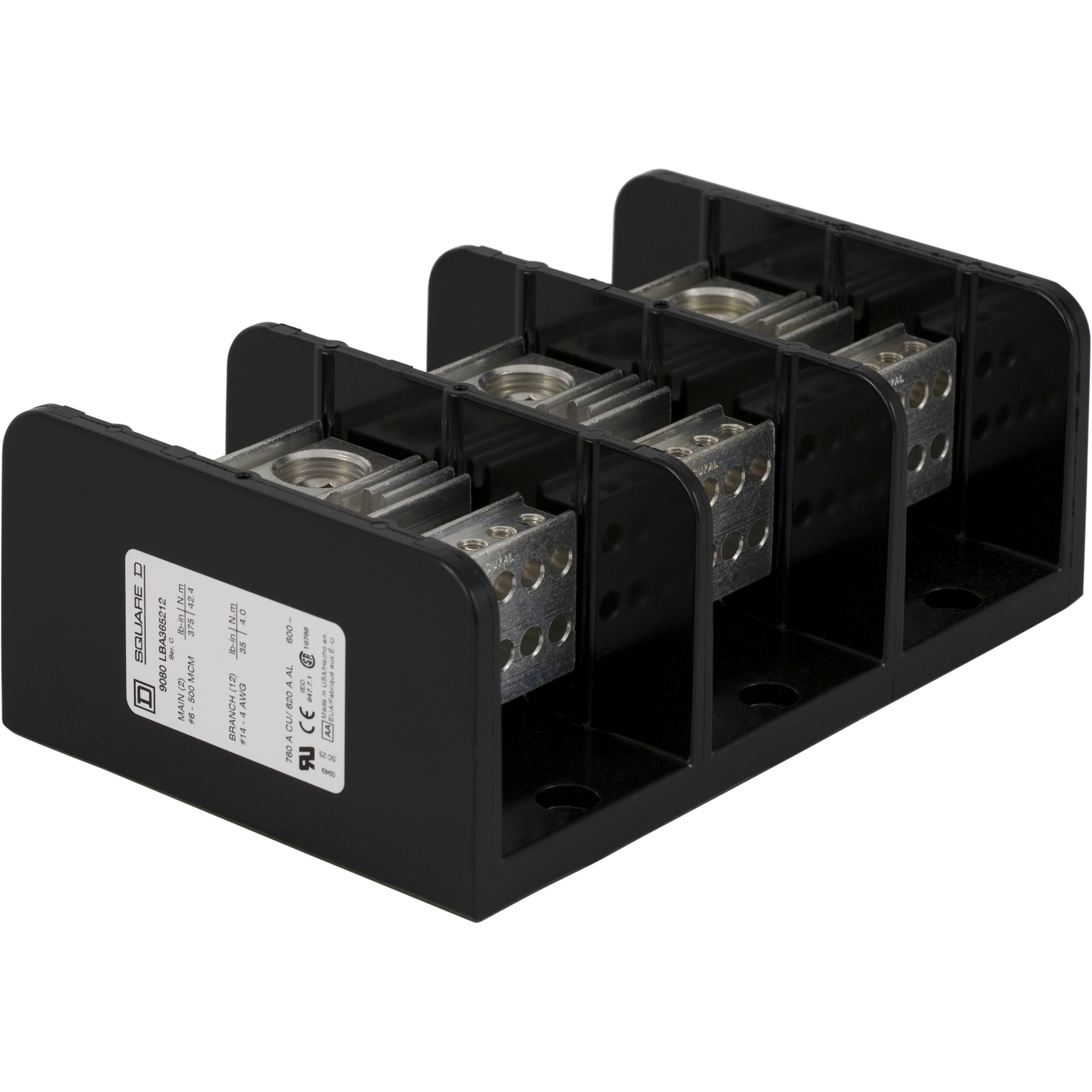

Picture of 9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V Picture of 9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V
Picture of 9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V Picture of 9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V
Picture of 9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V Picture of 9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V
Picture of 9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V Picture of 9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V
Picture of 9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V Picture of 9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V
Square D

9080LBA365212 - Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V

Item Code: 524656
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9080LBA365212

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and twelve lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Weight

3.85

Height

3.6

Width

5.84

Length

8.72

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9080LBA365212/9080LBA365212.spin

AD All Features

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Alternative Part Number

8019326

AD Application

For 9080LB, 9080LB53 power distribution block covers and general purpose applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Full Engineering Drawing

AD EAN

0785901097570

AD Gtin

00785901097570

AD IDEA Index ID

8019326

AD Invoice Description

BLOCK DISTRIBUTION PWR MULTI-POLE 3 PHEN

AD Item Features 01

Power Distribution Blocks is perfect for splicing or distributing wires within control panels

AD Item Features 02

Has numerous configurations for power distribution and also allows customer save on panel space

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.6000

AD Package Height UOM

IN

AD Package Length

8.7200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

192.2400

AD Package Volume UOM

cu-in

AD Package Weight

3.8500

AD Package Weight UOM

LB

AD Package Width

5.8400

AD Package Width UOM

IN

AD Part Number Keywords

9080LBA365212 ; 8019326 ; 785901097570 ; 78590109757 ; 00785901097570 ; 0785901097570

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

620/760

Spec 10 Attribute

Type

Spec 10 Attribute Value

General Purpose Linergy Standard

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC/DC

Spec 11 Attribute Value

600

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

(2) 4 AWG to 500 kcmil, (12) 14 to 4 AWG

Spec 2 Attribute

Color

Spec 2 Attribute Value

Black

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

8.54 in W x 3.12 in D x 5.5 in H

Spec 4 Attribute

Material

Spec 4 Attribute Value

Phenolic

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

3

Spec 6 Attribute

Primary Connections/Pole

Spec 6 Attribute Value

2

Spec 7 Attribute

Secondary Connection/Pole

Spec 7 Attribute Value

12

Spec 8 Attribute

Series

Spec 8 Attribute Value

9080LB

Spec 9 Attribute

Short Circuit Current Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

65
