Square D

9080LBC363101 - Power distribution block, Linergy, 3 pole, 1 line, 1 load, 255A Cu, 600V

Category Terminal Blocks & Accessories

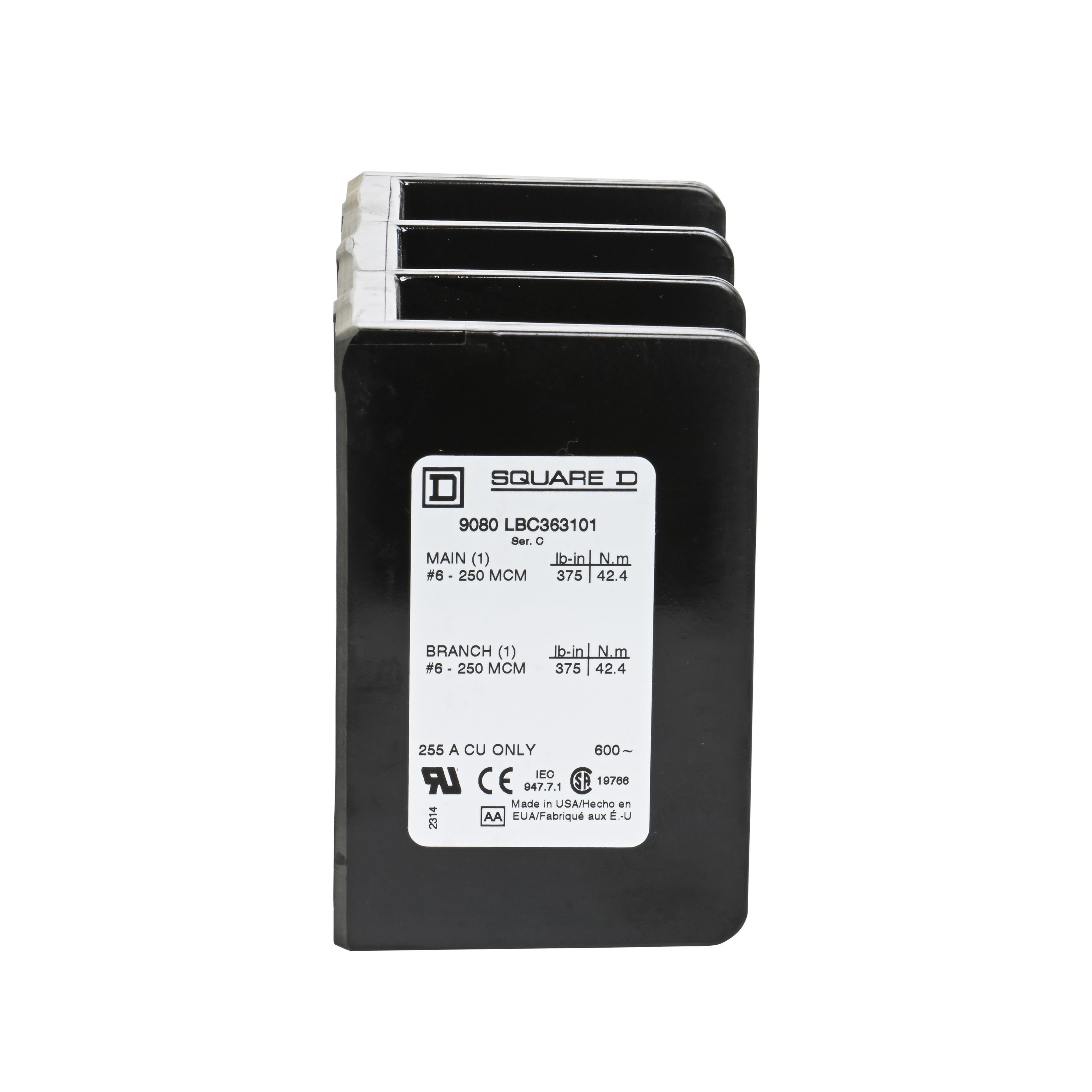

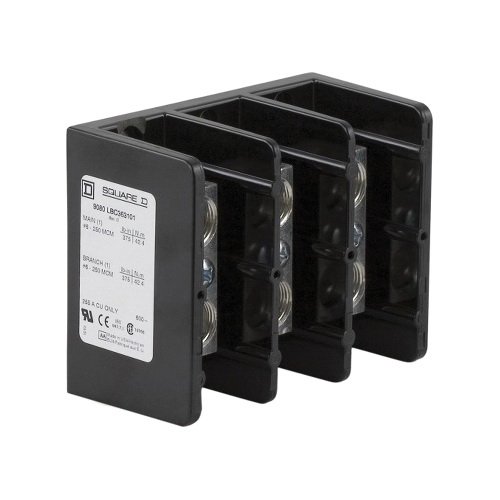

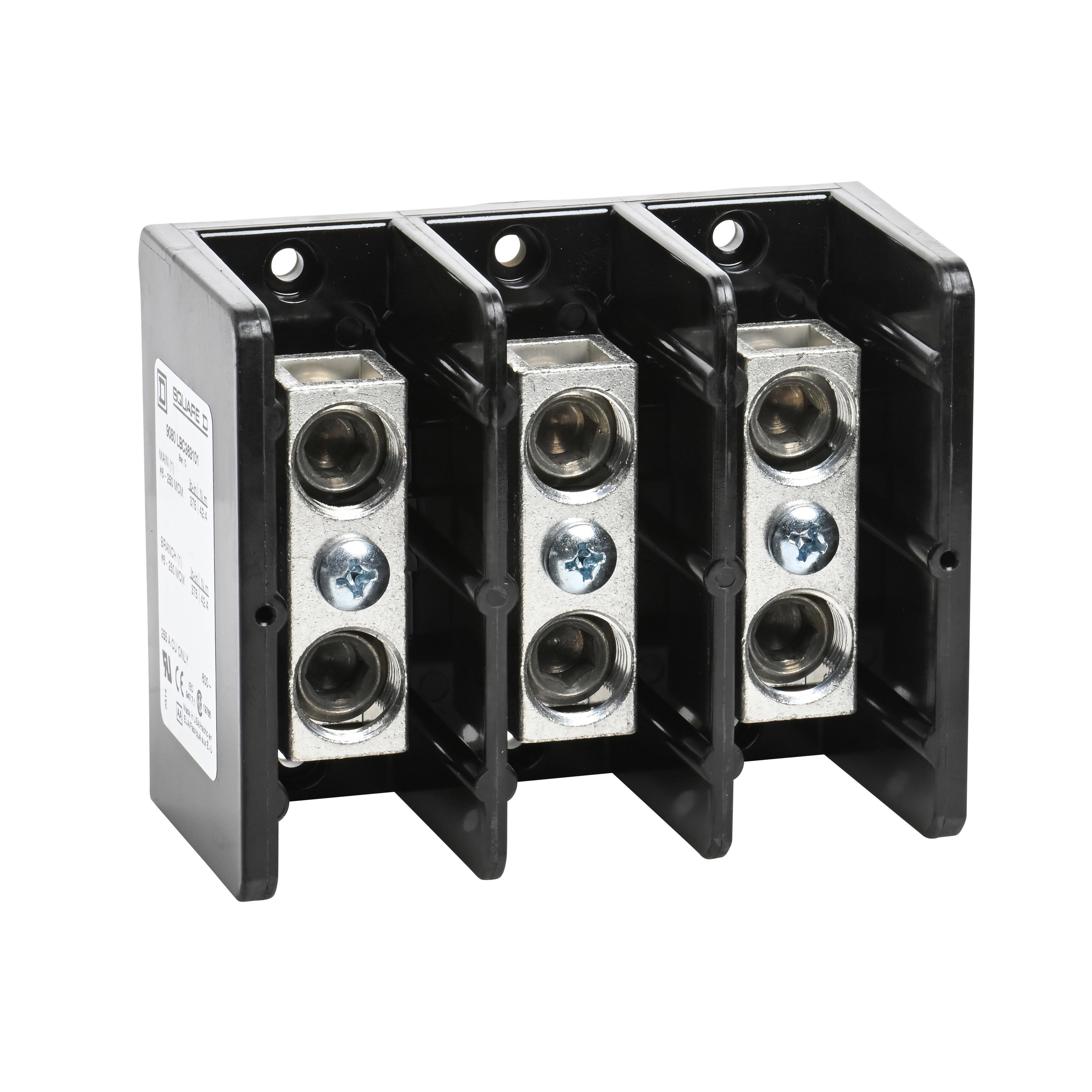

Picture of 9080LBC363101 - Power distribution block, Linergy, 3 pole, 1 line, 1 load, 255A Cu, 600V Picture of 9080LBC363101 - Power distribution block, Linergy, 3 pole, 1 line, 1 load, 255A Cu, 600V
Picture of 9080LBC363101 - Power distribution block, Linergy, 3 pole, 1 line, 1 load, 255A Cu, 600V Picture of 9080LBC363101 - Power distribution block, Linergy, 3 pole, 1 line, 1 load, 255A Cu, 600V
Picture of 9080LBC363101 - Power distribution block, Linergy, 3 pole, 1 line, 1 load, 255A Cu, 600V Picture of 9080LBC363101 - Power distribution block, Linergy, 3 pole, 1 line, 1 load, 255A Cu, 600V
Picture of 9080LBC363101 - Power distribution block, Linergy, 3 pole, 1 line, 1 load, 255A Cu, 600V Picture of 9080LBC363101 - Power distribution block, Linergy, 3 pole, 1 line, 1 load, 255A Cu, 600V
Square D

9080LBC363101 - Power distribution block, Linergy, 3 pole, 1 line, 1 load, 255A Cu, 600V

Item Code: 650398
Category Terminal Blocks & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9080LBC363101

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #6 to 250 kcmil copper wire. The load side lug is rated to accept one #6 to 250 kcmil copper wire. The lugs are made of copper. The lugs are rated for 250 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Weight

1.86

Height

3

Width

4.36

Length

5.35

AD All Features

This block is three pole and designed to NEMA standards

AD Application

For 9080LB and 9080LB33 power distribution block covers and general purpose applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BLOCK DISTRIBUTION PWR MULTI-POLE 255A

AD Item Features 01

This block is three pole and designed to NEMA standards

AD Item Features 02

One lug opening on main side and one on branch side

AD Item Features 03

The housing is made of general purpose phenolic

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.0000

AD Package Height UOM

IN

AD Package Length

5.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

71.2800

AD Package Volume UOM

cu-in

AD Package Weight

1.8600

AD Package Weight UOM

LB

AD Package Width

4.3600

AD Package Width UOM

IN

Brand

Square D

Category

Terminal Blocks & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

255

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC/DC

Spec 10 Attribute Value

600

Spec 11 Attribute

Wire Size

Spec 11 Attribute Value

6 AWG to 250 kcmil Al/Cu

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

5 in W x 2.61 in D x 4 in H

Spec 3 Attribute

Material

Spec 3 Attribute Value

Phenolic

Spec 4 Attribute

Number Of Poles

Spec 4 Attribute Value

3

Spec 5 Attribute

Primary Connections/Pole

Spec 5 Attribute Value

1

Spec 6 Attribute

Secondary Connection/Pole

Spec 6 Attribute Value

1

Spec 7 Attribute

Series

Spec 7 Attribute Value

9080LB

Spec 8 Attribute

Short Circuit Current Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

100

Spec 9 Attribute

Type

Spec 9 Attribute Value

Linergy
