Square D™

9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft

Category Miscellaneous

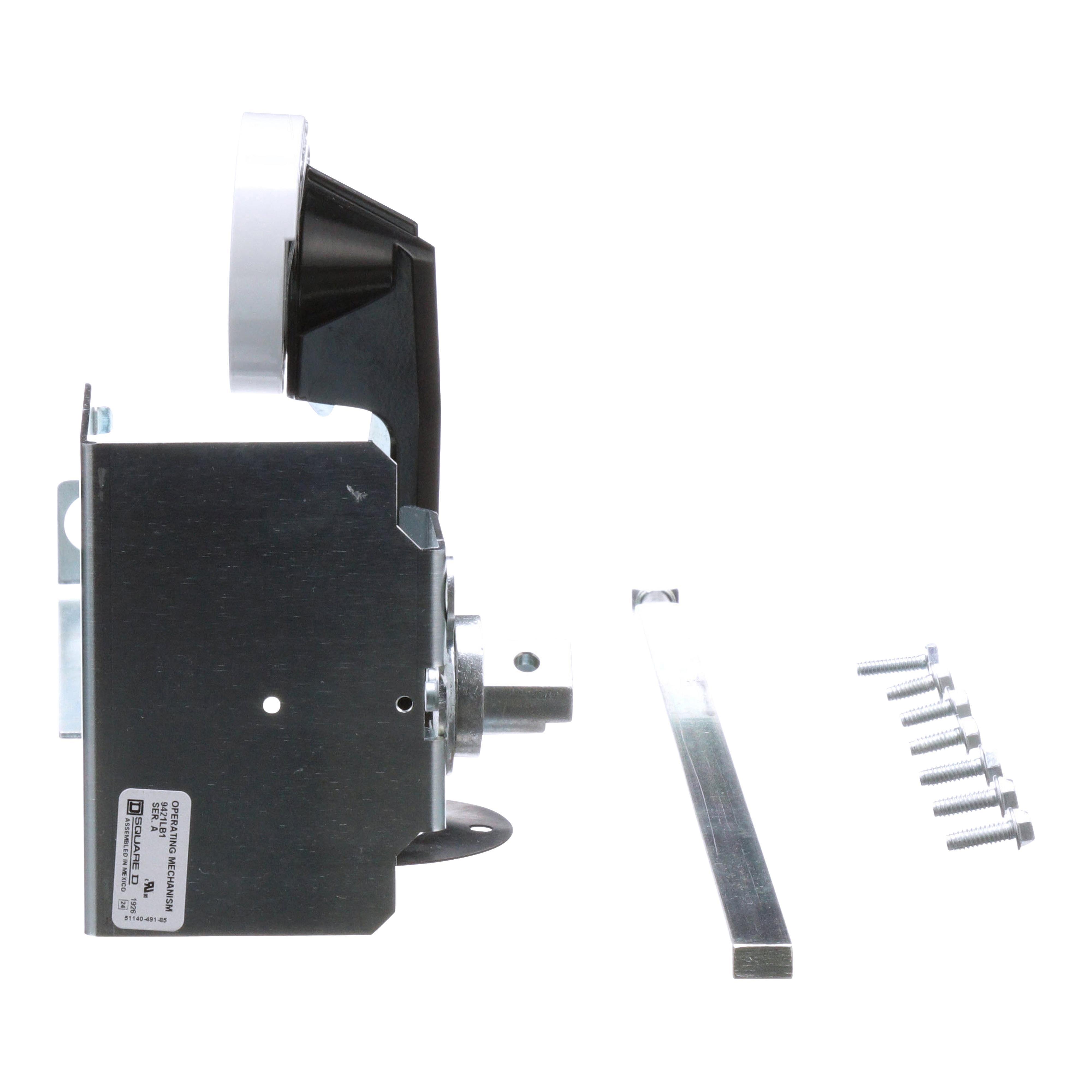

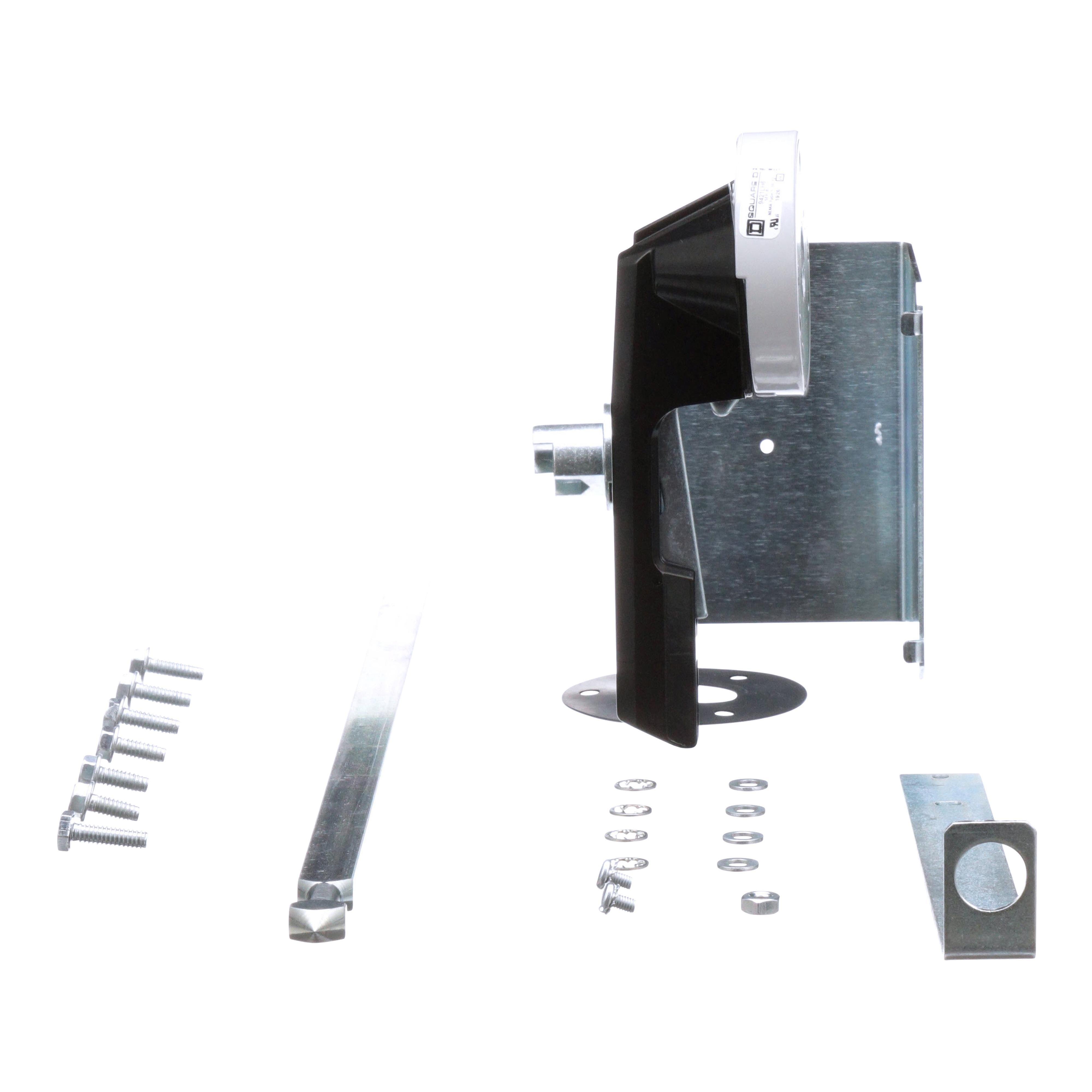

Picture of 9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft Picture of 9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft
Picture of 9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft Picture of 9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft
Picture of 9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft Picture of 9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft
Picture of 9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft Picture of 9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft
Picture of 9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft Picture of 9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft
Square D™

9421LB4 - Circuit breaker accessory, PowerPacT B, handle kit, rotary, 6 inch, 125A, operating mechanism, long shaft

Item Code: 1042979
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9421LB4

Document
Call for Availability
Add to Favorites
Compare

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT B circuit breakers. Mechanism is used with 2 or 3 pole breakers with a frame size of 125A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a long shaft. The mounting depth of this kit is 5.5 to 21.38 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Mechanism is UL Component Recognized and CSA certified.

Specifications

Weight

6.31

Width

7.33

Length

18.76

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9421LB4/9421LB4.spin

AD All Features

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Alternative Part Number

13877747

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD EAN

0785901093459

AD Gtin

00785901093459

AD IDEA Index ID

13877747

AD Includes

Operating Mechanism, 6 in Handle Assembly and Long Shaft Assembly

AD Invoice Description

KIT OPERATING MECH NEMA 1/3R/12 DOOR MET

AD Item Features 01

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Item Features 02

Two mounting methods offered for flexibility

AD Item Features 03

Disconnect switches were designed for control panel installations

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

18.7600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

6.3100

AD Package Weight UOM

LB

AD Package Width

7.3300

AD Package Width UOM

IN

AD Part Number Keywords

9421LB4 ; 13877747 ; 785901093459 ; 78590109345 ; 00785901093459 ; 0785901093459

Brand

Square D

Spec 1 Attribute

Handle Mounting Position

Spec 1 Attribute Value

Door

Spec 2 Attribute

Handle/Operation

Spec 2 Attribute Value

VARIABLE DEPTH HANDLE

Spec 3 Attribute

Material

Spec 3 Attribute Value

Metal

Spec 4 Attribute

NEMA Rating

Spec 4 Attribute Value

NEMA 1/3R/12

Spec 5 Attribute

Suitable For Use With

Spec 5 Attribute Value

PowerPact™ 3-Pole 125 A B-Frame Molded Case Circuit Breaker

Spec 6 Attribute

Type

Spec 6 Attribute Value

Type L Heavy Duty
