Square D™

9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout

Category Miscellaneous

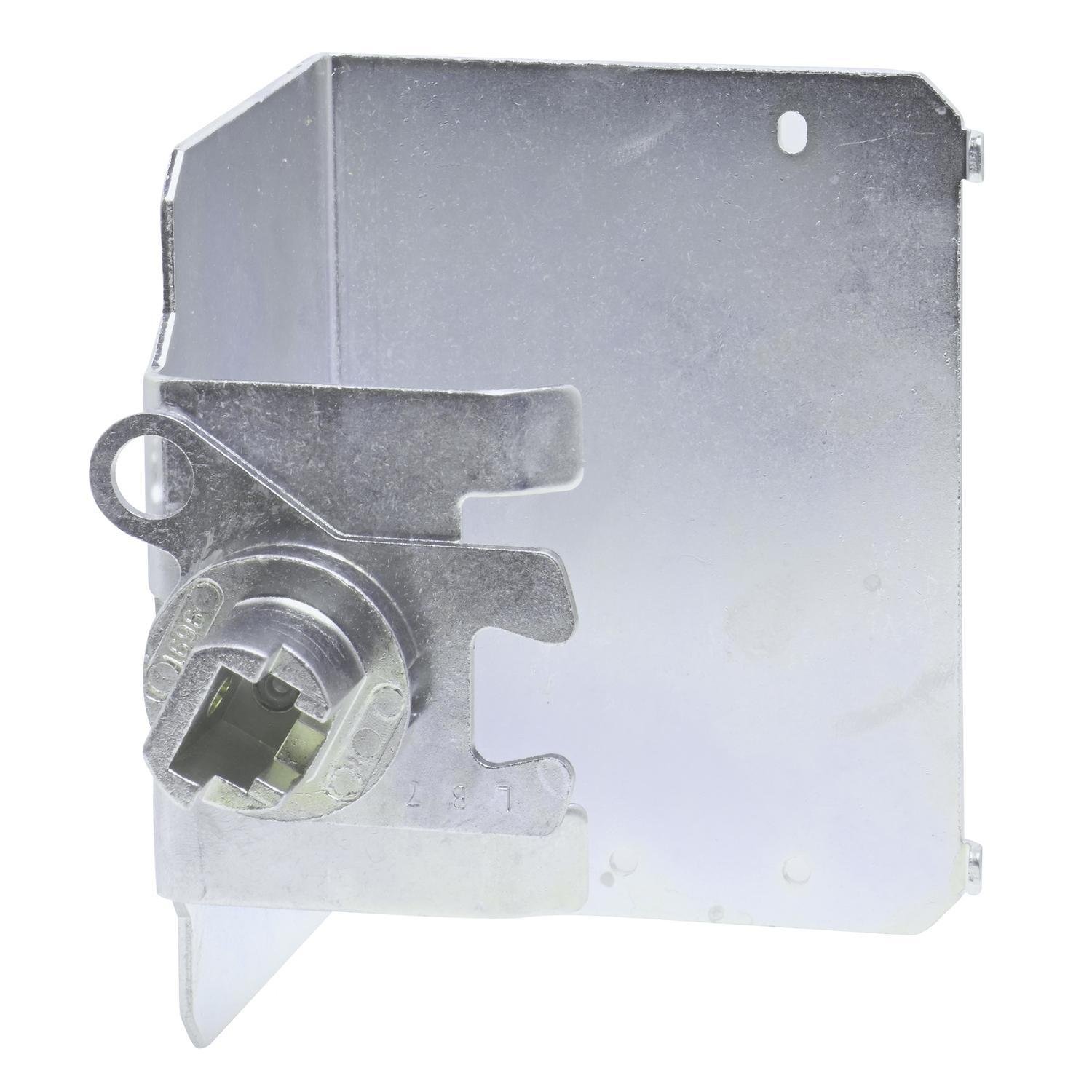

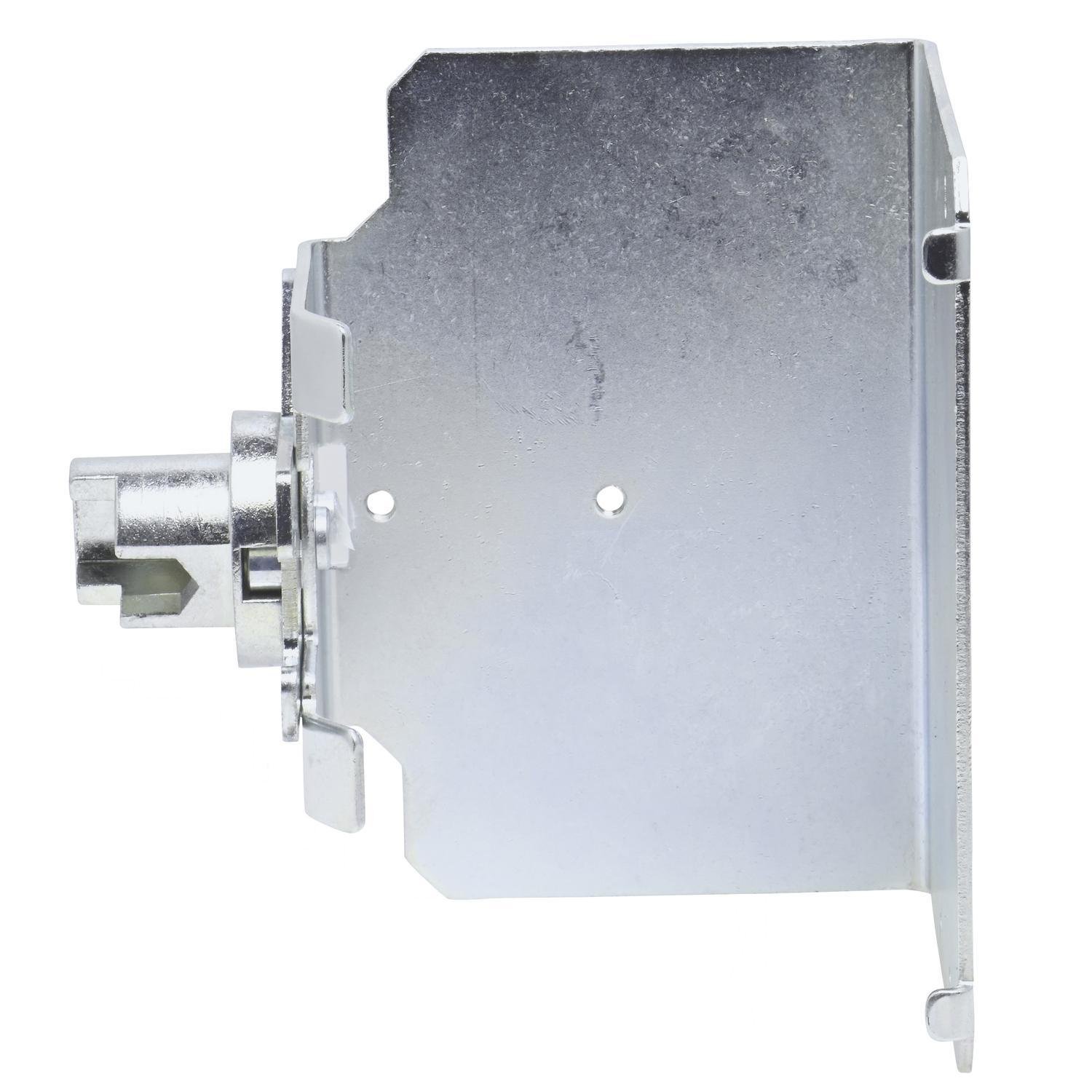

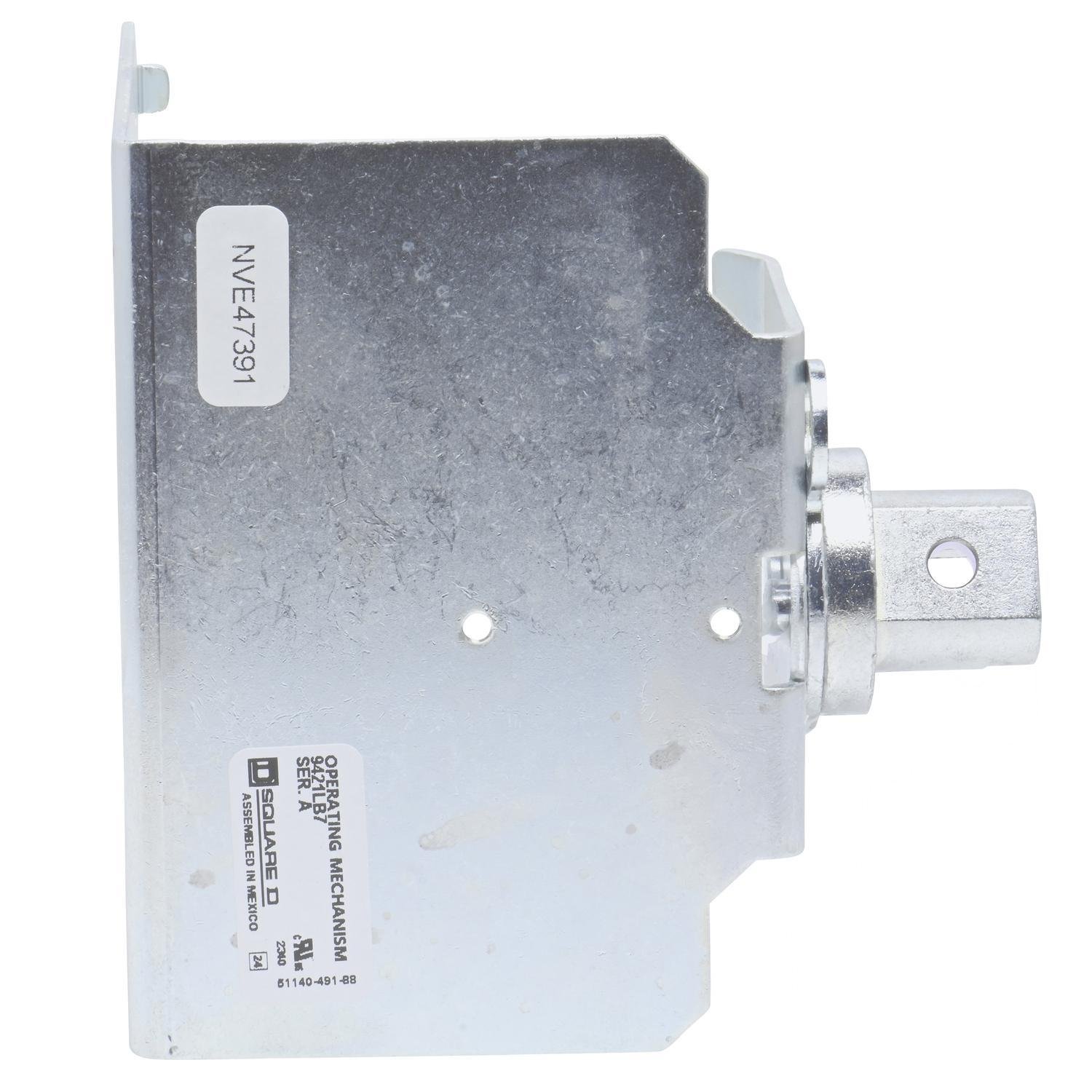

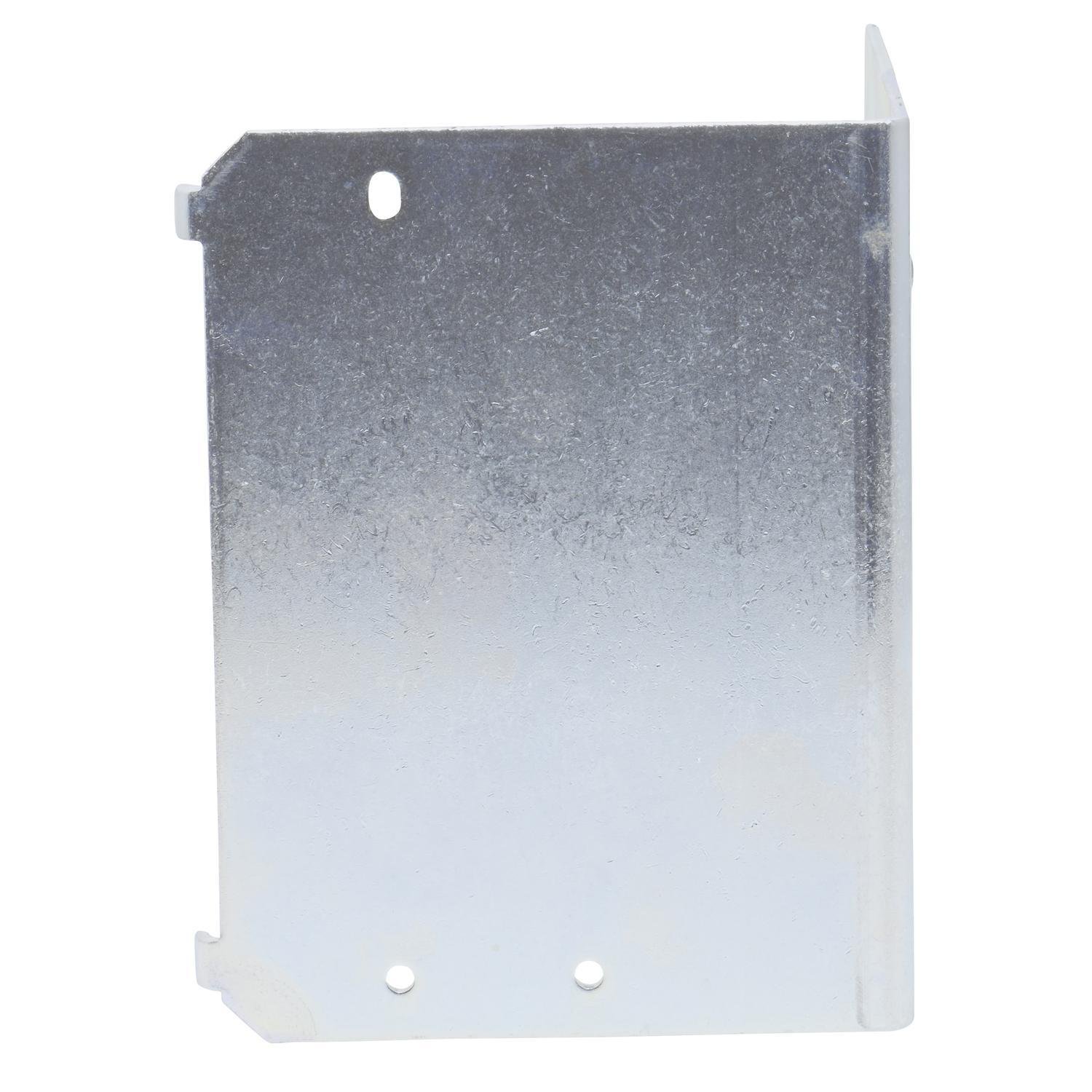

Picture of 9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout Picture of 9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout
Picture of 9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout Picture of 9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout
Picture of 9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout Picture of 9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout
Picture of 9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout Picture of 9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout
Picture of 9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout Picture of 9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout
Square D™

9421LB7 - Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, includes lockout

Item Code: 1041391
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9421LB7

Document
Call for Availability
Add to Favorites
Compare

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT B circuit breakers. Mechanism is used with 2 or 3 pole breakers with a frame size of 125A. Proper circuit breaker, operating handle and operating shaft must be ordered separately. Mechanism is UL Component Recognized and CSA certified.

Specifications

Weight

1.8

Height

7

Width

7.45

Length

8.11

AD All Features

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Alternative Part Number

13877743

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD EAN

0785901093480

AD Gtin

00785901093480

AD IDEA Index ID

13877743

AD Includes

Lockout

AD Invoice Description

MECHANISM OPERATING NEMA 1/3R/12 DOOR BK

AD Item Features 01

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Item Features 02

Two mounting methods offered for flexibility

AD Item Features 03

Disconnect switches were designed for control panel installations

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.0000

AD Package Height UOM

IN

AD Package Length

8.1100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

476.0000

AD Package Volume UOM

cu-in

AD Package Weight

1.8000

AD Package Weight UOM

LB

AD Package Width

7.4500

AD Package Width UOM

IN

AD Part Number Keywords

9421LB7 ; 13877743 ; 785901093480 ; 78590109348 ; 00785901093480 ; 0785901093480

Brand

Square D

Spec 1 Attribute

Handle Color

Spec 1 Attribute Value

Black

Spec 2 Attribute

Handle Mounting Position

Spec 2 Attribute Value

Door

Spec 3 Attribute

Handle/Operation

Spec 3 Attribute Value

VARIABLE DEPTH HANDLE

Spec 4 Attribute

Material

Spec 4 Attribute Value

Metal

Spec 5 Attribute

NEMA Rating

Spec 5 Attribute Value

NEMA 1/3R/12

Spec 6 Attribute

Suitable For Use With

Spec 6 Attribute Value

PowerPact™ 3-Pole 125 A B Frame Molded Case Circuit Breaker

Spec 7 Attribute

Type

Spec 7 Attribute Value

Type L Heavy Duty

Square D™
