Square D

9421LC46 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 3/4/4X, chrome plated

Category Disconnect Motor Switches & Accessories

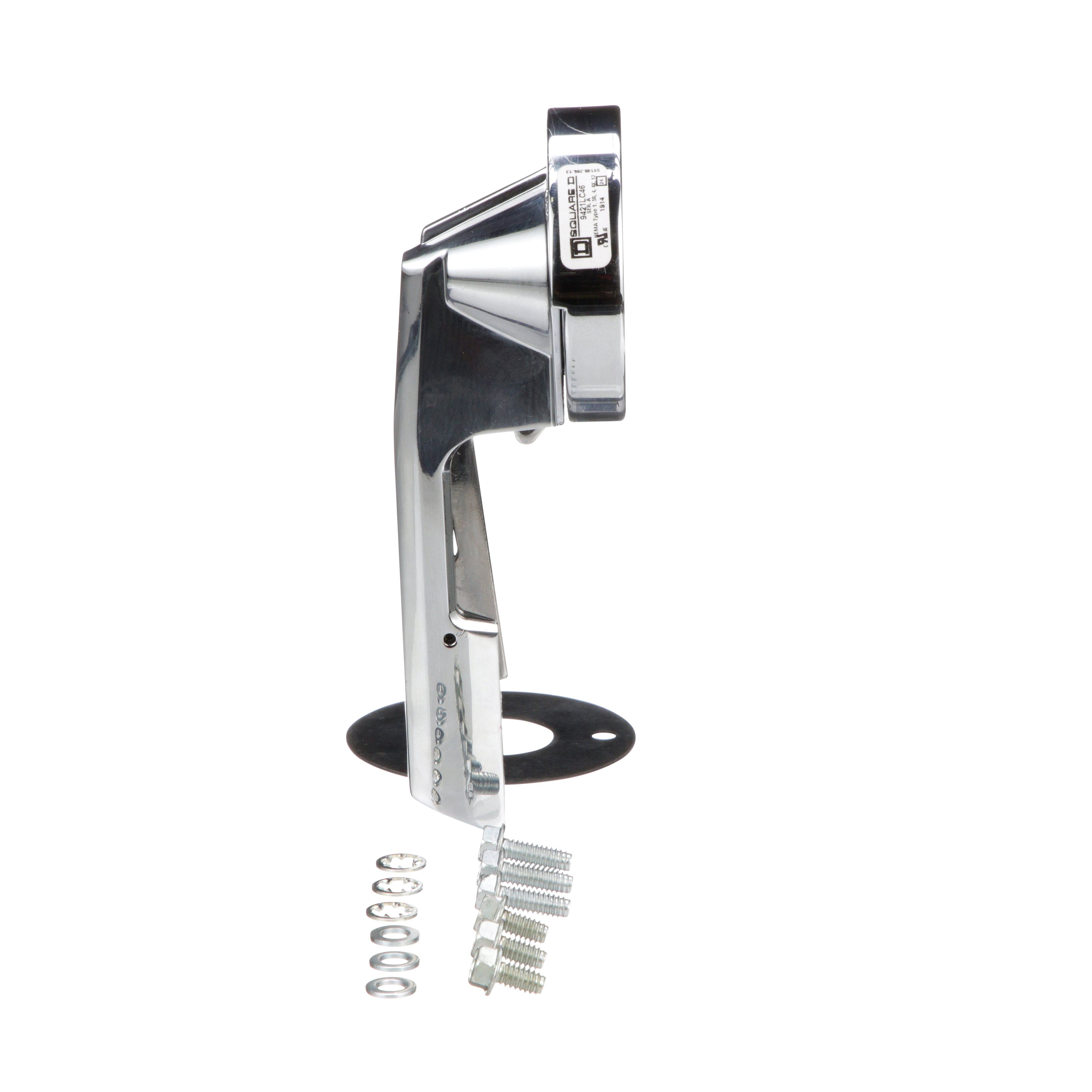

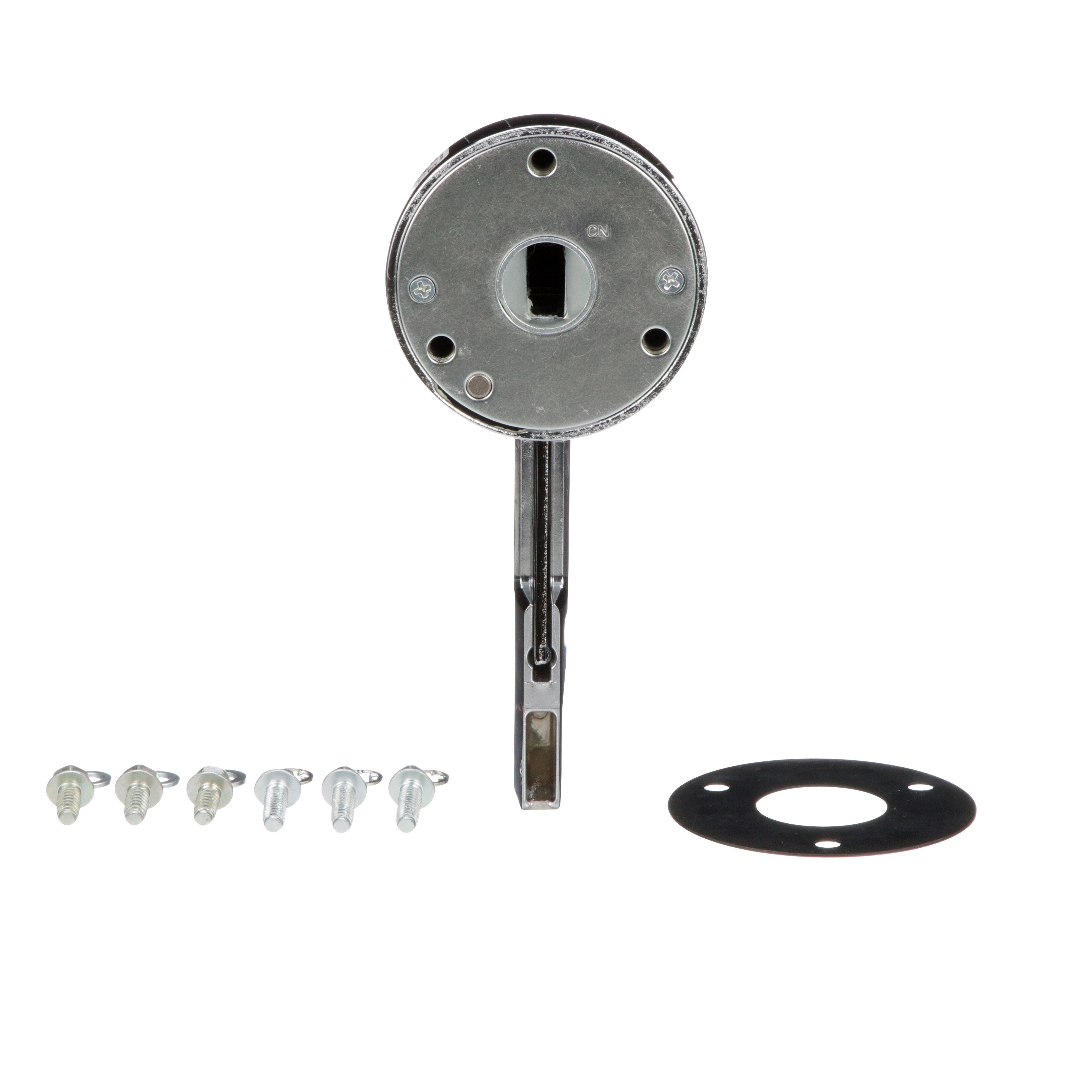

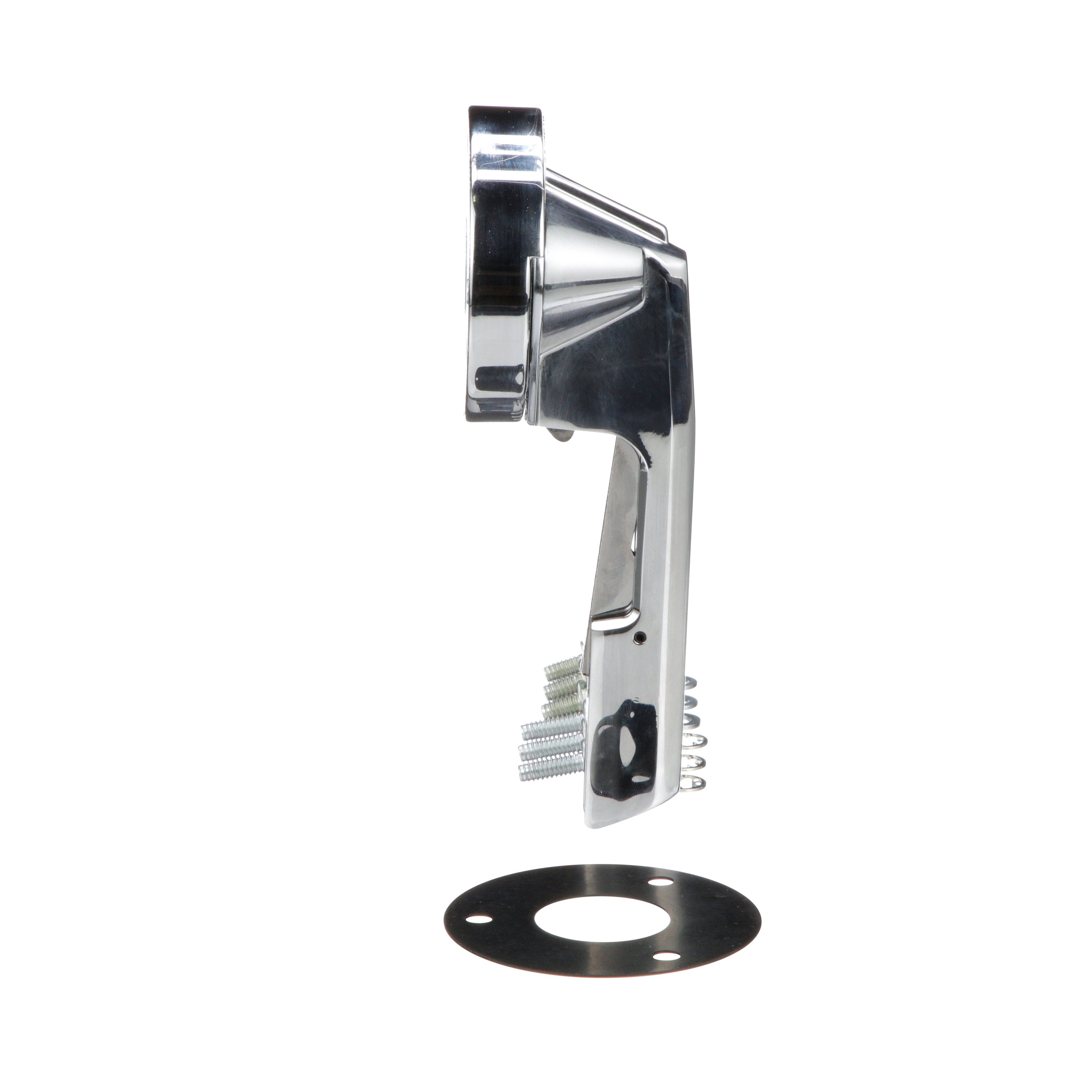

Picture of 9421LC46 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 3/4/4X, chrome plated Picture of 9421LC46 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 3/4/4X, chrome plated
Picture of 9421LC46 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 3/4/4X, chrome plated Picture of 9421LC46 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 3/4/4X, chrome plated
Picture of 9421LC46 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 3/4/4X, chrome plated Picture of 9421LC46 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 3/4/4X, chrome plated
Picture of 9421LC46 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 3/4/4X, chrome plated Picture of 9421LC46 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 3/4/4X, chrome plated
Square D

9421LC46 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 3/4/4X, chrome plated

Item Code: 676060
Category Disconnect Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9421LC46

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle mechanism will work with 2 or 3 pole PowerPacT B circuit breakers with a 125A frame size. This handle mechanism will also work with 2 or 3 pole PowerPacT H and PowerPacT J, Compact NSF circuit breakers with a 250A frame size. This handle mechanism will also work with 2 or 3 pole PowerPacT D and PowerPacT L circuit breakers with a 600A frame size. This handle mechanism will also work with 4 pole PowerPacT D and PowerPacT L circuit breakers with a 1200A 300V frame size. This handle assembly has a 6 inch handle. This chrome plated handle is rated for NEMA Type 1, 3R, 4, 4X and 12. This handle assembly is UL Component Recognized and CSA certified.

Specifications

Weight

2.24

Height

4.6

Width

5.93

Length

6.75

AD All Features

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Application

For circuit breaker applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

ASSEMBLY HDL MECH OPERATING 6IN BK

AD Item Features 01

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Item Features 02

Two mounting methods offered for flexibility

AD Item Features 03

Disconnect switches were designed for control panel installations

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.6000

AD Package Height UOM

IN

AD Package Length

6.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

193.9400

AD Package Volume UOM

cu-in

AD Package Weight

2.2400

AD Package Weight UOM

LB

AD Package Width

5.9300

AD Package Width UOM

IN

Brand

Square D

Category

DISCONNECT MOTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black

Spec 2 Attribute

Finish

Spec 2 Attribute Value

Polished Chrome

Spec 3 Attribute

Length

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

6

Spec 4 Attribute

Series

Spec 4 Attribute Value

9421L

Spec 5 Attribute

Type

Spec 5 Attribute Value
