Square D

9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12

Category Disconnect Motor Switches & Accessories

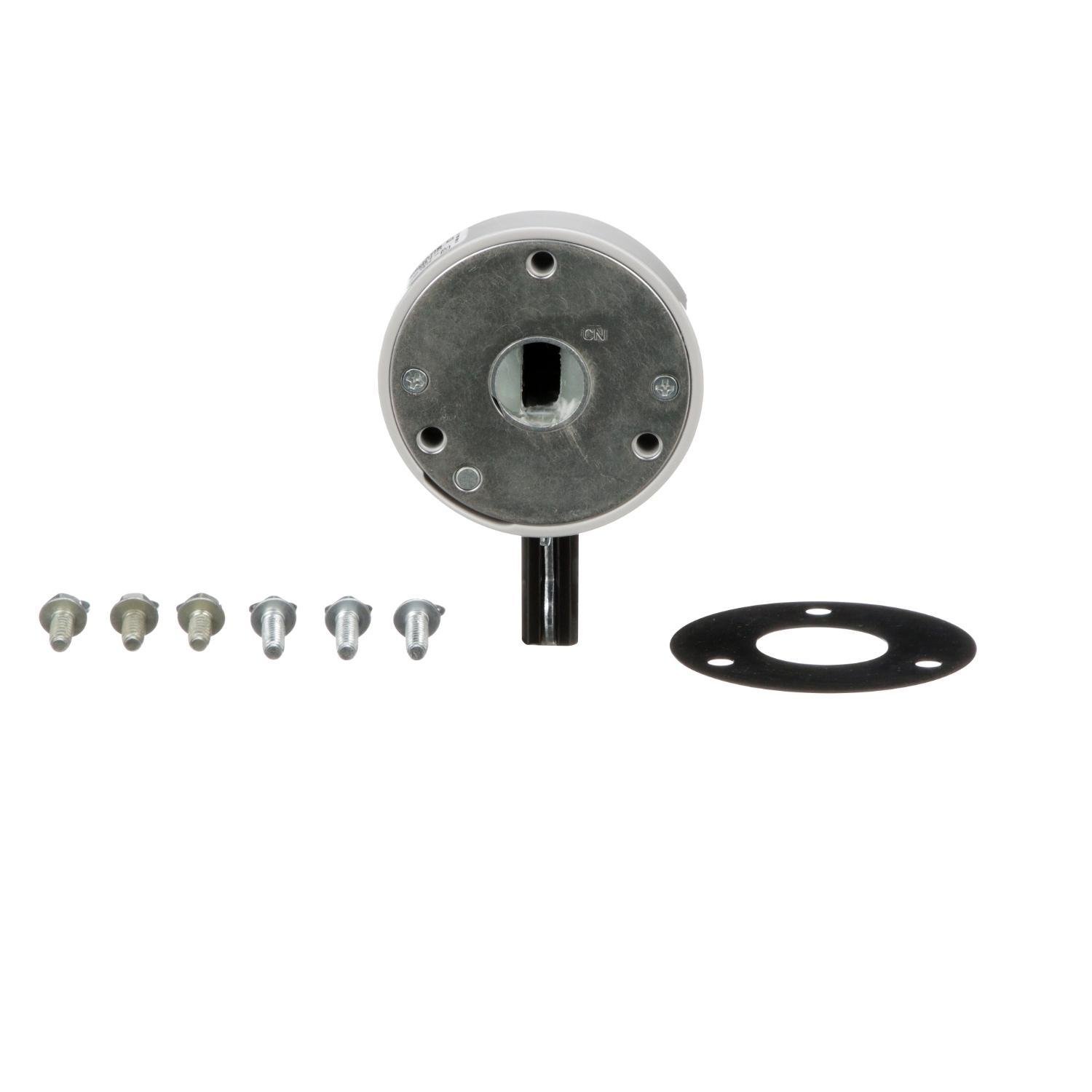

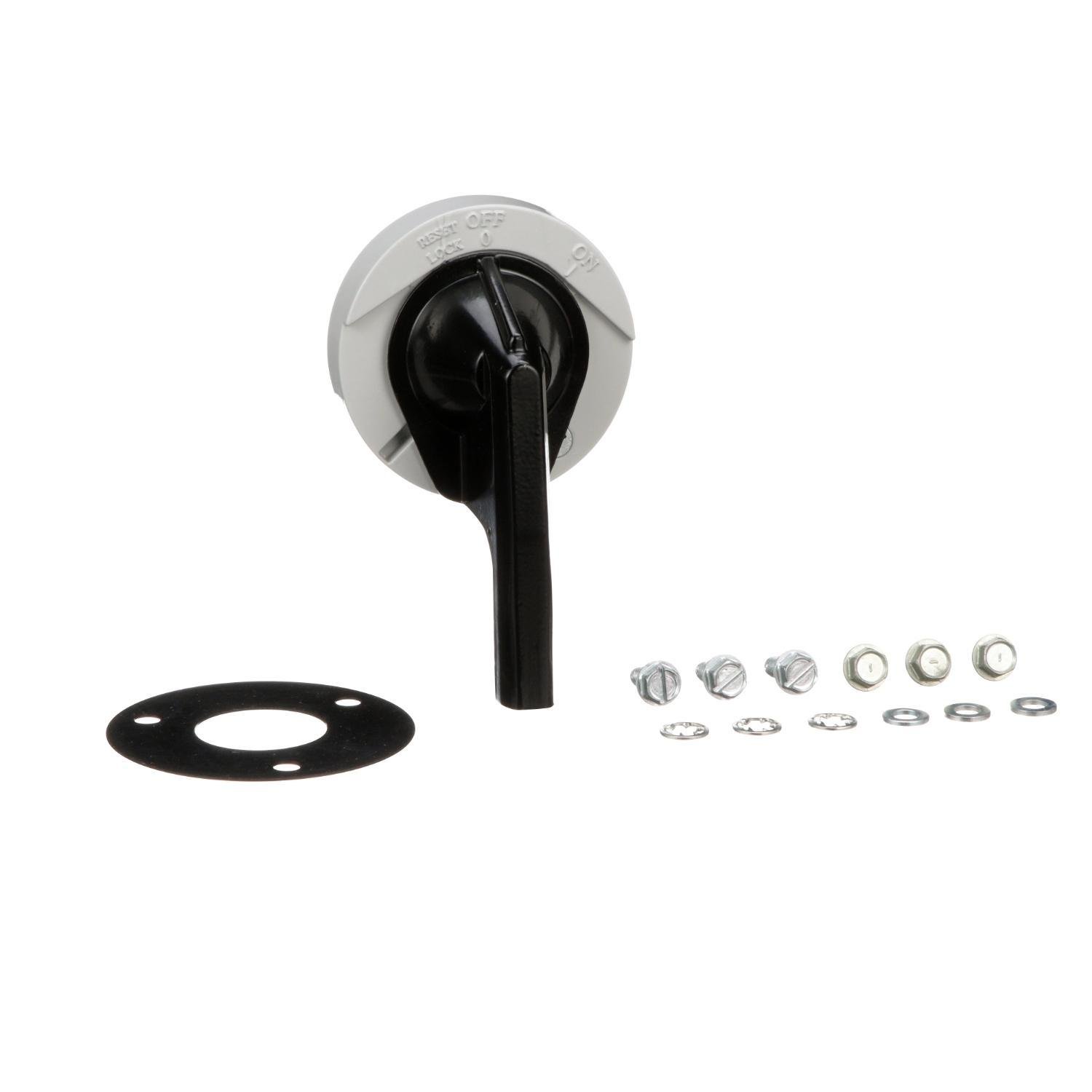

Picture of 9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12 Picture of 9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12

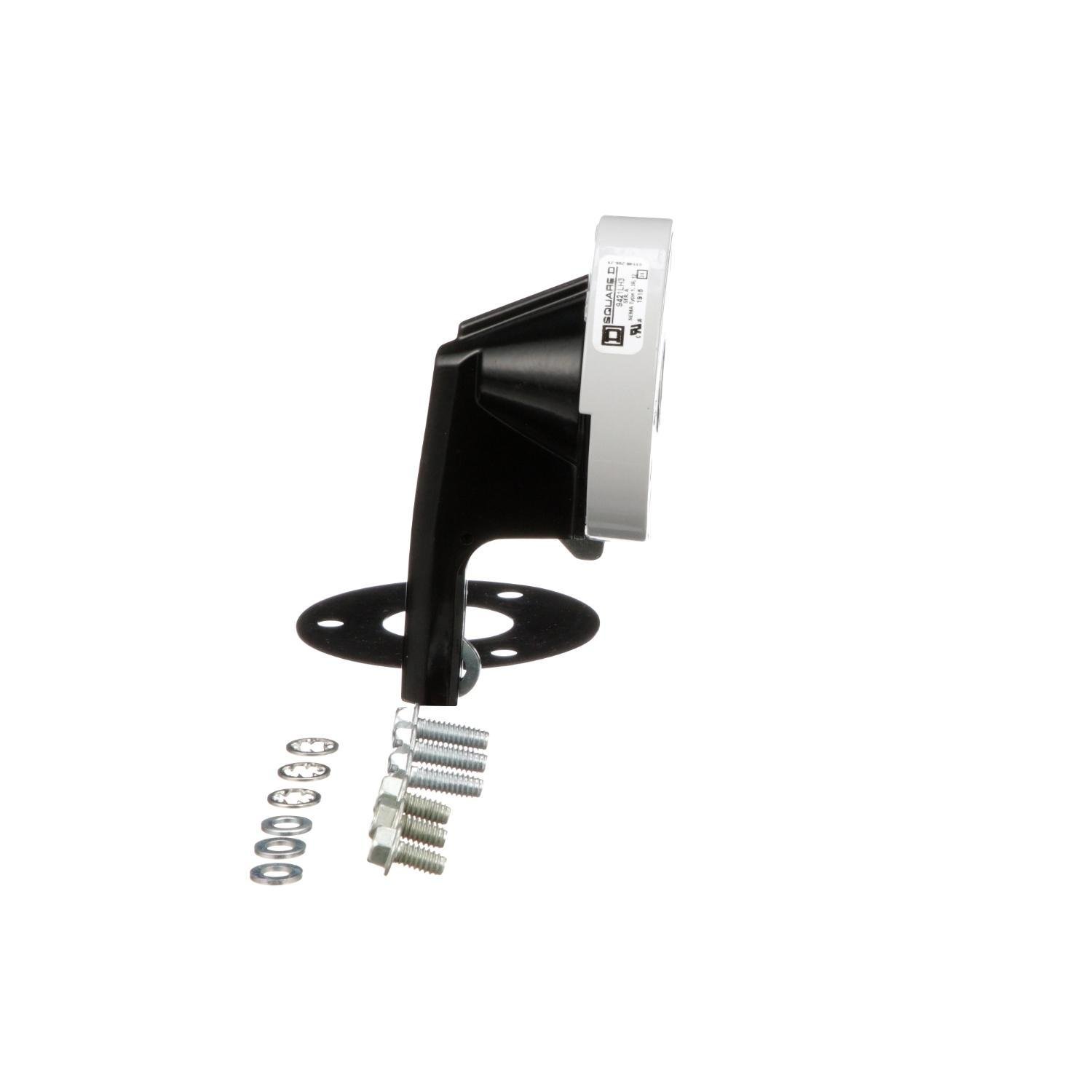

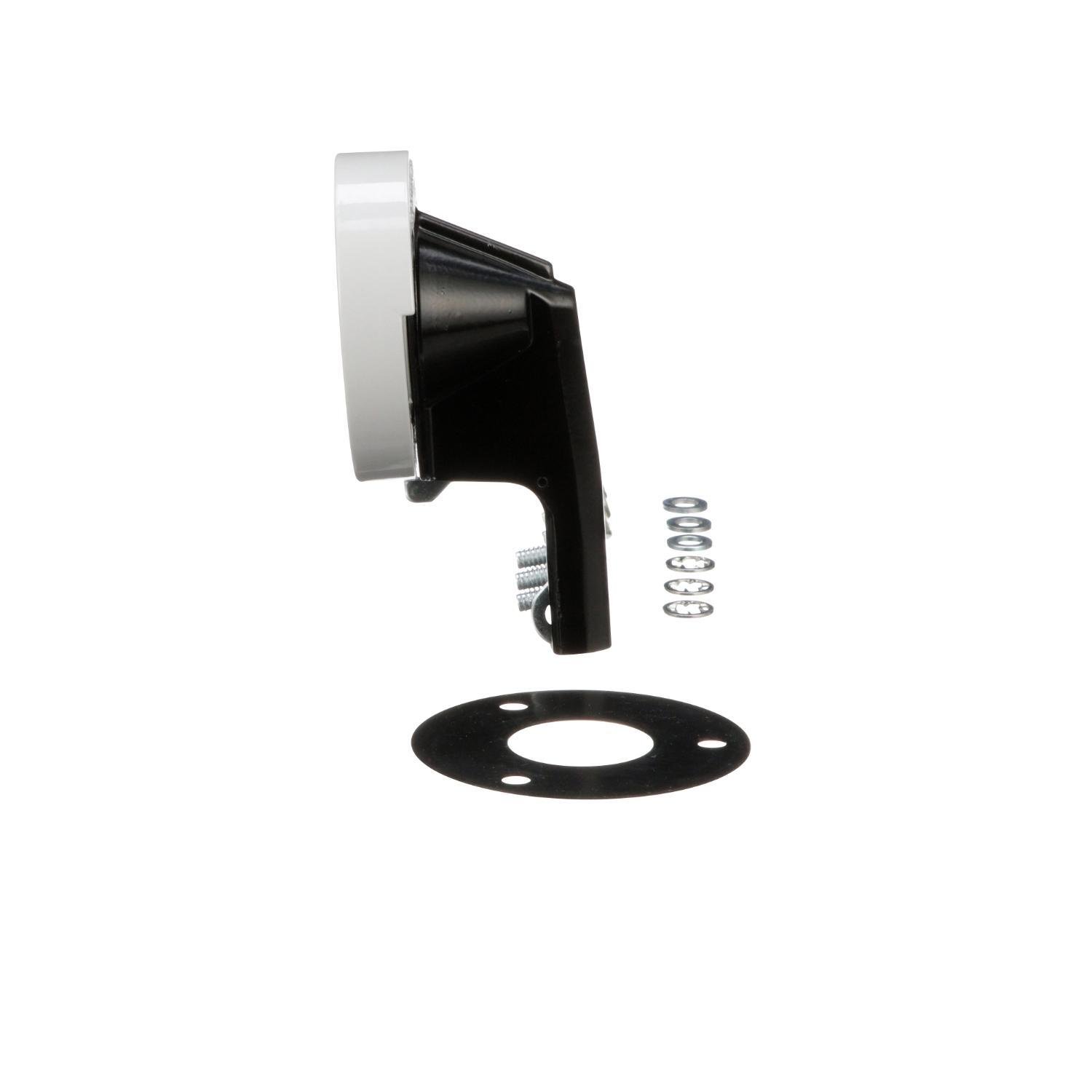

Picture of 9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12 Picture of 9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12
Picture of 9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12 Picture of 9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12
Picture of 9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12 Picture of 9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12
Picture of 9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12 Picture of 9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12
Square D

9421LH3 - Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 1/3R/12

Item Code: 644695
Category Disconnect Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9421LH3

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly will work with the operating mechanism for a 2 or 3 pole PowerPacT H, and PowerPacT J, Compact NSF circuit breakers with a 125A frame size. This handle assembly will also work with the operating mechanism for a 2 or 3 pole PowerPacT H, and PowerPacT J circuit breakers with a 250A frame size. This handle assembly has a special 3 inch handle. This handle assembly is rated for NEMA Type 1, 3R and 12. This handle assembly is UL Component Recognized and CSA certified.

Specifications

Weight

1.99

Width

5.93

Length

6.63

AD All Features

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Application

For NEMA 1/3R/12 enclosure and 9421LG7, LF1, LK1 or LJ7 operating mechanism applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

3 in Handle, Operating Mechanism and Shaft Assembly

AD Invoice Description

HANDLE MECH OPERATING 3IN BK PTD AUTO

AD Item Features 01

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Item Features 02

Two mounting methods offered for flexibility

AD Item Features 03

Disconnect switches were designed for control panel installations

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

6.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.9900

AD Package Weight UOM

LB

AD Package Width

5.9300

AD Package Width UOM

IN

Brand

Square D

Category

DISCONNECT MOTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black

Spec 2 Attribute

Finish

Spec 2 Attribute Value

Painted

Spec 3 Attribute

Length

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

3

Spec 4 Attribute

Series

Spec 4 Attribute Value

9421L

Spec 5 Attribute

Type

Spec 5 Attribute Value

Automatic
