Square D

9421LH6 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12

Category Miscellaneous

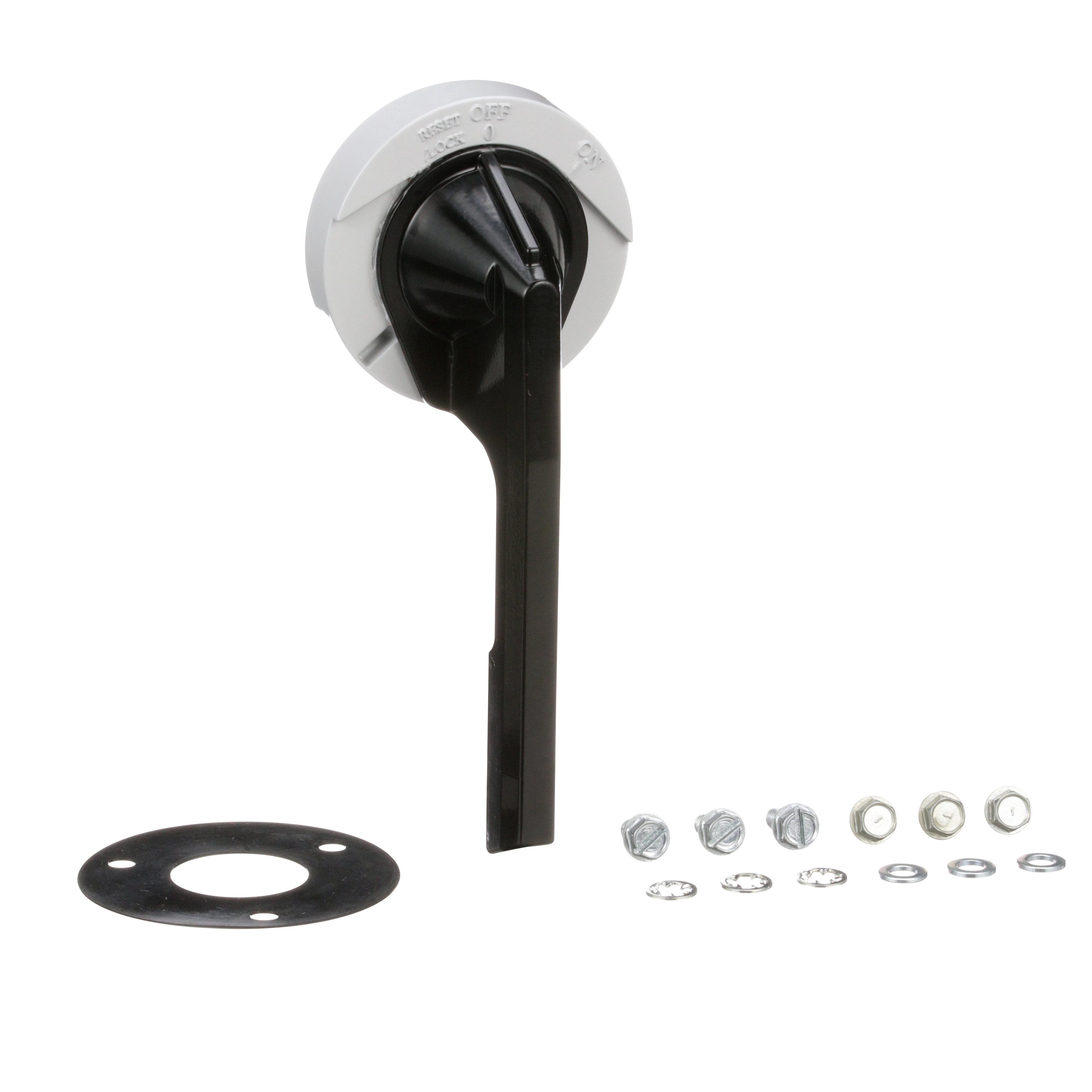

Picture of 9421LH6 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12 Picture of 9421LH6 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12

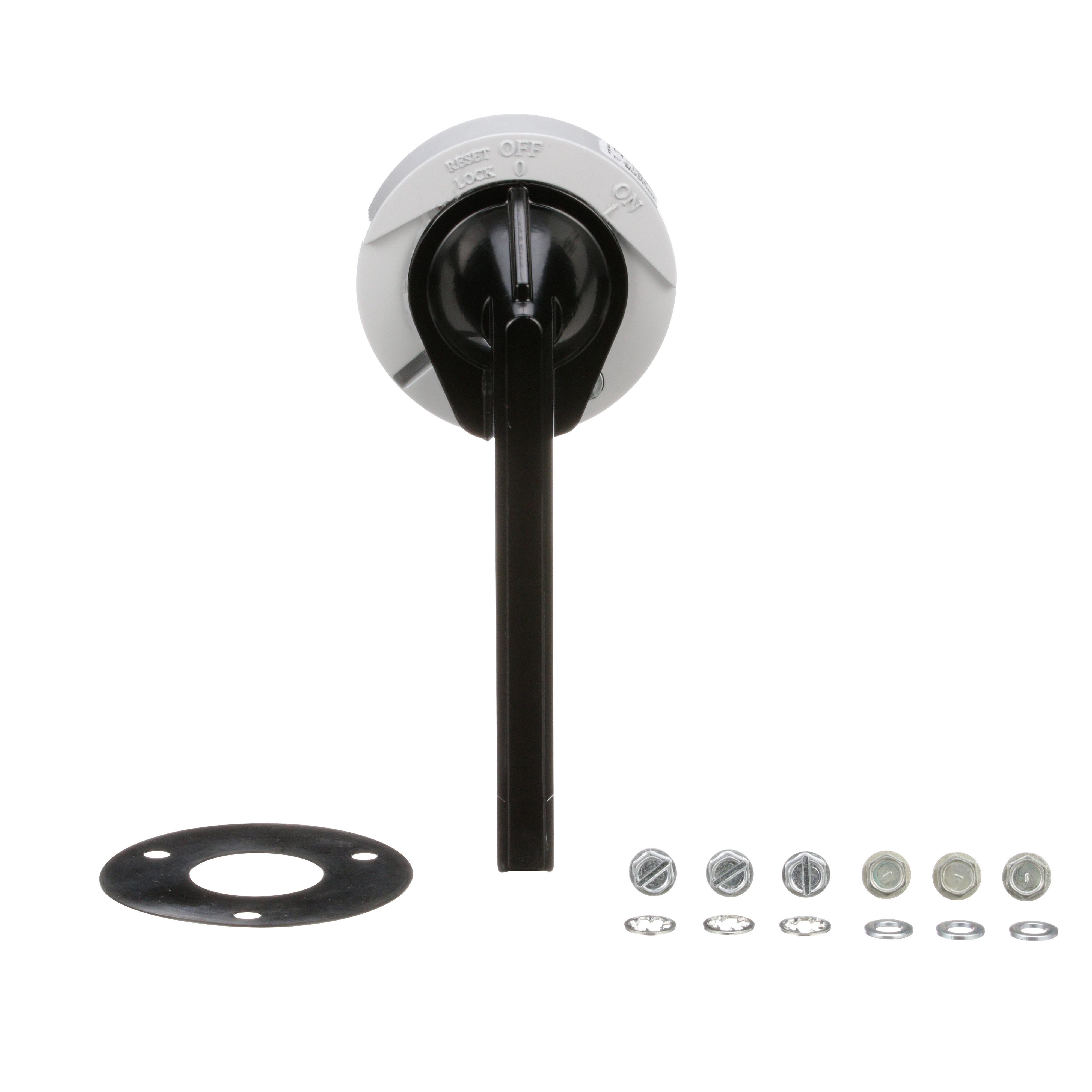

Picture of 9421LH6 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12 Picture of 9421LH6 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12

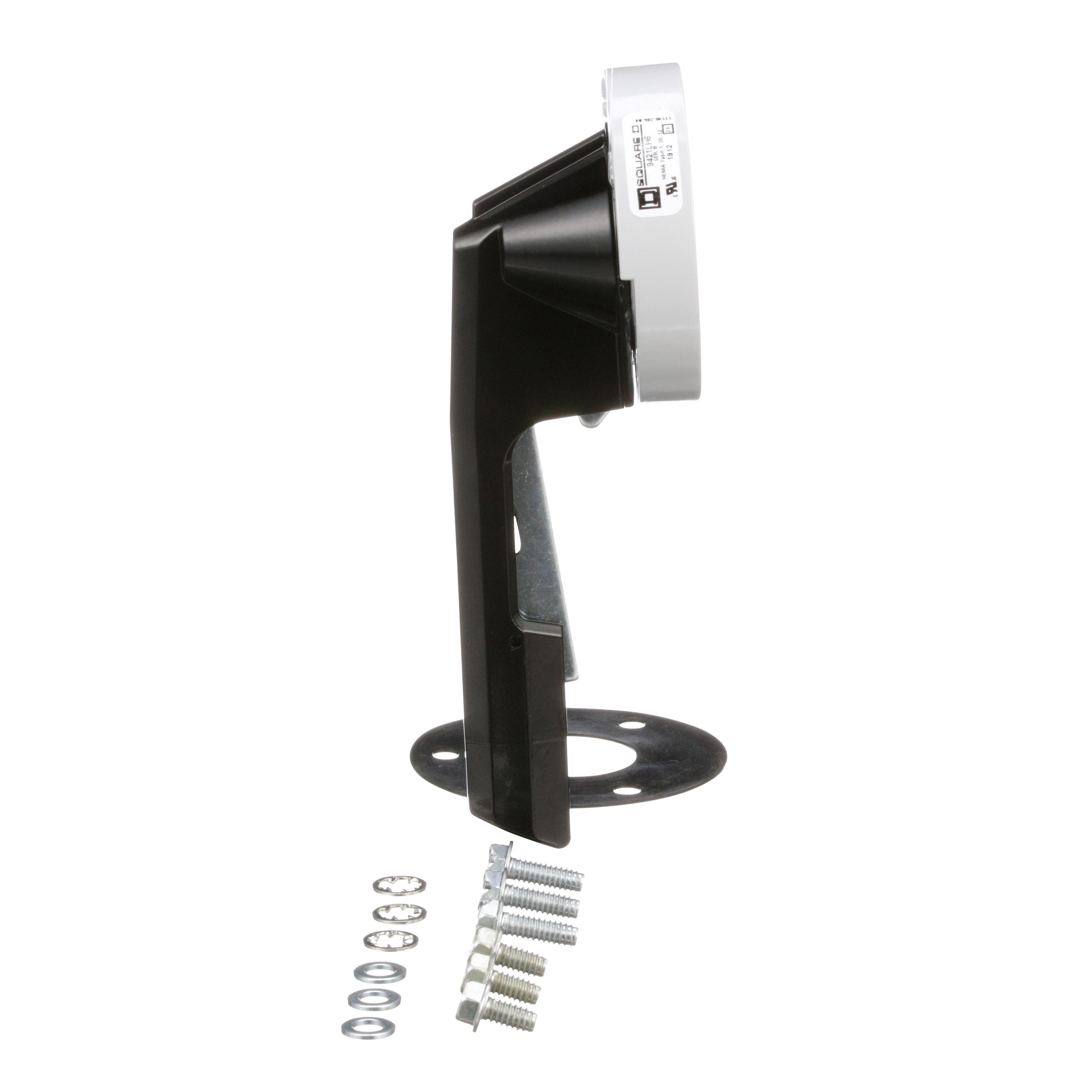

Picture of 9421LH6 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12 Picture of 9421LH6 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12
Square D

9421LH6 - Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12

Item Code: 32642
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9421LH6

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly will work with the operating mechanism for a 2 or 3 pole PowerPacT H, and PowerPacT J, Compact NSF circuit breakers with a 125A frame size. This handle assembly will also work with the operating mechanism for a 2 or 3 pole PowerPacT H, and PowerPacT J circuit breakers with a 250A frame size. This handle assembly has a 6 inch handle. This handle assembly is rated for NEMA Type 1, 3R and 12. This handle assembly is UL Component Recognized and CSA certified.

Specifications

Weight

2.27

Height

4.5

Width

5.93

Length

6.83

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9421LH6/9421LH6.spin

AD All Features

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Alternative Part Number

8048066

AD Application

Circuit Breaker Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901830108

AD Gtin

00785901830108

AD IDEA Index ID

8048066

AD Invoice Description

ASSEMBLY HDL MECH OPERATING 6IN BK PTD

AD Item Features 01

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Item Features 02

Two mounting methods offered for flexibility

AD Item Features 03

Disconnect switches were designed for control panel installations

AD Keywords

9421LH6 Door Mount Operating Mechanism Handle Assembly, 6 in L, Black ; Schneider Electric ; Square D ; 9421LH6 ; 9421LH6 ; 785901830108 ; Disconnect Switch Operating Handles

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.5000

AD Package Height UOM

IN

AD Package Length

6.8300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

183.6000

AD Package Volume UOM

cu-in

AD Package Weight

2.2700

AD Package Weight UOM

LB

AD Package Width

5.9300

AD Package Width UOM

IN

AD Part Number Keywords

9421LH6 ; 8048066 ; 785901830108 ; 78590183010 ; 00785901830108 ; 0785901830108

Brand

Square D

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black

Spec 2 Attribute

Finish

Spec 2 Attribute Value

Painted

Spec 3 Attribute

Length

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

6

Spec 4 Attribute

Series

Spec 4 Attribute Value

9421L

Spec 5 Attribute

Type

Spec 5 Attribute Value

Door Mount
