Square D

9421LJ7 - Circuit breaker accessory, PowerPacT H/J, operating mechanism, 150A to 250A, includes lockout

Category Disconnect Motor Switches & Accessories

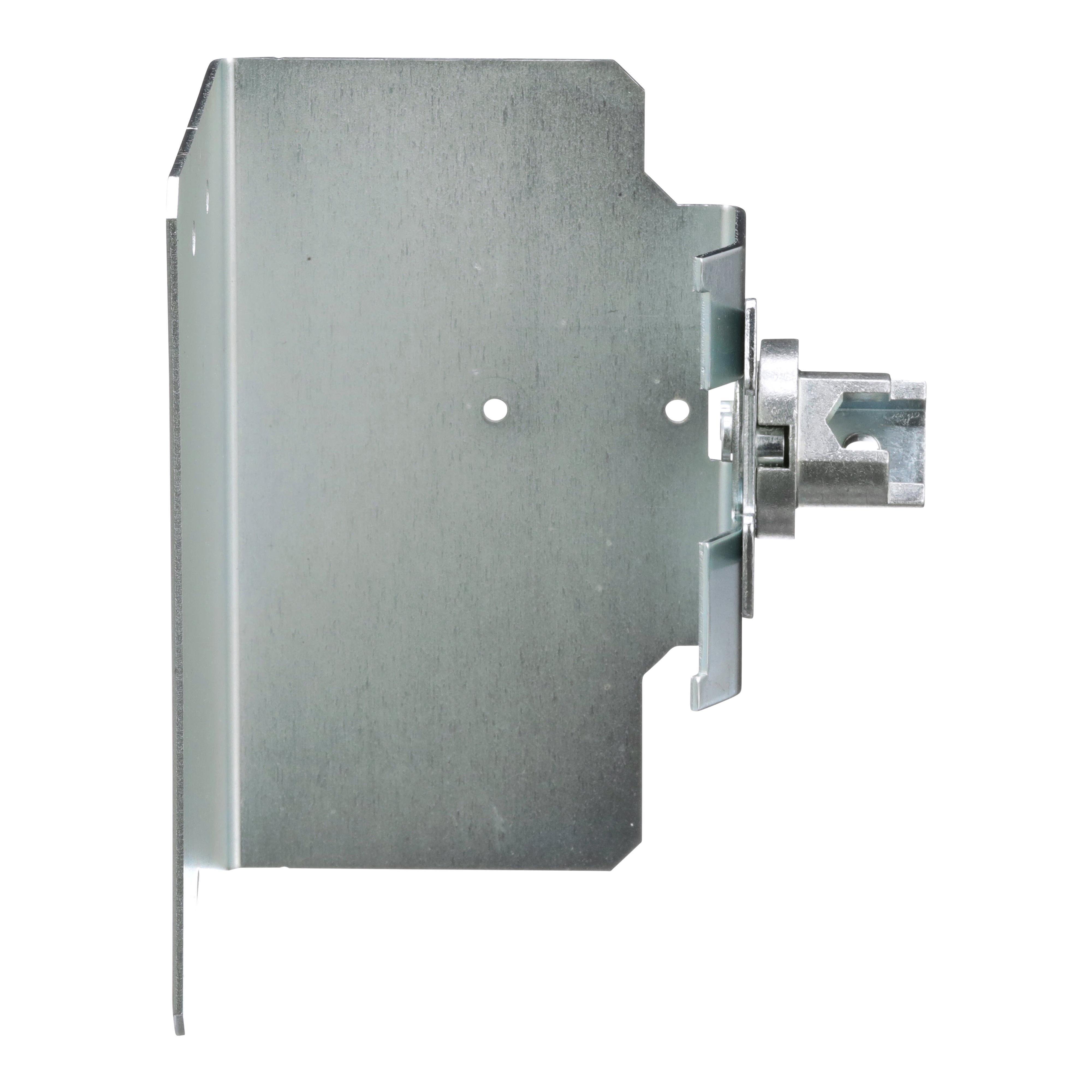

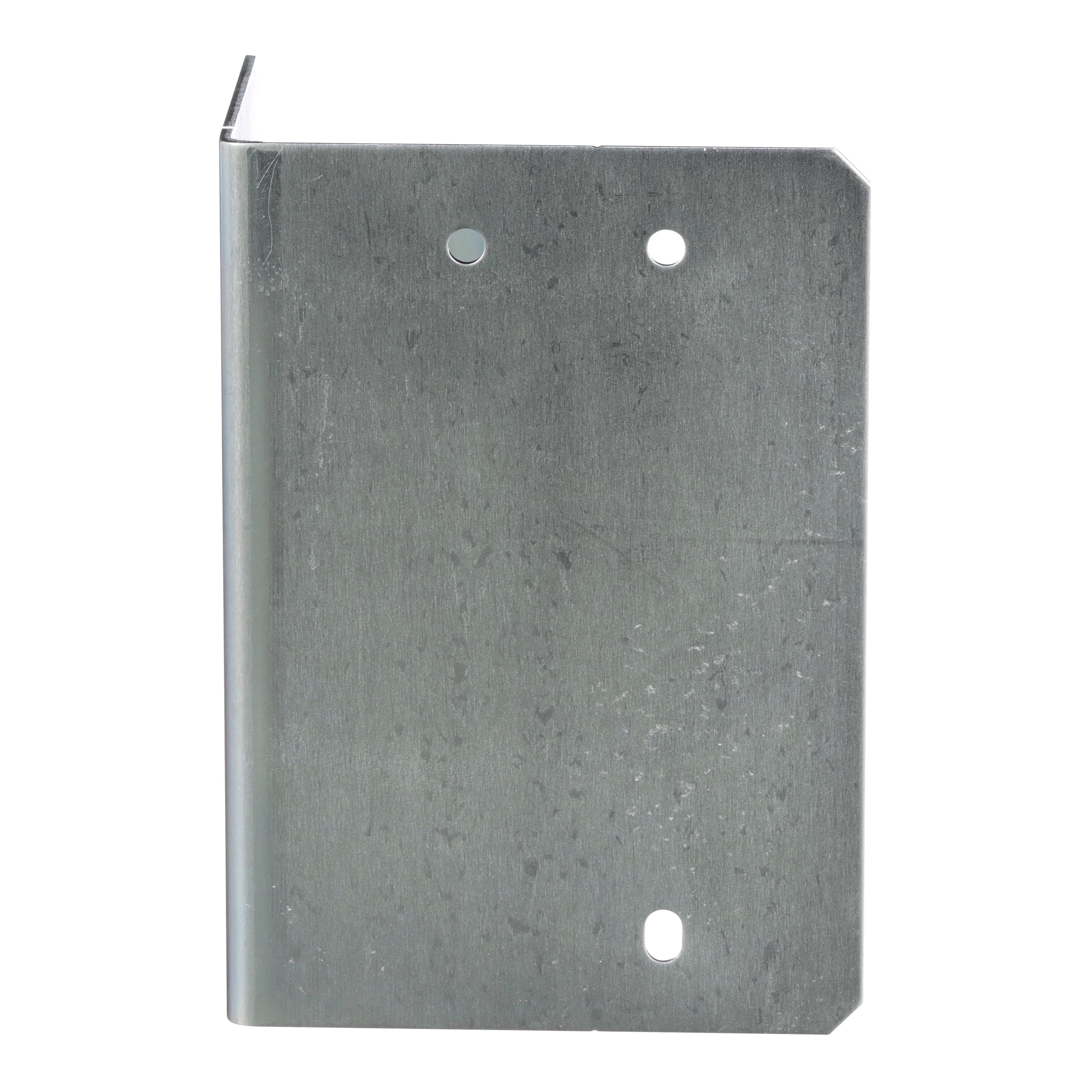

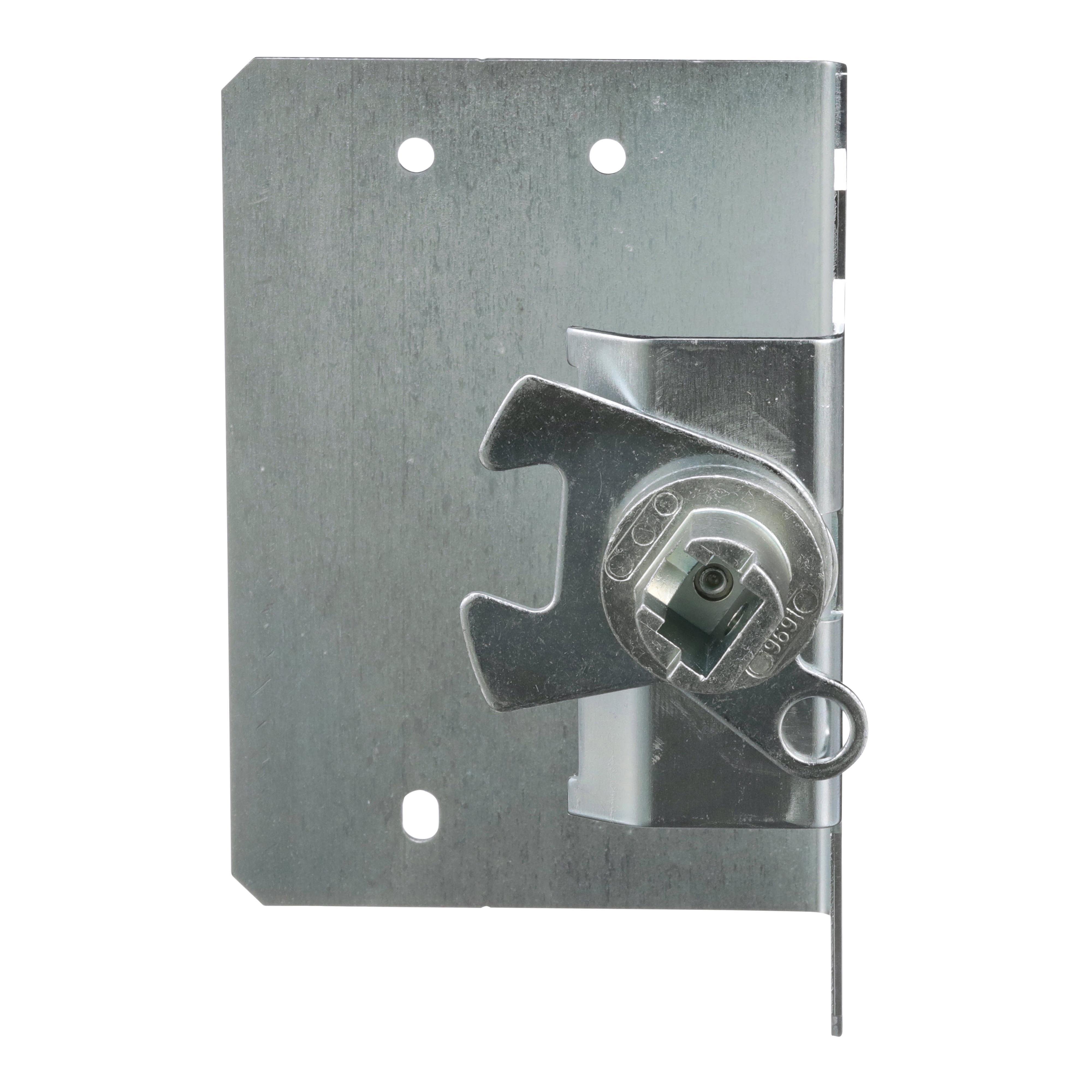

Picture of 9421LJ7 - Circuit breaker accessory, PowerPacT H/J, operating mechanism, 150A to 250A, includes lockout
Square D

9421LJ7 - Circuit breaker accessory, PowerPacT H/J, operating mechanism, 150A to 250A, includes lockout

Item Code: 614622
Category Disconnect Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9421LJ7

Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT H and PowerPacT J and Compact NSF circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250A. Proper circuit breaker, operating handle and operating shaft must be ordered separately. Mechanism is UL Component Recognized and CSA certified.

Specifications

Weight

2.07

Width

7.45

Length

8.23

Brand

Square D

Category

DISCONNECT MOTOR SWITCHES & ACCESSORIES

Handle Mounting Position

Direct Mount

Handle/Operation

Rotary Handle

Series

9421L

Suitable For Use With

MG-NSF and PowerPact® H or J-Frame 250 A Circuit Breaker
