Square D

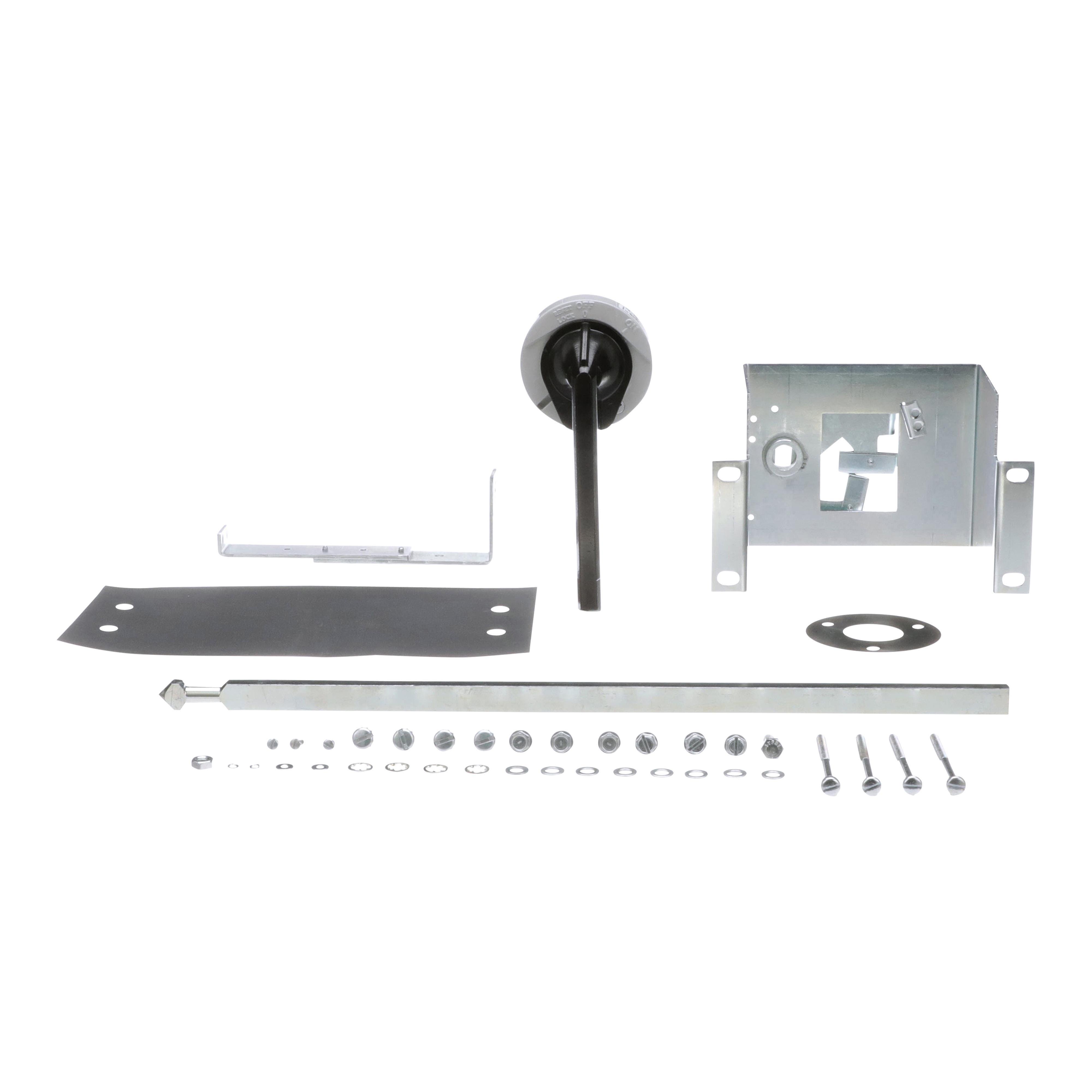

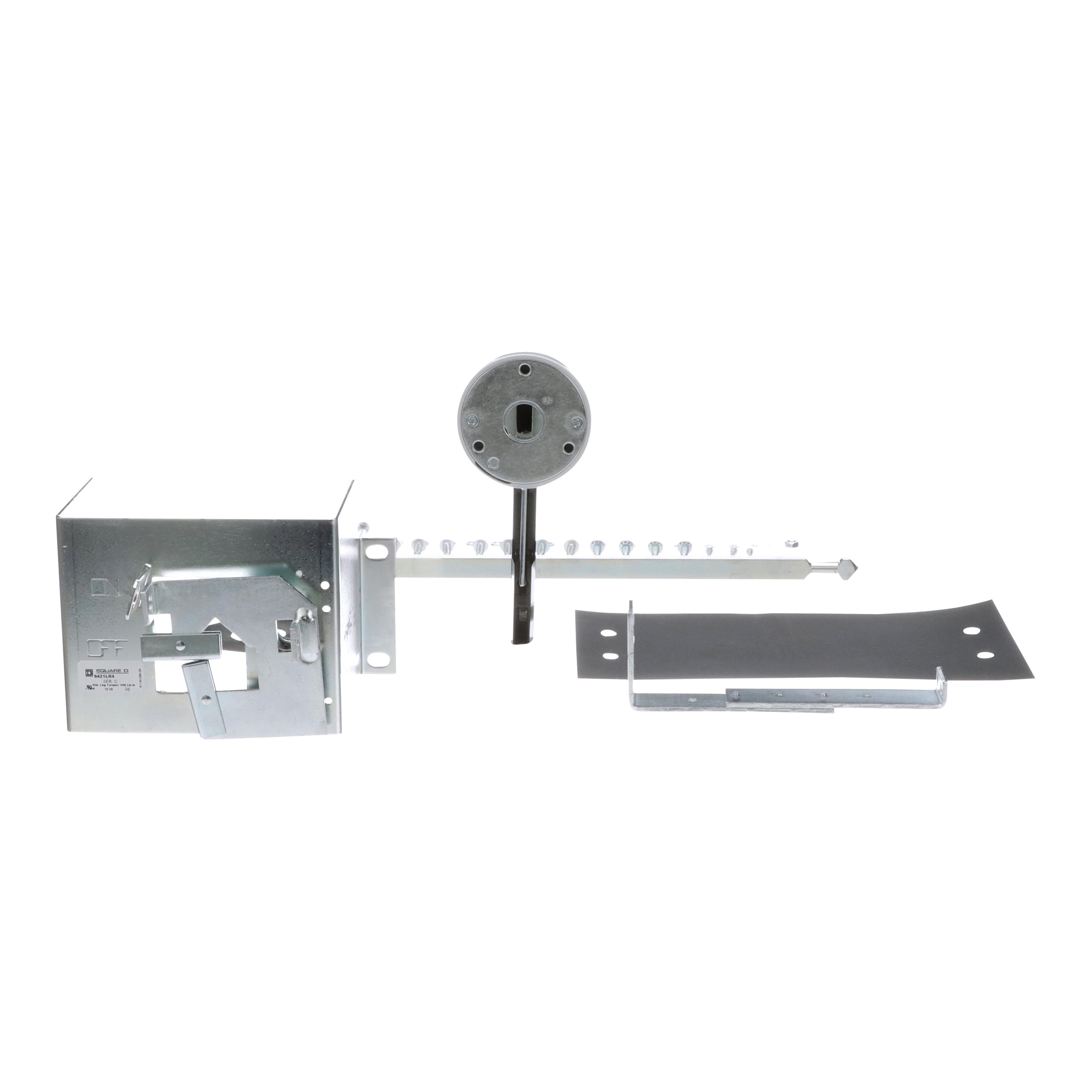

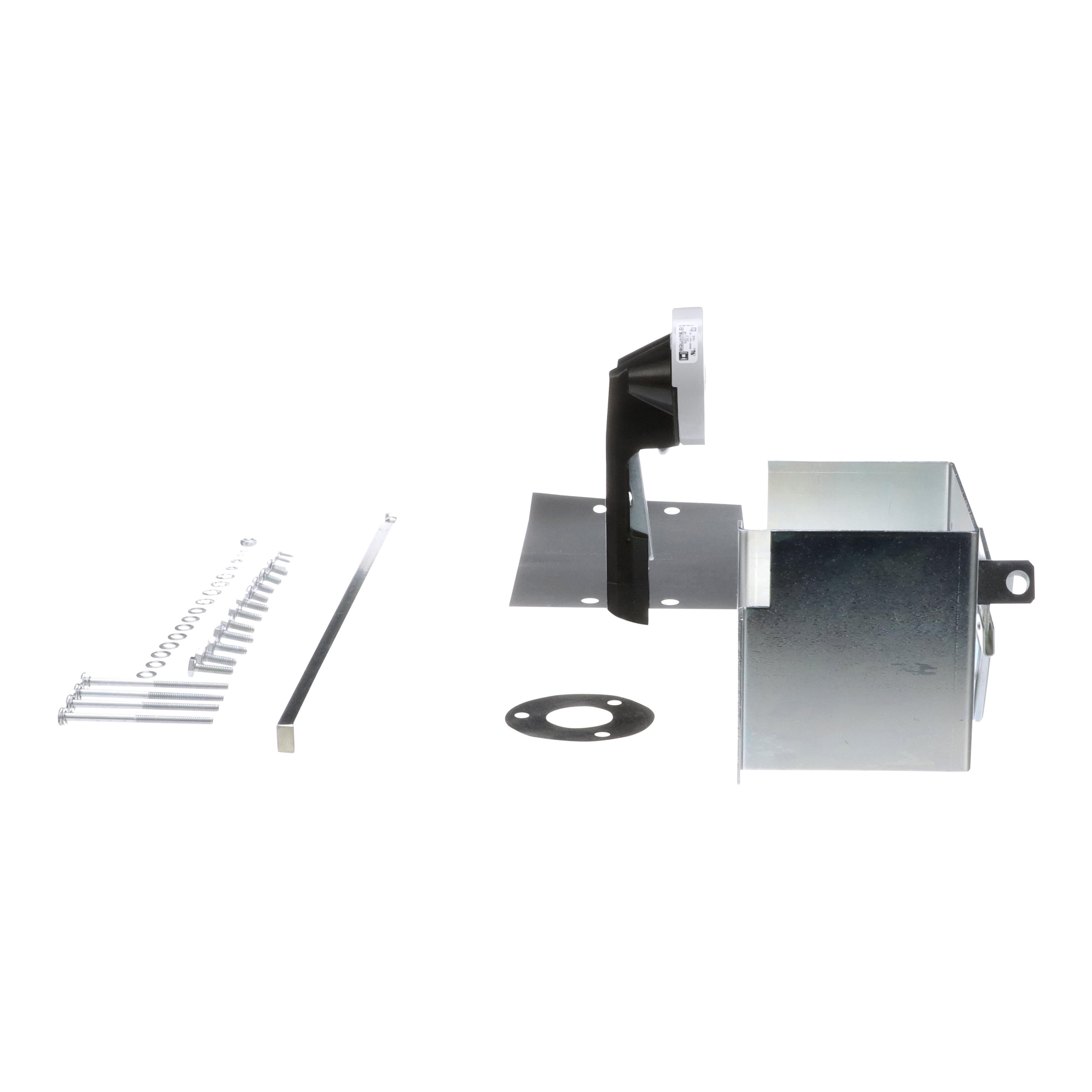

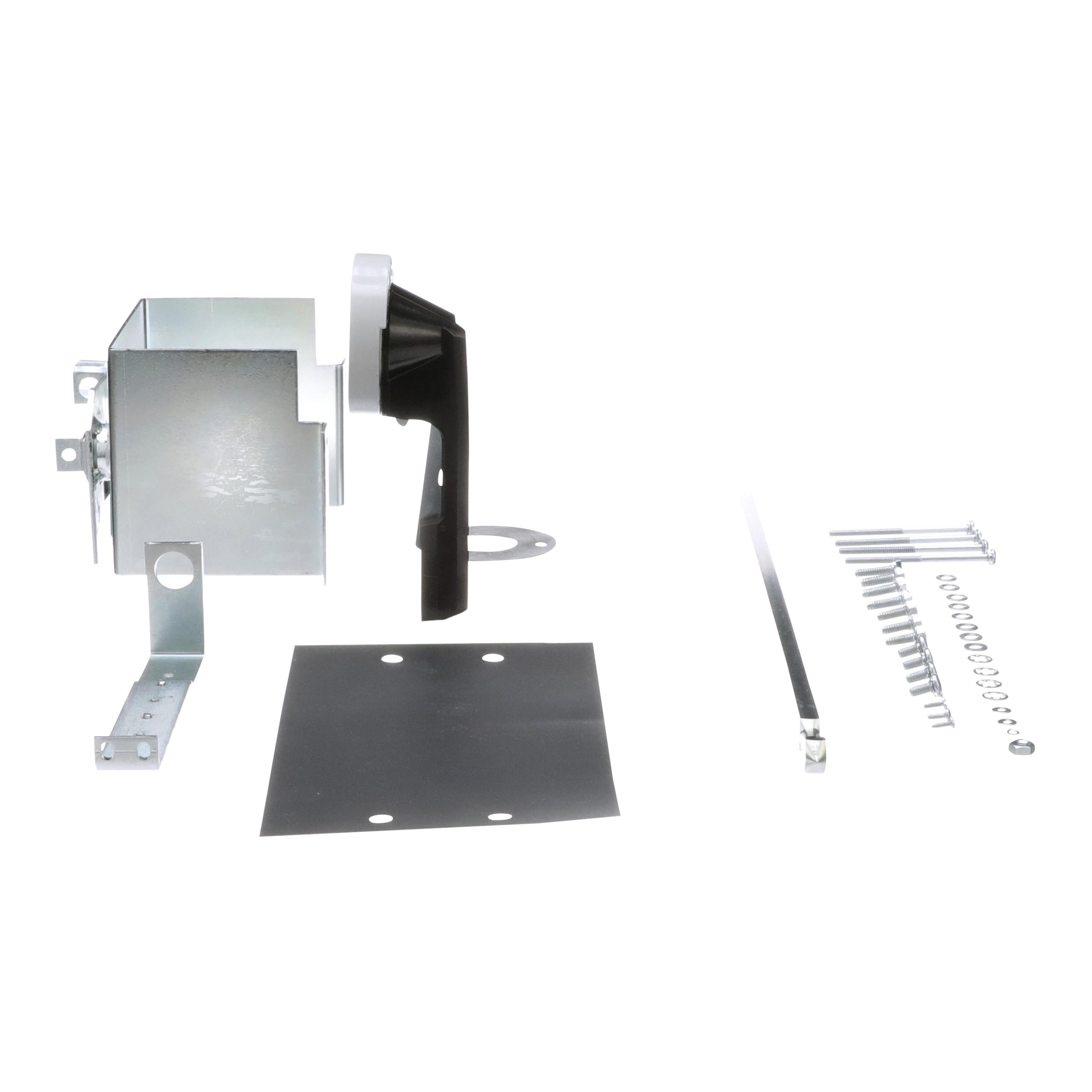

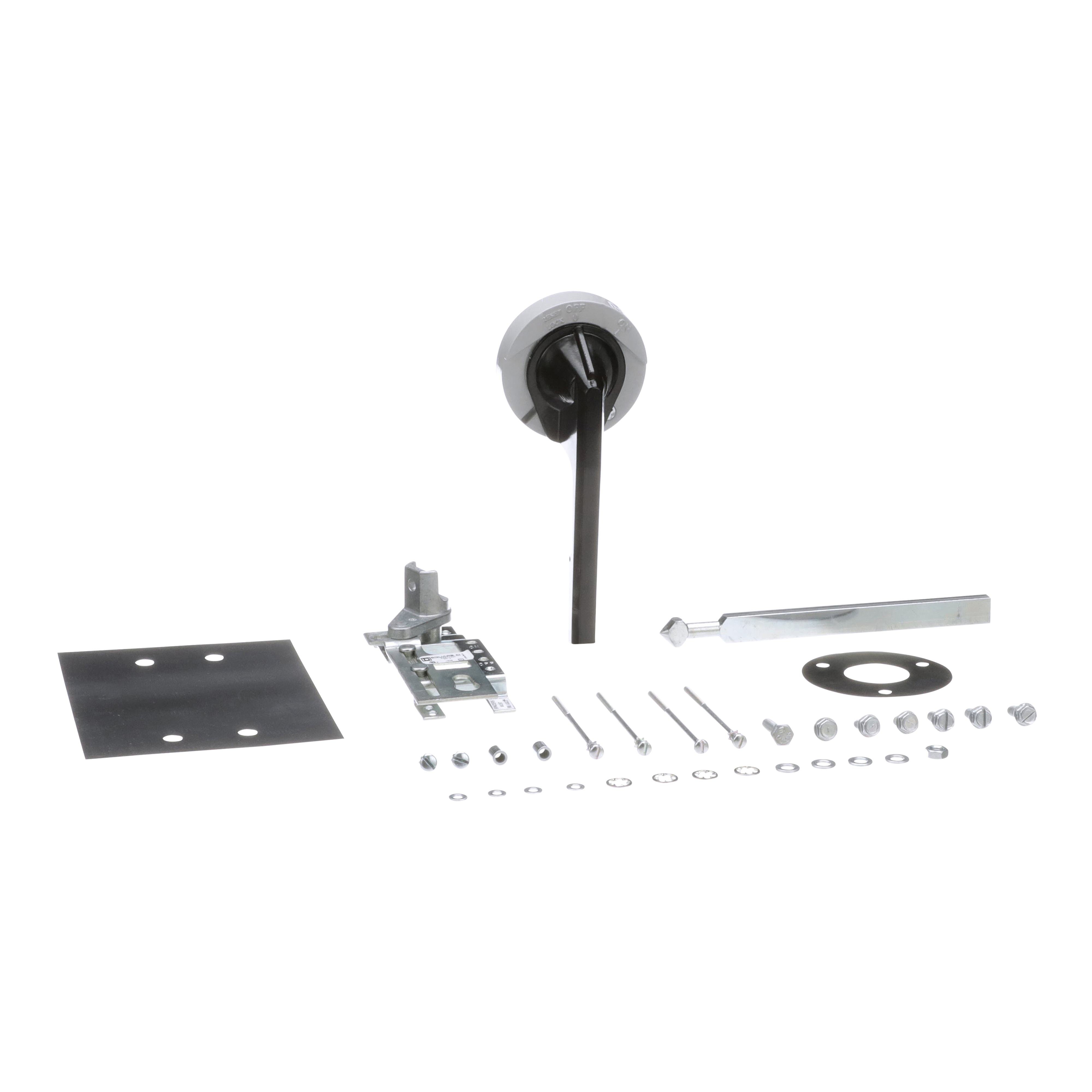

9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers

Category Miscellaneous
Picture of 9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers Picture of 9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers
Picture of 9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers Picture of 9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers
Picture of 9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers Picture of 9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers
Picture of 9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers Picture of 9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers
Picture of 9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers Picture of 9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers
Square D

9421LR4 - Circuit Breaker Mechanism, rotary handle, 400A mechanism, 6 inch handle, long shaft, LAL, LHL, Q4L circuit breakers

Item Code: 544933
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9421LR4

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism kit will work with LAL, LHL and Q4L circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 400A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a long shaft. The mounting depth of this kit is 6.31 to 21.50 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.
