Square D

9422A1 - Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 1, 3R, 4, 12 enclosure

Category Disconnect Motor Switches & Accessories

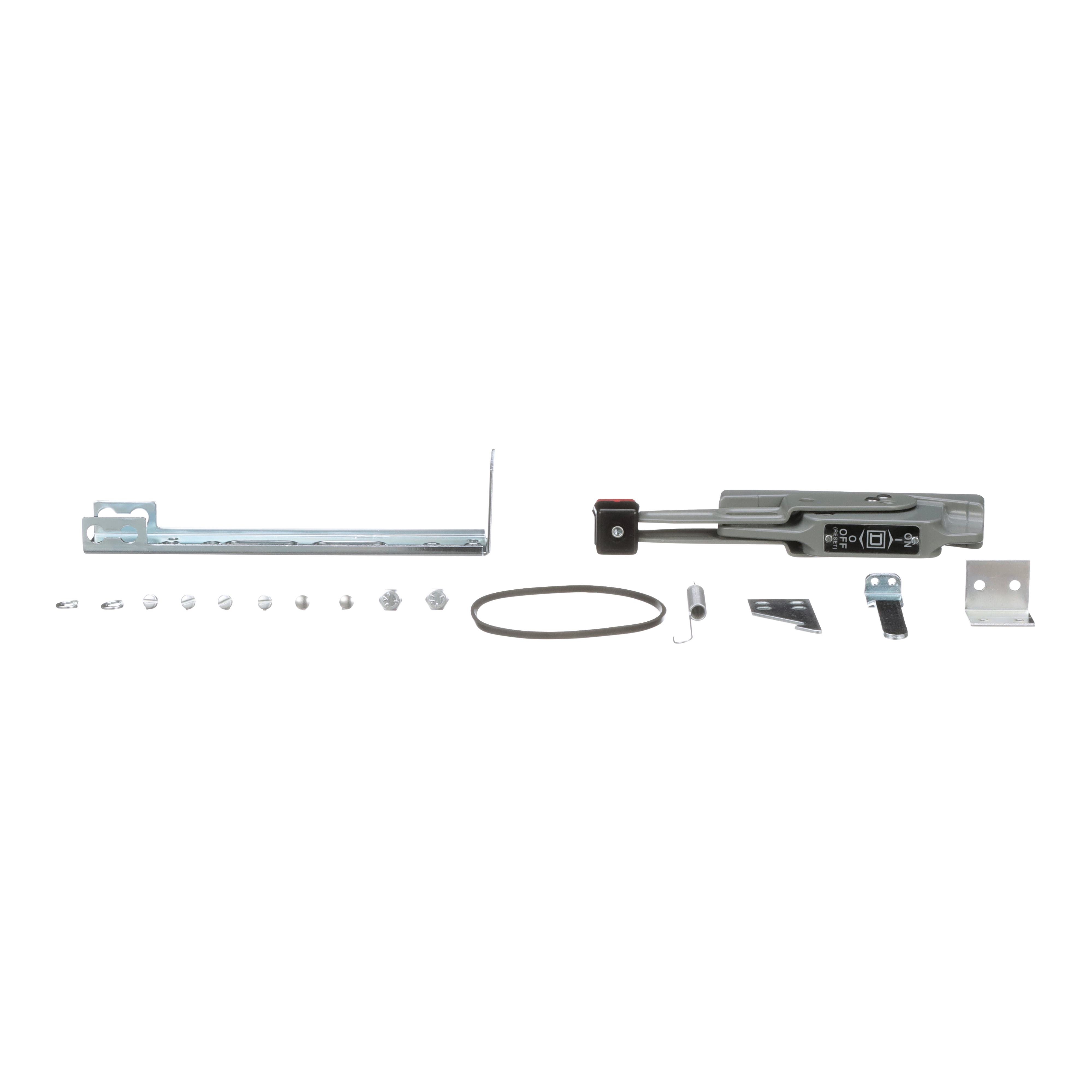

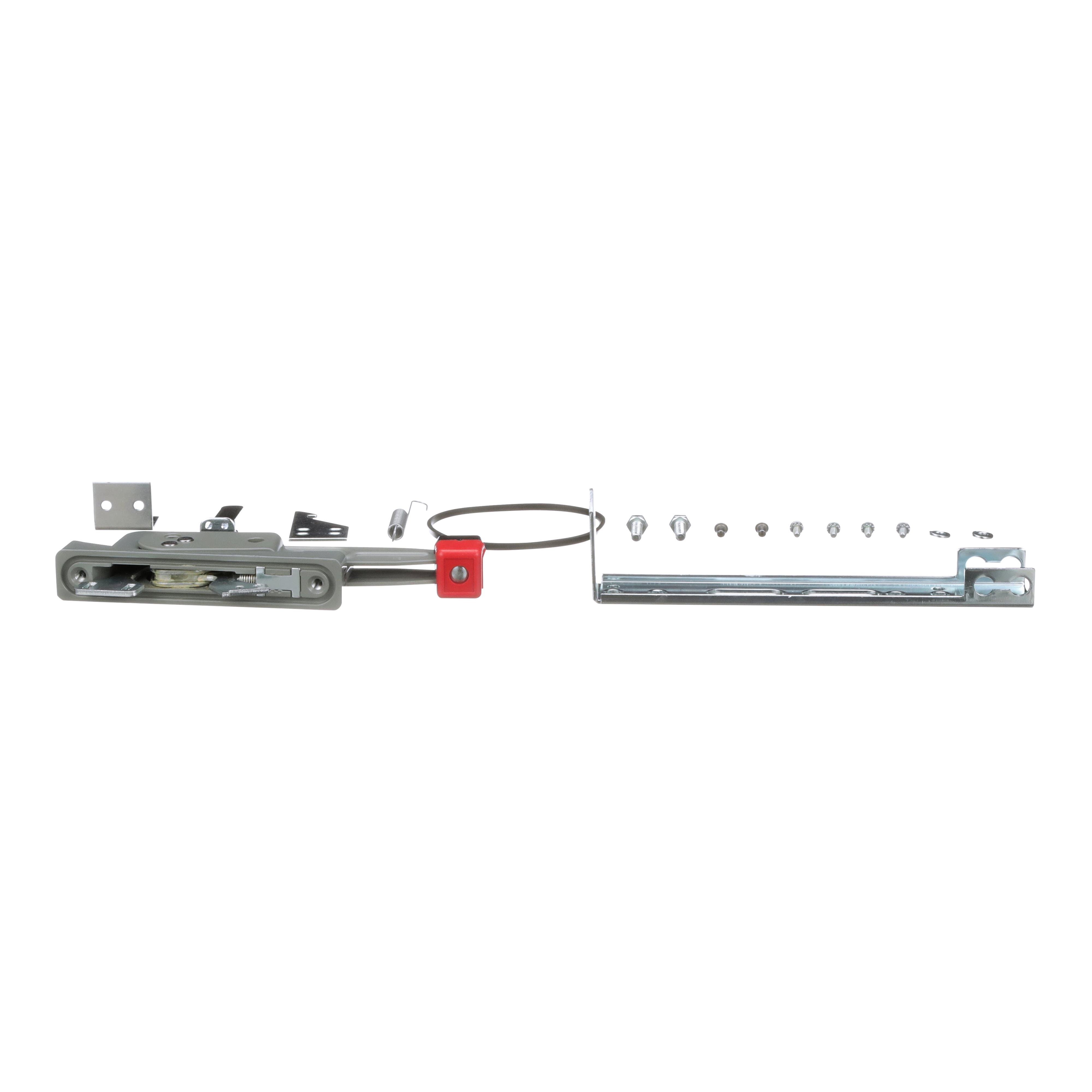

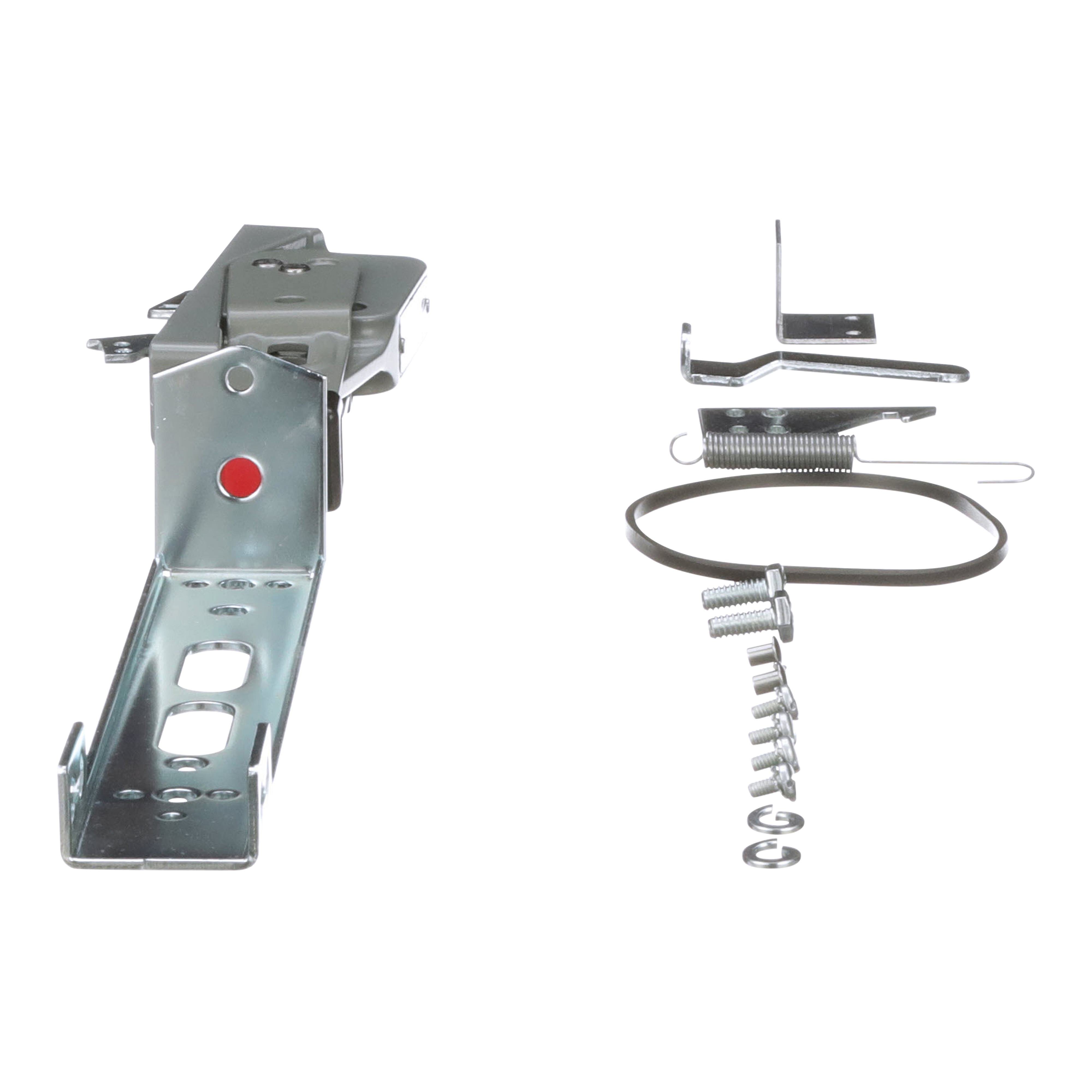

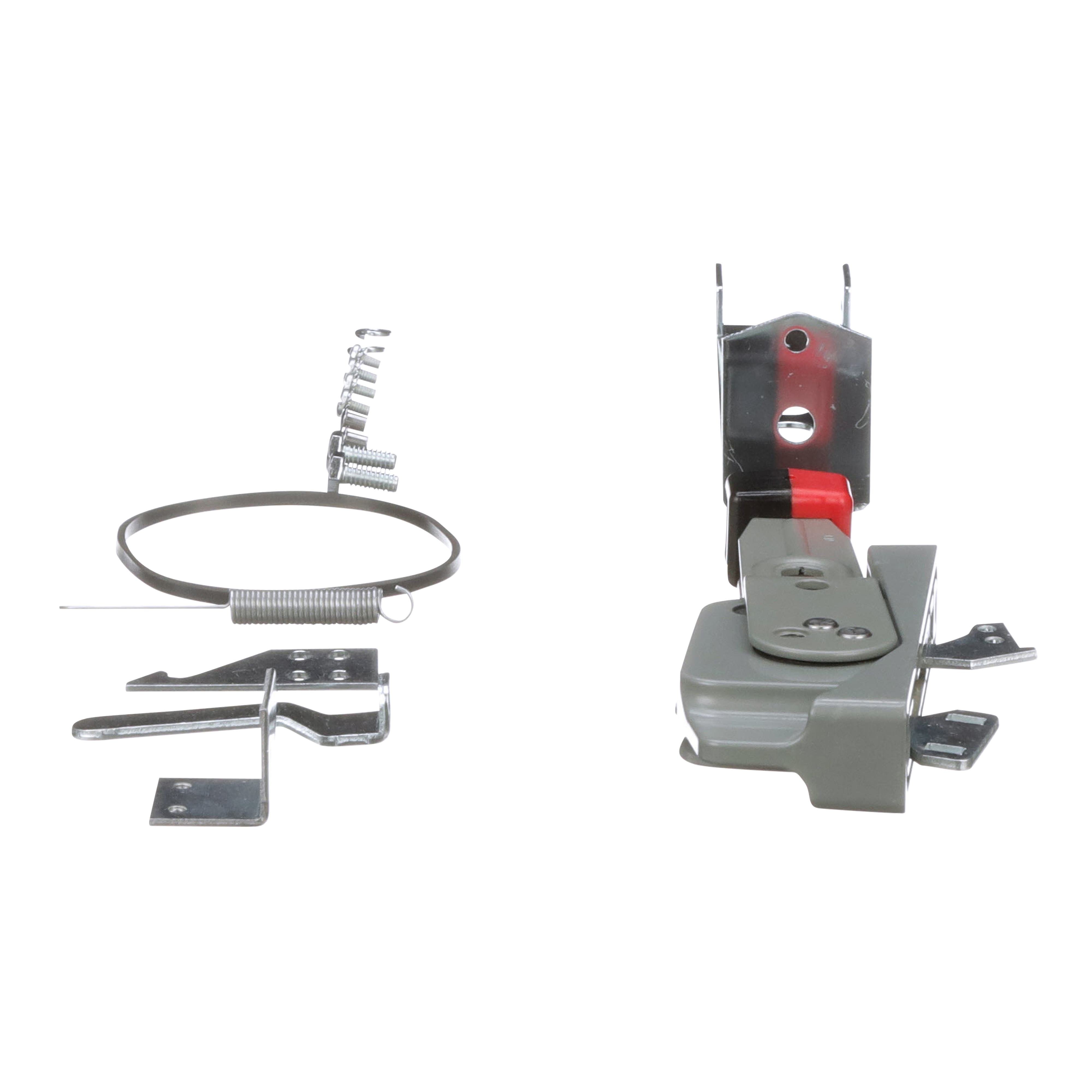

Picture of 9422A1 - Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 1, 3R, 4, 12 enclosure
Square D

9422A1 - Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 1, 3R, 4, 12 enclosure

Item Code: 916684
Category Disconnect Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9422A1

Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 6 inch handle depth for NEMA 1/3/3R/4/12. This handle is for use with 30-200A 9422 switches and all circuit breaker mechanisms. This product complies with UL standards.

Specifications

Weight

2.77lb

Height

1.8mm

Width

3.76mm

Length

9.31mm

Brand

Square D

Category

DISCONNECT MOTOR SWITCHES & ACCESSORIES

Dimensions

152 mm L

Handle Mounting Position

Flange

NEMA Rating

NEMA 1/3R/12

Series

9422A

Suitable For Use With

30 to 200 A Switches and All CB Mechanism

Type

Variable Depth
