Square D

9422AP1 - Operating mechanism, flange mounted, variable depth, 6in dual cable handle mechanism, NEMA 1, 3R, 4, 12 enclosure

Category Disconnect Motor Switches & Accessories

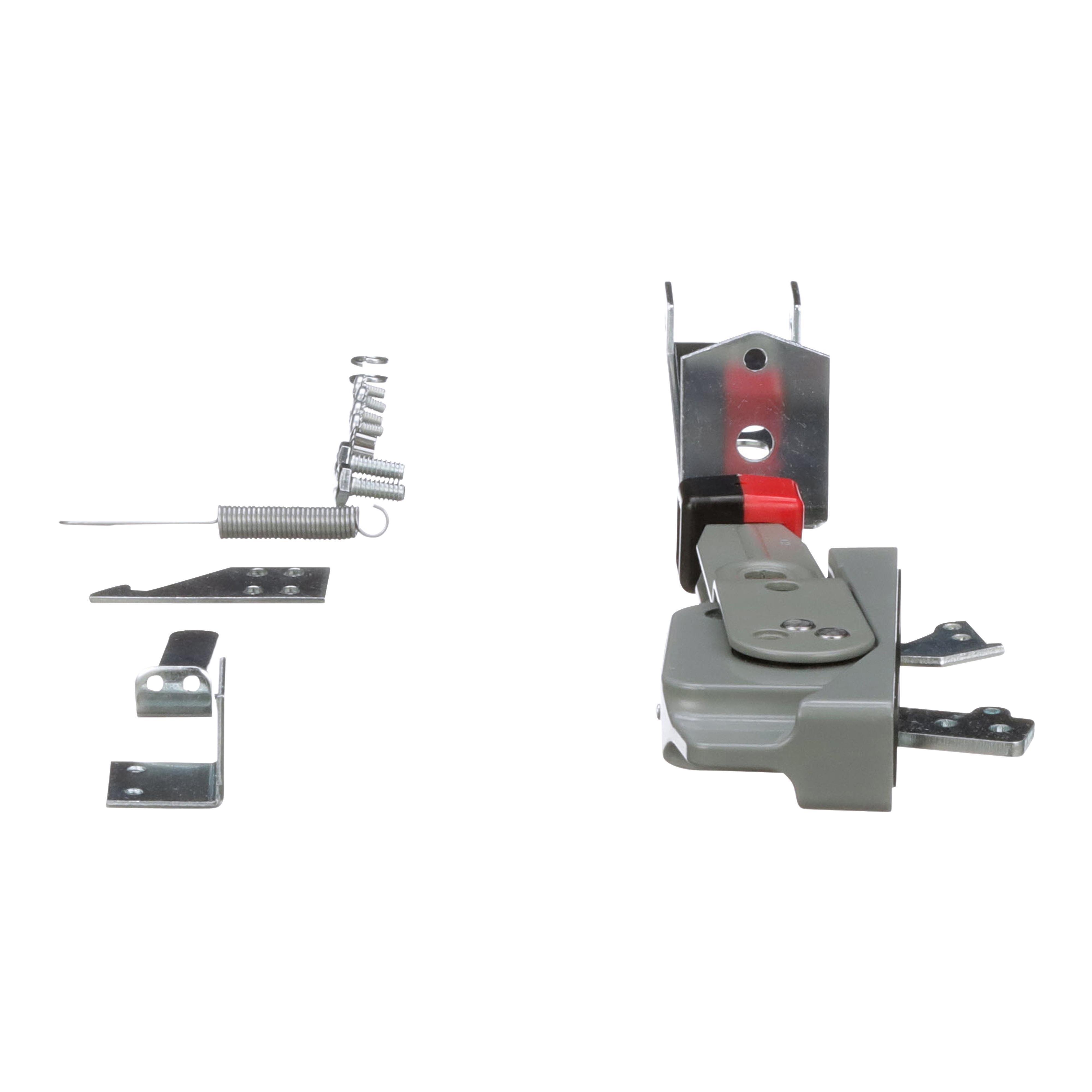

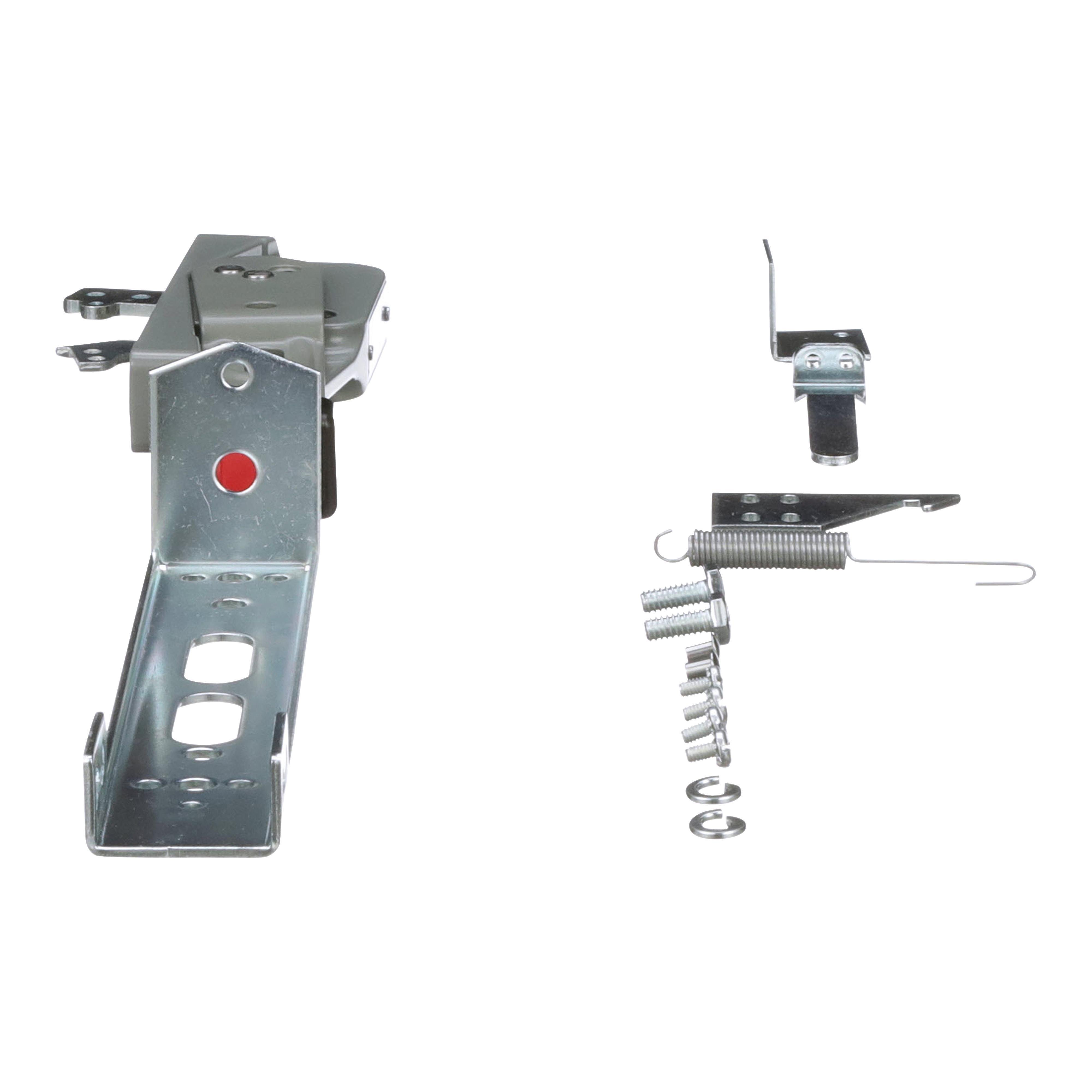

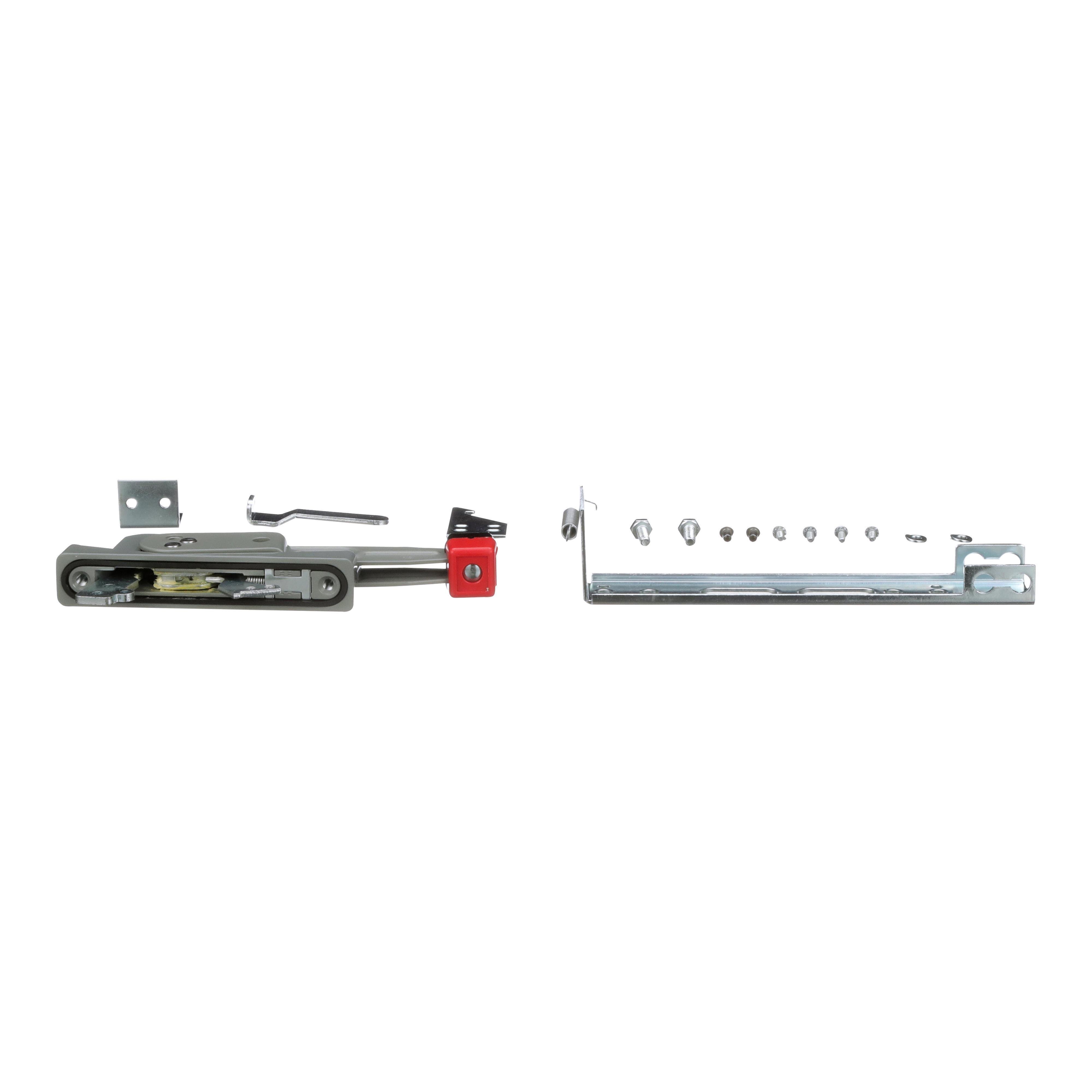

Picture of 9422AP1 - Operating mechanism, flange mounted, variable depth, 6in dual cable handle mechanism, NEMA 1, 3R, 4, 12 enclosure
Square D

9422AP1 - Operating mechanism, flange mounted, variable depth, 6in dual cable handle mechanism, NEMA 1, 3R, 4, 12 enclosure

Item Code: 808138
Category Disconnect Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9422AP1

RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 6 inch handle depth for NEMA 1/3/3R/4/12. This handle is for use with 9422RM1, 9422CMP, and PowerPacT M and P operating mechanisms. This product complies with UL standards.

Specifications

Weight

2.81lb

Height

1.8mm

Width

3.76mm

Length

9.31mm

Brand

Square D

Category

DISCONNECT MOTOR SWITCHES & ACCESSORIES

Dimensions

6 in L

Handle Mounting Position

Flange

NEMA Rating

NEMA 1/3/3R/4/12

Suitable For Use With

9422RM1, 9422CMP and 9422CSJD Disconnect Operating Mechanism

Type

Variable Depth
