Square D

9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4

Category Miscellaneous

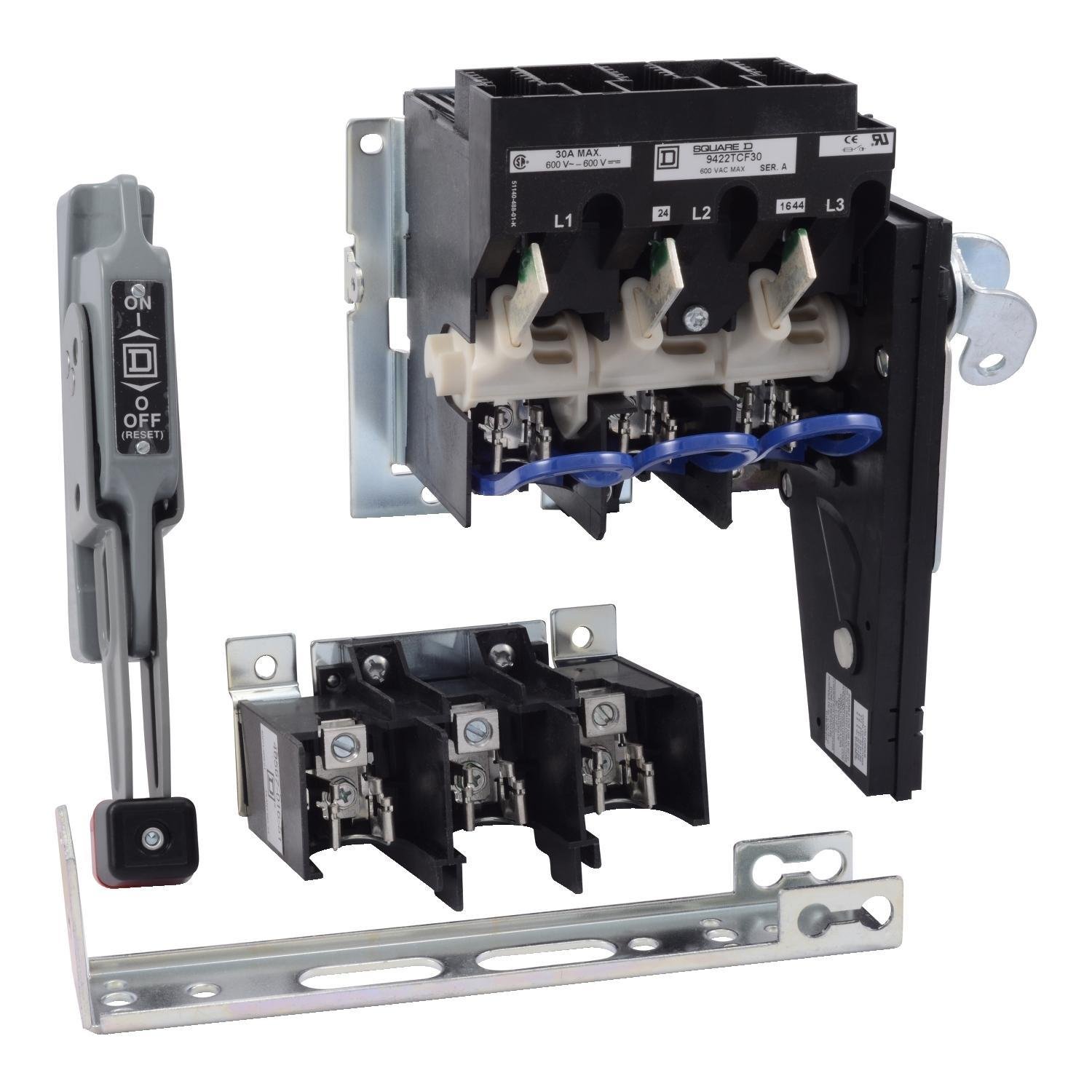

Picture of 9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4 Picture of 9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4

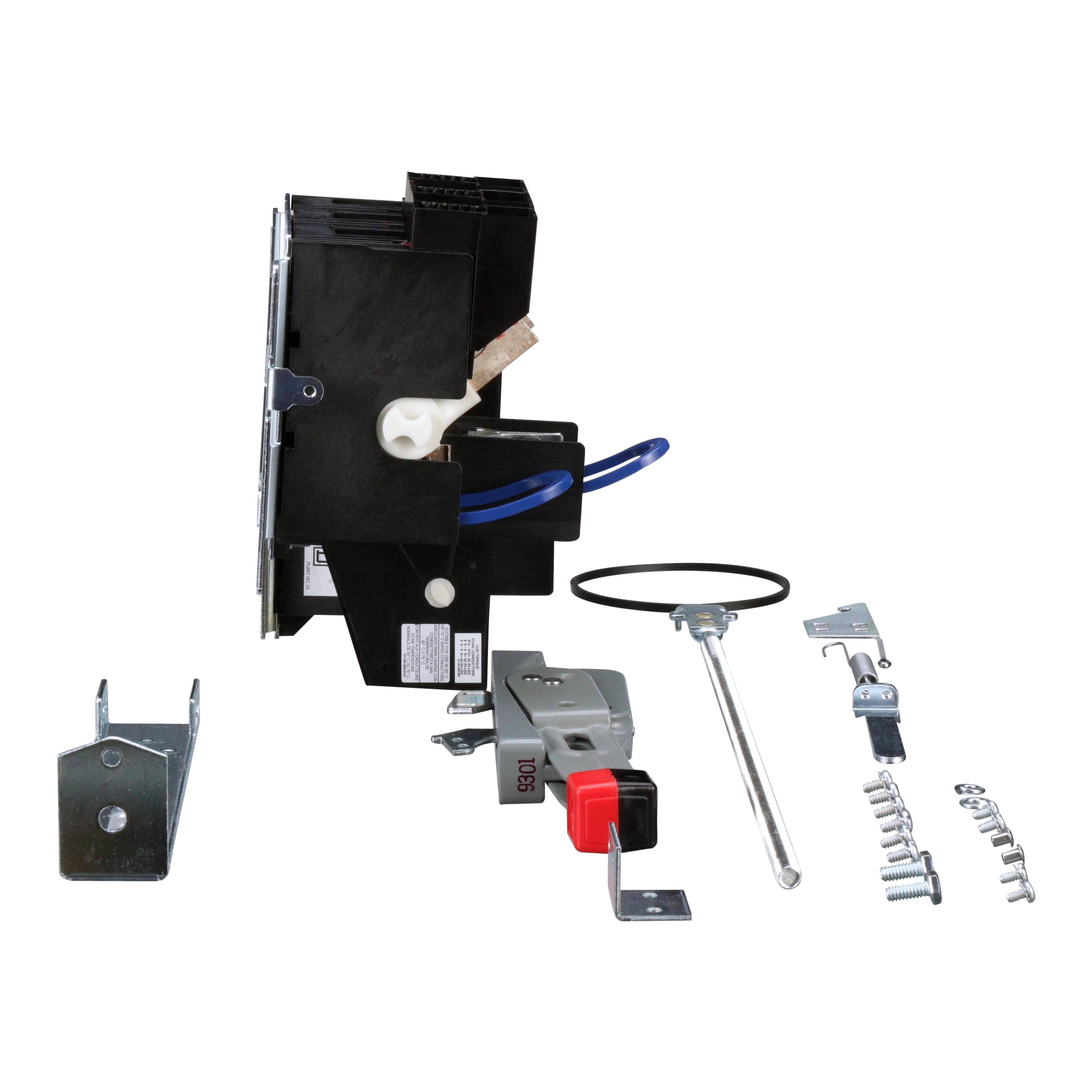

Picture of 9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4 Picture of 9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4

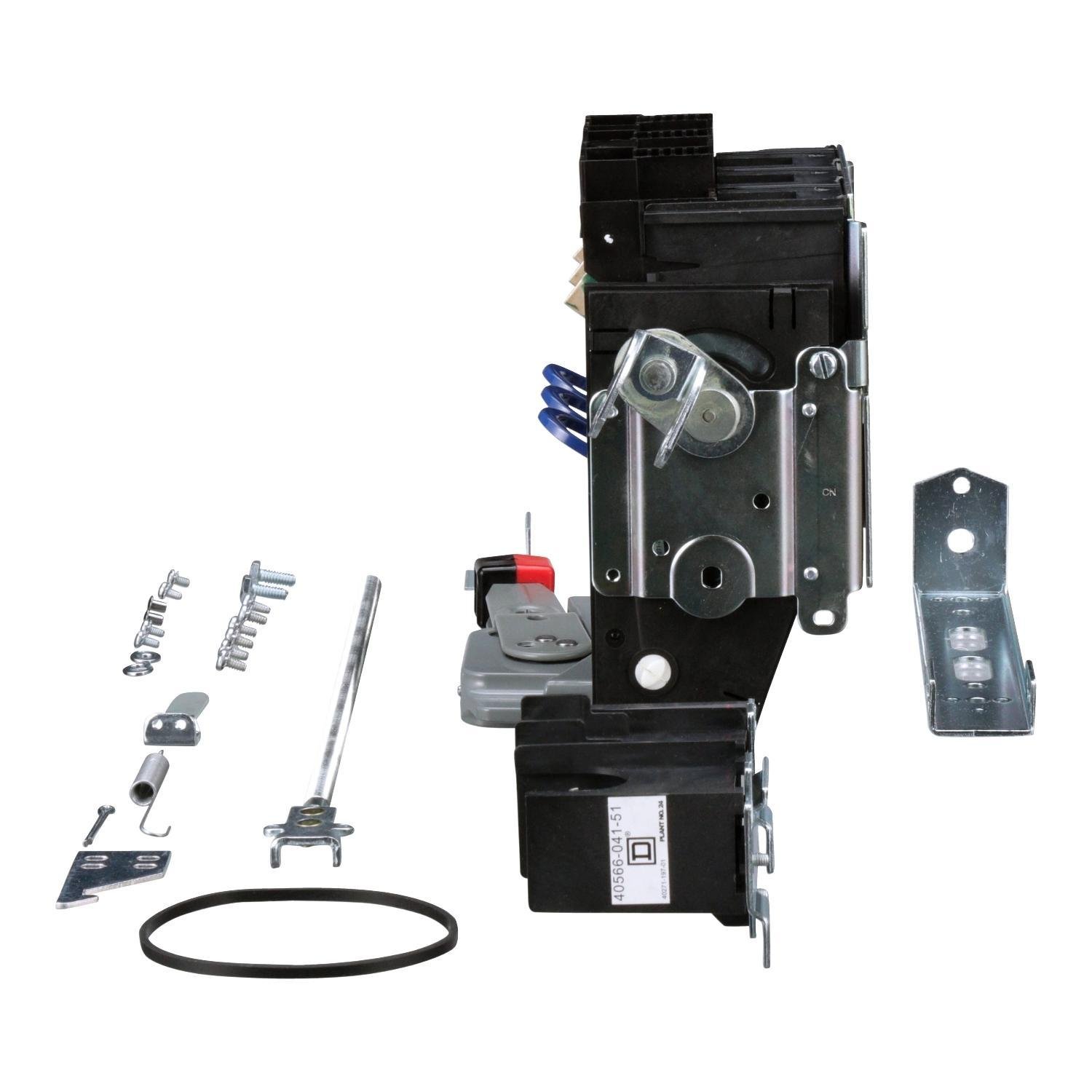

Picture of 9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4 Picture of 9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4

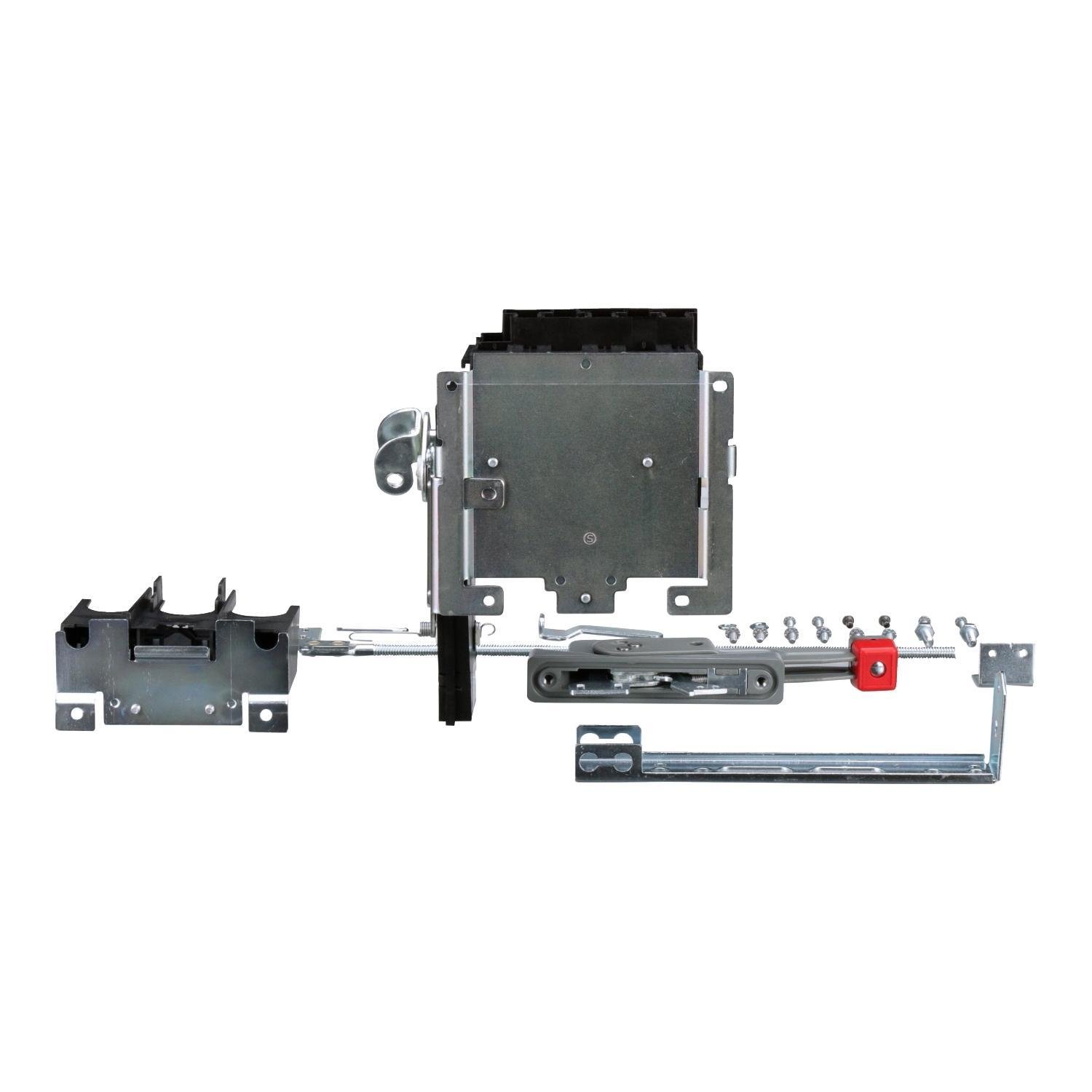

Picture of 9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4 Picture of 9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4
Picture of 9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4 Picture of 9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4
Square D

9422ATCF331 - Operating mechanism, flange mounted, variable depth, 30A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4

Item Code: 586887
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9422ATCF331

Document
Document
Call for Availability
Add to Favorites
Compare

Description

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 250 V and 30 Amps up to 600 V. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #14 to #2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Specifications

Weight

8.98

Height

7.2

Width

11

Length

15.85

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9422ATCF331/9422ATCF331.spin

AD All Features

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Alternative Part Number

8071174

AD Application

For control panel installations and variable depth rod operator applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901872160

AD Gtin

00785901872160

AD IDEA Index ID

8071174

AD Includes

9422A1 6 in Handle, 9422TCF33 6-5/8 to 18 in Variable Depth Disconnect Switch and Operating Mechanism

AD Invoice Description

SWITCH DISC 250/600VAC 30/60A 20HP 3 HDL

AD Item Features 01

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Item Features 02

Two mounting methods offered for flexibility

AD Keywords

9422ATCF331 Fixed/Variable Depth Fusible Disconnect Switch, 250/600 V AC, 30/60 A, 20 hp, 3 Poles ; Schneider Electric ; Square D ; 9422ATCF331 ; 9422ATCF331 ; 785901872160 ; Flange Mount Disconnects

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.2000

AD Package Height UOM

IN

AD Package Length

15.8500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1278.7200

AD Package Volume UOM

cu-in

AD Package Weight

8.9800

AD Package Weight UOM

LB

AD Package Width

11.0000

AD Package Width UOM

IN

AD Part Number Keywords

9422ATCF331 ; 8071174 ; 785901872160 ; 78590187216 ; 00785901872160 ; 0785901872160

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Type

Spec 10 Attribute Value

Fixed/Variable Depth Fusible

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

250/600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

30/60

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 1/3/3R/4/12

Spec 4 Attribute

HORSEPOWER

Spec 4 Attribute UOM

HP

Spec 4 Attribute Value

20

Spec 5 Attribute

Insulation Type

Spec 5 Attribute Value

Class H/J/K/R

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Bracket/Flange

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Series

Spec 8 Attribute Value

9422AT

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Lug
