Square D

9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4

Category Disconnect Motor Switches & Accessories
Picture of 9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4 Picture of 9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4
Picture of 9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4 Picture of 9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4
Picture of 9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4 Picture of 9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4
Picture of 9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4 Picture of 9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4
Picture of 9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4 Picture of 9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4
Square D

9422ATEF101 - Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4

Item Code: 976780
Category Disconnect Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9422ATEF101

Document
Document
Call for Availability
Add to Favorites
Compare

Description

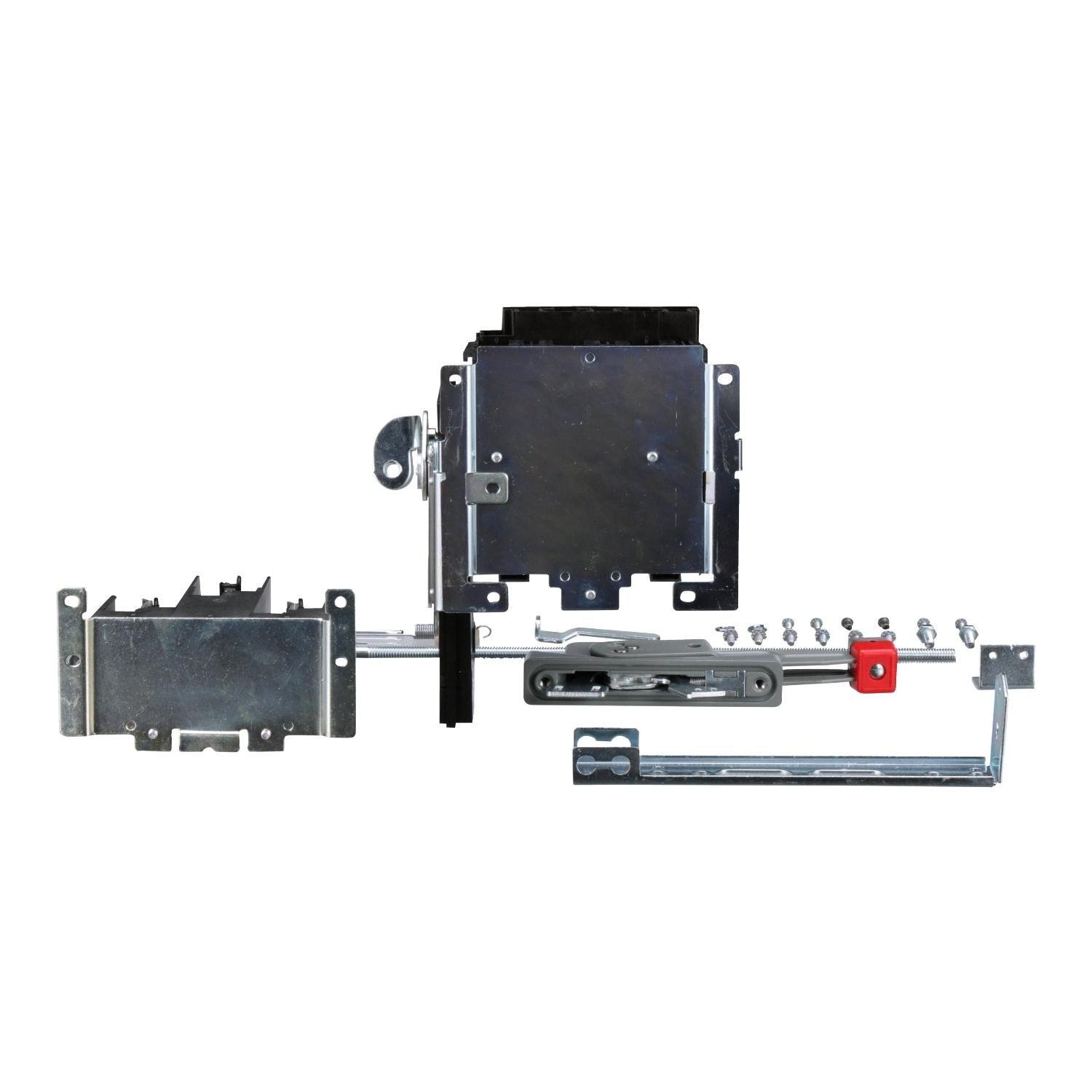

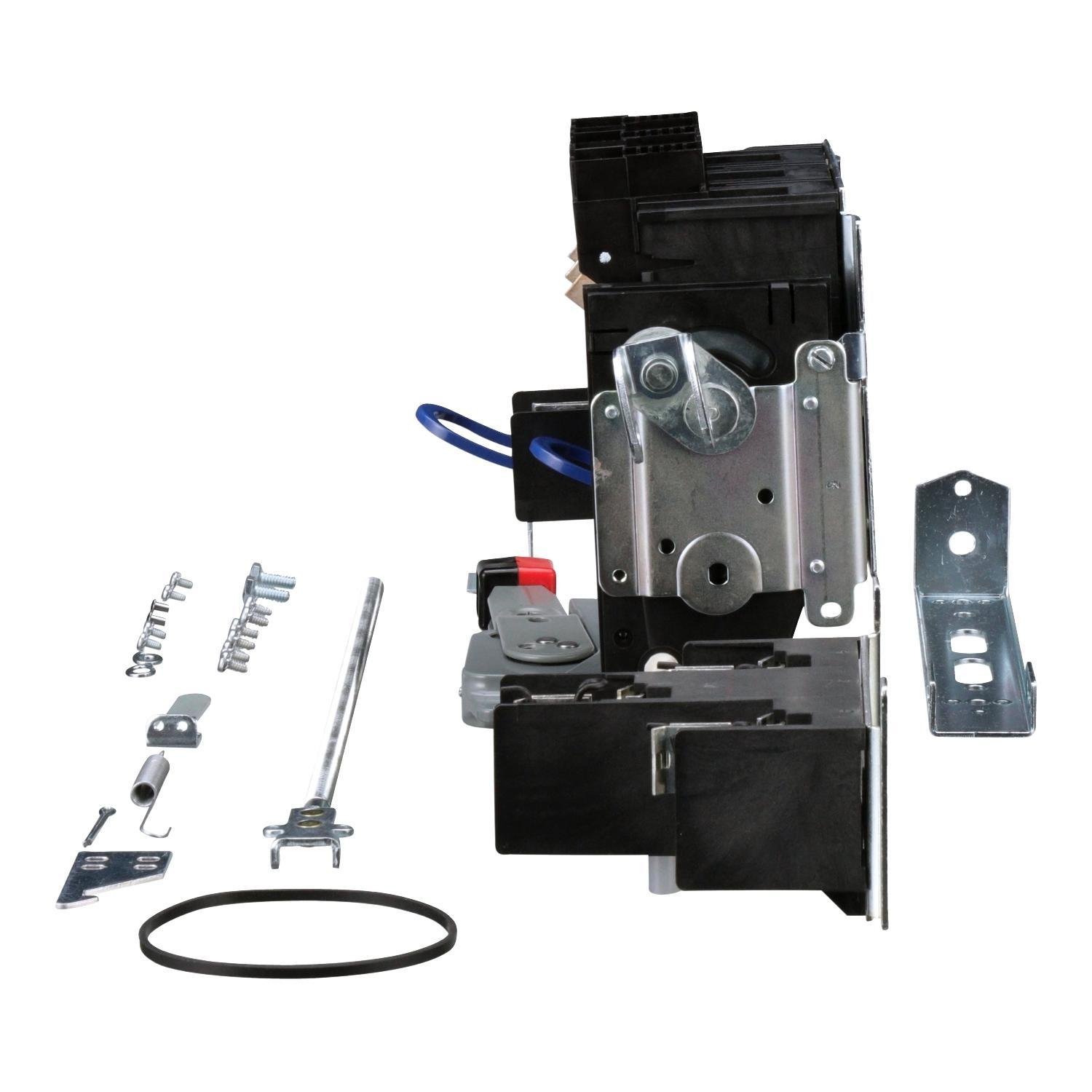

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 100 Amps up to 250 V and 100 Amps up to 600 V. This 100 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is also rated for 20 HP at 250 VDC and 50 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #10 to #0 AWG with copper wire and #6 to #0 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Specifications

Weight

9.7

Height

7.1

Width

11.19

Length

15.95

AD All Features

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Application

For control panel installations and variable depth rod operator applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

9422A1 6 in Handle, 9422TEF10 6-5/8 to 18 in Variable Depth Disconnect Switch and Operating Mechanism

AD Invoice Description

SWITCH DISC 250/600VAC 100A 75HP 3 HDL

AD Item Features 01

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Item Features 02

Two mounting methods offered for flexibility

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.1000

AD Package Height UOM

IN

AD Package Length

15.9500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1268.8400

AD Package Volume UOM

cu-in

AD Package Weight

9.7000

AD Package Weight UOM

LB

AD Package Width

11.1900

AD Package Width UOM

IN

Brand

Square D

Category

DISCONNECT MOTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Type

Spec 10 Attribute Value

Fixed/Variable Depth Fusible

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

250/600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

100

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 1/3/3R/4/12

Spec 4 Attribute

HORSEPOWER

Spec 4 Attribute UOM

HP

Spec 4 Attribute Value

75

Spec 5 Attribute

Insulation Type

Spec 5 Attribute Value

Class H/J/K/R

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Bracket/Flange

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Series

Spec 8 Attribute Value

9422AT

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Lug
