Square D

9422CLA31 - Disconnect mechanism, circuit breaker, cable operated, 400A, 2 or 3 pole, LAL, LHL breaker, 36 inch cable, A1 handle

Category Miscellaneous

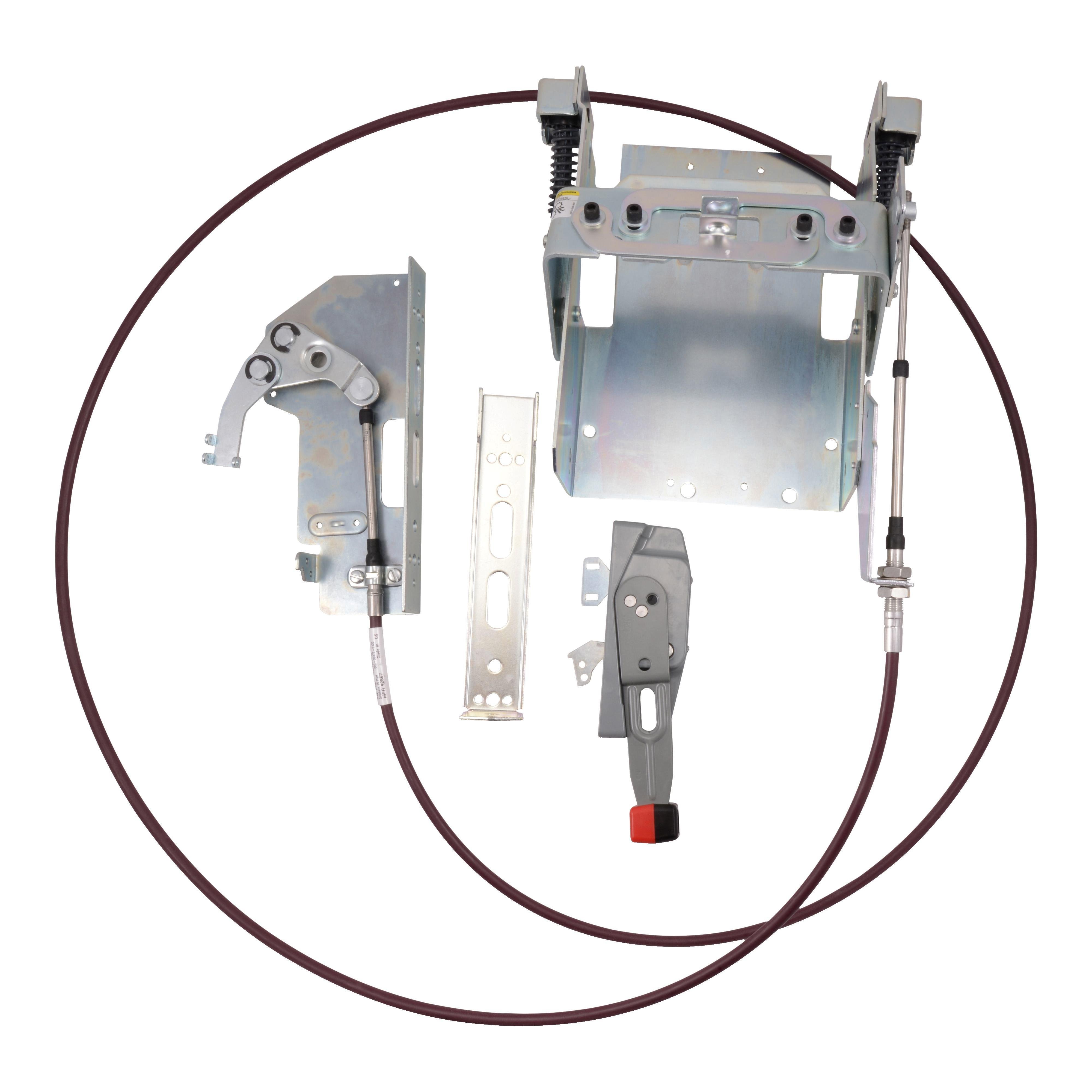

Picture of 9422CLA31 - Disconnect mechanism, circuit breaker, cable operated, 400A, 2 or 3 pole, LAL, LHL breaker, 36 inch cable, A1 handle
Square D

9422CLA31 - Disconnect mechanism, circuit breaker, cable operated, 400A, 2 or 3 pole, LAL, LHL breaker, 36 inch cable, A1 handle

Item Code: 543088
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9422CLA31

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with LAL, LHL and Q4L circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 400 A. This mechanism has a 36 inch long cable. 9422A1 operating handle is overpacked with this disconnect switch. The handle is NEMA 1, 3, 3R and 12 rated. Cable operated mechanism is UL Component Recognized and CSA certified

Specifications

Weight

12.89

Height

8.8

Width

11.19

Length

19.7

AD All Features

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Alternative Part Number

7998258

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901353249

AD Gtin

00785901353249

AD IDEA Index ID

7998258

AD Invoice Description

MECHANISM OPERATING DISC BRKR CKT

AD Item Features 01

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Item Features 02

Two mounting methods offered for flexibility

AD Item Features 03

Disconnect switches were designed for control panel installations

AD Manufacturer (Description)

Schneider Electric

AD Package Height

8.8000

AD Package Height UOM

IN

AD Package Length

19.7000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1996.3700

AD Package Volume UOM

cu-in

AD Package Weight

12.8900

AD Package Weight UOM

LB

AD Package Width

11.1900

AD Package Width UOM

IN

AD Part Number Keywords

9422CLA31 ; 7998258 ; 785901353249 ; 78590135324 ; 00785901353249 ; 0785901353249

Brand

Square D

Spec 1 Attribute

Handle to Device Connection

Spec 1 Attribute Value

36 in Cable

Spec 2 Attribute

Series

Spec 2 Attribute Value

9422C

Spec 3 Attribute

Suitable For Use With

Spec 3 Attribute Value

LAL/LHL, Q4L Series Circuit Breaker

Spec 4 Attribute

Type

Spec 4 Attribute Value

Single Cable Operated
