Square D

9422CSJ30 - Disconnect mechanism, circuit breaker, cable operated, 600A, 3 pole, PowerPacT D/L, 36 inch cable

Category Disconnect Motor Switches & Accessories

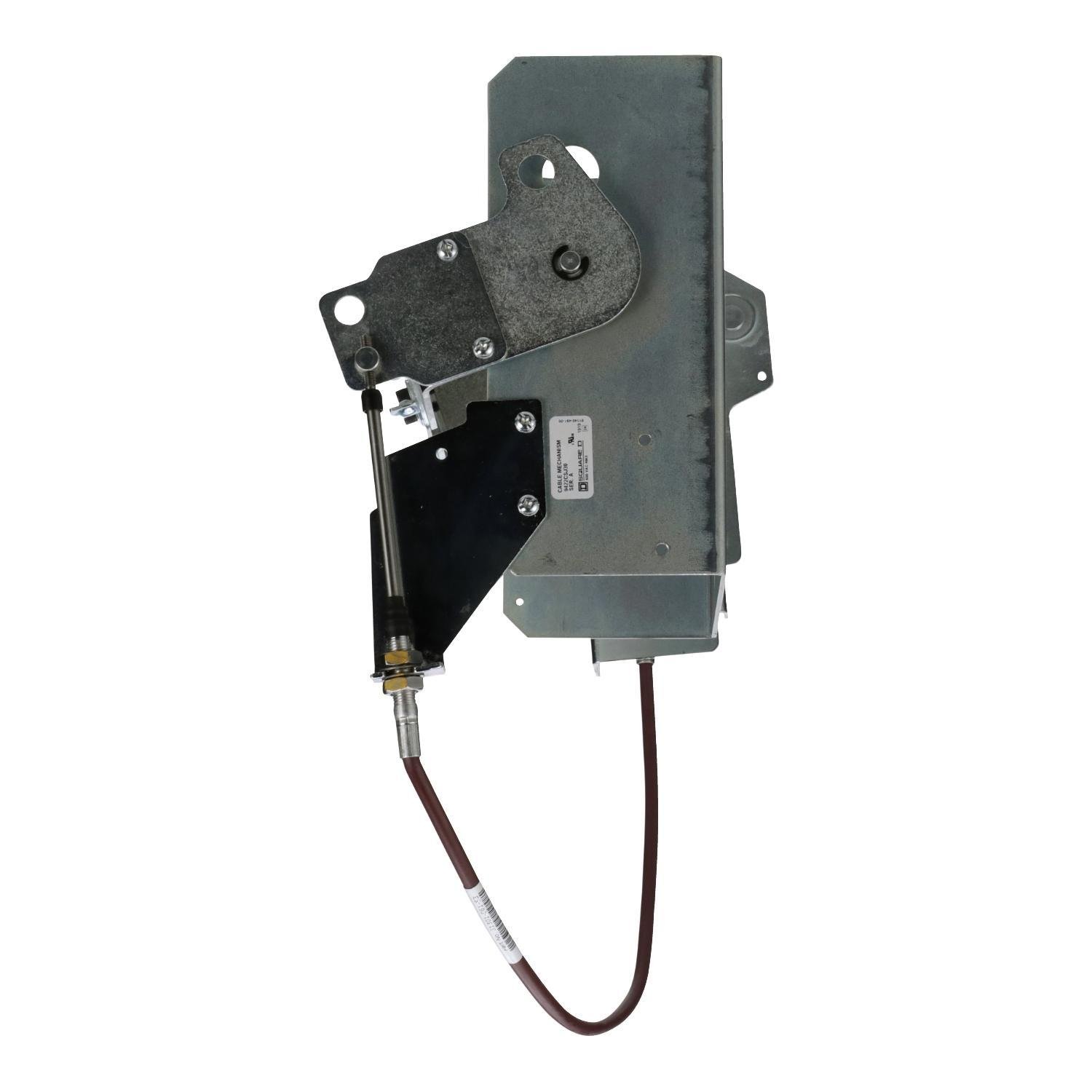

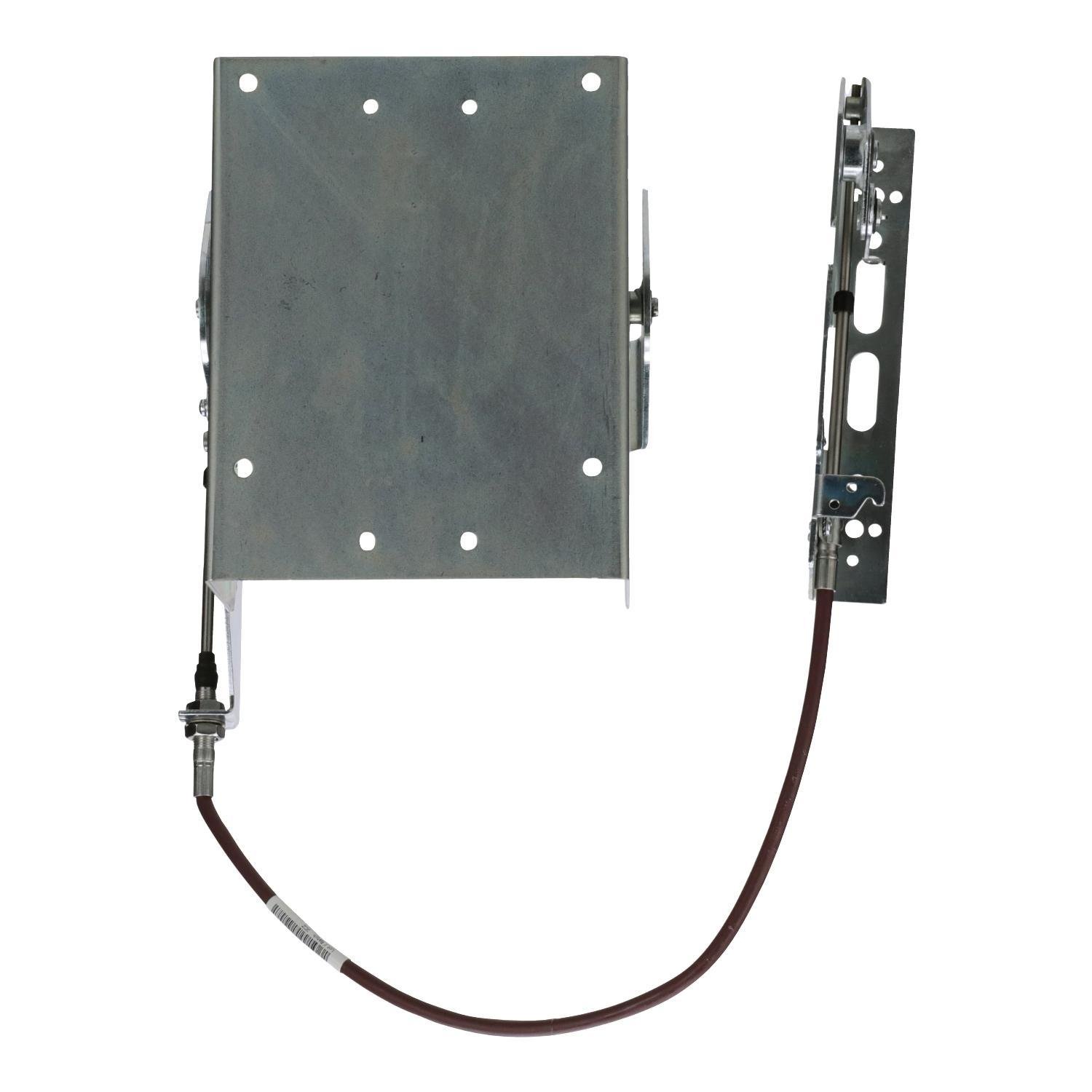

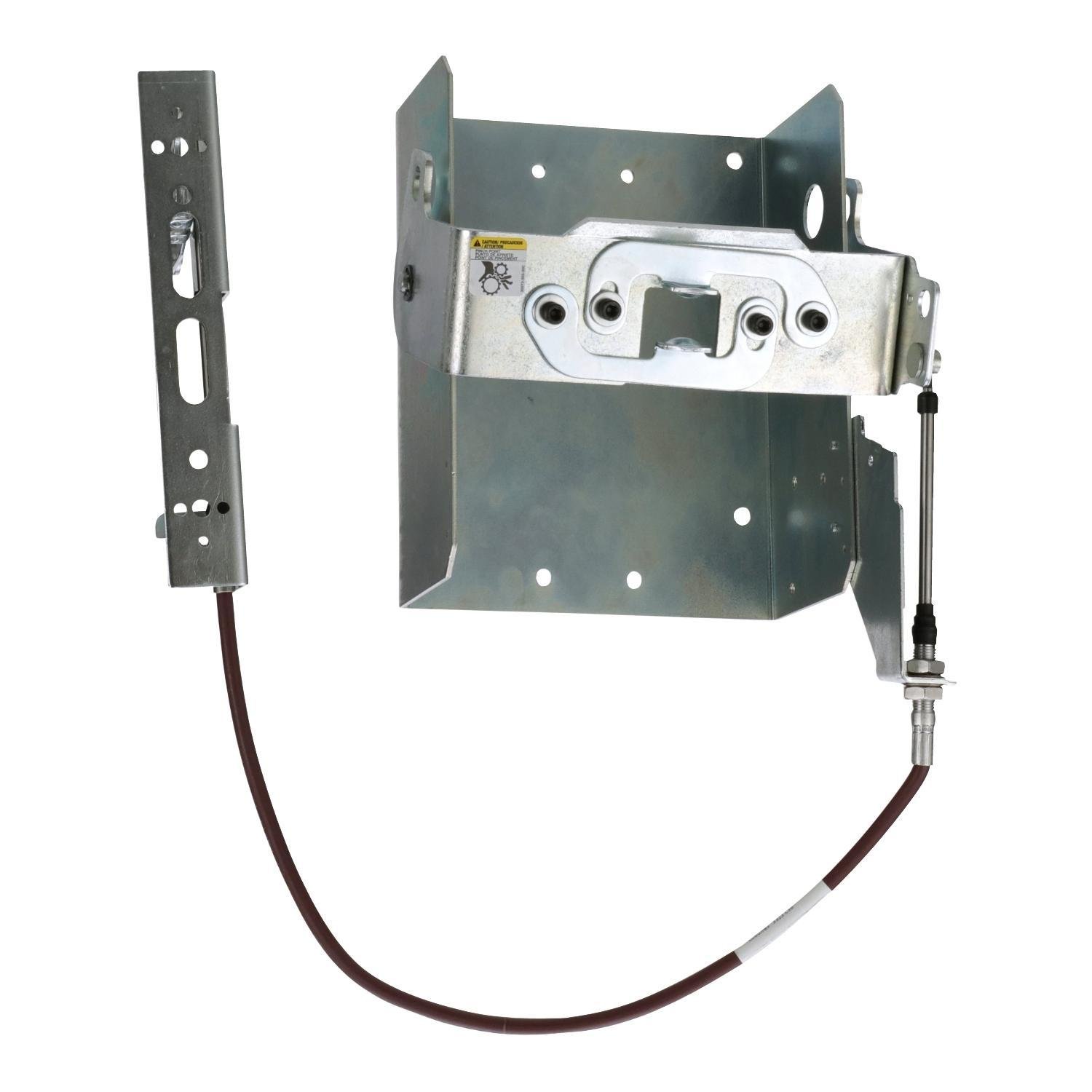

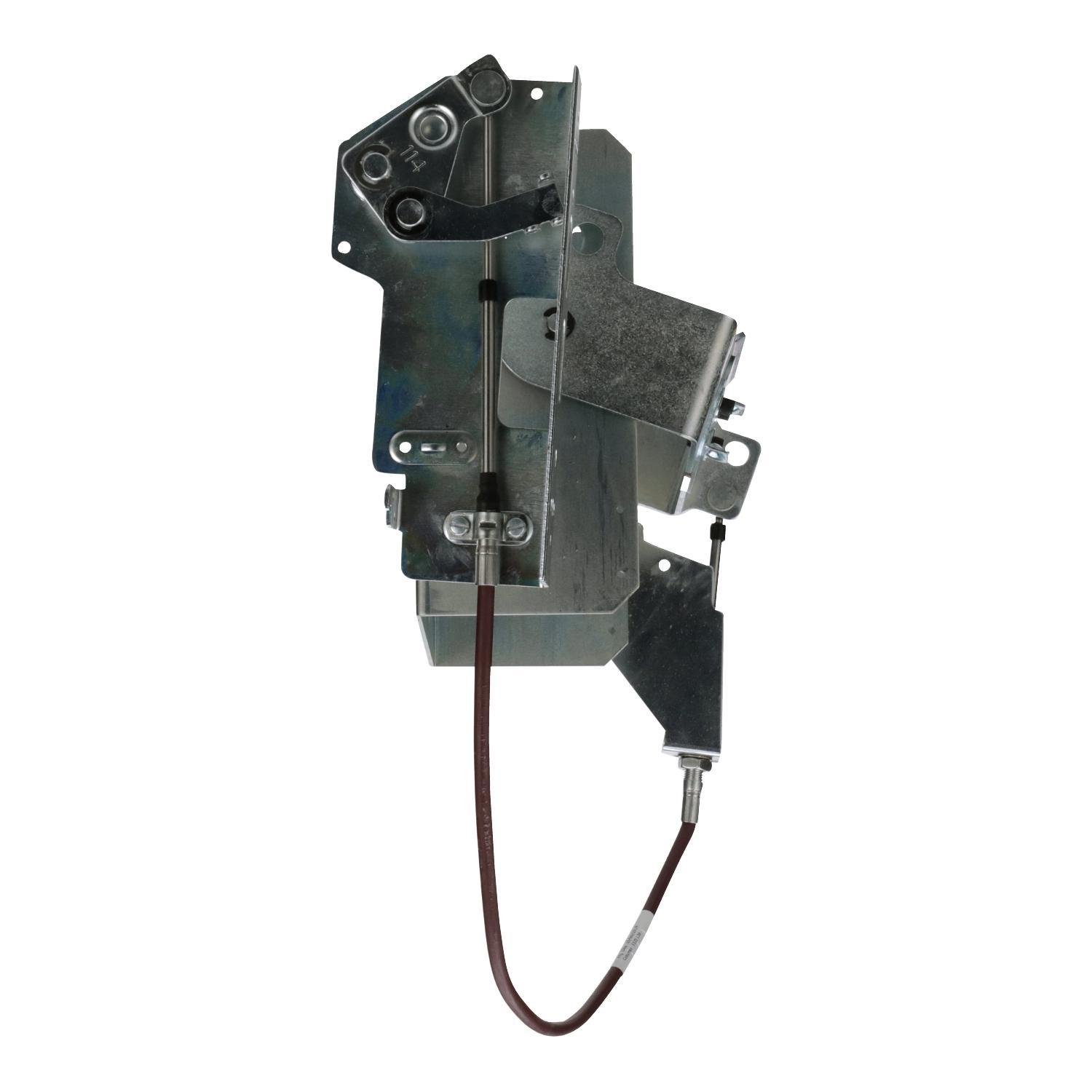

Picture of 9422CSJ30 - Disconnect mechanism, circuit breaker, cable operated, 600A, 3 pole, PowerPacT D/L, 36 inch cable
Square D

9422CSJ30 - Disconnect mechanism, circuit breaker, cable operated, 600A, 3 pole, PowerPacT D/L, 36 inch cable

Item Code: 594911
Category Disconnect Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9422CSJ30

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with PowerPacT D, PowerPacT L and MG-NSJ circuit breakers. Circuit breakers is 3 pole with a frame size of 600 A. This mechanism has a 36 inch long cable. 9422A1 operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified

Specifications

Weight

10.01

Height

8.8

Width

11.19

Length

19.62

Brand

Square D

Category

DISCONNECT MOTOR SWITCHES & ACCESSORIES

Handle to Device Connection

36 in Cable

Series

9422C

Suitable For Use With

MG-NSJ PowerPact® D Circuit Breaker

Type

Single Cable Operated
