Square D

9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism

Category Disconnect Motor Switches & Accessories

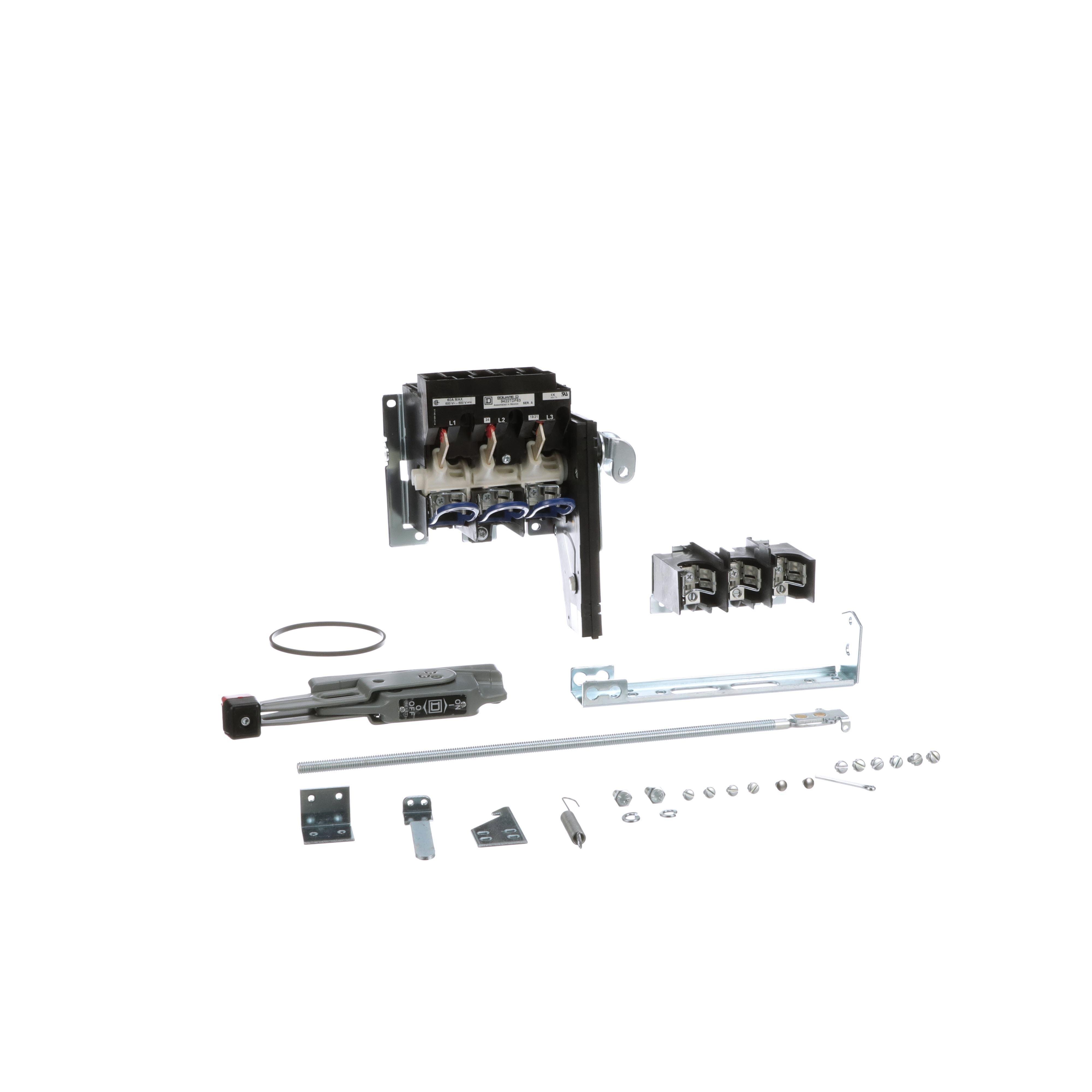

Picture of 9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism Picture of 9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism
Picture of 9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism Picture of 9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism
Picture of 9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism Picture of 9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism
Picture of 9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism Picture of 9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism
Picture of 9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism Picture of 9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism
Square D

9422TDF63 - Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, switch mechanism

Item Code: 976931
Category Disconnect Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9422TDF63

Document
Document
Call for Availability
Add to Favorites
Compare

Description

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 600 V. This 60 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 250 VDC and 30 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Specifications

Weight

6.2

Height

7.1

Width

11.09

Length

15.85

AD All Features

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Application

For control panel installations applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Switch, Handle and Operating Mechanism

AD Invoice Description

SWITCH DISC 600VAC 60A 3 3 TYPE A HDL

AD Item Features 01

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Item Features 02

Two mounting methods offered for flexibility

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.1000

AD Package Height UOM

IN

AD Package Length

15.8500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1272.3200

AD Package Volume UOM

cu-in

AD Package Weight

6.2000

AD Package Weight UOM

LB

AD Package Width

11.0900

AD Package Width UOM

IN

Brand

Square D

Category

DISCONNECT MOTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Type A Handle

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

60

Spec 3 Attribute

Insulation Type

Spec 3 Attribute Value

Class H/J/K/R

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Flange

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

3

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

3

Spec 7 Attribute

Series

Spec 7 Attribute Value

9422T

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Lug

Spec 9 Attribute

Type

Spec 9 Attribute Value

Fusible Rod Operated Variable Depth
