Square D

9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism

Category Disconnect Motor Switches & Accessories
Picture of 9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism Picture of 9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism
Picture of 9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism Picture of 9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism
Picture of 9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism Picture of 9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism
Picture of 9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism Picture of 9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism
Picture of 9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism Picture of 9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism
Square D

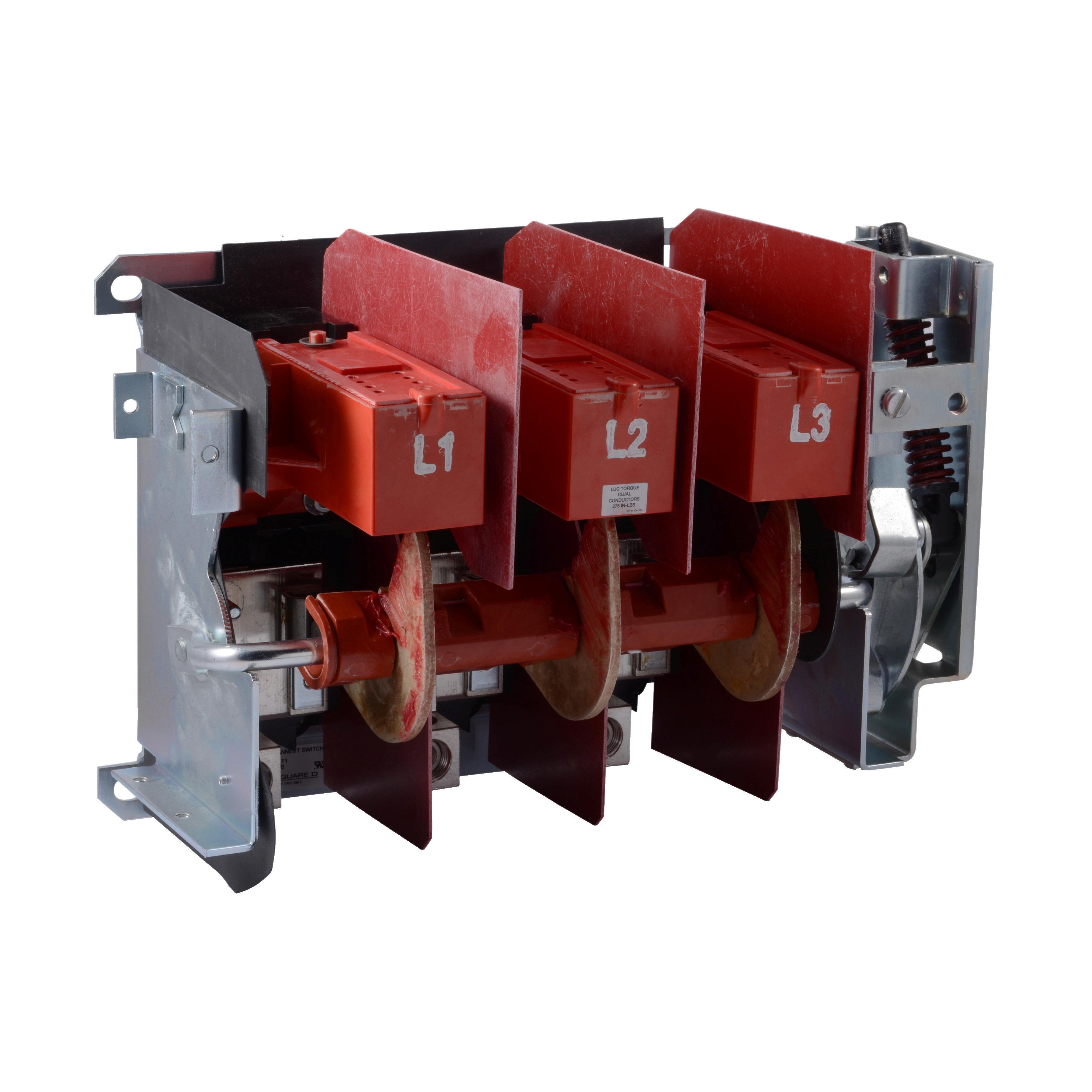

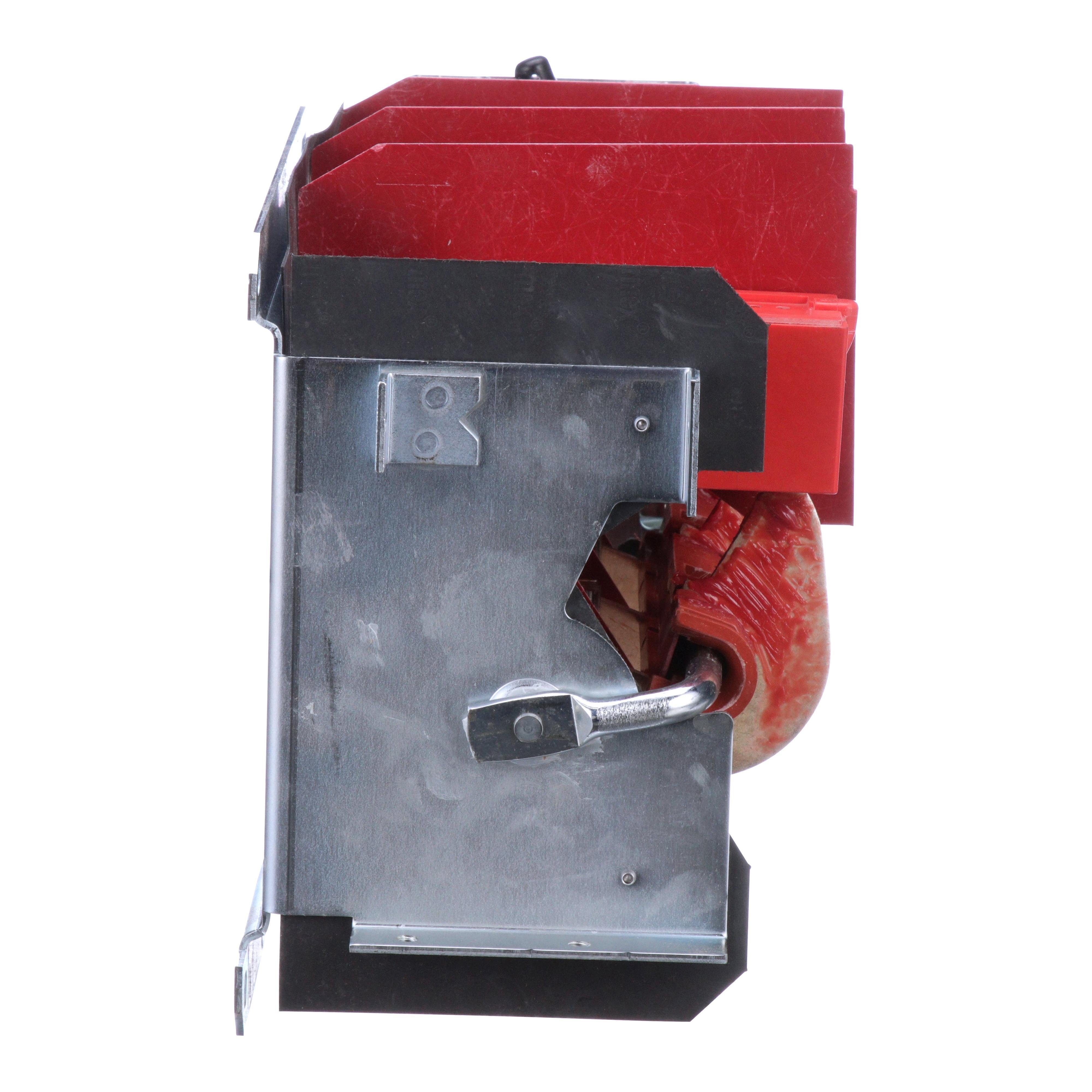

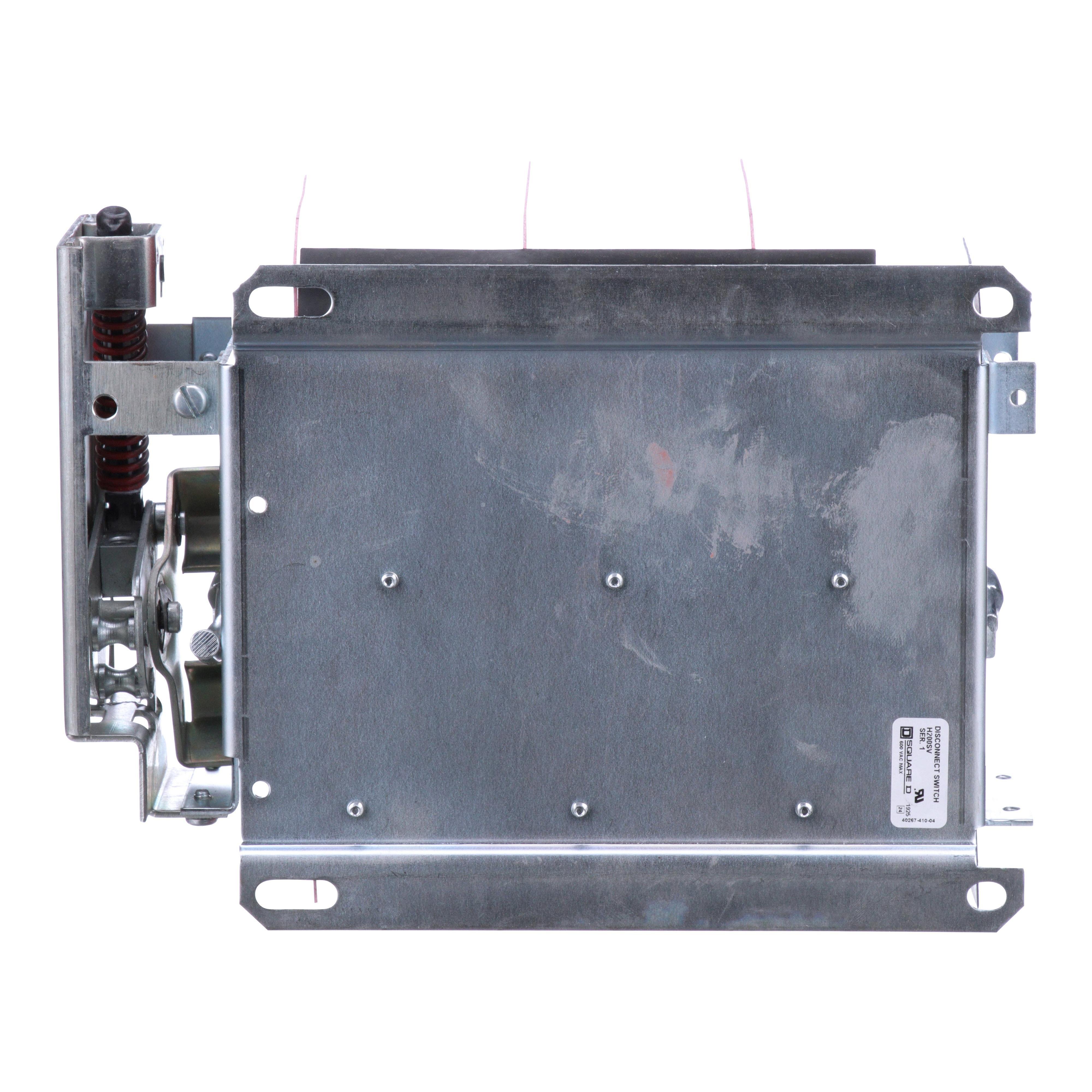

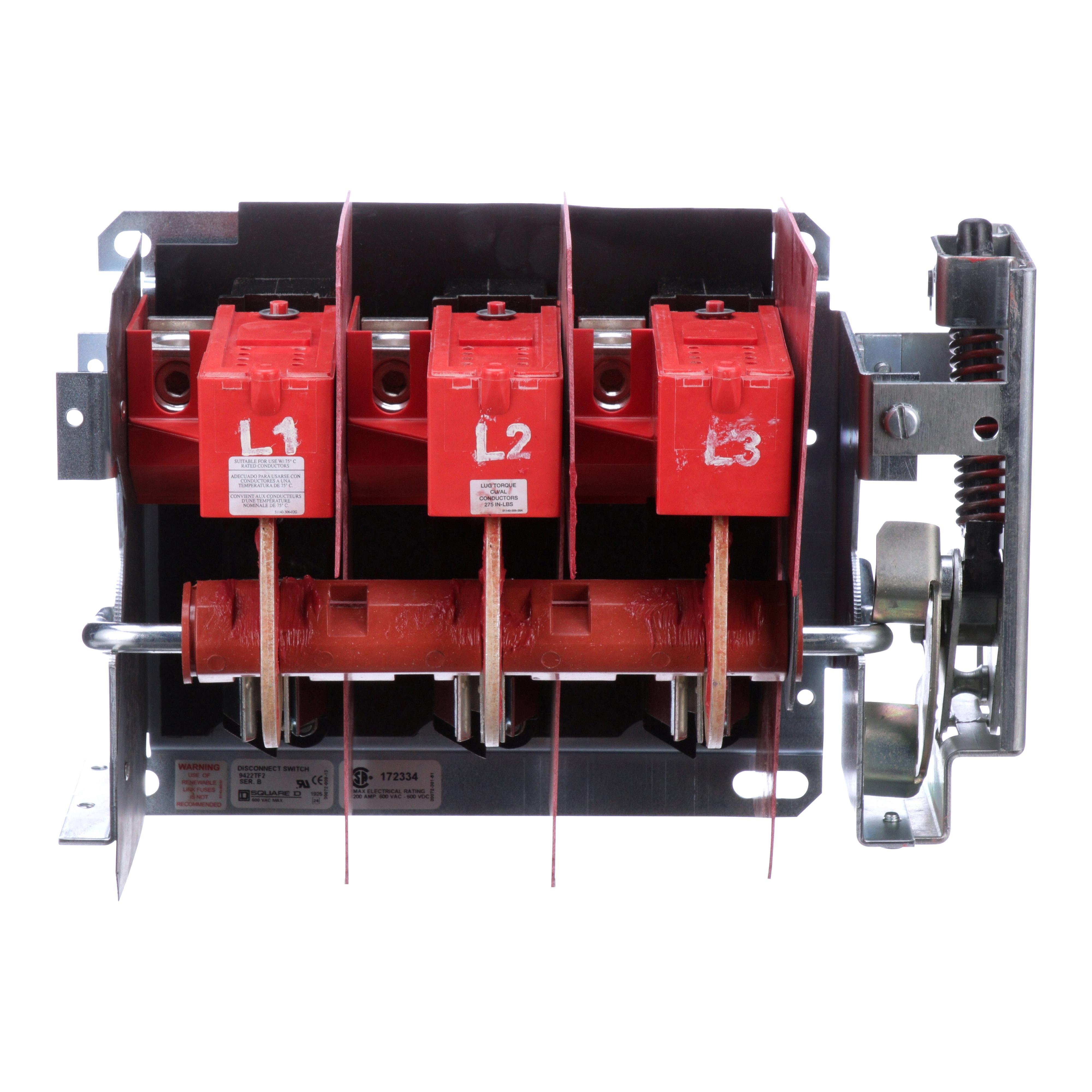

9422TF2 - Operating mechanism, flange mounted, variable depth, 200A, 600V, H, K, J, R fuseholder, switch mechanism

Item Code: 687471
Category Disconnect Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9422TF2

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 200 Amps up to 250 V and 200 Amps up to 600 V. This 200 A disconnect switch is designed for flange mounting. The variable depth mounting range is 9.12 to 19.25 inches. Disconnect switch has horsepower ratings of 40 HP at 208 VAC, 60 HP at 240 VAC, 125 HP at 480 VAC and 150 HP at 600 VAC. Switch is also rated for 40 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch lugs are rated for #6 AWG to 300 kcmil with copper or aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Specifications

Weight

25.33

Width

11.99

Length

20.51

AD All Features

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH DISC 250/600VAC 200A 3 FLG LUG
