Square D

9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles

Category Miscellaneous

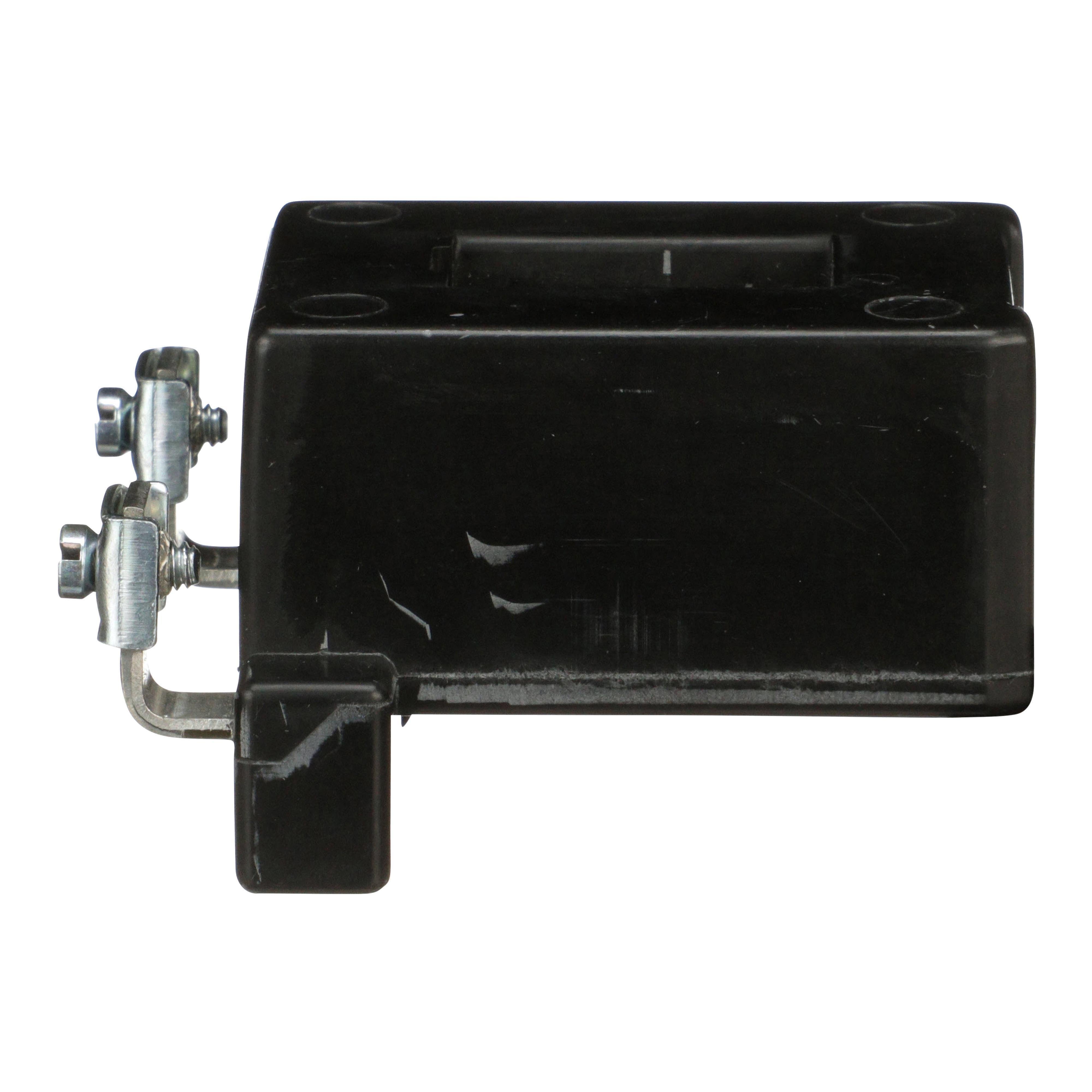

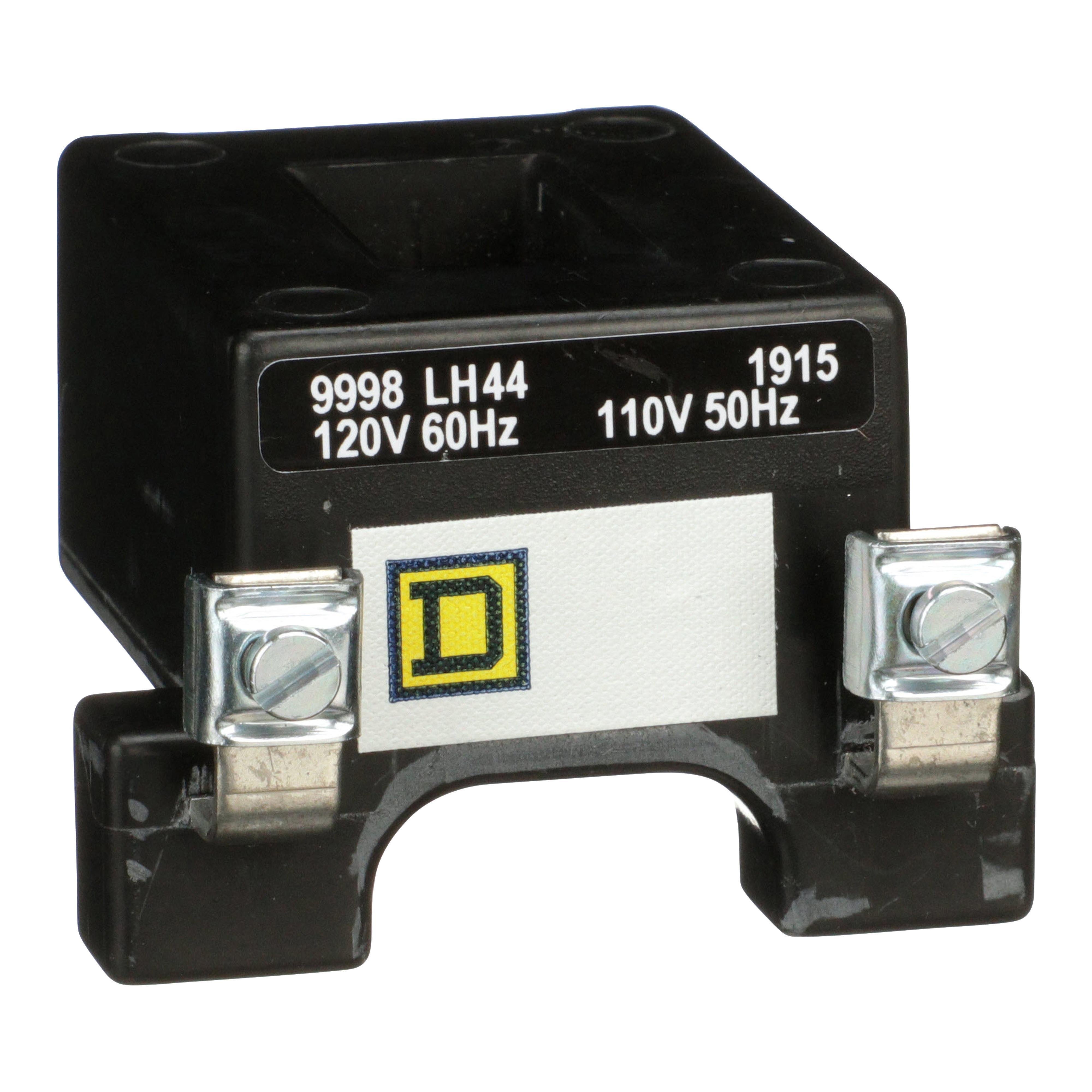

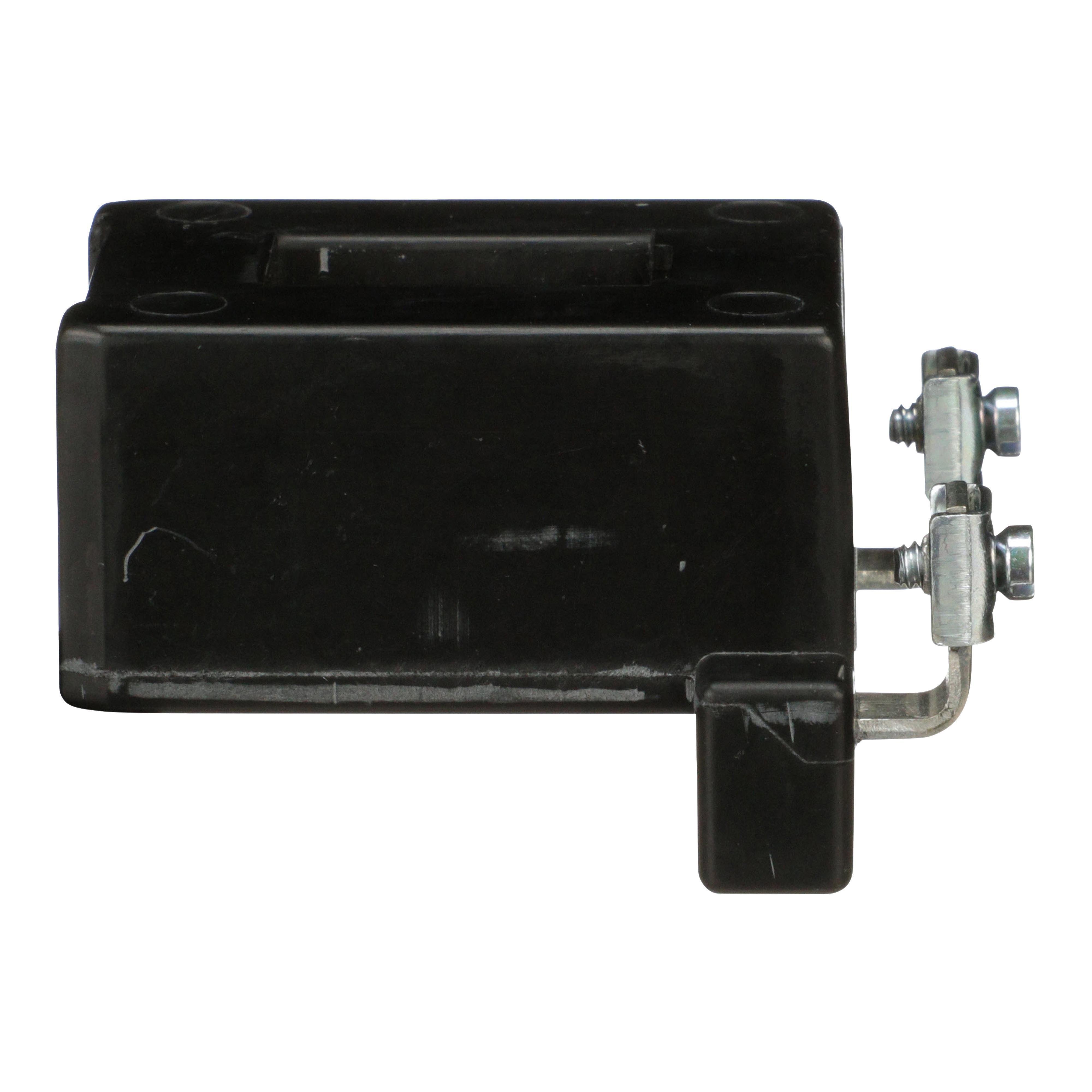

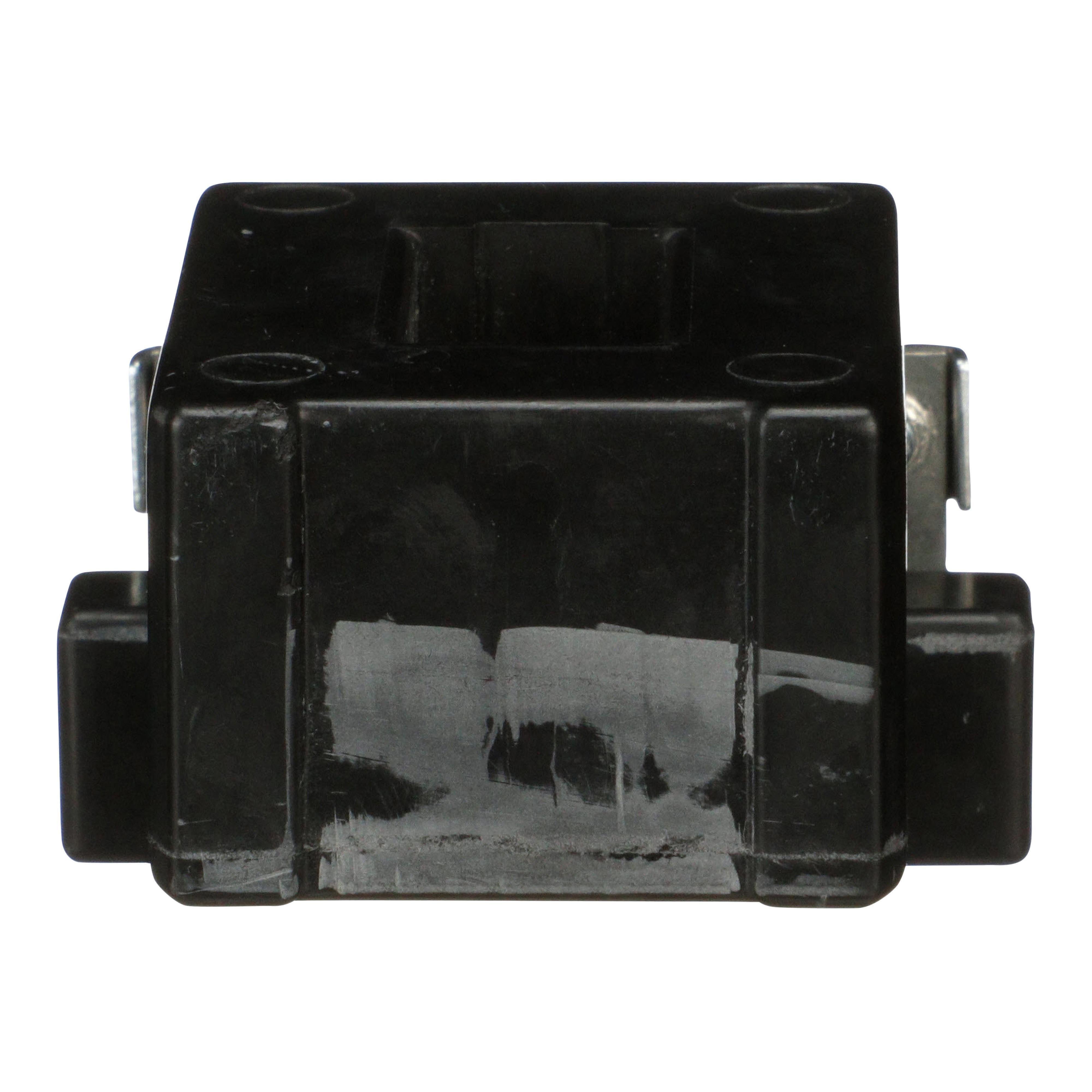

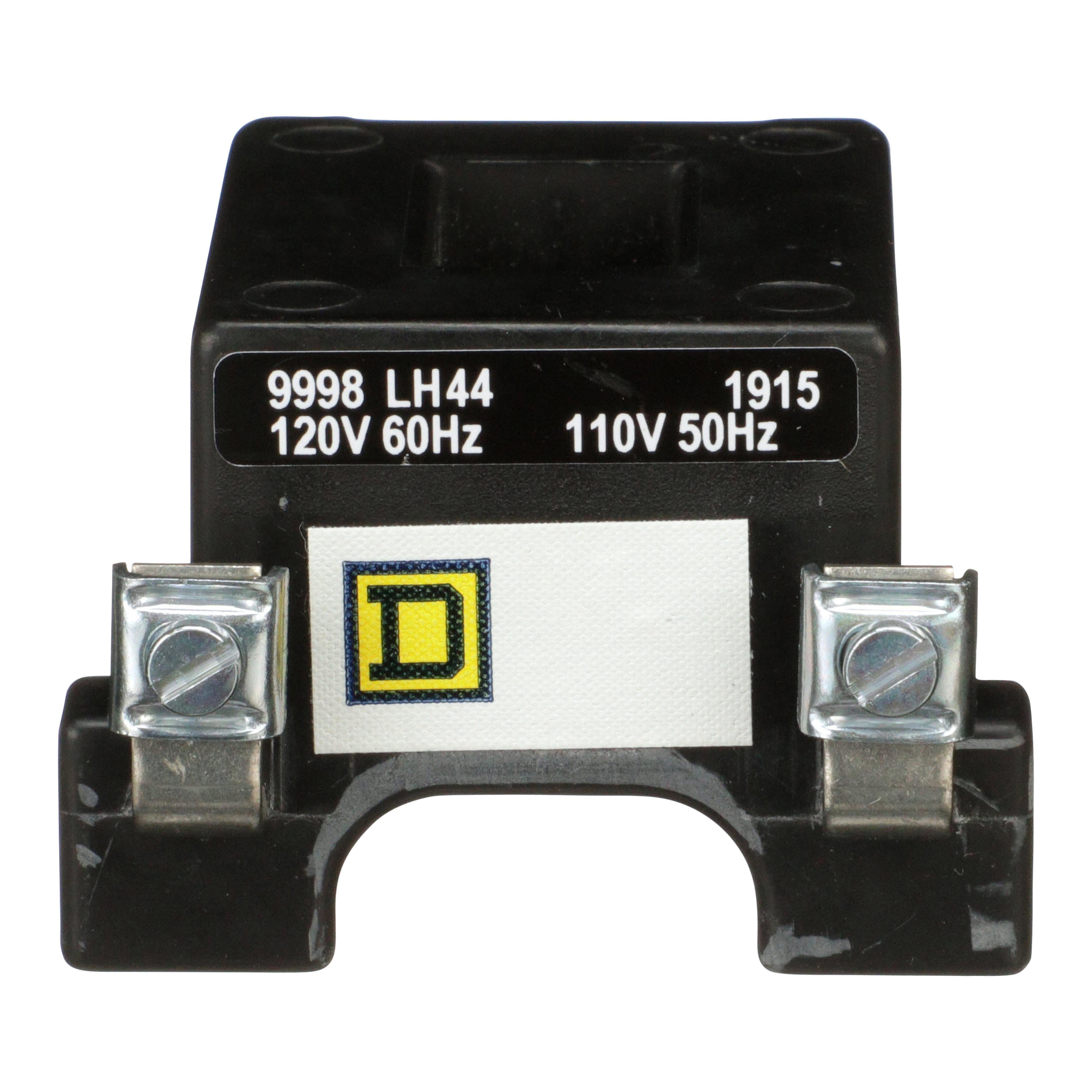

Picture of 9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles Picture of 9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles
Picture of 9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles Picture of 9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles
Picture of 9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles Picture of 9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles
Picture of 9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles Picture of 9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles
Picture of 9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles Picture of 9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles
Square D

9998LH44 - Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles

Item Code: 40742
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9998LH44

Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 L lighting contactor. By changing out the coil, the lighting contactor can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8903L, 8 to 12 poles, and 8930LX, 6 to 12 poles, lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 180 VA. It has an average sealed consumption of 35 VA. This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.

Specifications

Weight

0.36

Height

2.2

Width

2.67

Length

3.37

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9998LH44/9998LH44.spin

AD All Features

Robust design and reliable build

AD Alternative Part Number

8009558

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD EAN

0785901081289

AD Gtin

00785901081289

AD IDEA Index ID

8009558

AD Invoice Description

COIL RLY REPLACEMENT 110/115/120VAC 8536

AD Item Features 01

Robust design and reliable build

AD Item Features 02

Easy to Service with replaceable parts

AD Item Features 03

Available in NEMA Sizes 00 to 7

AD Item Features 04

600 V Maximum

AD Item Features 05

Customizable with hundreds of combinations

AD Keywords

9998LH44 Type L/LX Replacement Relay Coil, 110/115/120 V AC, 50/60 Hz, For Use With Class 8502, 8536, 8538, 8539, 8606 Type L/LX Magnetic Contactor/Starter ; Schneider Electric ; Square D ; 9998LH44 ; 9998LH44 ; 785901081289 ; Motor Control Coils

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.2000

AD Package Height UOM

IN

AD Package Length

3.3700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

20.2000

AD Package Volume UOM

cu-in

AD Package Weight

0.3600

AD Package Weight UOM

LB

AD Package Width

2.6700

AD Package Width UOM

IN

AD Part Number Keywords

9998LH44 ; 8009558 ; 785901081289 ; 78590108128 ; 00785901081289 ; 0785901081289

AD Video Links

https://www.youtube.com/embed/cPMJNL-eQdk

Brand

Square D

Spec 1 Attribute

Frequency Rating

Spec 1 Attribute UOM

HZ

Spec 1 Attribute Value

50/60

Spec 2 Attribute

Series

Spec 2 Attribute Value

9998

Spec 3 Attribute

Suitable For Use With

Spec 3 Attribute Value

Class 8502, 8536, 8538, 8539, 8606 Type L/LX Magnetic Contactor/Starter

Spec 4 Attribute

Type

Spec 4 Attribute Value

Type L/LX

Spec 5 Attribute

Voltage Rating

Spec 5 Attribute UOM

V AC

Spec 5 Attribute Value

110/115/120
