Square D™

9998SO1 - NEMA Motor Starter, Type S, replacement melting alloy overload contact, standard NC

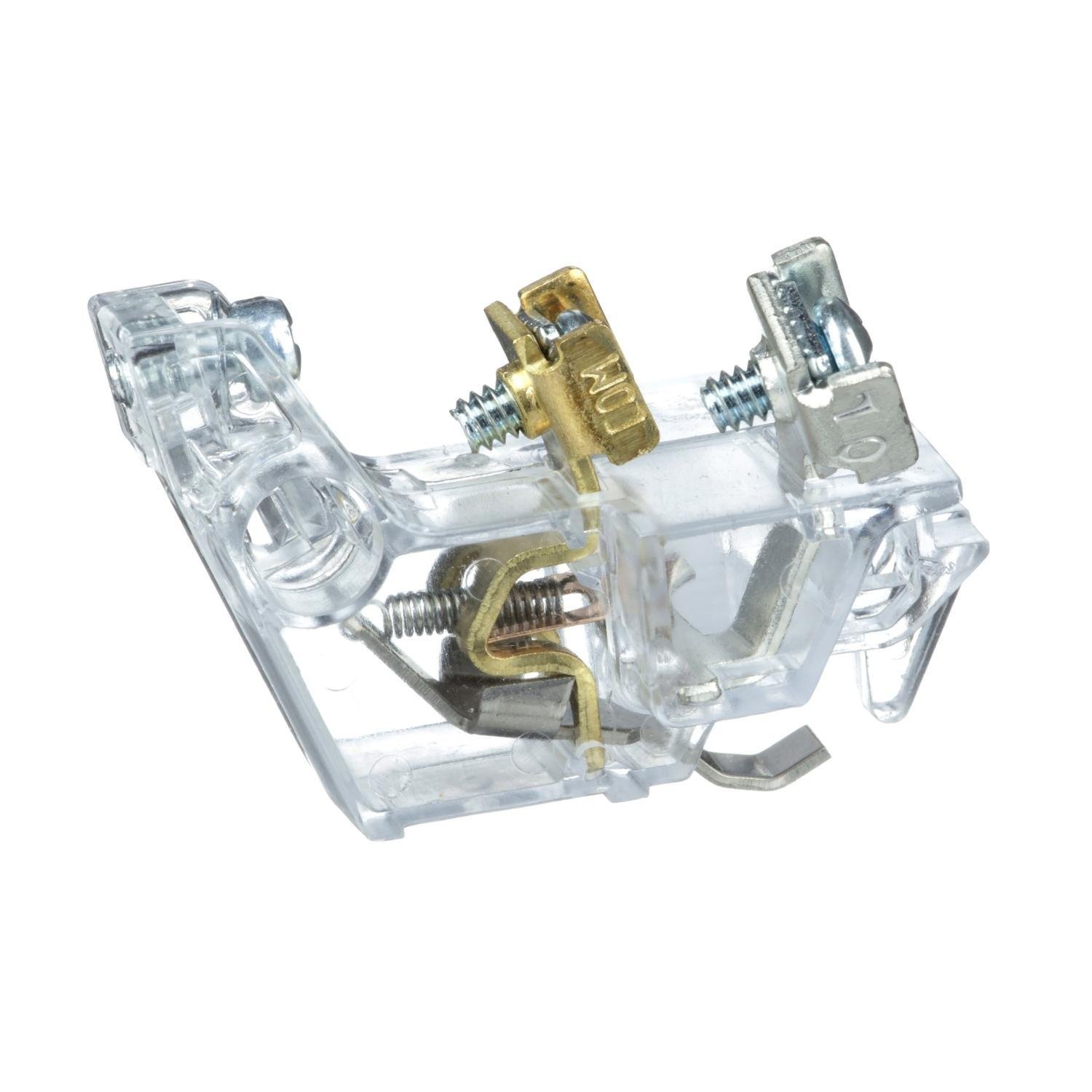

Picture of 9998SO1 - NEMA Motor Starter, Type S, replacement melting alloy overload contact, standard NC
Square D™

9998SO1 - NEMA Motor Starter, Type S, replacement melting alloy overload contact, standard NC

Item Code: 17764
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9998SO1

Document
Call for Availability
Add to Favorites
Compare

Description

Type S melting alloy thermal overload relays provide motor overcurrent protection. The exclusive one piece melting alloy thermal unit is used in these relays provide protection against overheating of the motor winding insulation due excessive over current. This replaceable standard NC output contact of the overload relay comes as standard with all Type S melting alloy overload relays. Contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC.

Specifications

Weight

0.06lb

Height

1.4mm

Width

2.26mm

Length

3.08mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9998SO1/9998SO1.spin

AD Alternative Part Number

8159212

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD EAN

0785901754732

AD Gtin

00785901754732

AD IDEA Index ID

8159212

AD Invoice Description

KIT CONT RLY OVLD REPLACEMENT 120VAC 5A

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Item Features 05

Ideal for use in construction, industrial markets, building automation

AD Keywords

9998SO1 Replacement Overload Relay Contact Kit, 120 V AC, 5 A, For Use With 8536S Starter Overload Relay, 1 Poles ; Schneider Electric ; Square D ; 9998SO1 ; 9998SO1 ; 785901754732 ; Relay Contacts

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.4000

AD Package Height UOM

IN

AD Package Length

3.0800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

9.6600

AD Package Volume UOM

cu-in

AD Package Weight

0.0600

AD Package Weight UOM

LB

AD Package Width

2.2600

AD Package Width UOM

IN

AD Part Number Keywords

9998SO1 ; 8159212 ; 785901754732 ; 78590175473 ; 00785901754732 ; 0785901754732

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

5

Spec 2 Attribute

Mounting Type

Spec 2 Attribute Value

Internal/Surface

Spec 3 Attribute

Number Of Poles

Spec 3 Attribute Value

1

Spec 4 Attribute

Suitable For Use With

Spec 4 Attribute Value

8536S Starter Overload Relay

Spec 5 Attribute

Voltage Rating

Spec 5 Attribute UOM

V AC

Spec 5 Attribute Value

120
