Schneider Electric

ABL8BBU24200 - battery control module, phaseo ABL7 ABL8, 24 to 28.8V DC, phaseo ABL7 ABL8, 24V, 20A, for regulated SMPS

Category Miscellaneous

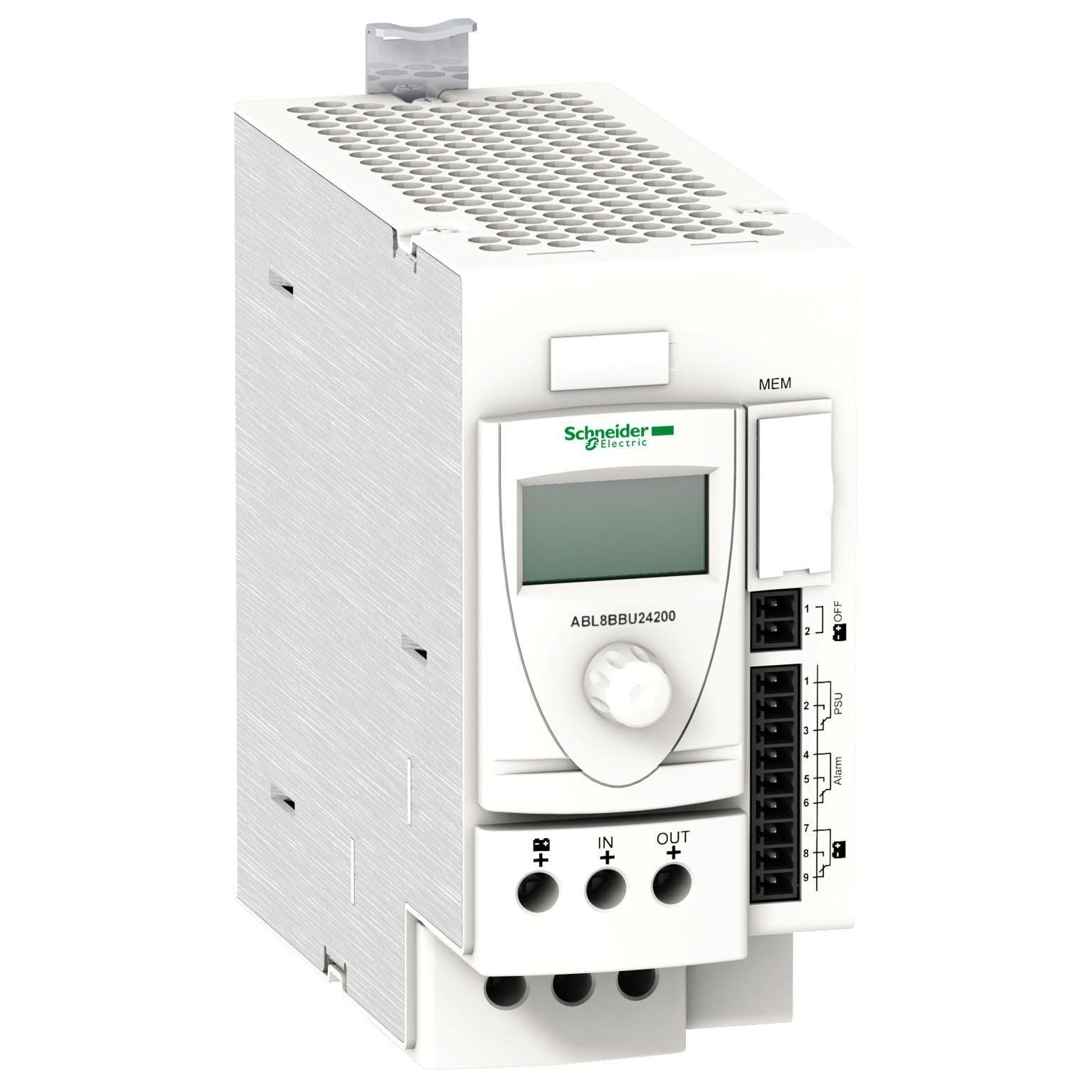

Picture of ABL8BBU24200 - battery control module, phaseo ABL7 ABL8, 24 to 28.8V DC, phaseo ABL7 ABL8, 24V, 20A, for regulated SMPS
Schneider Electric

ABL8BBU24200 - battery control module, phaseo ABL7 ABL8, 24 to 28.8V DC, phaseo ABL7 ABL8, 24V, 20A, for regulated SMPS

Item Code: 880921
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ABL8BBU24200

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This ABL8 battery control module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 20A at 24V DC. This battery control module is designed to act as a battery charger, to allow batteries usage during signi

Specifications

Weight

3.23

Width

7.61

Length

7.61

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/ABL8BBU24200/ABL8BBU24200.spin

AD All Features

Control backup battery charging and backup supply to ensure the longest battery life-time

AD Alternative Part Number

10864965

AD Application

Industry, Building, Simple Machines, Conveying, Process, Automobile Sector, Tertiary and Garage Doors Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

3389119406826

AD Gtin

03389119406826

AD IDEA Index ID

10864965

AD Invoice Description

MODULE CTRL BAT 24VDC 20A CLIP/DIN RAIL

AD Item Features 01

Control backup battery charging and backup supply to ensure the longest battery life-time

AD Item Features 02

Reliable and fast switching between network/battery supply avoiding disturbances on critical control power supply lines

AD Keywords

Phaseo Square D ABL8BBU24200 Regulated Switch Mode Battery Control Module, 0.5 V DC Battery Mode, 0.25 V DC Nominal Mode Input, 24 VDC Output, 20 A, DIN Rail Mount ; Schneider Electric ; Schneider Electric ; ABL8BBU24200 ; 785901594161 ; DC Power Supplies

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.6100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.2300

AD Package Weight UOM

LB

AD Package Width

7.6100

AD Package Width UOM

IN

AD Part Number Keywords

ABL8BBU24200 ; 10864965 ; 785901594161 ; 78590159416 ; 03389119406826 ; 3389119406826

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

MM

Spec 2 Attribute Value

160

Spec 3 Attribute

Height

Spec 3 Attribute UOM

MM

Spec 3 Attribute Value

125

Spec 4 Attribute

Input Voltage

Spec 4 Attribute Value

0.5 V DC Battery Mode, 0.25 V DC Nominal Mode

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

DIN Rail

Spec 6 Attribute

Output Voltage

Spec 6 Attribute UOM

V DC

Spec 6 Attribute Value

24

Spec 7 Attribute

Series

Spec 7 Attribute Value

ABL

Spec 8 Attribute

Type

Spec 8 Attribute Value

Regulated Switch Mode

Spec 9 Attribute

Width

Spec 9 Attribute UOM

MM

Spec 9 Attribute Value

60
