Schneider Electric

ABL8RPS24050 - universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A

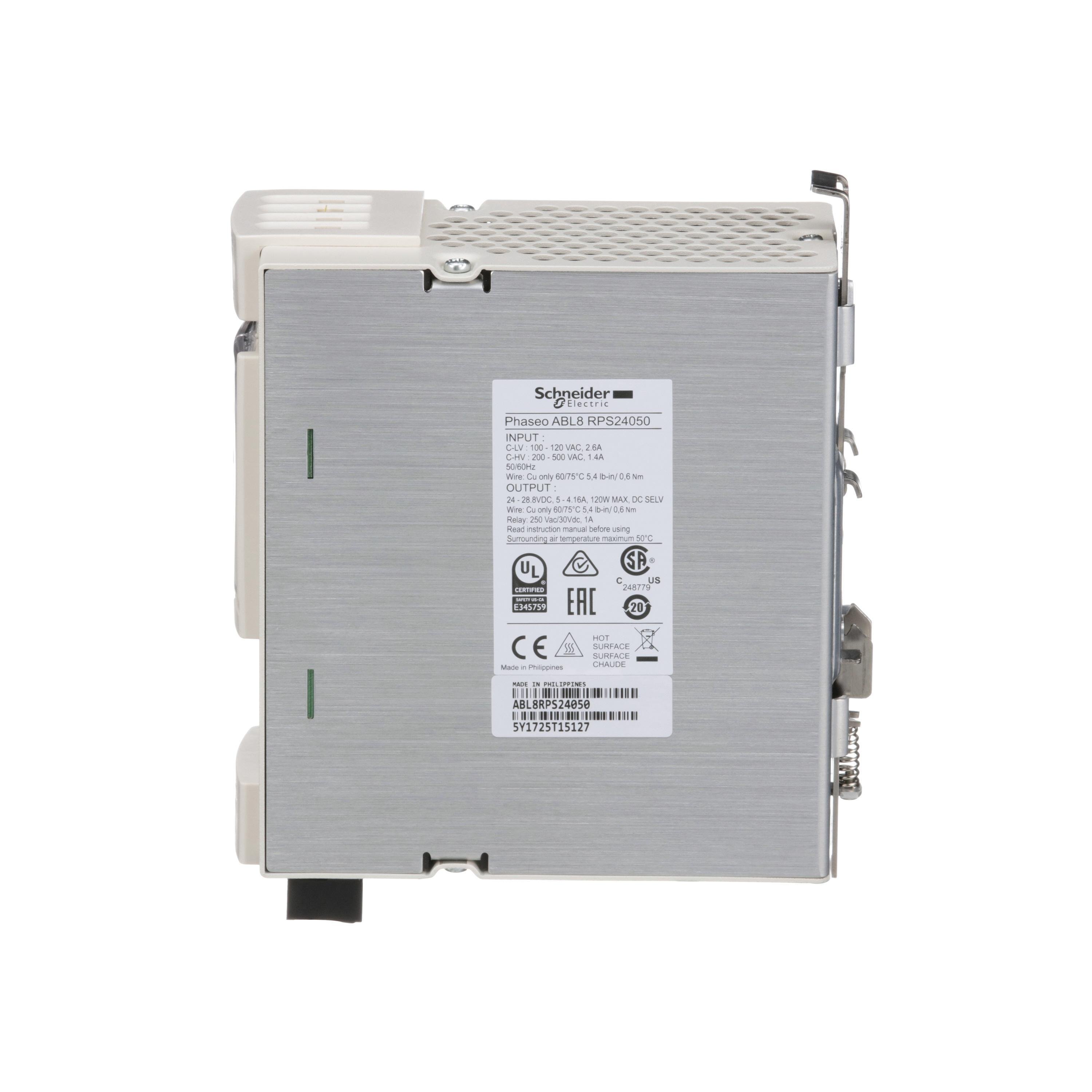

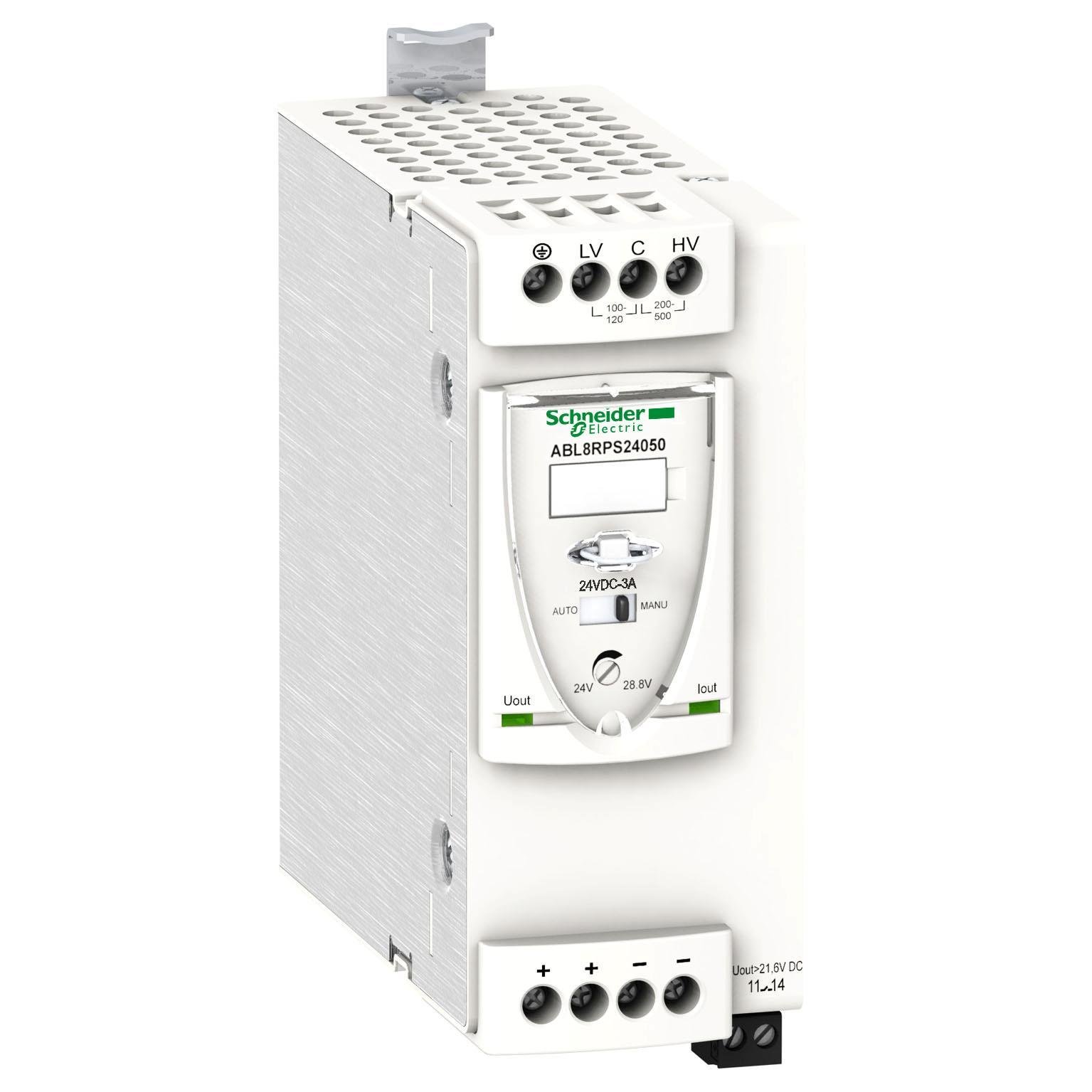

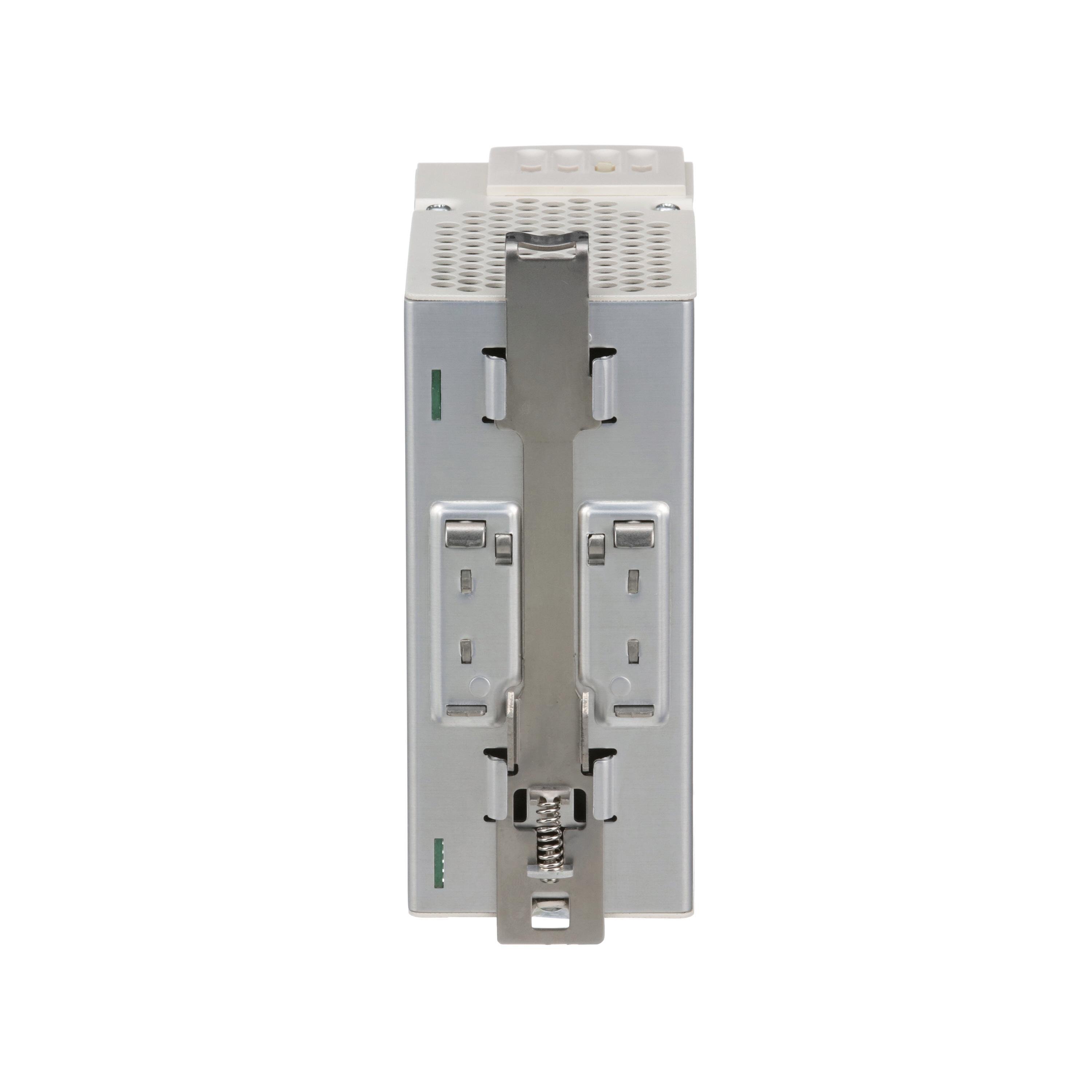

Picture of ABL8RPS24050 - universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A Picture of ABL8RPS24050 - universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A
Picture of ABL8RPS24050 - universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A Picture of ABL8RPS24050 - universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A
Picture of ABL8RPS24050 - universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A Picture of ABL8RPS24050 - universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A
Picture of ABL8RPS24050 - universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A Picture of ABL8RPS24050 - universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A
Schneider Electric

ABL8RPS24050 - universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A

Item Code: 829379
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ABL8RPS24050

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 5A at 24V DC and a rated power output of 120W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 56mm-wide. It weighs 0,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GB2CD08, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Specifications

Weight

2lb

Height

143mm

Width

5.64mm

Length

6.44mm

Depth

125mm

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

SUPPLY PWR 24VDC 120W 5A DIN RAIL 2.2IN

AD Item Features 01

Universal 100-240Vac input voltage to match any application

AD Item Features 02

Avoid disturbances, restart or shutdowns on your automation system, even in case of micro-breaks and voltage sags

AD Item Features 03

Automatic reset allows short-term faults to be cleared and ease systems to restart

AD Item Features 04

Power reserve allowing to deliver a current of 150% its nominal rating for a short time

AD Item Features 05

Finely adjust the output voltage to take into account the voltage at the end of your auxiliary control circuit

AD Item Features 06

Instant fault diagnosis thanks to front side LED indicators

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

6.4400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.0000

AD Package Weight UOM

LB

AD Package Width

5.6400

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

5

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

4.72

Spec 3 Attribute

Frequency Rating

Spec 3 Attribute UOM

HZ

Spec 3 Attribute Value

47/63

Spec 4 Attribute

Height

Spec 4 Attribute UOM

IN

Spec 4 Attribute Value

5.63

Spec 5 Attribute

Input Voltage

Spec 5 Attribute UOM

V DC

Spec 5 Attribute Value

24

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

DIN Rail

Spec 7 Attribute

Power Rating

Spec 7 Attribute UOM

W

Spec 7 Attribute Value

120

Spec 8 Attribute

Type

Spec 8 Attribute Value

Regulated Switch Mode

Spec 9 Attribute

Width

Spec 9 Attribute UOM

IN

Spec 9 Attribute Value

2.2
