Schneider Electric

ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular

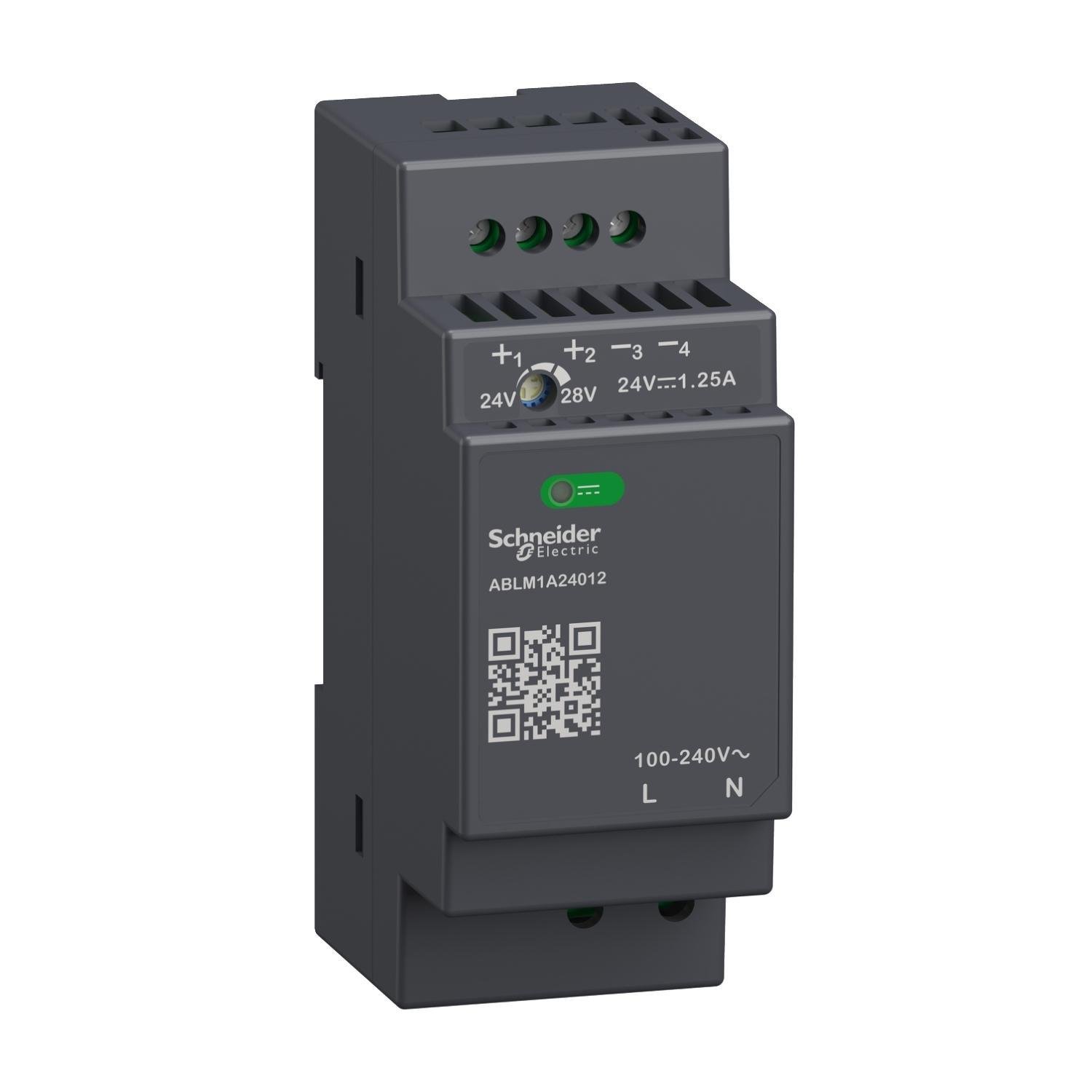

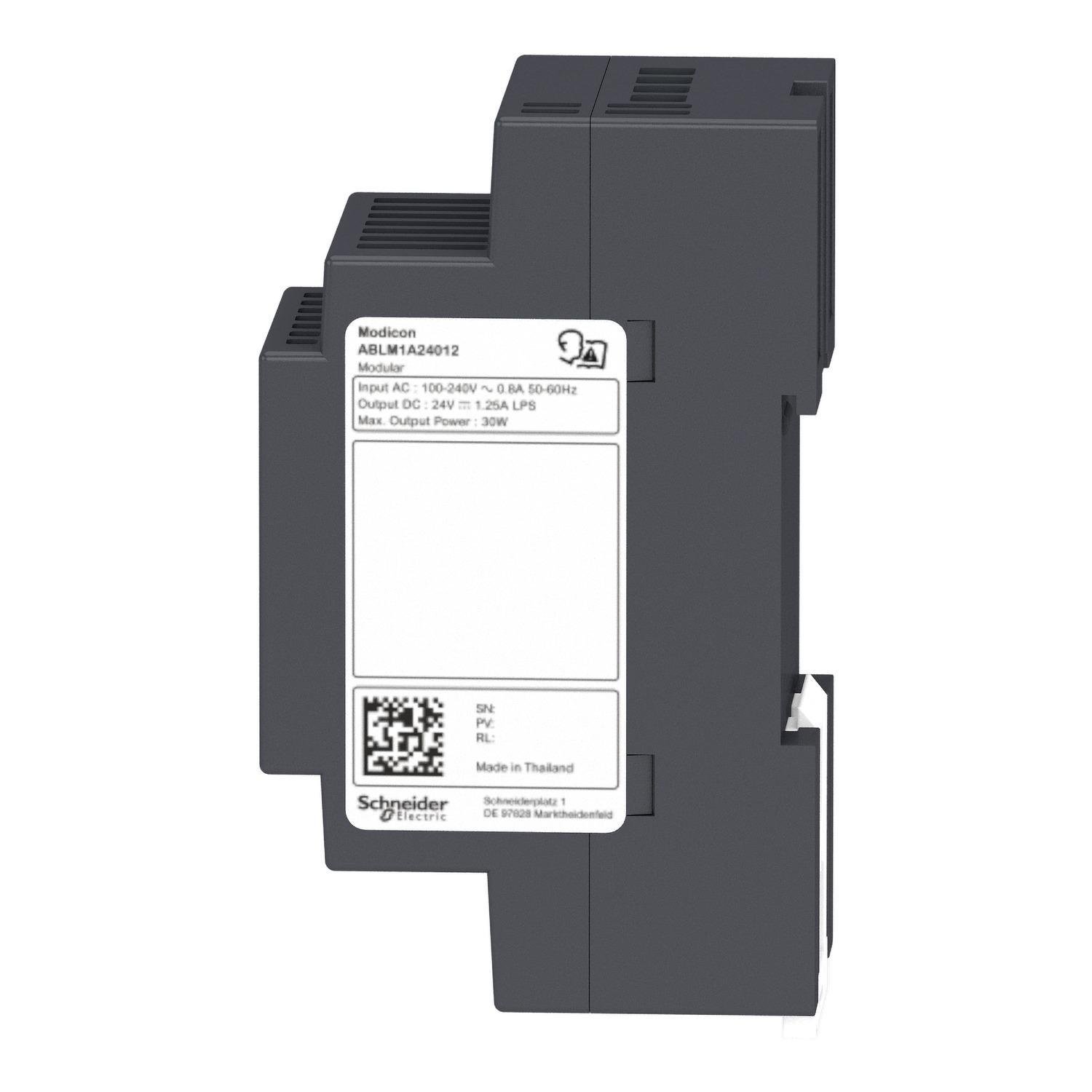

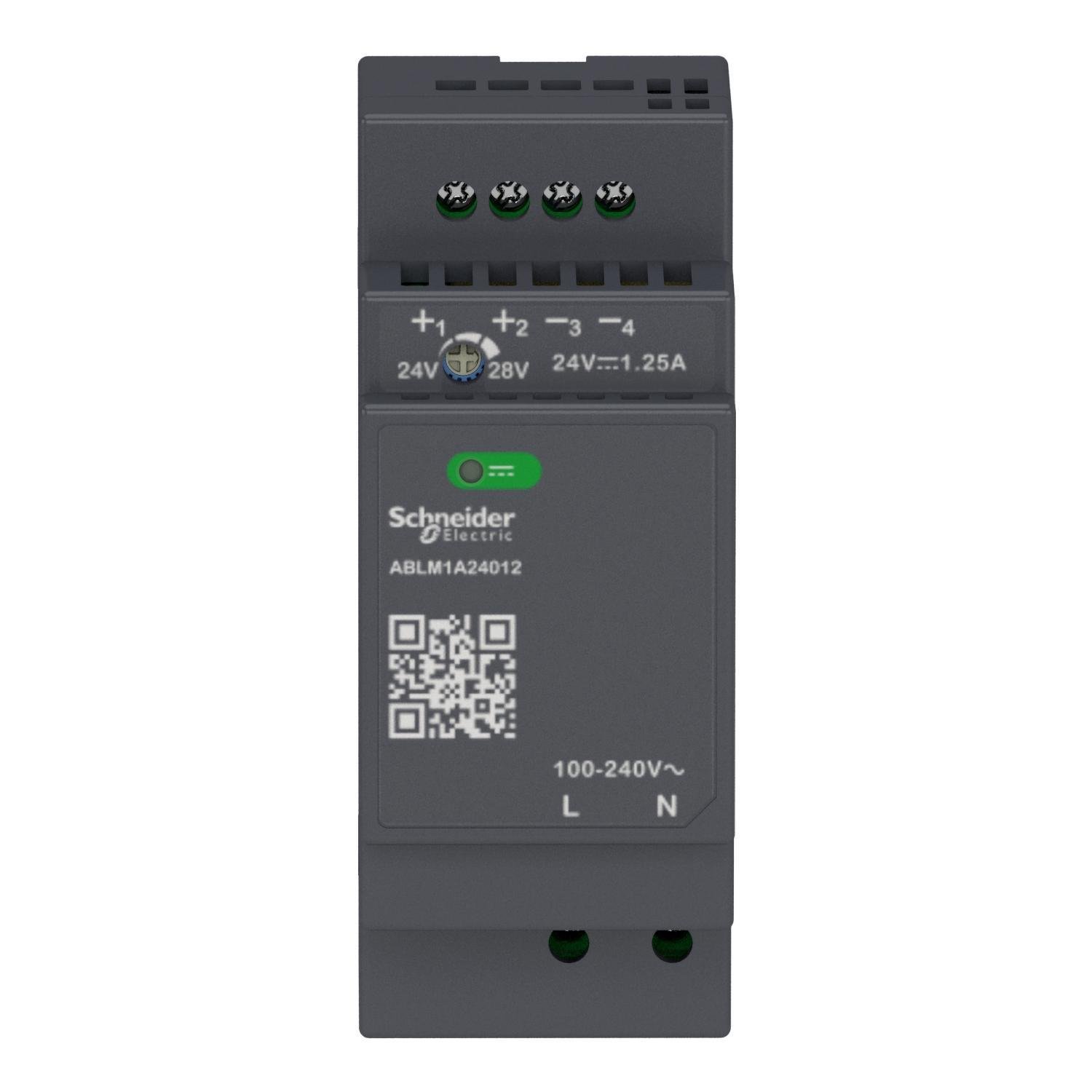

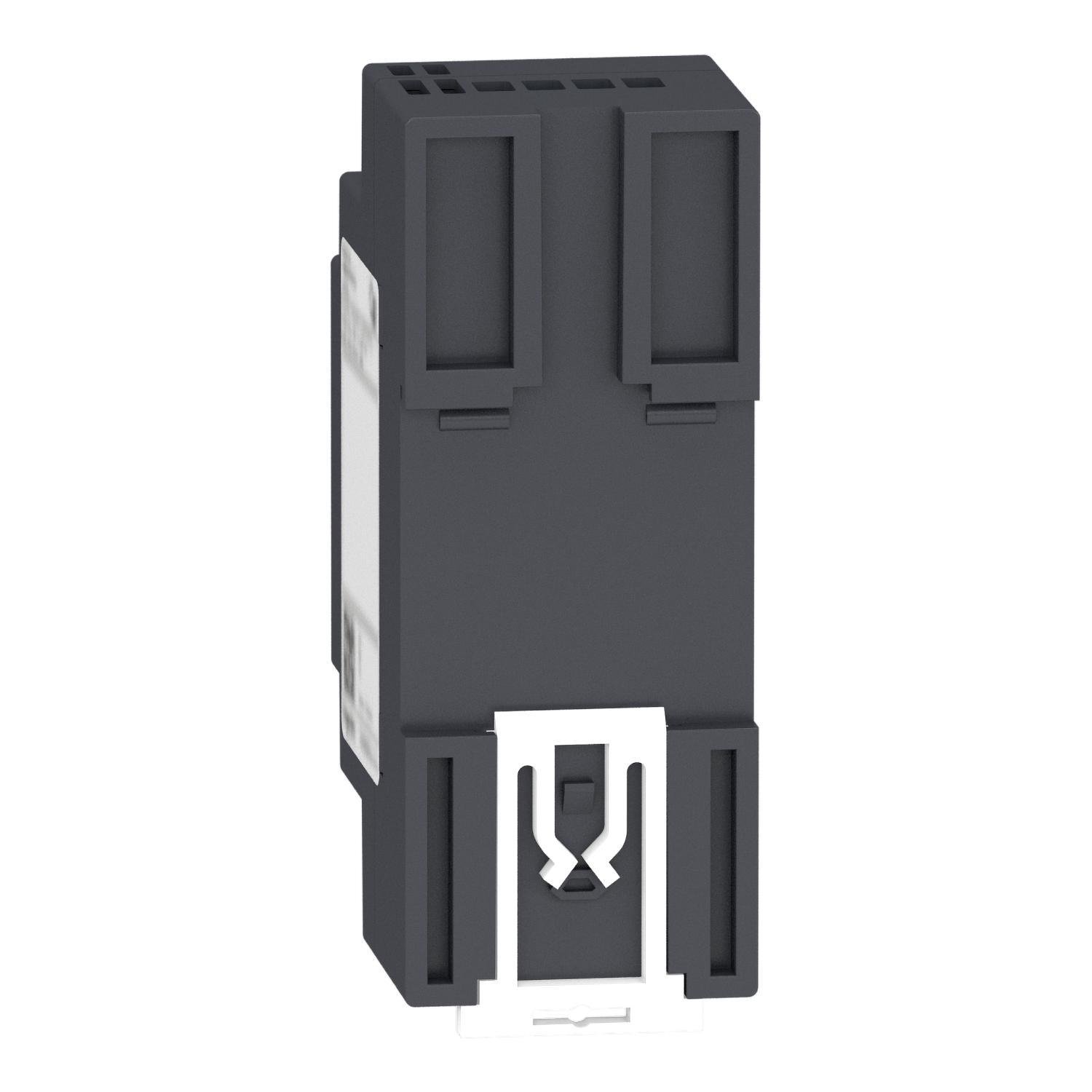

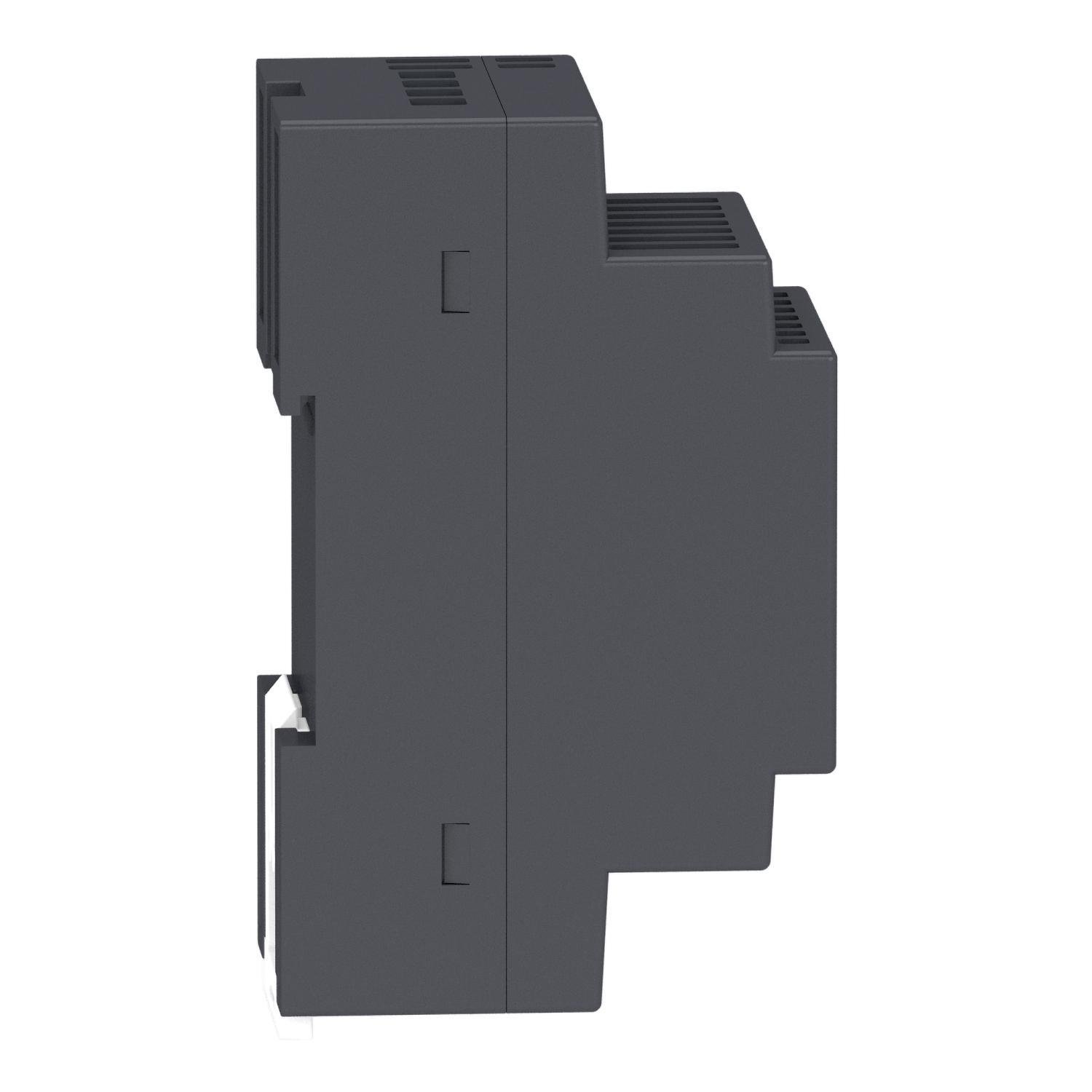

Picture of ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular Picture of ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
Picture of ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular Picture of ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
Picture of ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular Picture of ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
Picture of ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular Picture of ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
Picture of ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular Picture of ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
Schneider Electric

ABLM1A24012 - Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular

Item Code: 1120293
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ABLM1A24012

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 1,25A at 24V DC and a rated power output of 30W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 36mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Specifications

Weight

0.38lb

Height

91mm

Width

2.34mm

Length

4.29mm

Depth

55.6mm

AD All Features

Bring energy to your automated systems

AD Application

Industrial Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

PH

AD Invoice Description

SUPPLY PWR REGULATED 100 TO 240VAC 24VDC

AD Item Features 01

Bring energy to your automated systems

AD Item Features 02

Integrated overload, short-circuit, overvoltage, and undervoltage protection

AD Item Features 03

Wide input voltage range

AD Item Features 04

High degree of output voltage stability

AD Item Features 05

Efficiency

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.2900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.3800

AD Package Weight UOM

LB

AD Package Width

2.3400

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

1.2

Spec 10 Attribute

Series

Spec 10 Attribute Value

Modicon ABLM

Spec 11 Attribute

Type

Spec 11 Attribute Value

1-Phase Modular

Spec 12 Attribute

Width

Spec 12 Attribute UOM

MM

Spec 12 Attribute Value

36

Spec 2 Attribute

Case Material

Spec 2 Attribute Value

Plastic

Spec 3 Attribute

Depth

Spec 3 Attribute UOM

MM

Spec 3 Attribute Value

55.6

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Height

Spec 5 Attribute UOM

MM

Spec 5 Attribute Value

91

Spec 6 Attribute

Input Voltage

Spec 6 Attribute UOM

V AC

Spec 6 Attribute Value

100 to 240

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

DIN Rail

Spec 8 Attribute

Output Voltage

Spec 8 Attribute UOM

V DC

Spec 8 Attribute Value

24

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

W

Spec 9 Attribute Value

30
