ABLP1A24045 - Regulated Power Supply, modicon power supply, 100...240V AC, 24V, 4.5A, single phase, Panel Mount

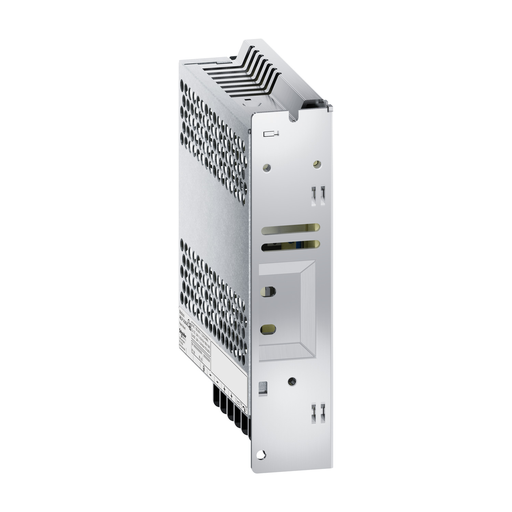

Picture of ABLP1A24045 - Regulated Power Supply, modicon power supply, 100...240V AC, 24V, 4.5A, single phase, Panel Mount

ABLP1A24045 - Regulated Power Supply, modicon power supply, 100...240V AC, 24V, 4.5A, single phase, Panel Mount

Item Code: 1133573
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ABLP1A24045
Call for Availability
Compare

Description

This Modicon ABLP regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 4.5A at 24V DC and a rated power of 100W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It provides a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 97mm, its height is 30mm, its depth is 129mm. It weighs 0.300kg. It is certified with CB-Scheme, cULus Listed, cURus recognized, RCM and EAC. It is a power supply for commercial use, panel mount; It is compatible with ABLPA01 mounting plate. It installs on panel on side or on base with mounting plate fixing by screw. ABLP power supplies bring energy to your automated systems. ABLP power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Modicon ABLP power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc.

Specifications

Height

30mm

Width

97mm

Depth

129mm

Amperage Rating

4.5 A

Brand

Square D

Case Material

Aluminum

Depth

5.08 in

Frequency Rating

50/60 Hz

Height

1.18 in

Input Voltage

100 to 240 V AC

Mounting Type

Panel

Output Voltage

24 V DC

Power Rating

100 W

Series

Modicon ABLP

Type

1-Phase

Width

3.82 in
