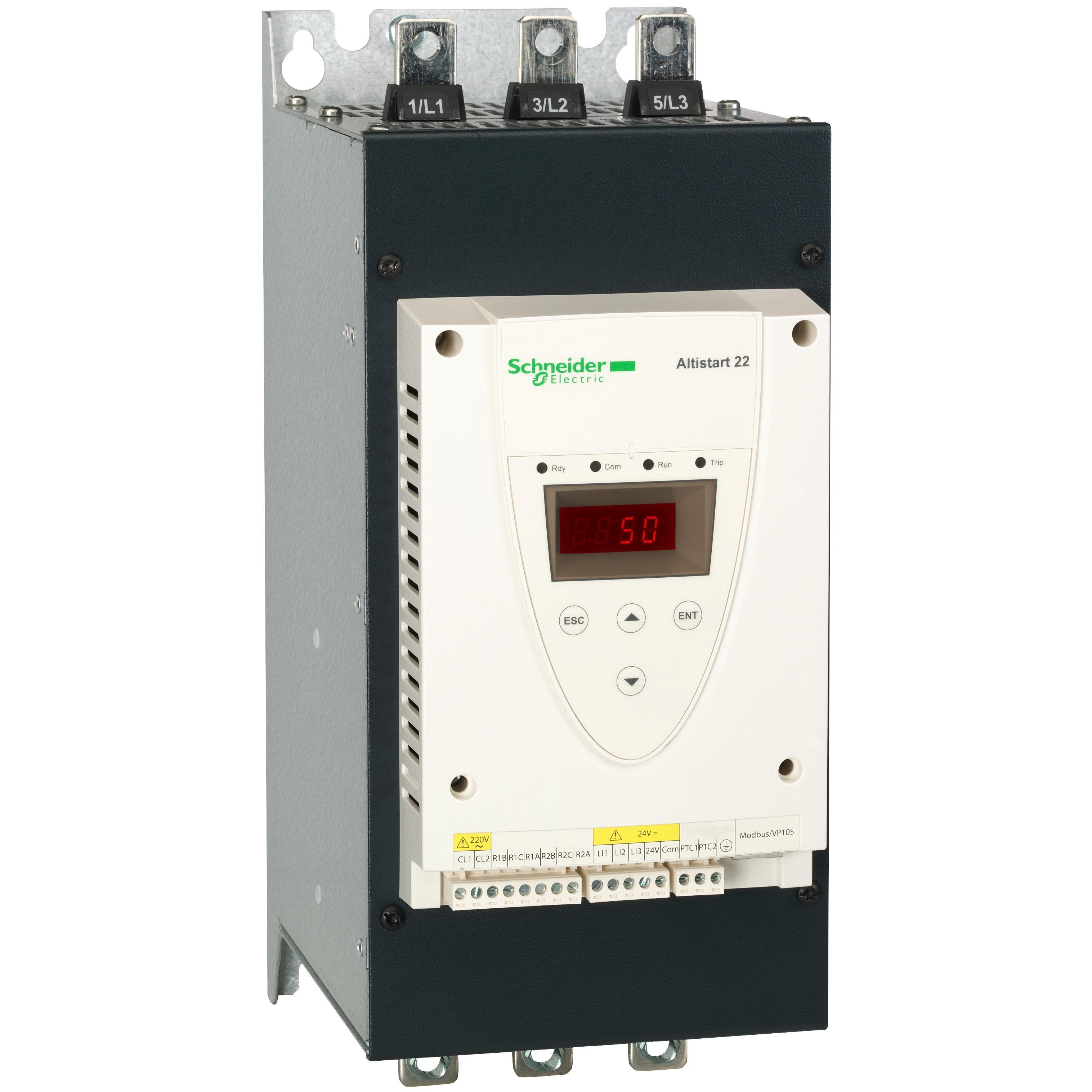

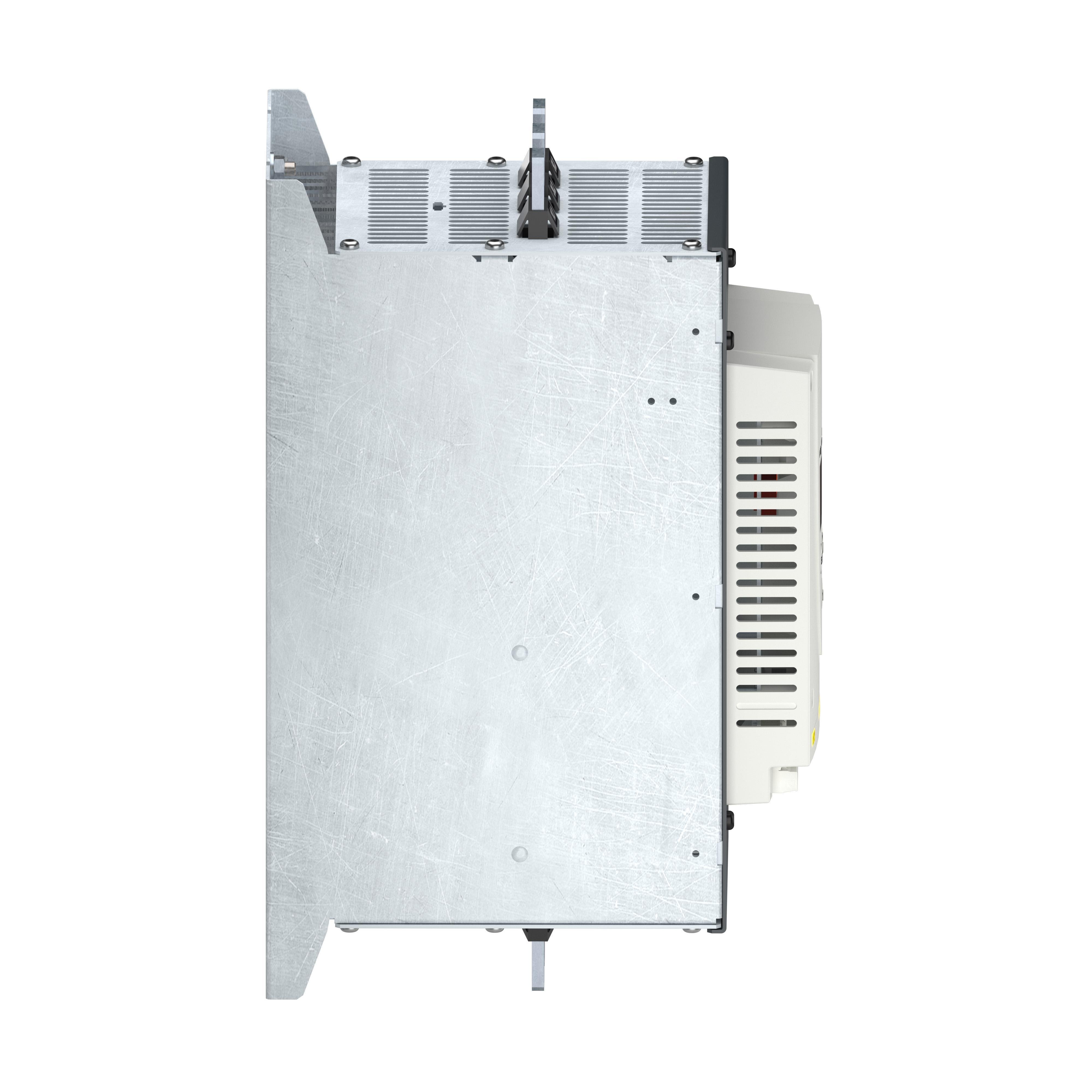

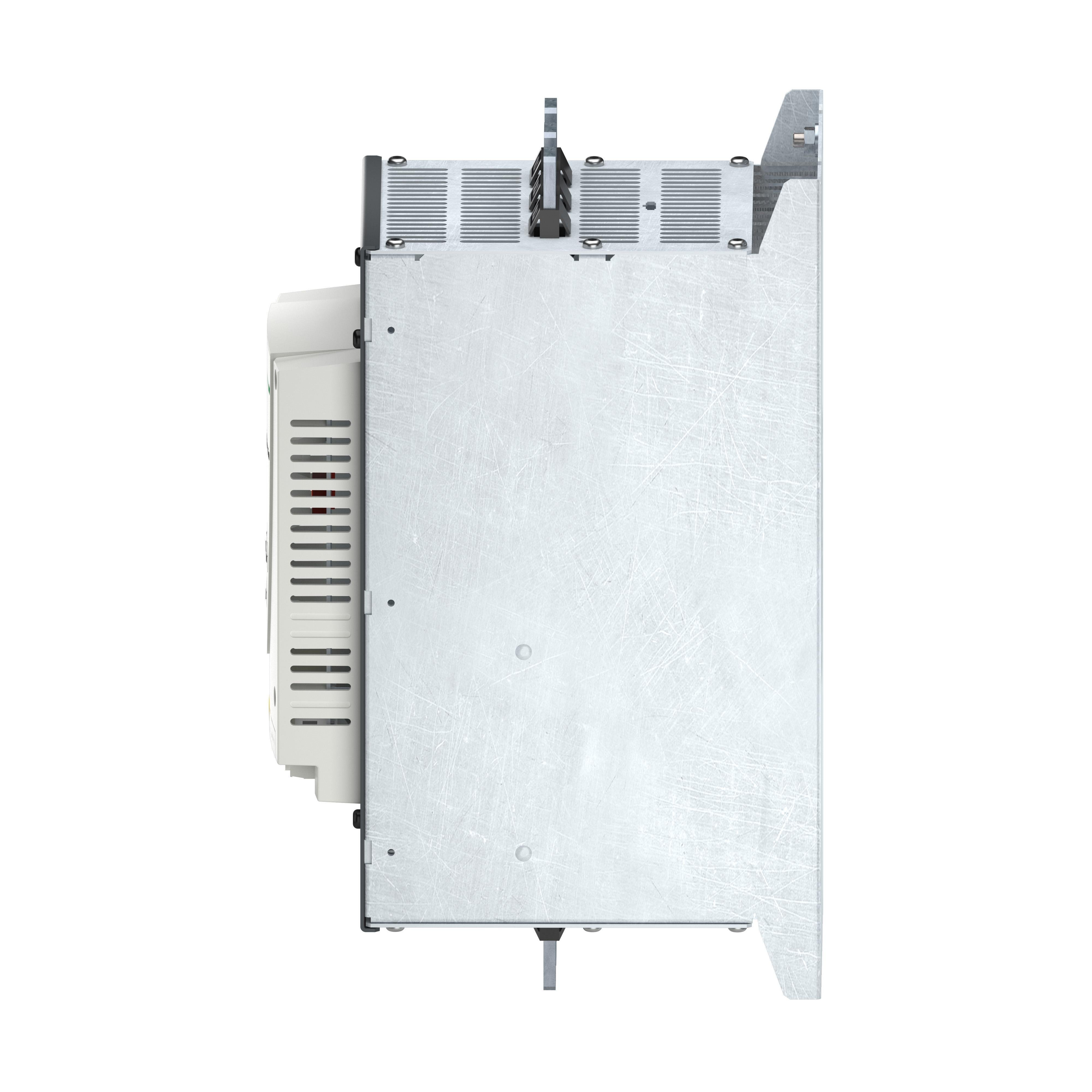

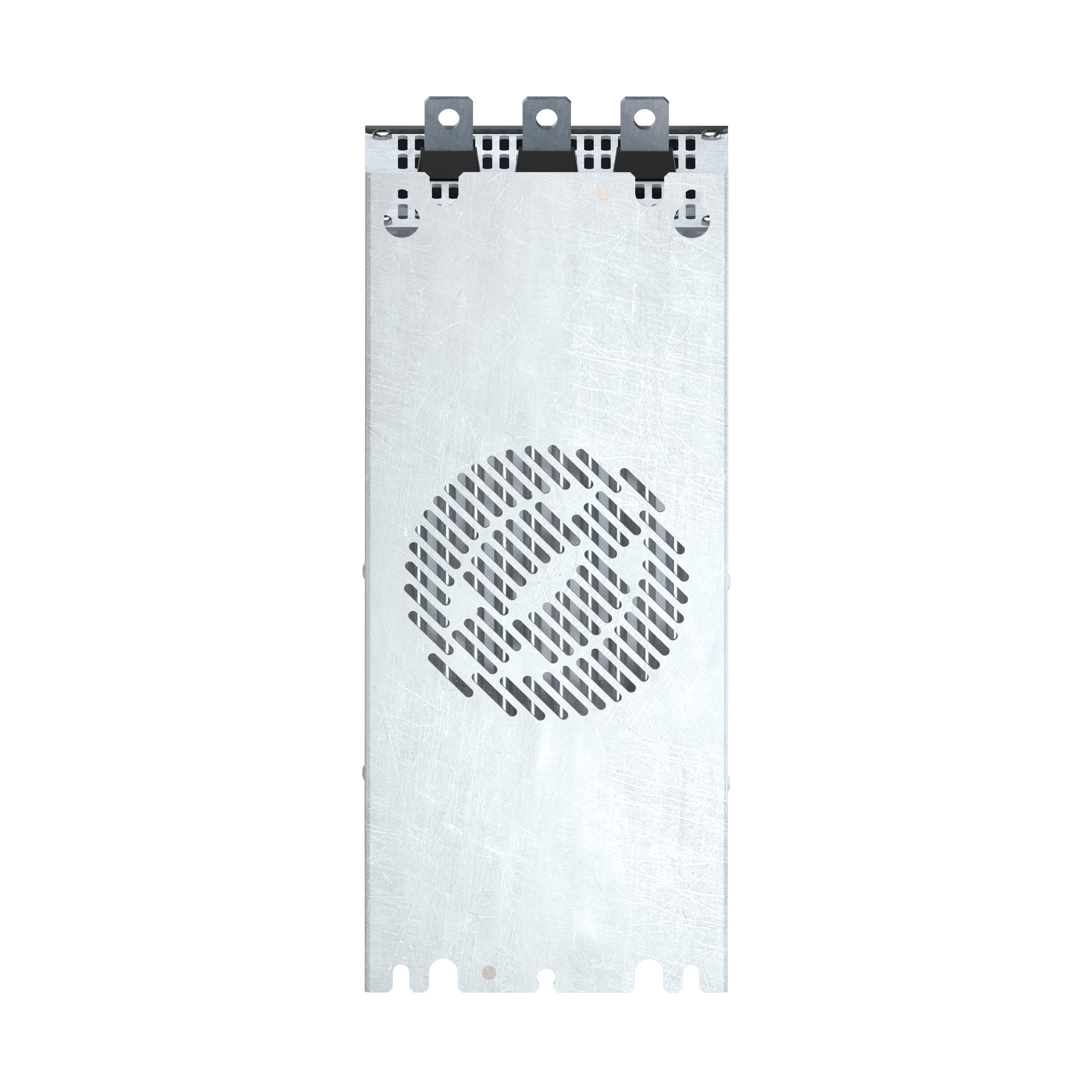

ATS22C14S6U - soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 40 to 125hp
Description
Specifications
29.07
10.2
12.87
15.99
Asynchronous Motors, Centrifugal Pumps, Piston Pumps, Fans, Screw Compressors, Material Handling Conveyors and Specialist Machinery Applications
Square D
USA
US
18 Months
STARTER SOFT INTL BYP 110VAC 3 IP00 140A
Provide smooth starting, avoiding mechanical stresses and extending their service life
Reduce hearing discomfort for operators on the workfloor
Slim form factor improves versatility
Less cost to stock spares
Overcome difficult or high-torque starts
Precise control over start time gives capability to match your system's inertia and mechanical limits
Schneider Electric
10.2000
IN
15.9900
IN
1
2201.1600
cu-in
29.0700
LB
12.8700
IN
Square D
SOFT START CONTROLLERS & STARTERS
Amperage Rating
A
140
Series
ATS22
Type
Internal Bypass
Voltage Rating
V AC
208/600
Wattage
W
82
Coil Voltage
V AC
110
Dimensions
150 mm W x 229.5 mm D x 356 mm H
Enclosure Type
IP00
Frequency Rating
HZ
50/60
motor power
HP
100
Number Of Poles
3
Operating Temperature
deg C
-10 To 40
PHASE
3
