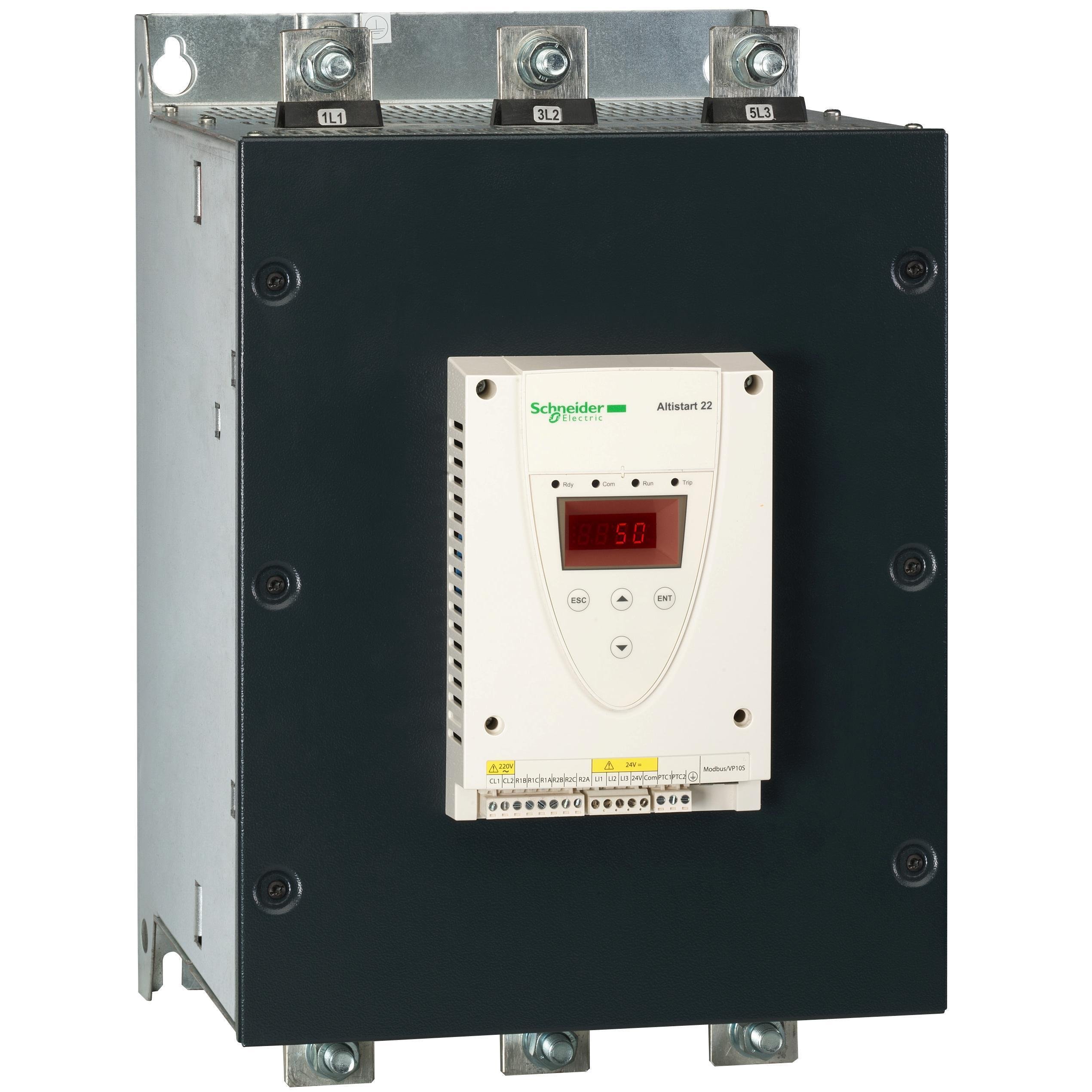

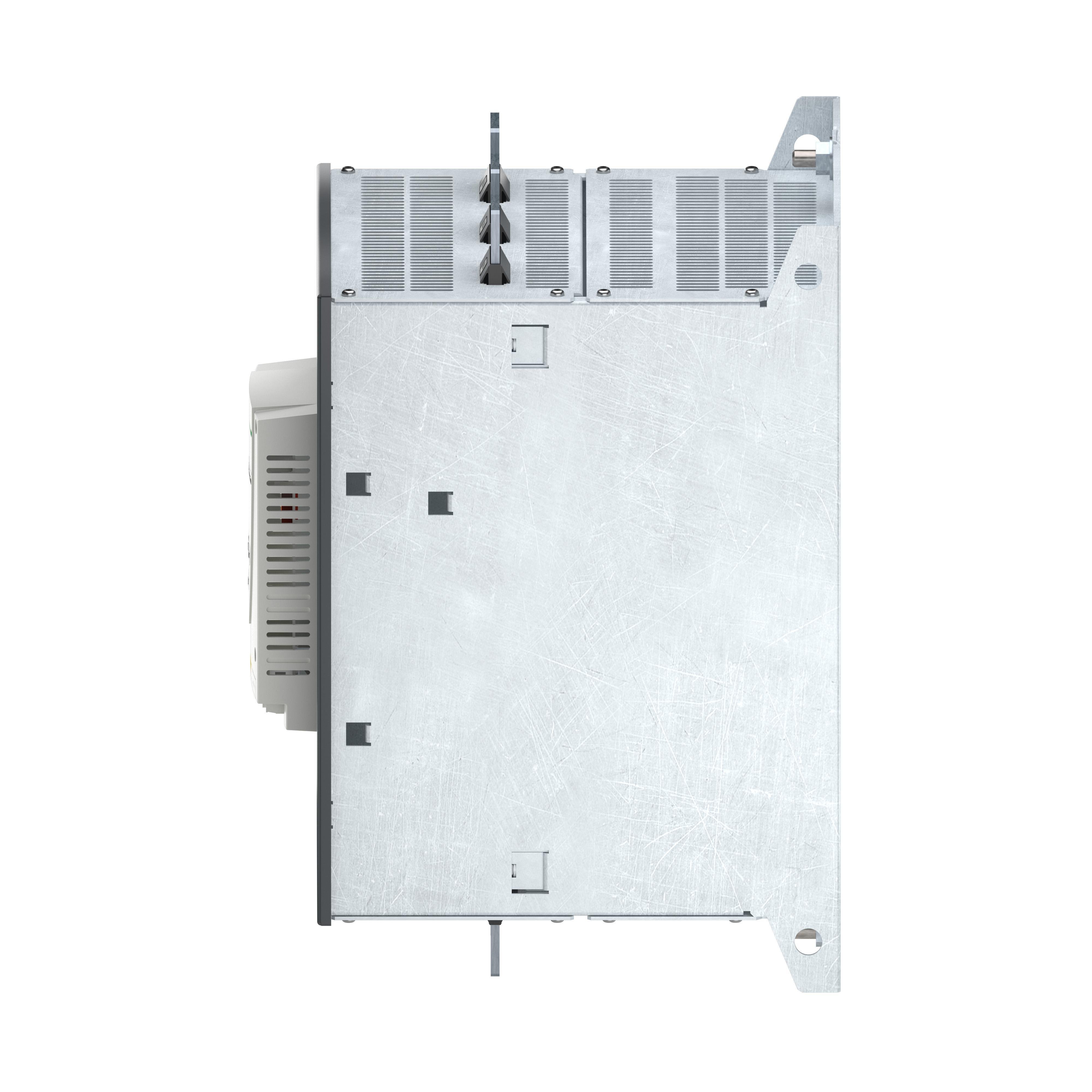

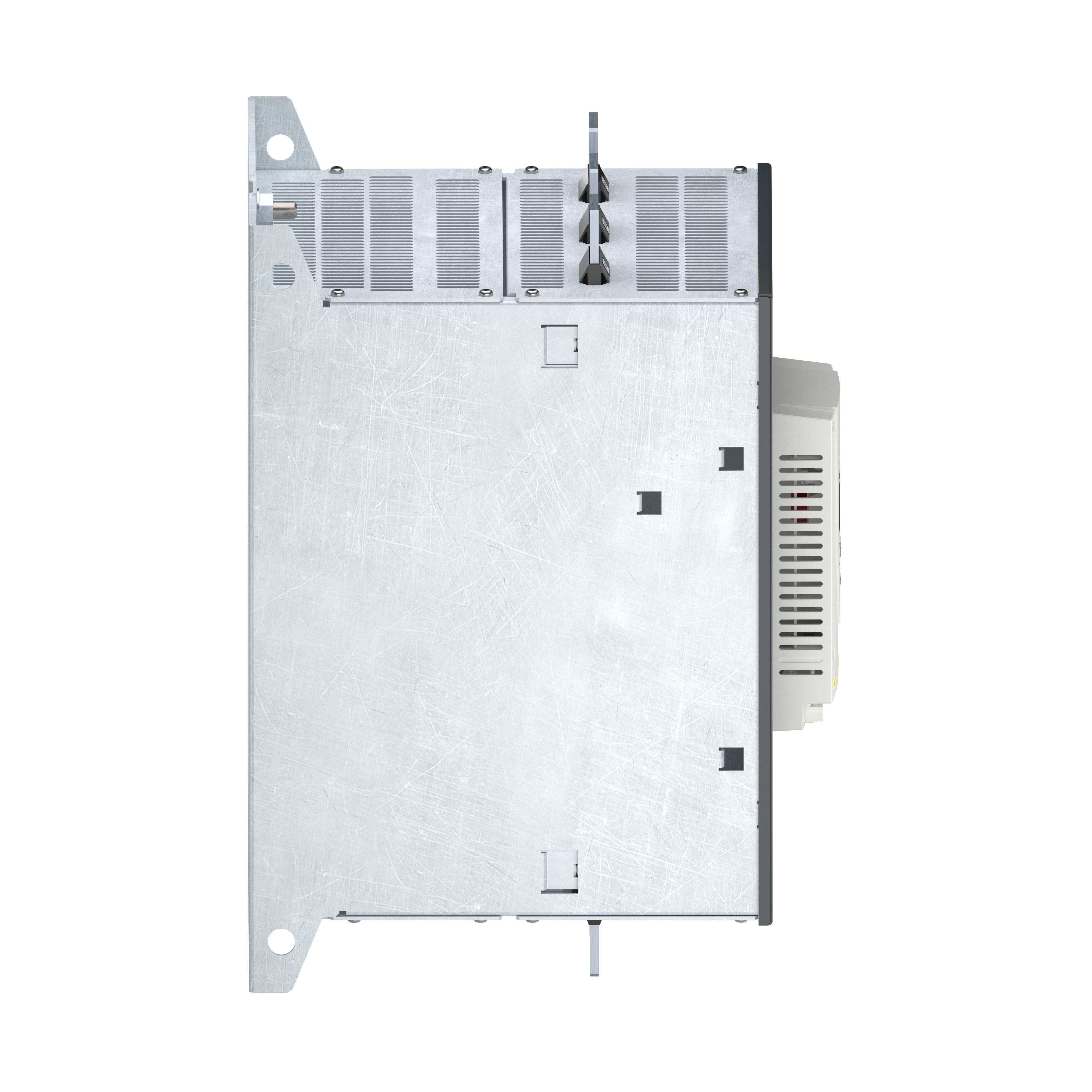

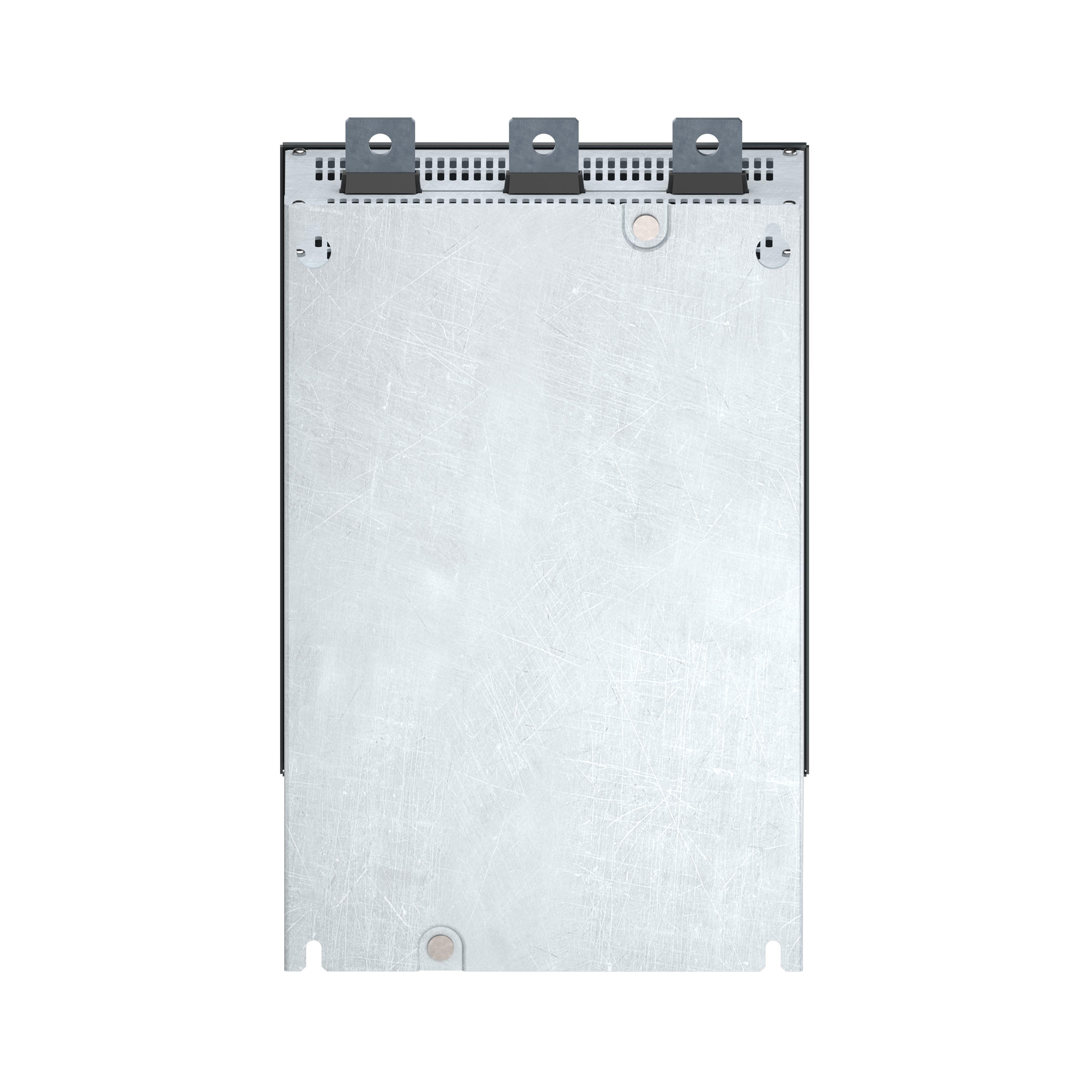

ATS22C59S6U - soft starter for asynchronous motor, Altistart 22, control 110V, 230 to 575V, 200 to 500hp
Description
Specifications
78.65
15.6
22.43
HVAC Supply and Return Fans, Cooling Tower Fans and Pumps, Chiller Water and Hot Water Pumps, Domestic Water Pumps, Exhaust and Ventilation Fans Application
Schneider Electric
USA
CN
STARTER SOFT 110VAC IP00 208 TO 600VAC 3
Provide smooth starting, avoiding mechanical stresses and extending their service life
Reduce hearing discomfort for operators on the workfloor
Slim form factor improves versatility
Less cost to stock spares
Overcome difficult or high-torque starts
Precise control over start time gives capability to match your system's inertia and mechanical limits
Schneider Electric
IN
22.4300
IN
1
78.6500
LB
15.6000
IN
Square D
SOFT START CONTROLLERS & STARTERS
Amperage Rating
A
590
Series
ATS22
Type
Integrated Bypass
Voltage Rating
V AC
208 to 600
Coil Voltage
V AC
110
Connection Type
RJ45
Dimensions
17.91 in H x 11.97 in W x 13.37 in D
Enclosure Type
IP00
Frequency Rating
HZ
50/60
motor power
200 hp, 400 hp, 500 hp
Operating Temperature
deg C
-10 To 40
PHASE
3
