Square D

ATS22D62S6U - soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 15 to 50hp

Category Miscellaneous

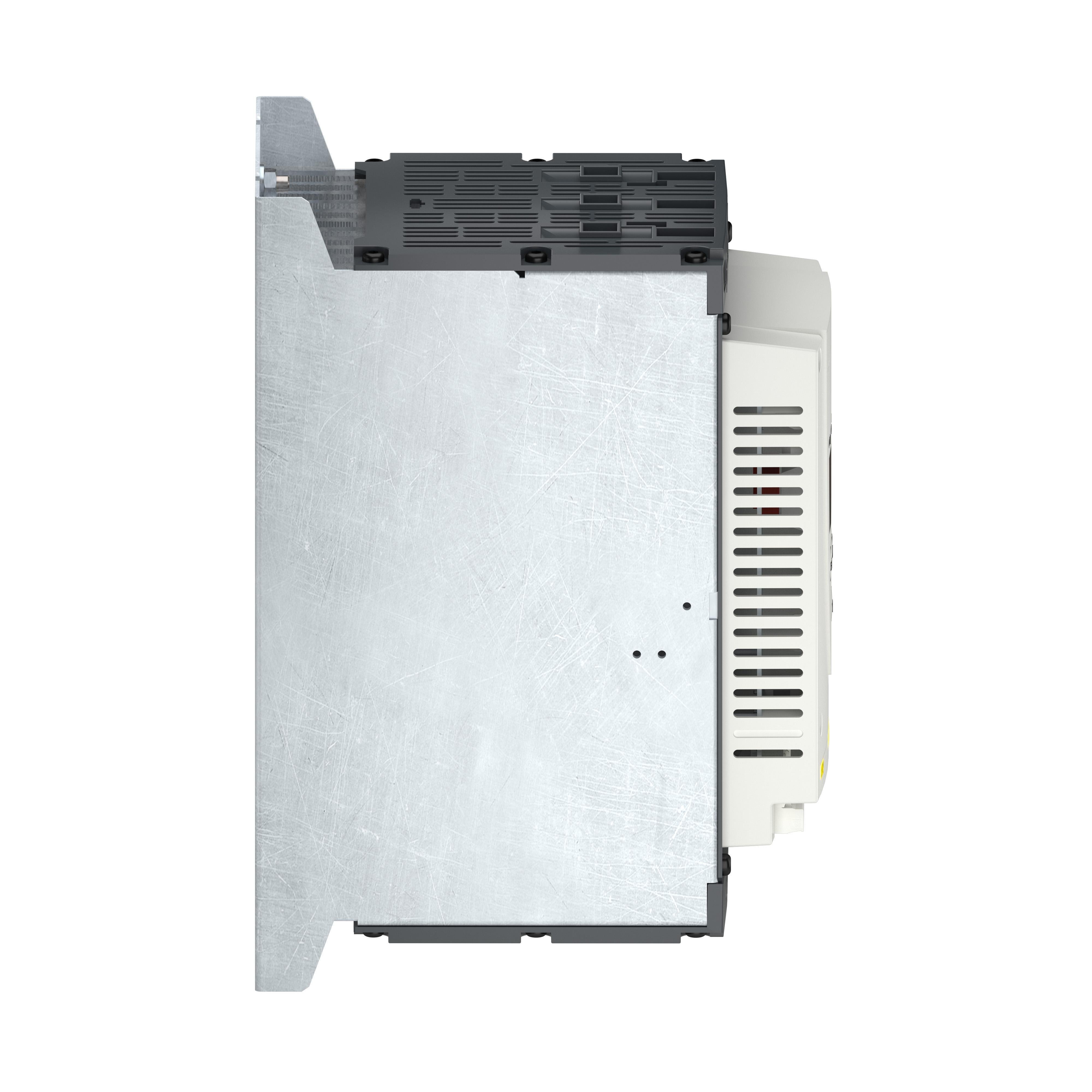

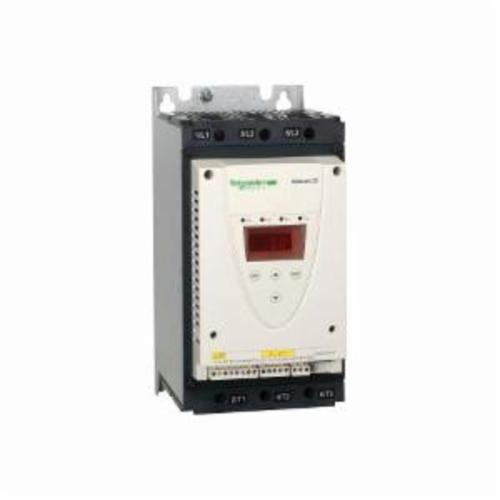

Picture of ATS22D62S6U - soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 15 to 50hp Picture of ATS22D62S6U - soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 15 to 50hp
Picture of ATS22D62S6U - soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 15 to 50hp Picture of ATS22D62S6U - soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 15 to 50hp
Picture of ATS22D62S6U - soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 15 to 50hp Picture of ATS22D62S6U - soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 15 to 50hp
Square D

ATS22D62S6U - soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 15 to 50hp

Item Code: 827918
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATS22D62S6U

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 62A, a rated power from 15HP to 50HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centri

Specifications

Weight

18.57

Height

11.9

Width

14.04

Length

12.09

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/ats22d62q/ats22d62q.spin

AD Alternative Part Number

10896721

AD Application

Asynchronous Motor, Centrifugal Pumps, Piston Pumps, Fans, Screw Compressors, Specialist Machinery, Material Handling Conveyors Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

ID

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

3606480167409

AD Gtin

03606480167409

AD IDEA Index ID

10896721

AD Includes

18 Months

AD Invoice Description

STARTER SOFT INTL BYP 110VAC 3 IP20 63A

AD Item Features 01

Provide smooth starting, avoiding mechanical stresses and extending their service life

AD Item Features 02

Reduce hearing discomfort for operators on the workfloor

AD Item Features 03

Slim form factor improves versatility

AD Item Features 04

Less cost to stock spares

AD Item Features 05

Overcome difficult or high-torque starts

AD Item Features 06

Precise control over start time gives capability to match your system's inertia and mechanical limits

AD Keywords

Altistart 22 ATS22D62S6U Internal Bypass Soft Starter With Heat Sink, 110 VAC V Coil, 3 Poles, IP20 Enclosure ; Schneider Electric ; Square D ; ATS22D62S6U ; 785901692287 ; Open Soft Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

11.9000

AD Package Height UOM

IN

AD Package Length

12.0900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1559.3800

AD Package Volume UOM

cu-in

AD Package Weight

18.5700

AD Package Weight UOM

LB

AD Package Width

14.0400

AD Package Width UOM

IN

AD Part Number Keywords

ATS22D62S6U ; 10896721 ; 785901692287 ; 78590169228 ; 03606480167409 ; 3606480167409

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

63

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Series

Spec 11 Attribute Value

ATS22

Spec 12 Attribute

Type

Spec 12 Attribute Value

Internal Bypass

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

208/600

Spec 14 Attribute

Wattage

Spec 14 Attribute UOM

W

Spec 14 Attribute Value

59

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

110

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Plug-In

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

145 mm W x 207 mm D x 295 mm H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

motor power

Spec 7 Attribute UOM

HP

Spec 7 Attribute Value

15

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Operating Temperature

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

-10 To 40
