Schneider Electric

ATS480C41Y - Soft starter, Altistart 480, 410A, 208 to 690V AC, control supply 110 to 230V AC

Category Soft Start Controllers & Starters

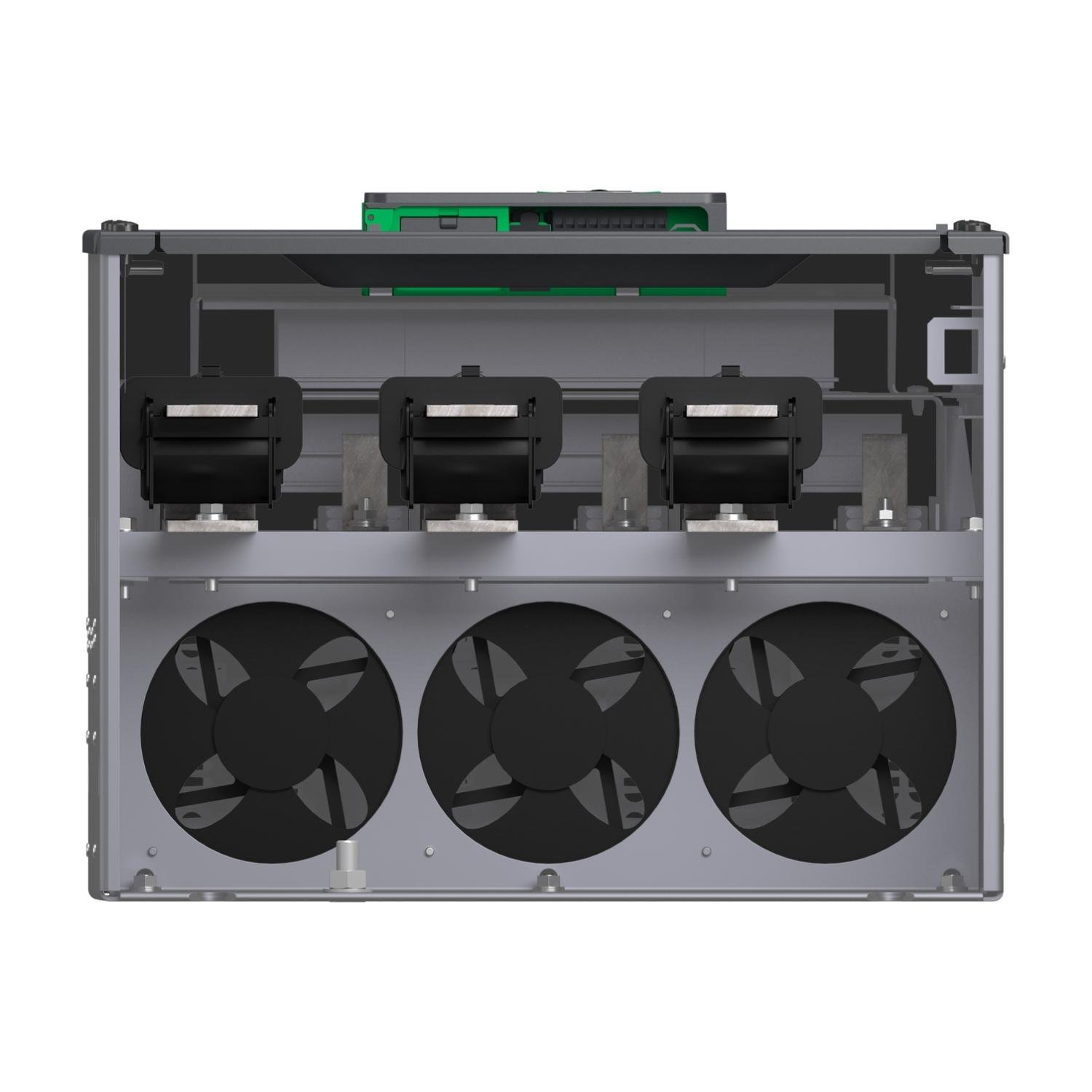

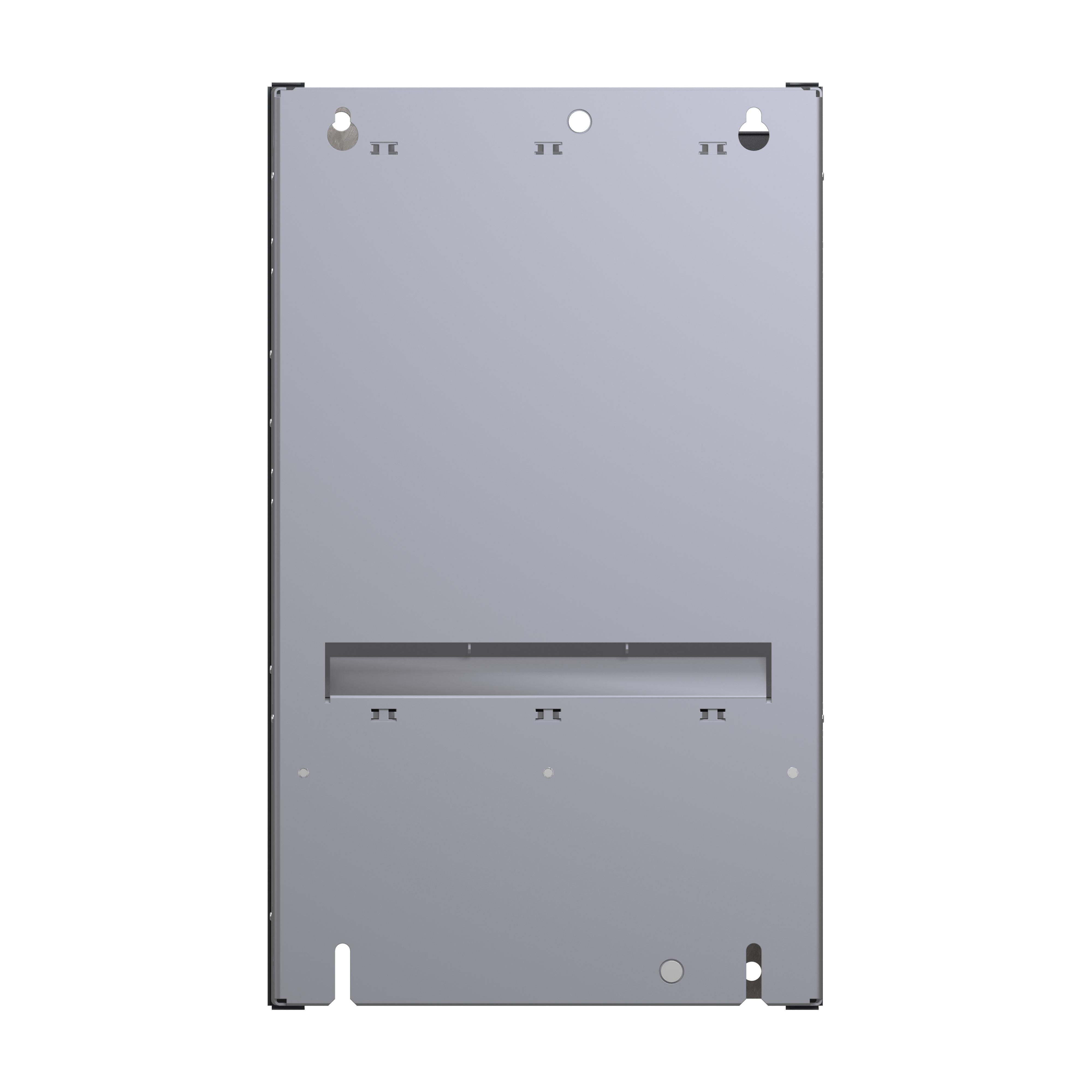

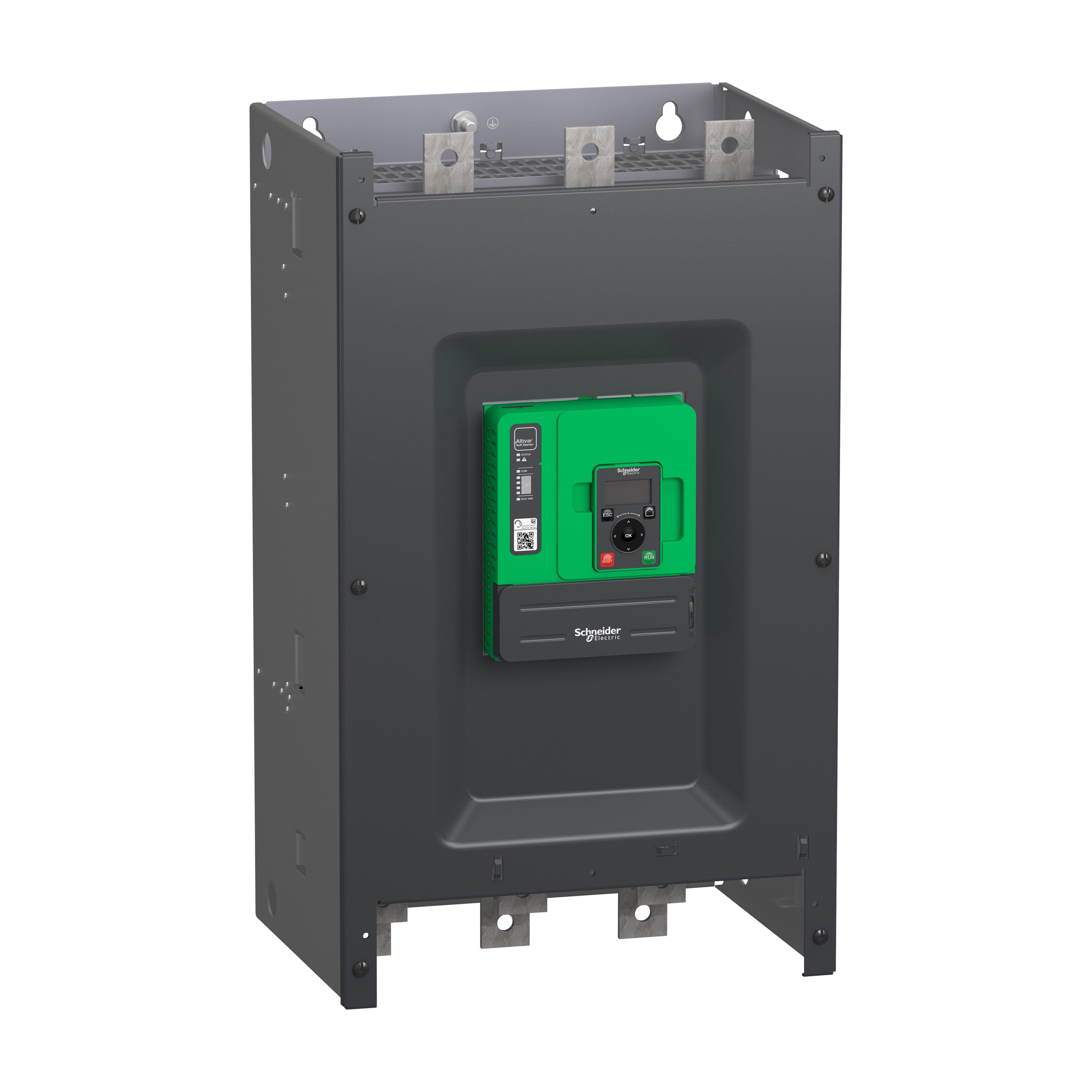

Picture of ATS480C41Y - Soft starter, Altistart 480, 410A, 208 to 690V AC, control supply 110 to 230V AC Picture of ATS480C41Y - Soft starter, Altistart 480, 410A, 208 to 690V AC, control supply 110 to 230V AC
Picture of ATS480C41Y - Soft starter, Altistart 480, 410A, 208 to 690V AC, control supply 110 to 230V AC Picture of ATS480C41Y - Soft starter, Altistart 480, 410A, 208 to 690V AC, control supply 110 to 230V AC
Picture of ATS480C41Y - Soft starter, Altistart 480, 410A, 208 to 690V AC, control supply 110 to 230V AC Picture of ATS480C41Y - Soft starter, Altistart 480, 410A, 208 to 690V AC, control supply 110 to 230V AC
Picture of ATS480C41Y - Soft starter, Altistart 480, 410A, 208 to 690V AC, control supply 110 to 230V AC Picture of ATS480C41Y - Soft starter, Altistart 480, 410A, 208 to 690V AC, control supply 110 to 230V AC
Schneider Electric

ATS480C41Y - Soft starter, Altistart 480, 410A, 208 to 690V AC, control supply 110 to 230V AC

Item Code: 1165988
Category Soft Start Controllers & Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATS480C41Y

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 410A in normal duty, it supplies motor from 110kW to 400kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 400mm (width) x 314mm (depth) x 670mm (height) and it weighs 51,4kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.

Specifications

Weight

132lb

Height

21.45mm

Width

20.67mm

Length

31.59mm

Depth

314mm

AD Application

Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

OPEN SOFT START EXTERNAL BYPASS

AD Item Features 01

Reduced engineering time and cost with ATS480, digitally powered by EcoStruxure

AD Item Features 02

Better protection of your assets with embedded cybersecurity best practices

AD Item Features 03

Extend the service lifetime of ATS48 equipment and preserve your investment

AD Item Features 04

The next evolution for soft starters with connectivity, architectures and firmware updates

AD Item Features 05

Get the best of Schneider Electric expertise in Motor Management

AD Manufacturer (Description)

Schneider Electric

AD Package Height

21.4500

AD Package Height UOM

IN

AD Package Length

31.5900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

132.0000

AD Package Weight UOM

LB

AD Package Width

20.6700

AD Package Width UOM

IN

Brand

Square D

Category

SOFT START CONTROLLERS & STARTERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

410

Spec 10 Attribute

Series

Spec 10 Attribute Value

ATS480

Spec 11 Attribute

Type

Spec 11 Attribute Value

External Bypass

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

208 to 690

Spec 13 Attribute

Wattage

Spec 13 Attribute UOM

KW

Spec 13 Attribute Value

110 to 400

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

110 to 230

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

RJ45

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

26.38 in H x 15.75 in W x 12.36 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP00

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50 To 60

Spec 7 Attribute

motor power

Spec 7 Attribute UOM

HP

Spec 7 Attribute Value

125, 150, 300, 350

Spec 8 Attribute

Operating Temperature

Spec 8 Attribute UOM

deg F

Spec 8 Attribute Value

104 to 140

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
