ATS480D47Y - Soft starter, Altistart 480, 47A, 208 to 690V AC, control supply 110 to 230V AC

Category Miscellaneous

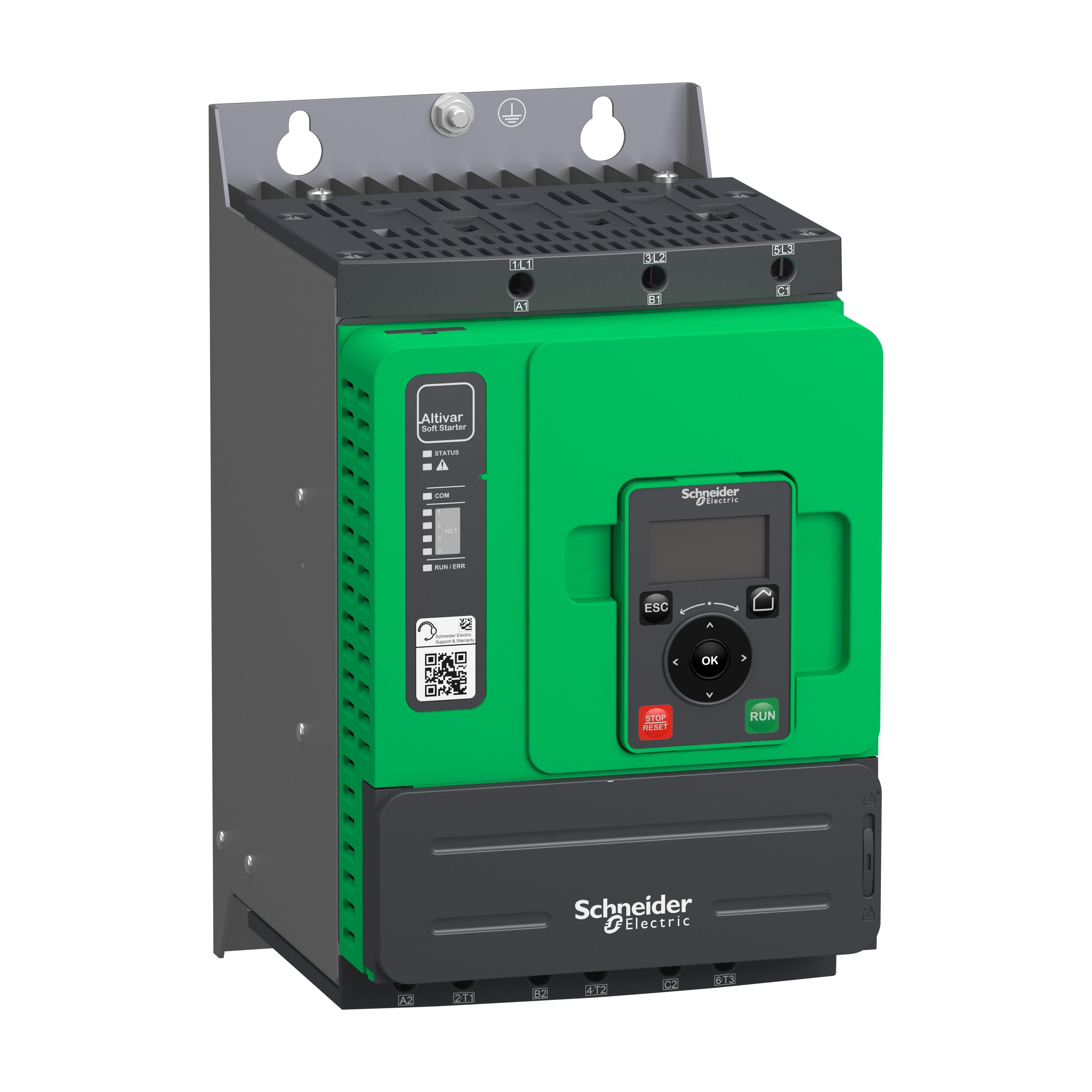

Picture of ATS480D47Y - Soft starter, Altistart 480, 47A, 208 to 690V AC, control supply 110 to 230V AC Picture of ATS480D47Y - Soft starter, Altistart 480, 47A, 208 to 690V AC, control supply 110 to 230V AC
Picture of ATS480D47Y - Soft starter, Altistart 480, 47A, 208 to 690V AC, control supply 110 to 230V AC Picture of ATS480D47Y - Soft starter, Altistart 480, 47A, 208 to 690V AC, control supply 110 to 230V AC

ATS480D47Y - Soft starter, Altistart 480, 47A, 208 to 690V AC, control supply 110 to 230V AC

Item Code: 1193148
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATS480D47Y
Call for Availability
Compare

Description

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 47A in normal duty, it s

Specifications

Weight

13.79

Height

11.81

Width

10.72

Length

14.43

Amperage Rating

47 A

Brand

Square D

Connection Type

RJ45

Dimensions

275 mm H x 160 mm W x 203 mm D

Enclosure Type

IP20

Frequency Rating

50/60 Hz

Motor Power

10 hp at 208 V/7.5 hp at 208 V/10 hp at 230 V/25 hp at 460 V/20 hp at 460 V/30 hp at 575 V/25 hp at 575 V

Operating Temperature

40 to 60 deg c

Phase

3

Series

ATS480

Starting Modes

Soft Start

Voltage Rating

208 to 690 V AC
