Schneider Electric

ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink

Category AC Drives

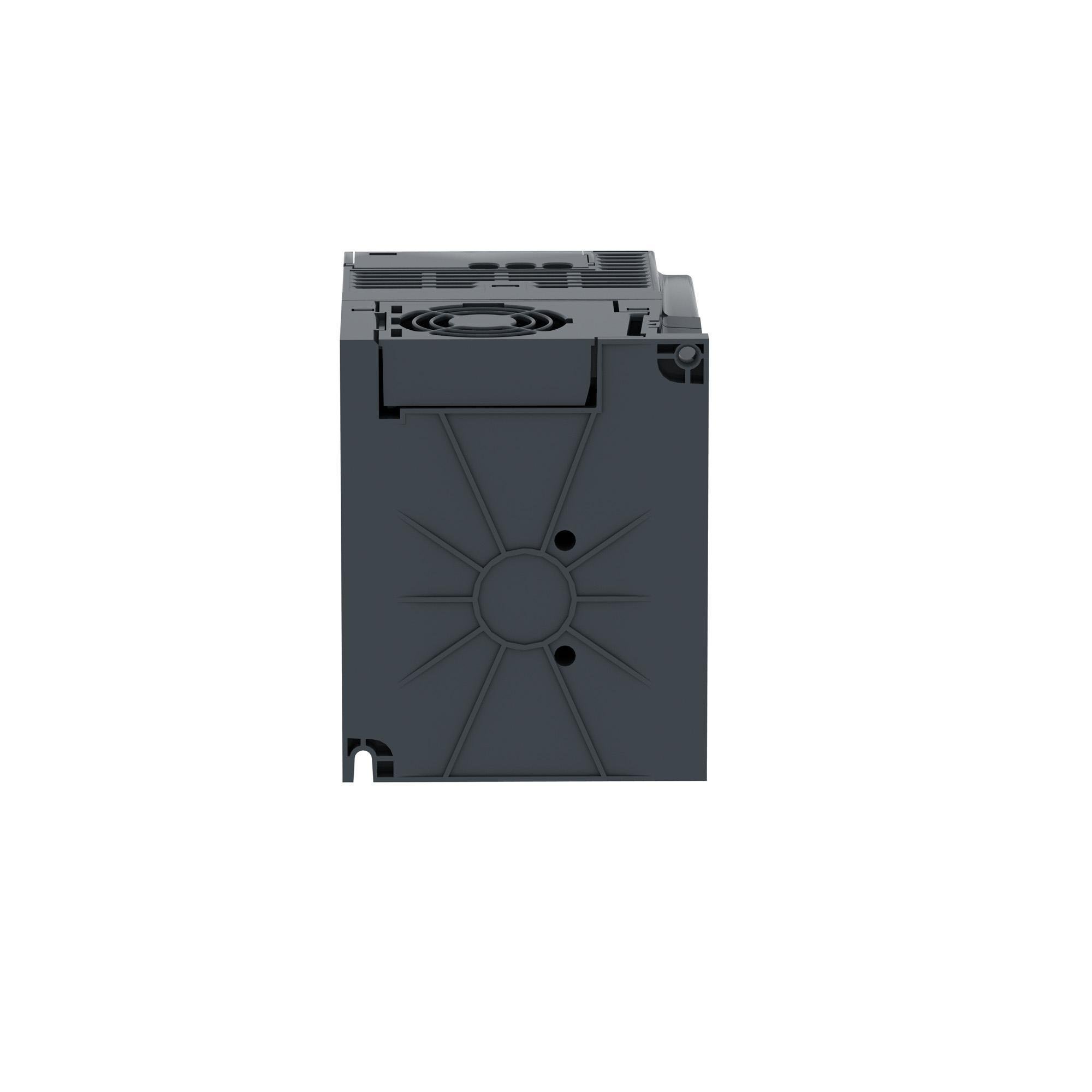

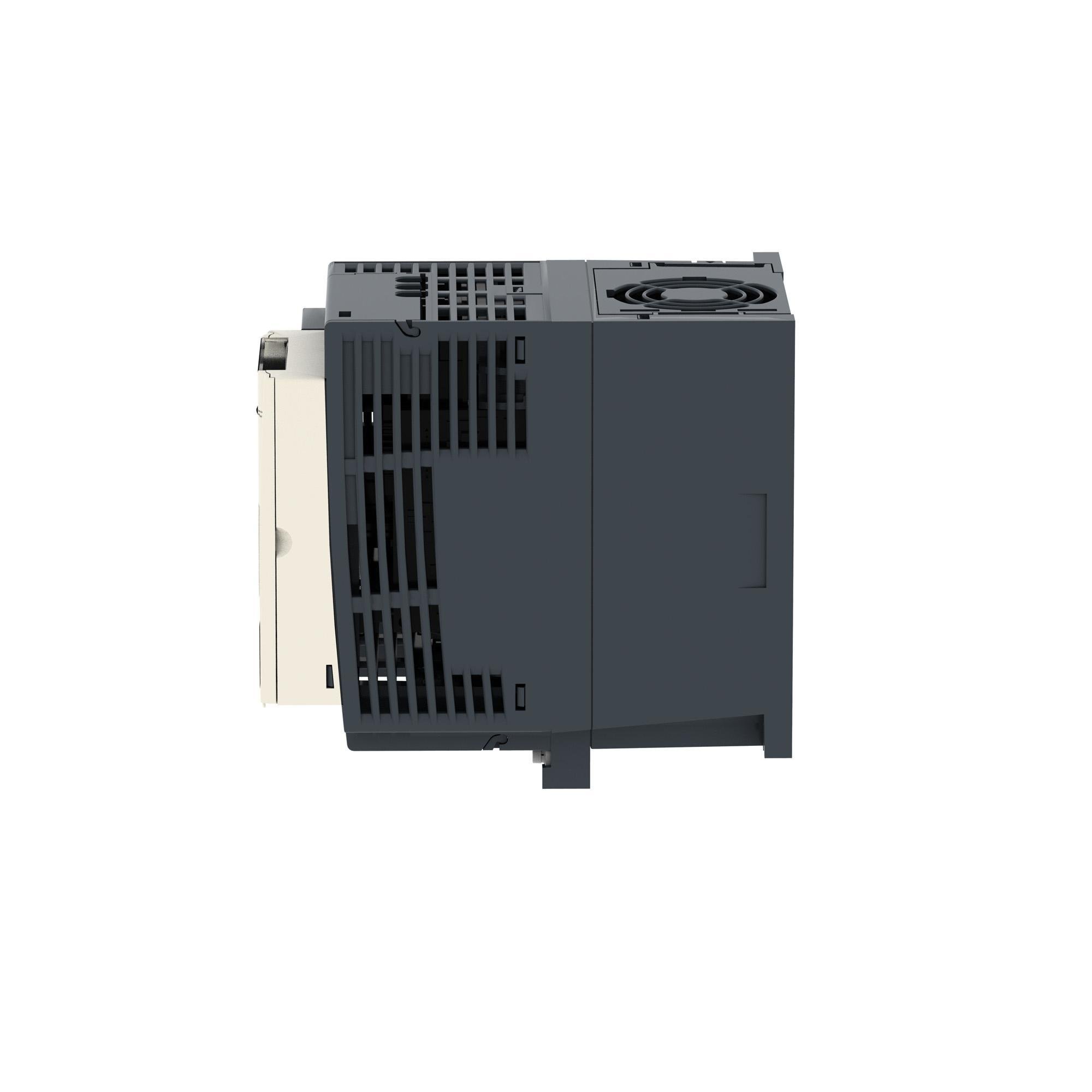

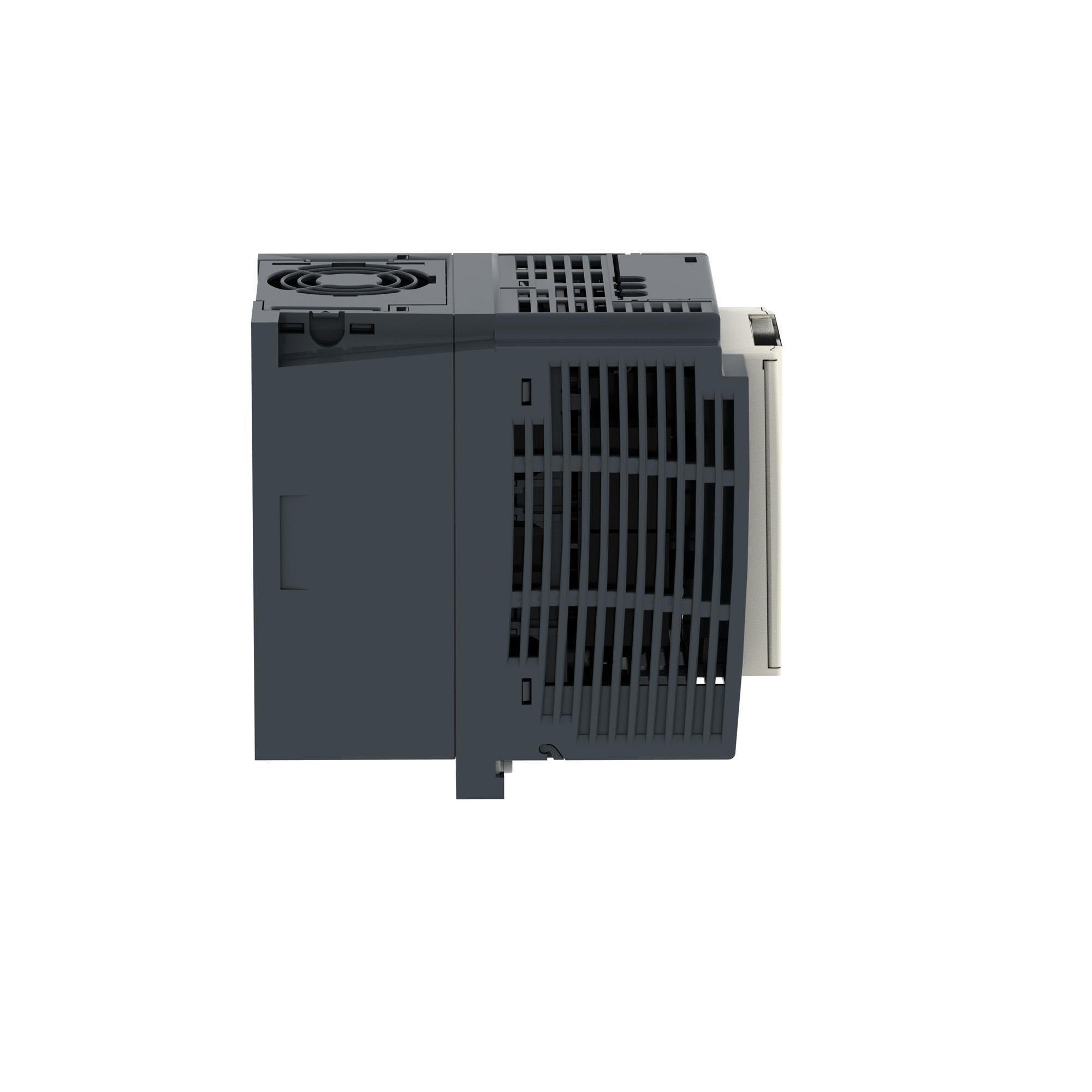

Picture of ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink Picture of ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink
Picture of ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink Picture of ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink
Picture of ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink Picture of ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink
Picture of ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink Picture of ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink
Picture of ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink Picture of ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink
Schneider Electric

ATV12HU22M2 - variable speed drive, Altivar 12, 2.2kW, 3hp, 200 to 240V, 1 phase, with heat sink

Item Code: 1058820
Category AC Drives
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATV12HU22M2

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

Specifications

Height

142mm

Width

7.21mm

Length

7.21mm

Depth

156.2mm

AD All Features

Plug and play solution

AD Application

Simple Machine and Commercial Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

DRIVE SP VAR 200 TO 240/230VAC 20.2/24A

AD Item Features 01

Plug and play solution

AD Item Features 02

Electrical cabinet friendly design

AD Item Features 03

Energy Saving

AD Item Features 04

Less downtime

AD Item Features 05

Compact hardware design

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.2100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Width

7.2100

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/6hzUcIVQMNY

Brand

Square D

Category

AC Drives

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20.2/24

Spec 10 Attribute

Width

Spec 10 Attribute UOM

IN

Spec 10 Attribute Value

4.13

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

6.15

Spec 3 Attribute

Display Type

Spec 3 Attribute Value

Analog

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

IP20

Spec 5 Attribute

Height

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

5.59

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

3

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

DIN Rail

Spec 8 Attribute

Type

Spec 8 Attribute Value

1-Phase

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

200 to 240/230
