Schneider Electric

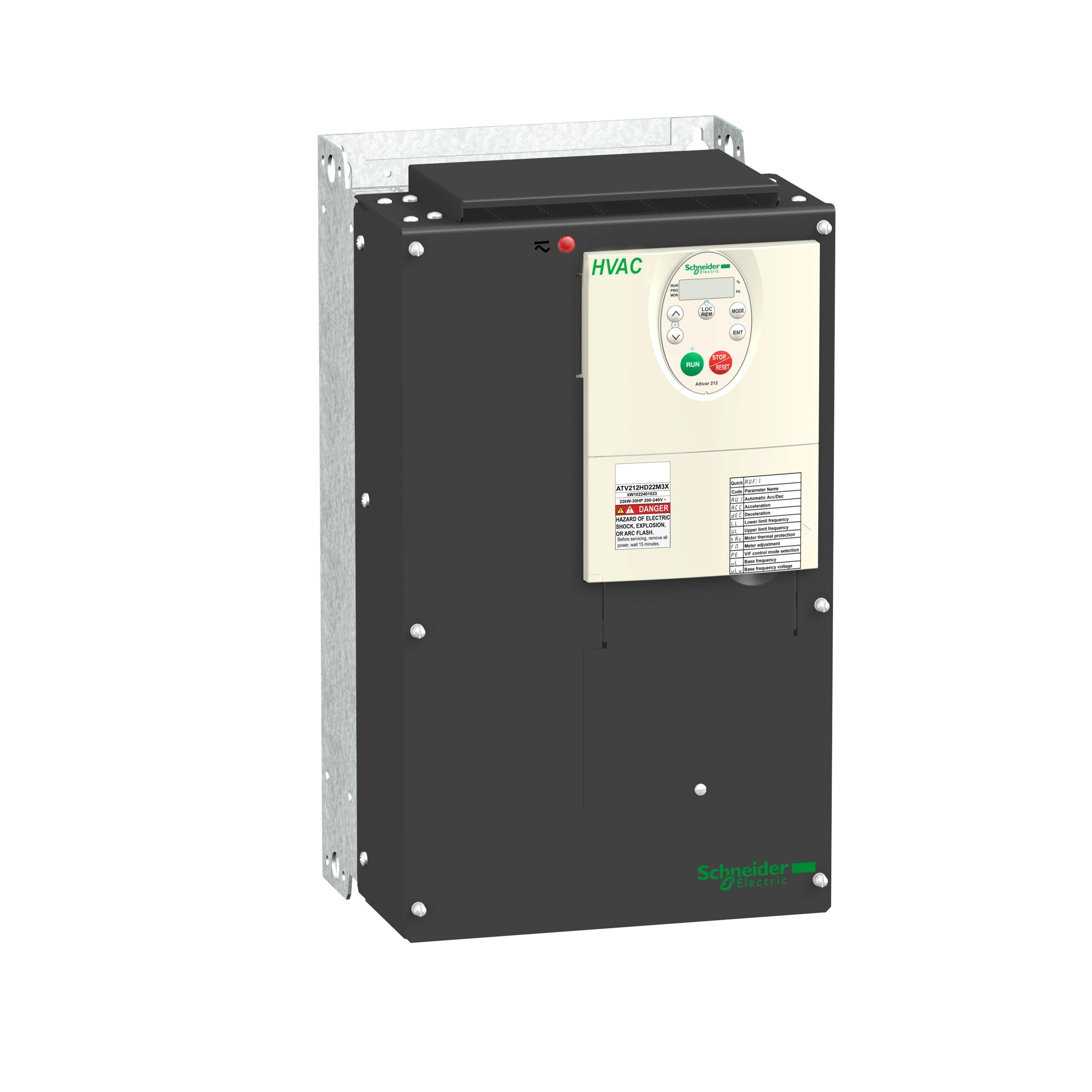

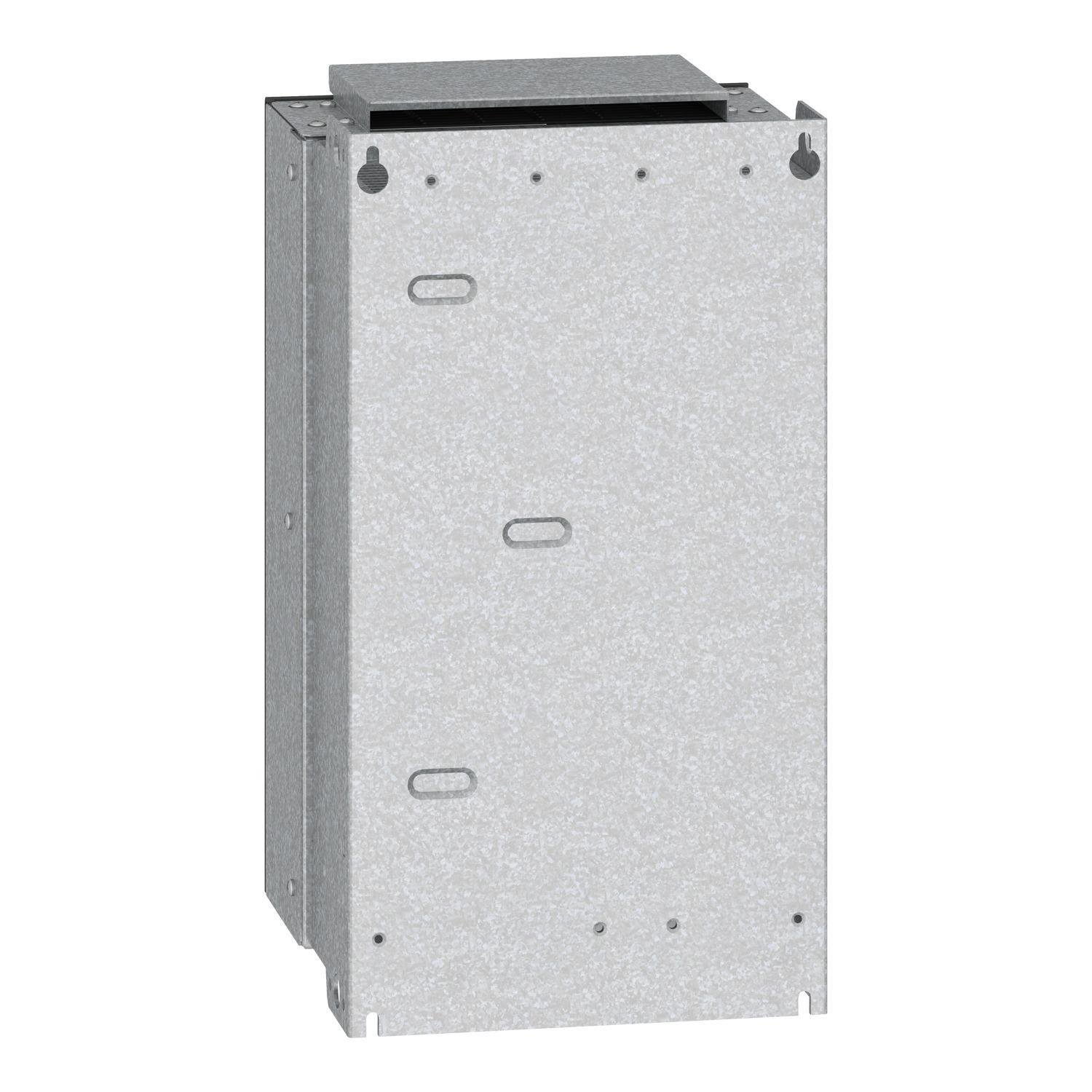

ATV212HD22N4 - variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21

Category AC Drives
Picture of ATV212HD22N4 - variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21 Picture of ATV212HD22N4 - variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21
Picture of ATV212HD22N4 - variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21 Picture of ATV212HD22N4 - variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21
Picture of ATV212HD22N4 - variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21 Picture of ATV212HD22N4 - variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21
Picture of ATV212HD22N4 - variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21 Picture of ATV212HD22N4 - variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21
Schneider Electric

ATV212HD22N4 - variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21

Item Code: 827932
Category AC Drives
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATV212HD22N4

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 22kW / 30hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 26.4kg and its dimensions are, 240mm wide, 420mm high, 214mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.

Specifications

Weight

29.7lb

Height

420mm

Width

15.02mm

Length

19.89mm

Depth

214mm

AD All Features

Centralized technical management

AD Application

Ventilation, Pumping and Air Conditioning Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

DRIVE SP VAR AC 400 TO 480VAC 33.1/41.6A

AD Item Features 01

Centralized technical management

AD Item Features 02

Instant viewing of the energy consumption

AD Item Features 03

User-friendly

AD Item Features 04

Simple maintenance

AD Item Features 05

Continuity of service assured

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

19.8900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

29.7000

AD Package Weight UOM

LB

AD Package Width

15.0200

AD Package Width UOM

IN

Brand

Square D

Category

AC Drives

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

33.1/41.6

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

8.43

Spec 3 Attribute

Display Type

Spec 3 Attribute Value

Led

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

IP20/IP21/IP41/Open

Spec 5 Attribute

Height

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

16.54

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

30

Spec 7 Attribute

Type

Spec 7 Attribute Value

3-Phase

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

400 to 480

Spec 9 Attribute

Width

Spec 9 Attribute UOM

IN

Spec 9 Attribute Value

9.45
