Square D

ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact

Category AC Drives

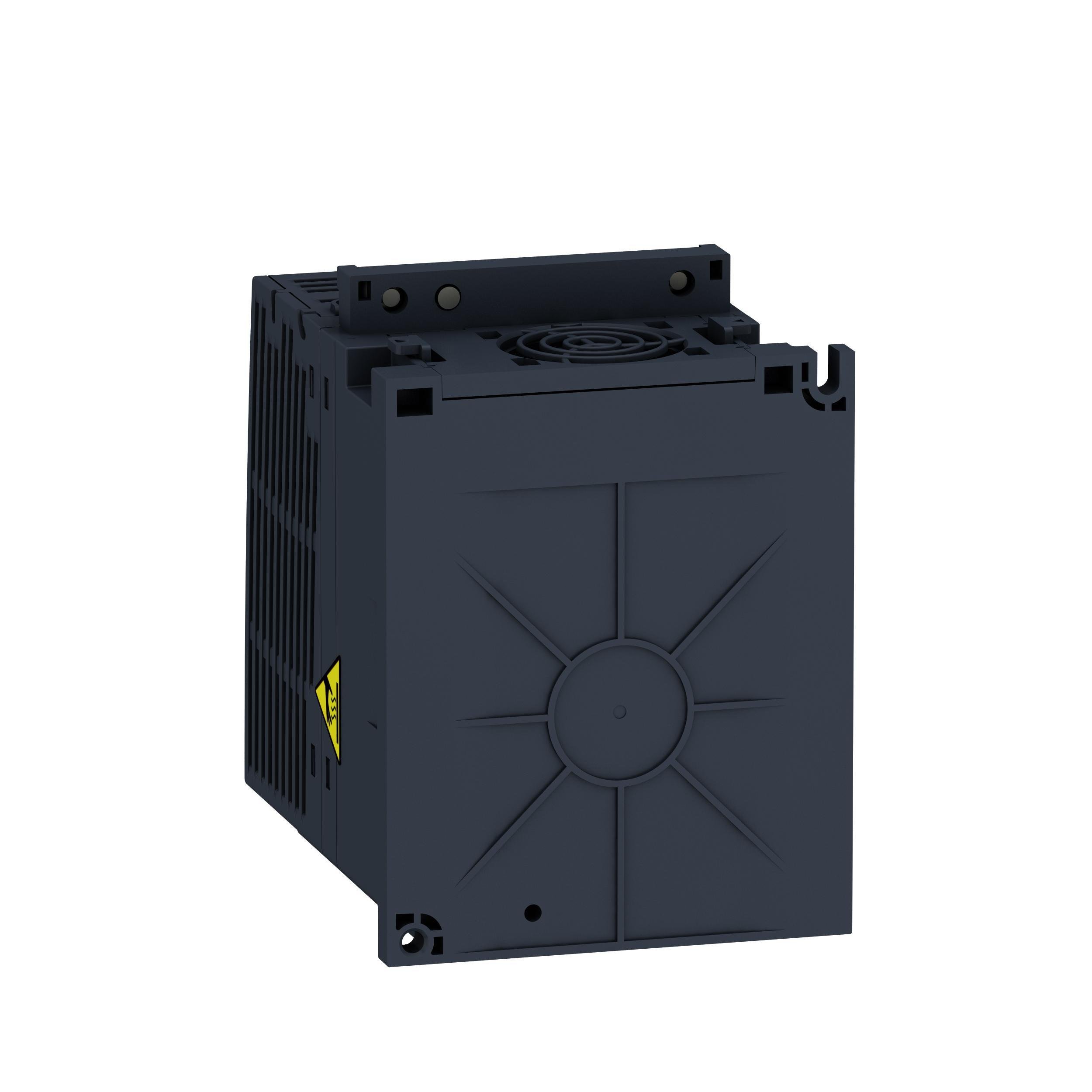

Picture of ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact Picture of ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact
Picture of ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact Picture of ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact
Picture of ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact Picture of ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact
Picture of ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact Picture of ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact
Picture of ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact Picture of ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact
Square D

ATV320U22M3C - variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 3 phases, compact

Item Code: 1114409
Category AC Drives
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATV320U22M3C

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 1.4kg and its dimensions are 105mm wide, 143mm high, 138mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is labeled Green Premium and complies with environmental protection directives such as RoHS, WEEE, etc.

Specifications

AD All Features

Safety function

AD Application

Material Handling, Packaging, Textiles, Hoisting, Mechanical Actuators, Material Working, Conveyors, Carton Packers, Gantry Cranes, Woodworking, Metal Processing, Fans, Complex Machine, Asynchronous and Synchronous Motors Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

DRIVE SP VAR AC 200/240VAC 12.5/14.9A

AD Item Features 01

SAFETY FUNCTION

AD Item Features 02

For simple and advanced machines

AD Item Features 03

Advanced Motor control

AD Item Features 04

Less downtime

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

AD Video Links

https://www.youtube.com/watch?v=JxS1Q0Zz-mA&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn

Brand

Square D

Category

AC Drives

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

12.5/14.9

Spec 10 Attribute

Width

Spec 10 Attribute UOM

IN

Spec 10 Attribute Value

4.13

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

6.22

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

IP20

Spec 4 Attribute

Height

Spec 4 Attribute UOM

IN

Spec 4 Attribute Value

5.59

Spec 5 Attribute

HORSEPOWER

Spec 5 Attribute UOM

HP

Spec 5 Attribute Value

3

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

Series

Spec 7 Attribute Value

Altivar™ 320

Spec 8 Attribute

Type

Spec 8 Attribute Value

3-Phase Compact

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

200/240
