Square D

ATV320U40M3C - variable speed drive, Altivar Machine ATV320, 4kW, 200 to 240V, 3 phases, compact

Category Definite Purpose Starters

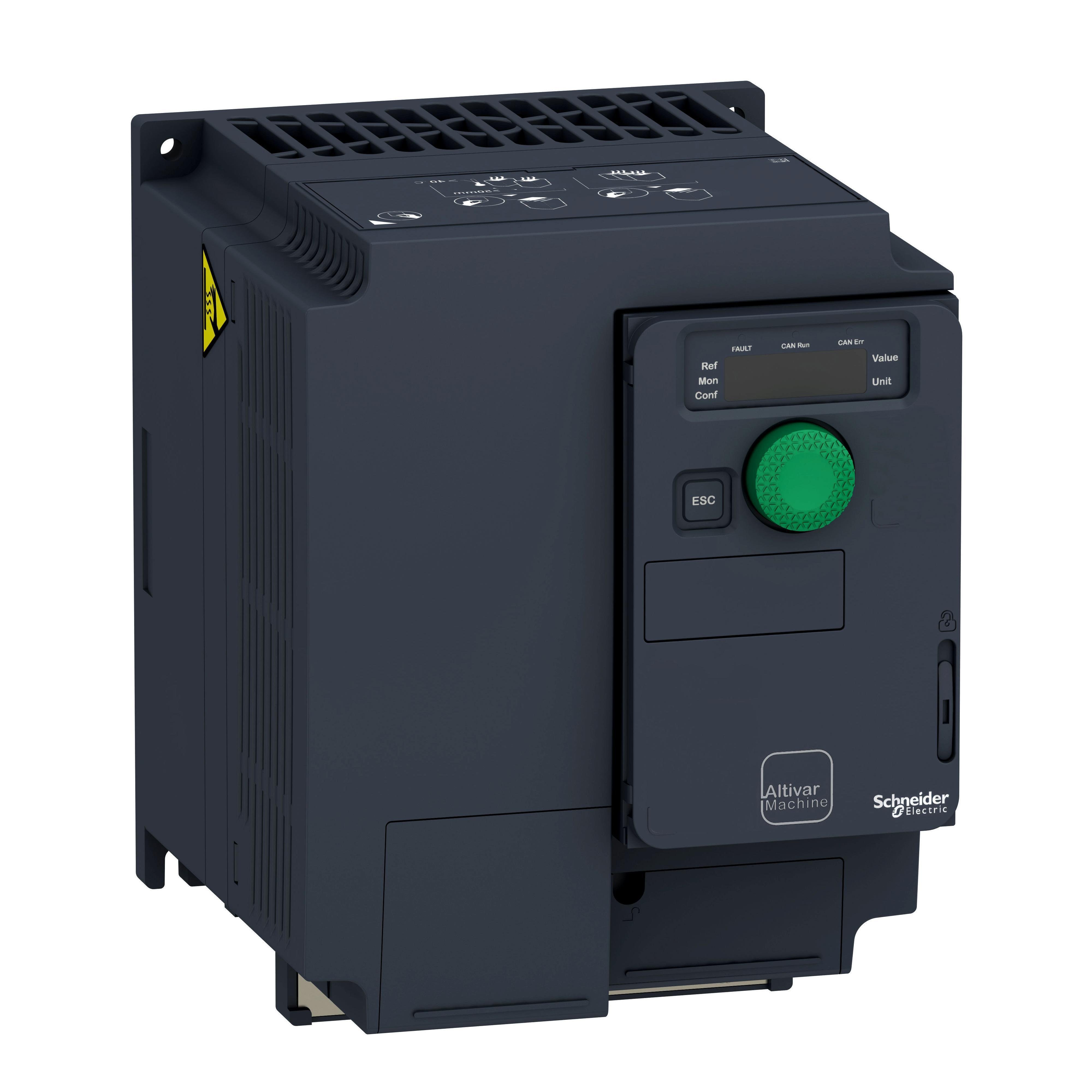

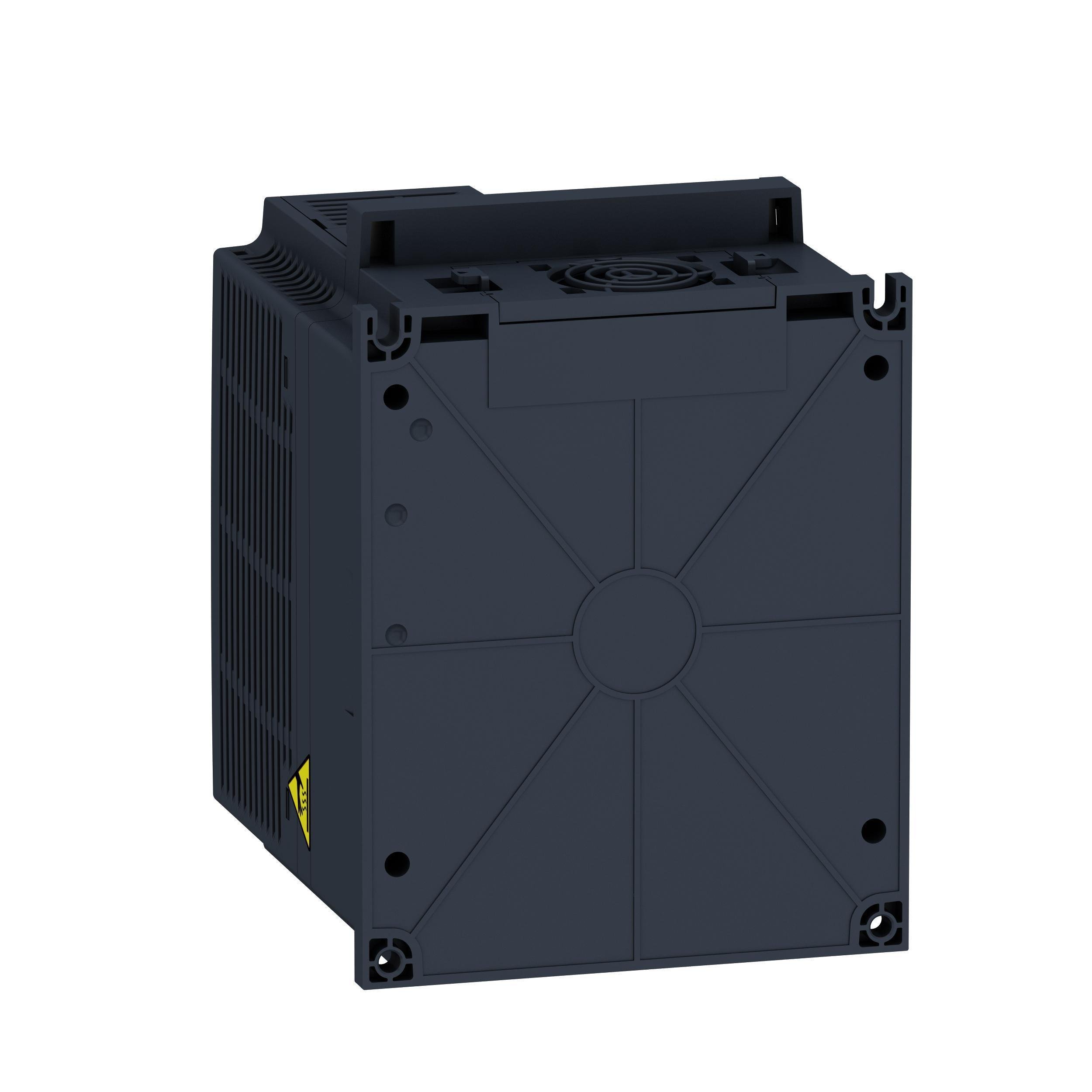

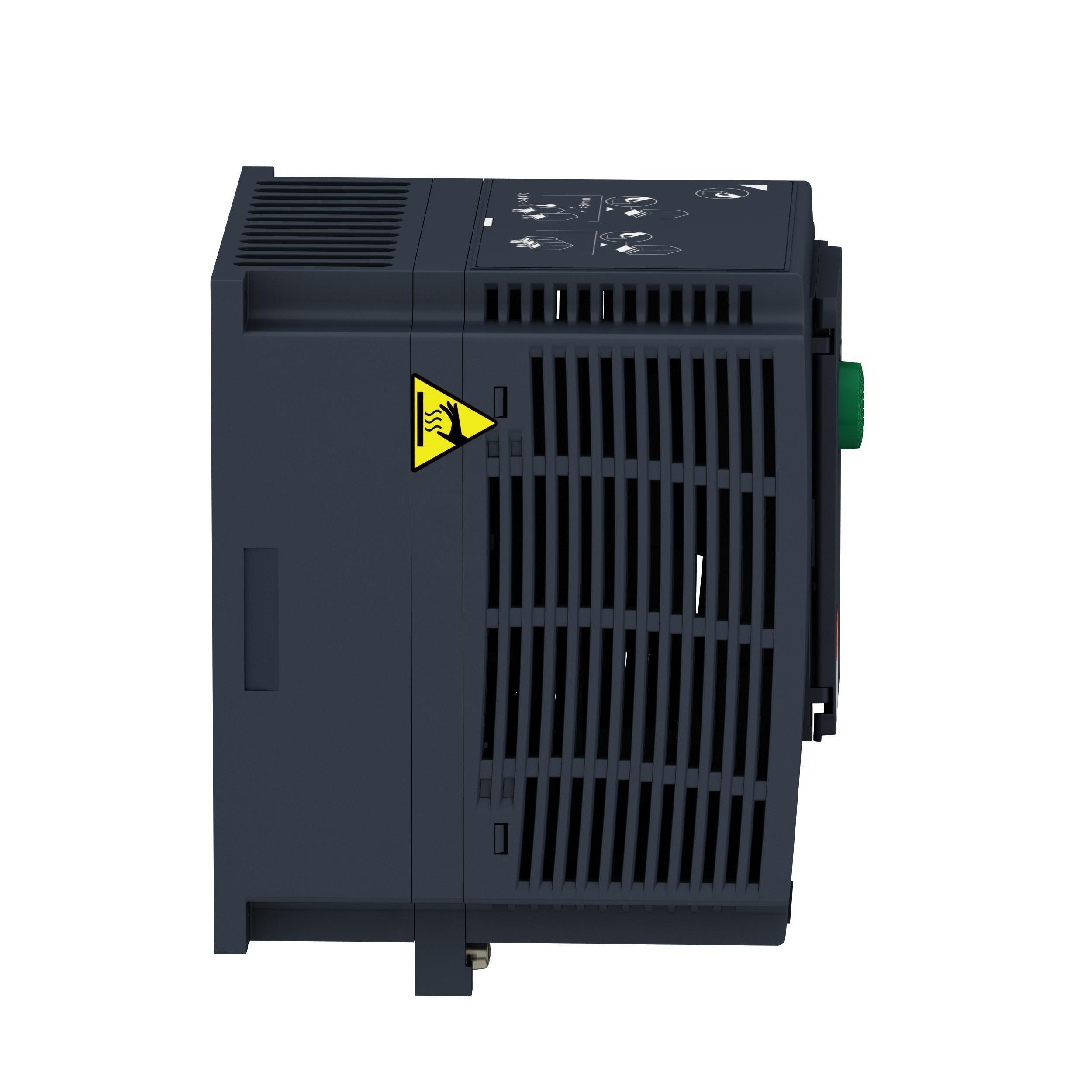

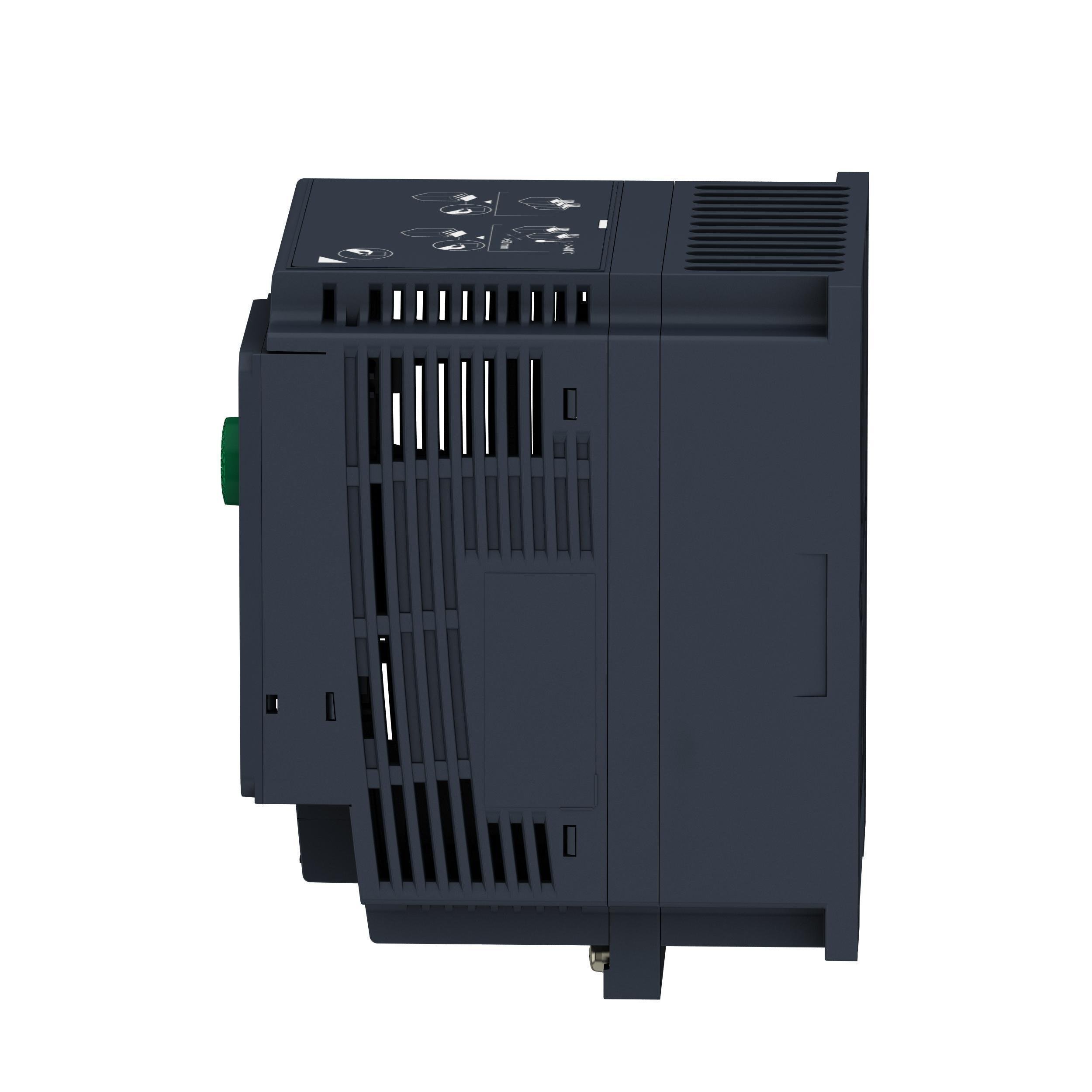

Picture of ATV320U40M3C - variable speed drive, Altivar Machine ATV320, 4kW, 200 to 240V, 3 phases, compact
Square D

ATV320U40M3C - variable speed drive, Altivar Machine ATV320, 4kW, 200 to 240V, 3 phases, compact

Item Code: 977694
Category Definite Purpose Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATV320U40M3C

Instruction Installation Manual
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 4kW / 5hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 2.2kg and its dimensions are 140mm wide, 184mm high, 158mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in three packages. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is labeled Green Premium and complies with environmental protection directives such as RoHS, WEEE, etc.

Specifications

Amperage Rating

19.9/23.8 A

Brand

Square D

Category

Definite Purpose Starters

Depth

6.22 in

Enclosure Type

IP20

Height

7.24 in

Horsepower

5 hp

Mounting Type

Wall

Series

Altivar™ 320

Type

3-Phase Compact

Voltage Rating

200/240 V AC

Width

5.51 in
