Square D

ATV320U55N4B - variable speed drive, Altivar Machine ATV320, 5.5kW, 380 to 500V, 3 phases, book

Category AC Drives

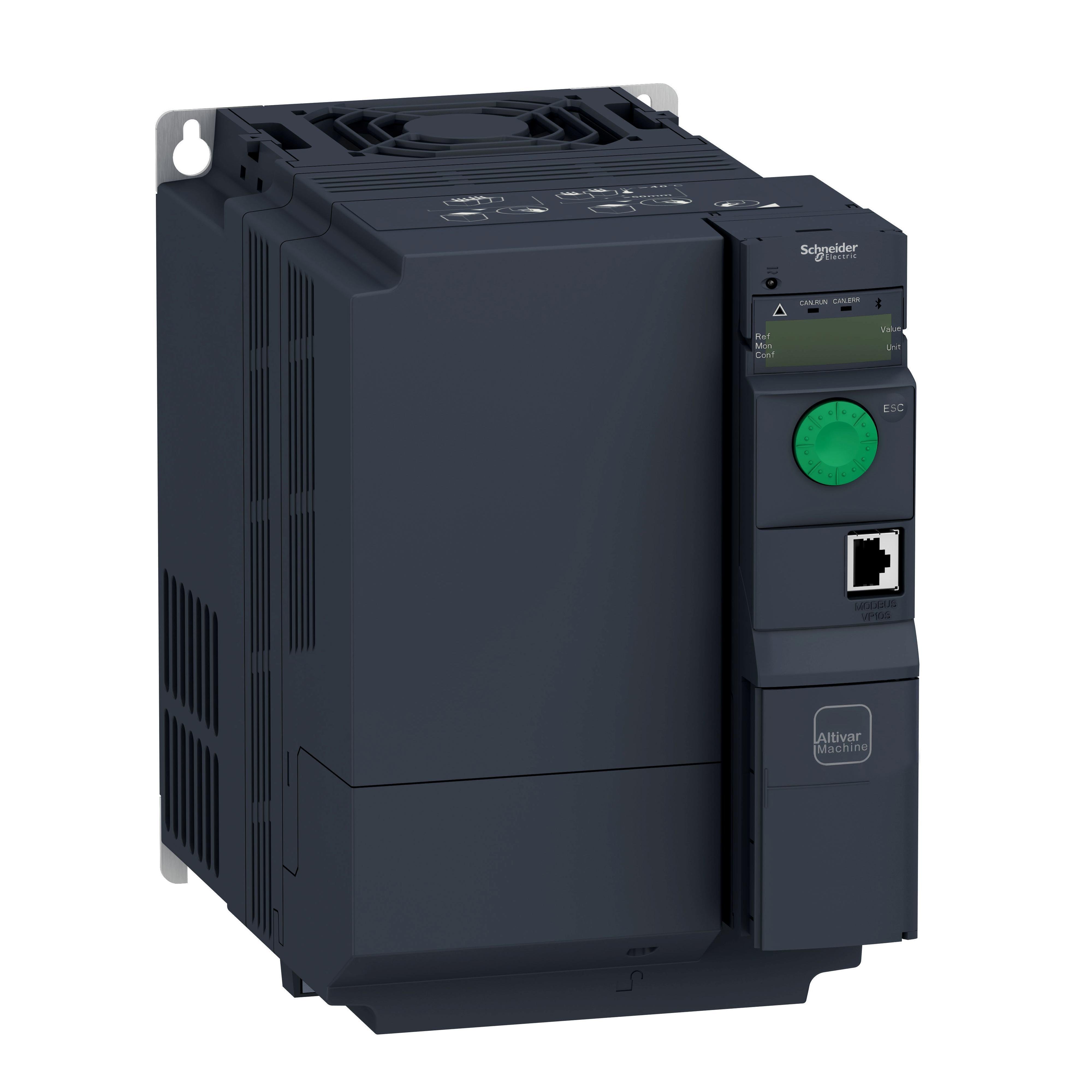

Picture of ATV320U55N4B - variable speed drive, Altivar Machine ATV320, 5.5kW, 380 to 500V, 3 phases, book Picture of ATV320U55N4B - variable speed drive, Altivar Machine ATV320, 5.5kW, 380 to 500V, 3 phases, book
Picture of ATV320U55N4B - variable speed drive, Altivar Machine ATV320, 5.5kW, 380 to 500V, 3 phases, book Picture of ATV320U55N4B - variable speed drive, Altivar Machine ATV320, 5.5kW, 380 to 500V, 3 phases, book
Square D

ATV320U55N4B - variable speed drive, Altivar Machine ATV320, 5.5kW, 380 to 500V, 3 phases, book

Item Code: 988932
Category AC Drives
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATV320U55N4B

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its book form factor allows for a simple and compact installation in your automation cabinets. It works at a rated power up to 5.5kW / 7.5hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is labeled Green Premium and complies with environmental protection directives such as RoHS, WEEE, etc.

Specifications

AD All Features

Save time and space

AD Application

Material Handling, Packaging, Textiles, Hoisting, Mechanical Actuators, Material Working, Conveyors, Carton Packers, Gantry Cranes, Woodworking, Metal Processing, Fans, Complex Machine, Asynchronous and Synchronous Motors Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

DRIVE SP VAR AC 400/480VAC 14.5/20.7A

AD Item Features 01

Save time and space

AD Item Features 02

Less downtime and maintenance costs

AD Item Features 03

Advanced connectivity reduce your initial investment while keeping flexibility in design

AD Item Features 04

Easy compliance with the machine and operator safety standards

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

AD Video Links

https://www.youtube.com/watch?v=JxS1Q0Zz-mA&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn

Brand

Square D

Category

AC Drives

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

14.5/20.7

Spec 10 Attribute

Width

Spec 10 Attribute UOM

IN

Spec 10 Attribute Value

5.91

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

9.13

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

IP20

Spec 4 Attribute

Height

Spec 4 Attribute UOM

IN

Spec 4 Attribute Value

9.13

Spec 5 Attribute

HORSEPOWER

Spec 5 Attribute UOM

HP

Spec 5 Attribute Value

7/1/2002

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

Series

Spec 7 Attribute Value

Altivar® 320

Spec 8 Attribute

Type

Spec 8 Attribute Value

3-Phase Book

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

400/480
