Schneider Electric

ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00

Category Miscellaneous

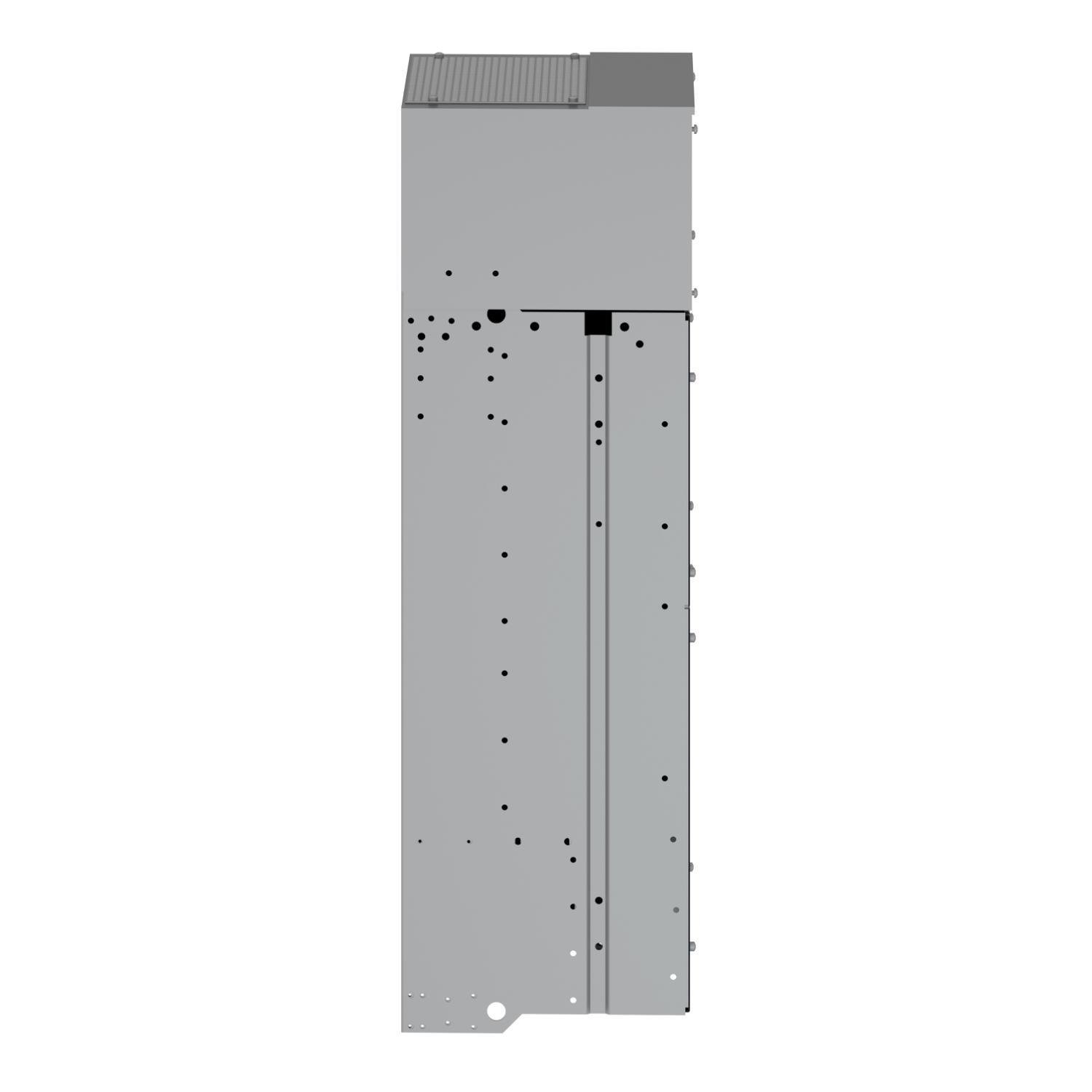

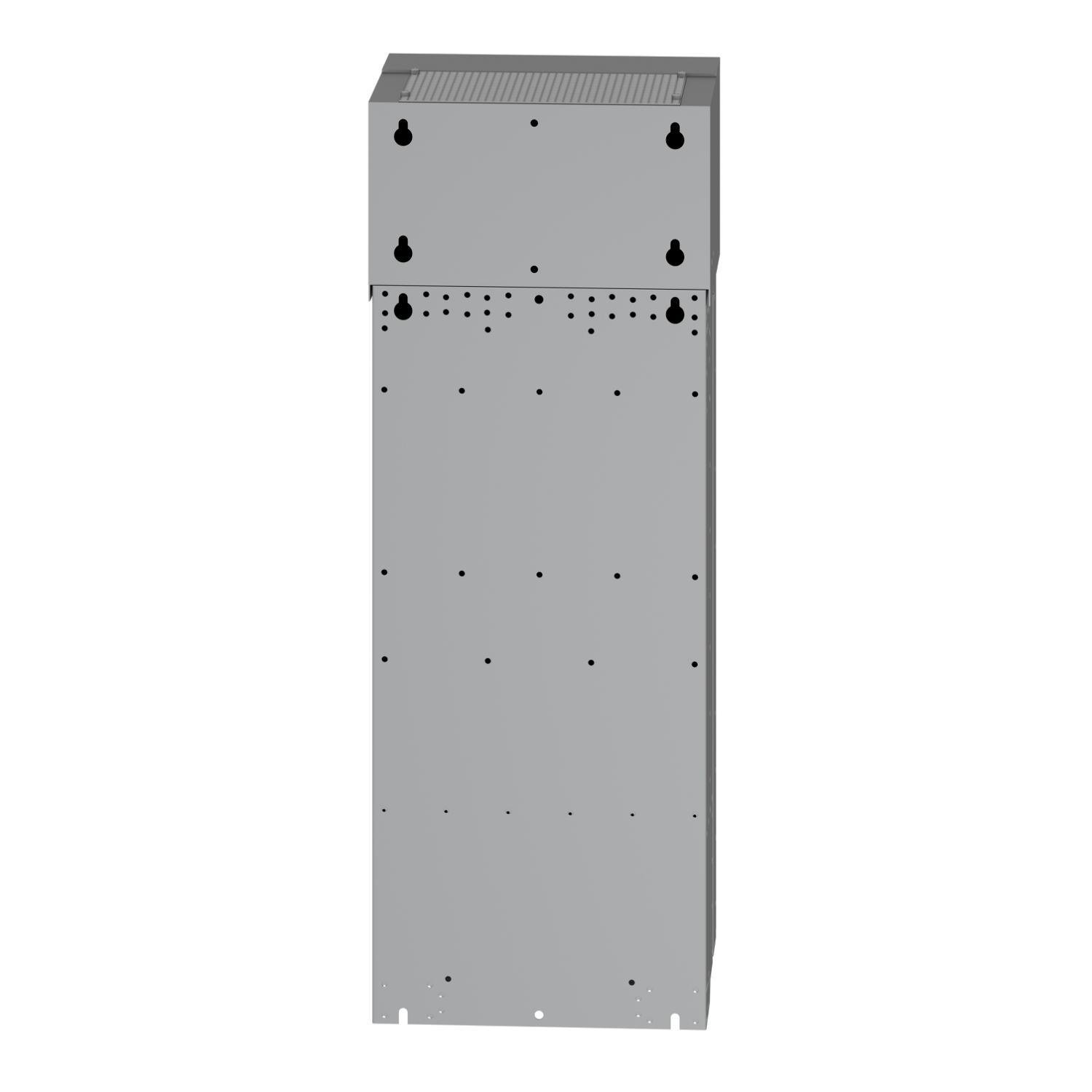

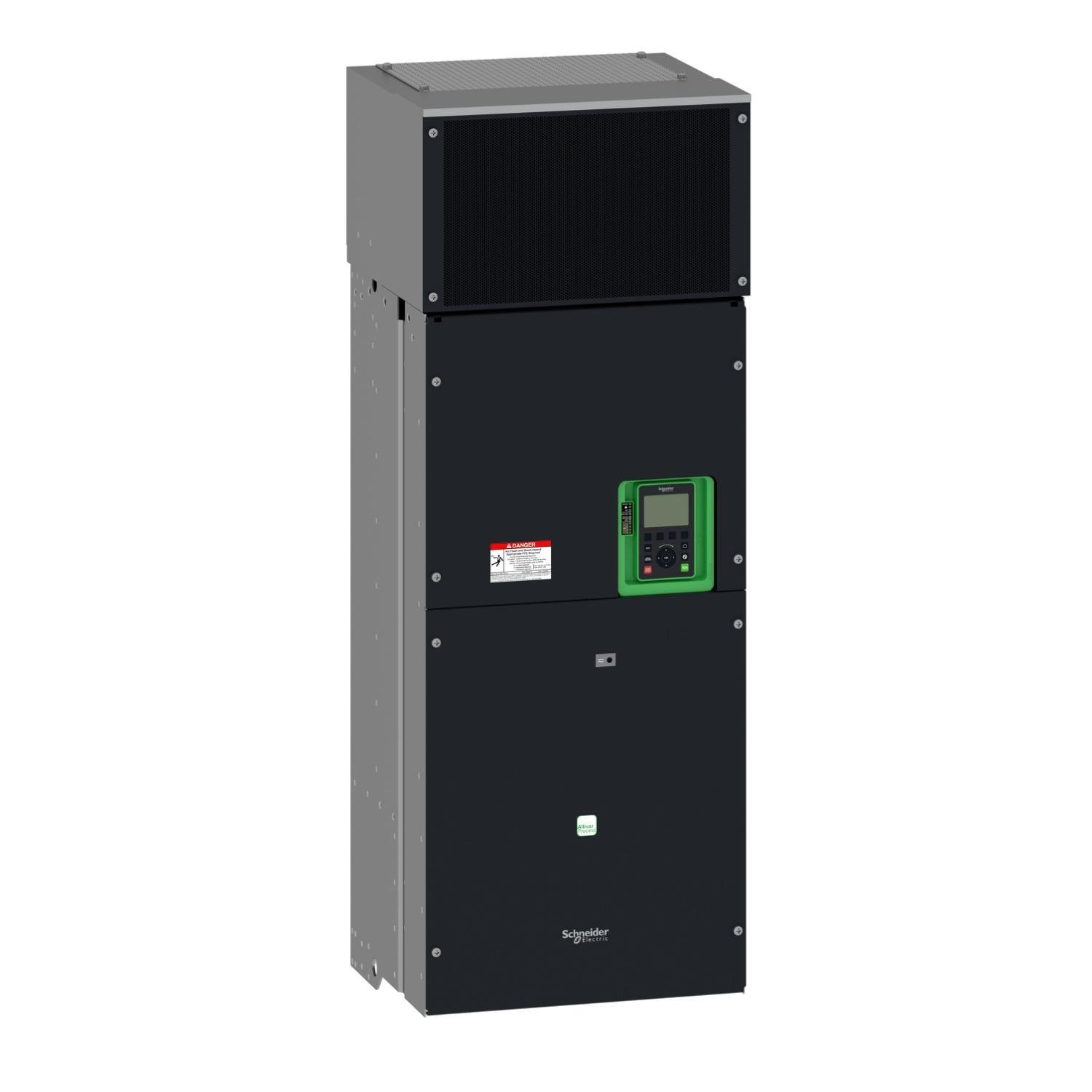

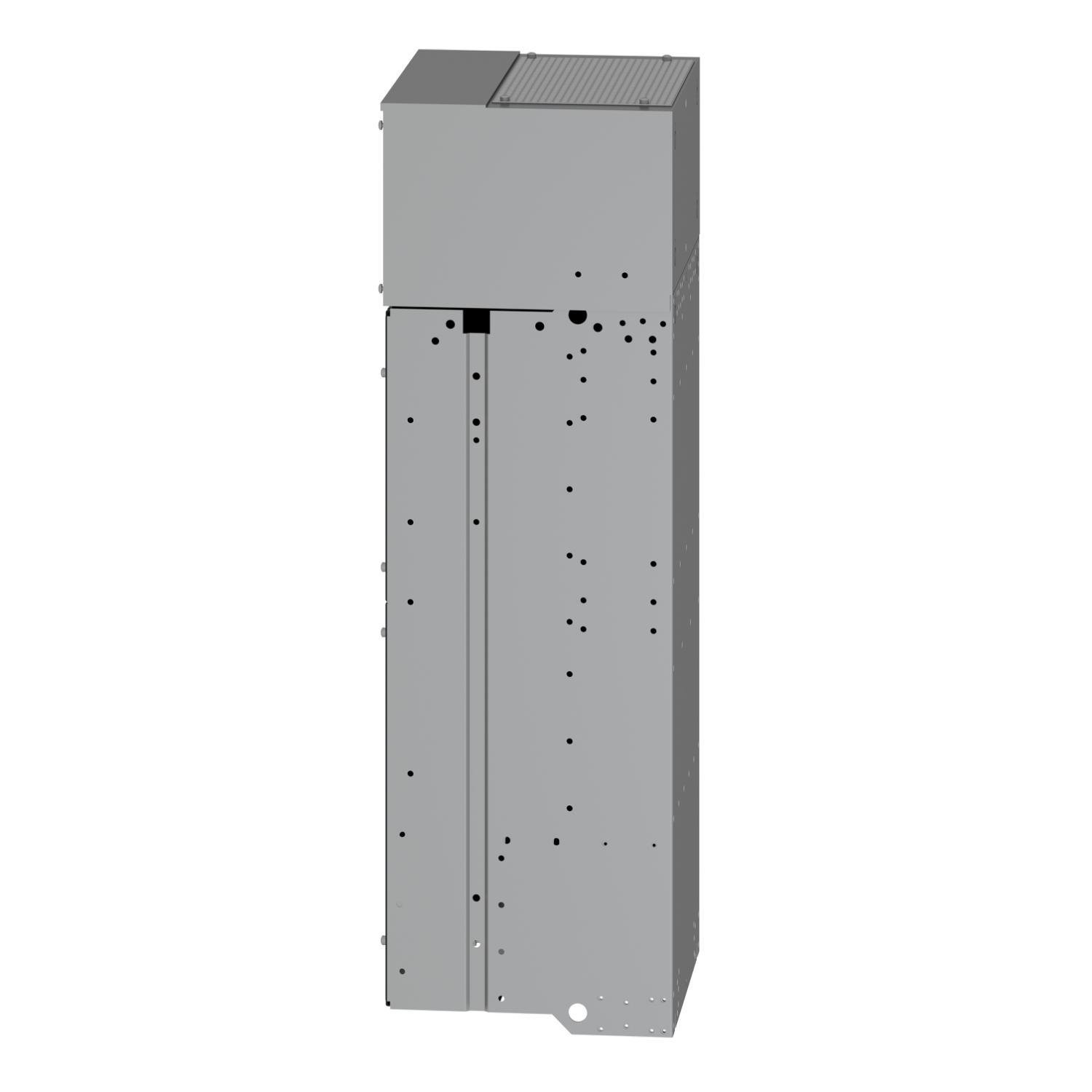

Picture of ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00 Picture of ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00
Picture of ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00 Picture of ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00
Picture of ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00 Picture of ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00
Picture of ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00 Picture of ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00
Picture of ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00 Picture of ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00
Schneider Electric

ATV630C22N4 - Variable Speed Drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00

Item Code: 1056006
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATV630C22N4

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 220kW / 350hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 160kW / 250hp for applications requiring significant overload (up to 150%). It weighs 172kg and its dimensions are, 440mm wide, 1195mm high, 380mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Specifications

Weight

396

Width

23.4

Length

54.6

AD All Features

Embedded power measurement and energy dashboard

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

IN

AD Invoice Description

DRIVE SP VAR 480V 324A 350HP 440MM 380MM

AD Item Features 01

Embedded power measurement and energy dashboard

AD Item Features 02

Embedded process monitoring and control

AD Item Features 03

Stop and Go function to reduce energy consumption

AD Item Features 04

Easy maintenance via a dynamic QR code

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

54.6000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

396.0000

AD Package Weight UOM

LB

AD Package Width

23.4000

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

324

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V

Spec 10 Attribute Value

480

Spec 11 Attribute

Width

Spec 11 Attribute UOM

MM

Spec 11 Attribute Value

440

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

MM

Spec 2 Attribute Value

380

Spec 3 Attribute

Display Type

Spec 3 Attribute Value

Led

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

IP00/IP21

Spec 5 Attribute

Height

Spec 5 Attribute UOM

MM

Spec 5 Attribute Value

1195

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

350

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Wall

Spec 8 Attribute

Series

Spec 8 Attribute Value

ATV600

Spec 9 Attribute

Type

Spec 9 Attribute Value

3-Phase Standard
