Schneider Electric

ATV630D45N4 - [TAA, BABA, BAA_COTS] variable speed drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1

Category AC Drives

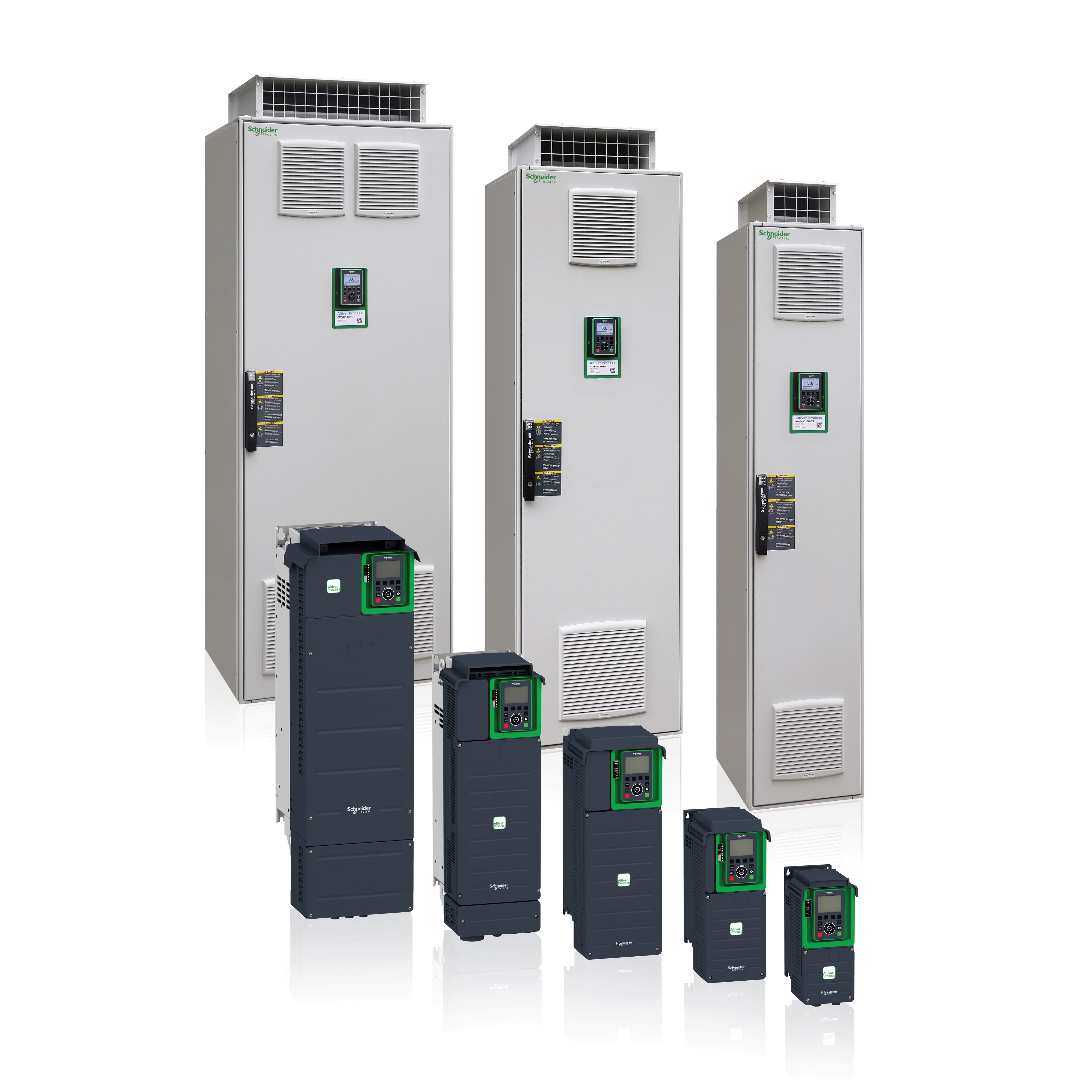

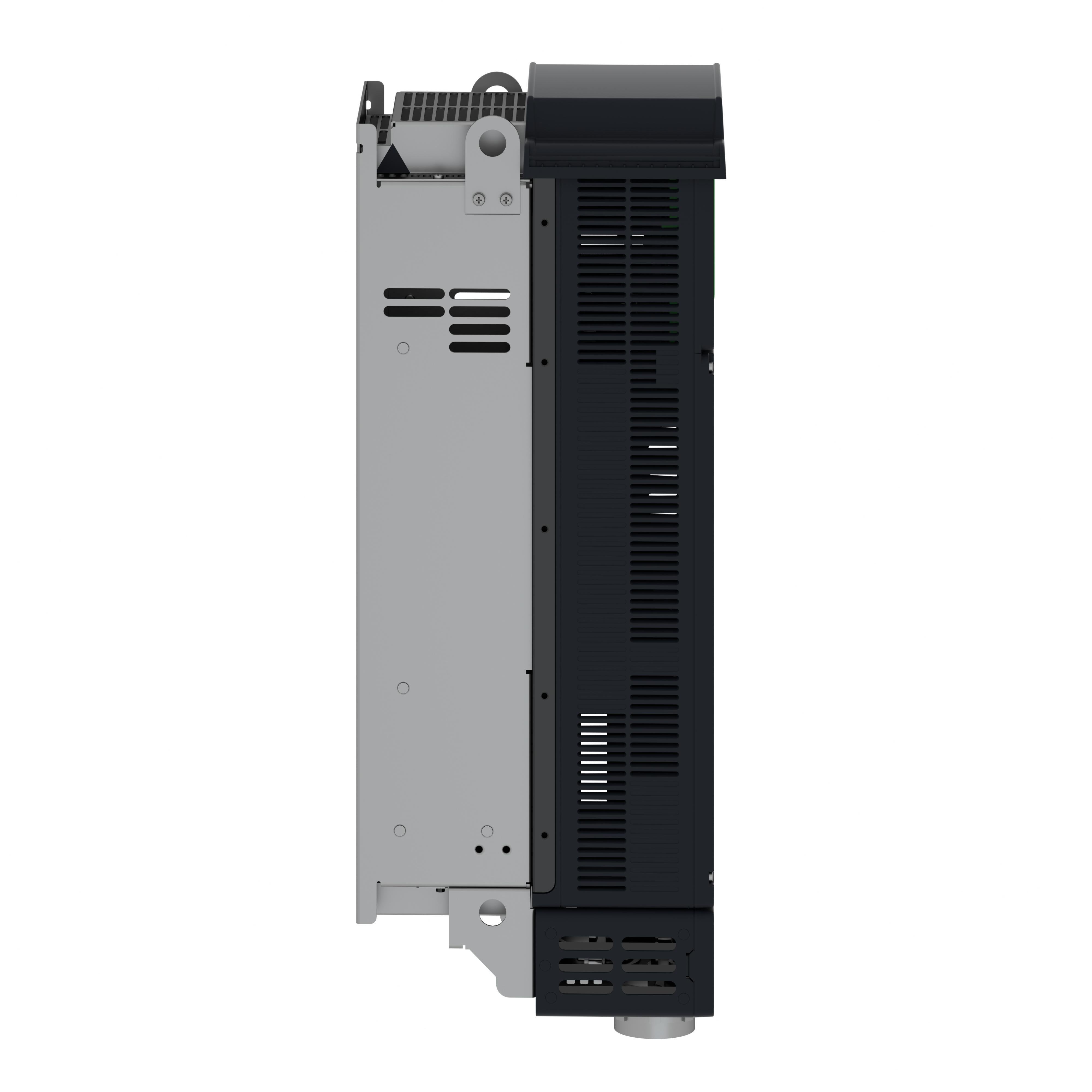

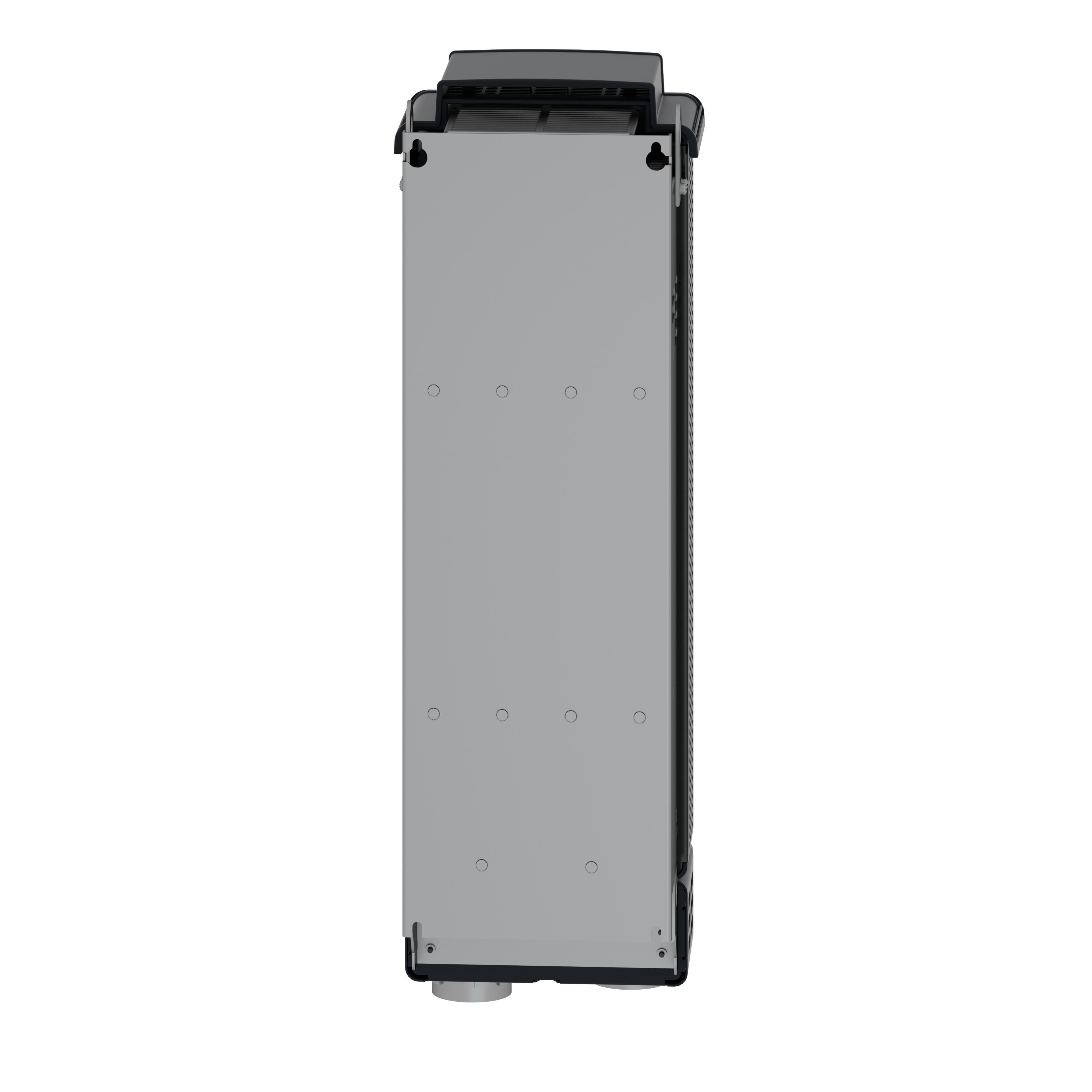

Picture of ATV630D45N4 - [TAA, BABA, BAA_COTS] variable speed drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1 Picture of ATV630D45N4 - [TAA, BABA, BAA_COTS] variable speed drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1
Picture of ATV630D45N4 - [TAA, BABA, BAA_COTS] variable speed drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1 Picture of ATV630D45N4 - [TAA, BABA, BAA_COTS] variable speed drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1
Picture of ATV630D45N4 - [TAA, BABA, BAA_COTS] variable speed drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1 Picture of ATV630D45N4 - [TAA, BABA, BAA_COTS] variable speed drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1
Picture of ATV630D45N4 - [TAA, BABA, BAA_COTS] variable speed drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1 Picture of ATV630D45N4 - [TAA, BABA, BAA_COTS] variable speed drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1
Schneider Electric

ATV630D45N4 - [TAA, BABA, BAA_COTS] variable speed drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1

Item Code: 1026474
Category AC Drives
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATV630D45N4

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 45kW / 60hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 37kW / 50hp for applications requiring significant overload (up to 150%). It weighs 28.7kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Specifications

Weight

72.6

Width

12.87

Length

32.37

AD All Features

Embedded power measurement and energy dashboard

AD Application

Waste Water Treatment Plants, Oil, Gas, Mining, Minerals, Metals, Food, Beverage, Process, Utilities, Asynchronous and Synchronous Motors Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

DRIVE SP VAR AC 380 TO 480VAC 8.9IN LED

AD Item Features 01

Embedded power measurement and energy dashboard

AD Item Features 02

Embedded process monitoring and control

AD Item Features 03

Stop and Go function to reduce energy consumption

AD Item Features 04

Easy maintenance via a dynamic QR code

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

32.3700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

72.6000

AD Package Weight UOM

LB

AD Package Width

12.8700

AD Package Width UOM

IN

Brand

Square D

Category

AC Drives

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

59/67.1/69.1/79.8

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

380 to 480

Spec 11 Attribute

Width

Spec 11 Attribute UOM

IN

Spec 11 Attribute Value

8.9

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

10.67

Spec 3 Attribute

Display Type

Spec 3 Attribute Value

Led

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1/IP00/IP20/IP21

Spec 5 Attribute

Height

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

26-1/2

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute Value

50 hp, 60 hp

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Wall

Spec 8 Attribute

Series

Spec 8 Attribute Value

Altivar® 630

Spec 9 Attribute

Type

Spec 9 Attribute Value

3-Phase Type 1 Standard
