Square D

variable speed drive, Altivar Process ATV600, ATV630, 7.5kW, 10hp, 380 to 480V, IP21, UL type 1

Category AC Drives

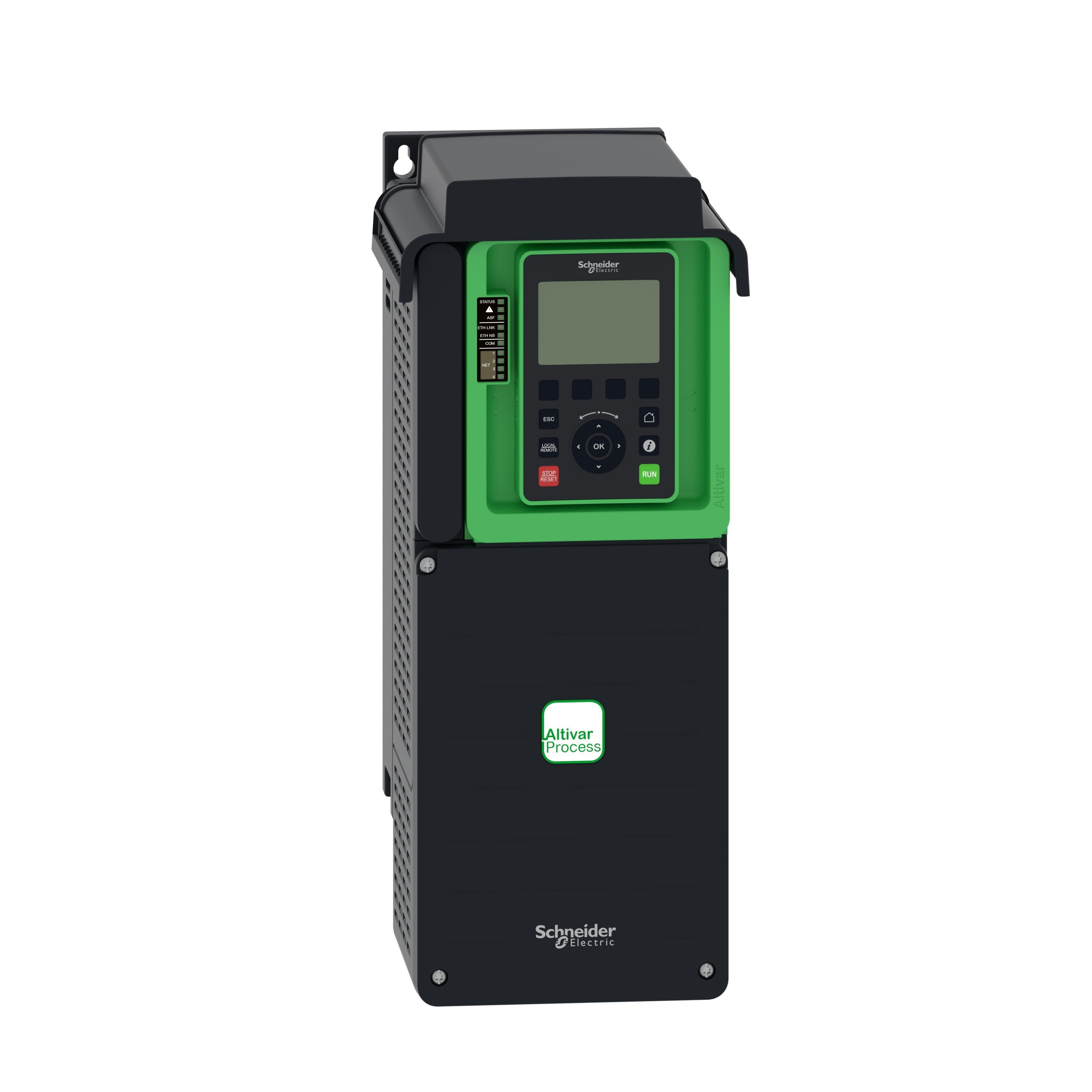

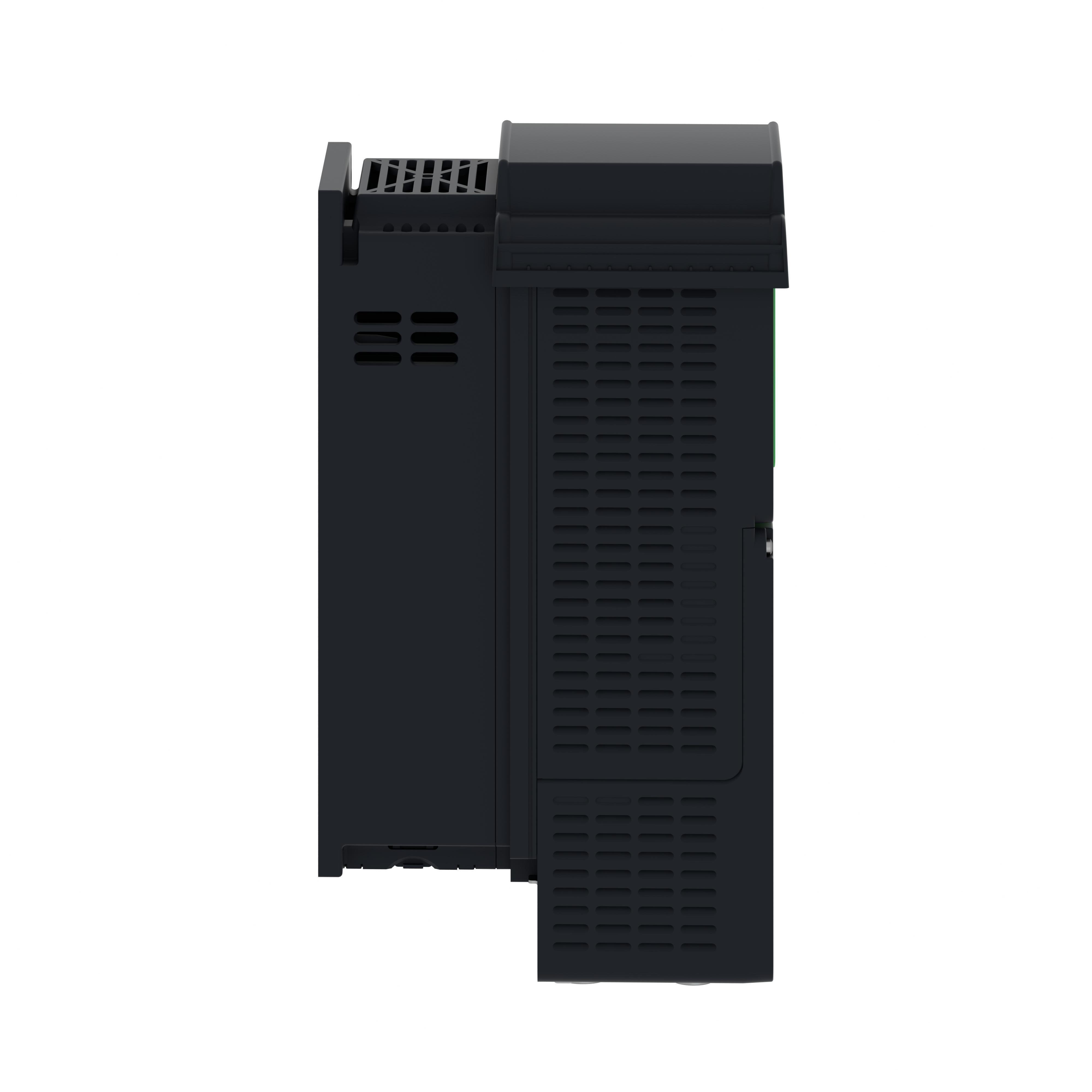

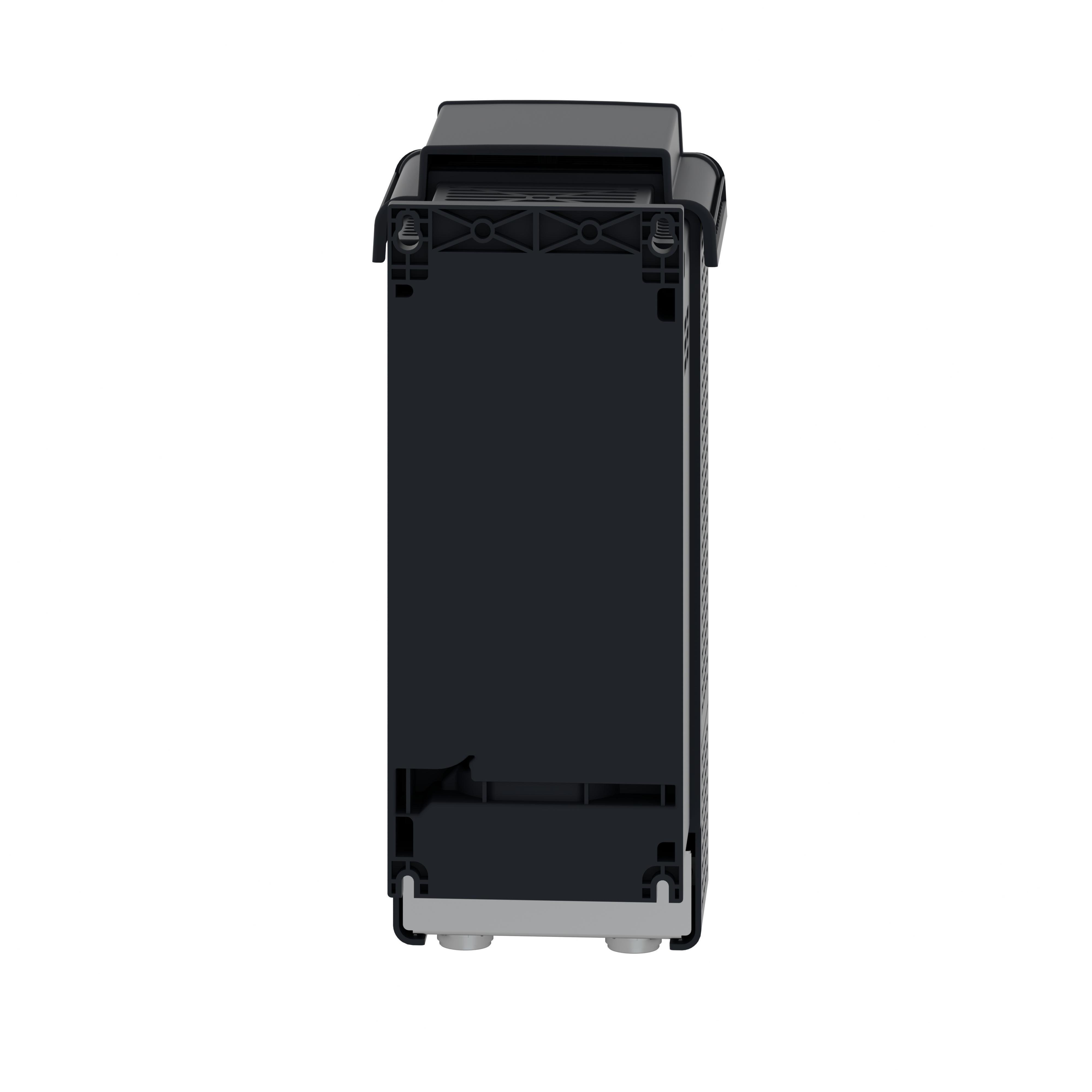

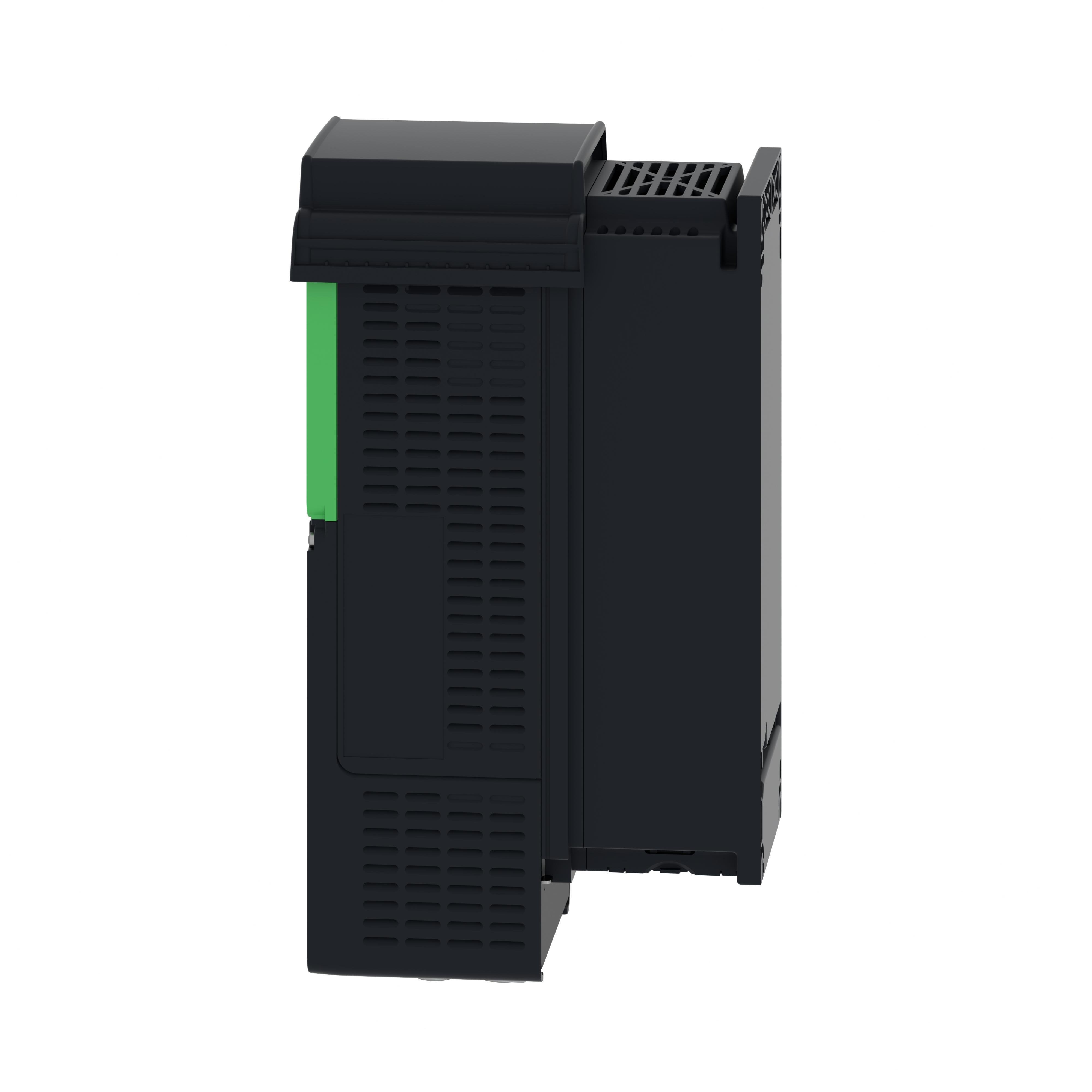

Picture of variable speed drive, Altivar Process ATV600, ATV630, 7.5kW, 10hp, 380 to 480V, IP21, UL type 1
Square D

variable speed drive, Altivar Process ATV600, ATV630, 7.5kW, 10hp, 380 to 480V, IP21, UL type 1

Item Code: 955245
Category AC Drives
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATV630U75N4

Instruction Installation Manual
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480

Specifications

Weight

22.64

Width

23.01

Length

13.65

Amperage Rating

9.2/10.5/11.9/13.8 A

Brand

Square D

Category

AC Drives

Depth

9.17 in

Display Type

Analog

Enclosure Type

IP21

Height

16.1 in

Horsepower

10 hp

Mounting Type

Wall

Series

Altivar® Process ATV600

Type

Type 1

Voltage Rating

460 V AC

Width

6.73 in
