Schneider Electric

ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21

Category AC Drives

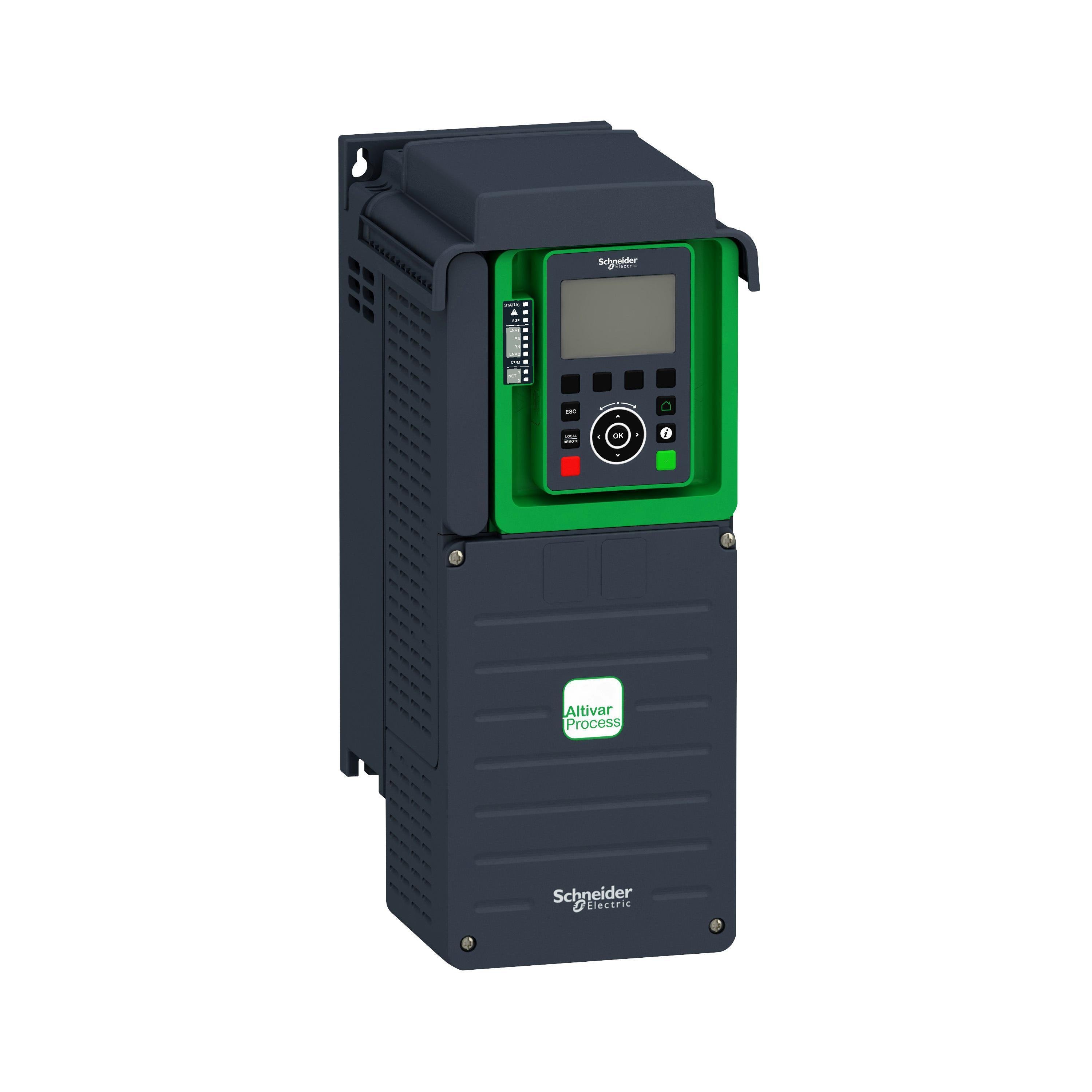

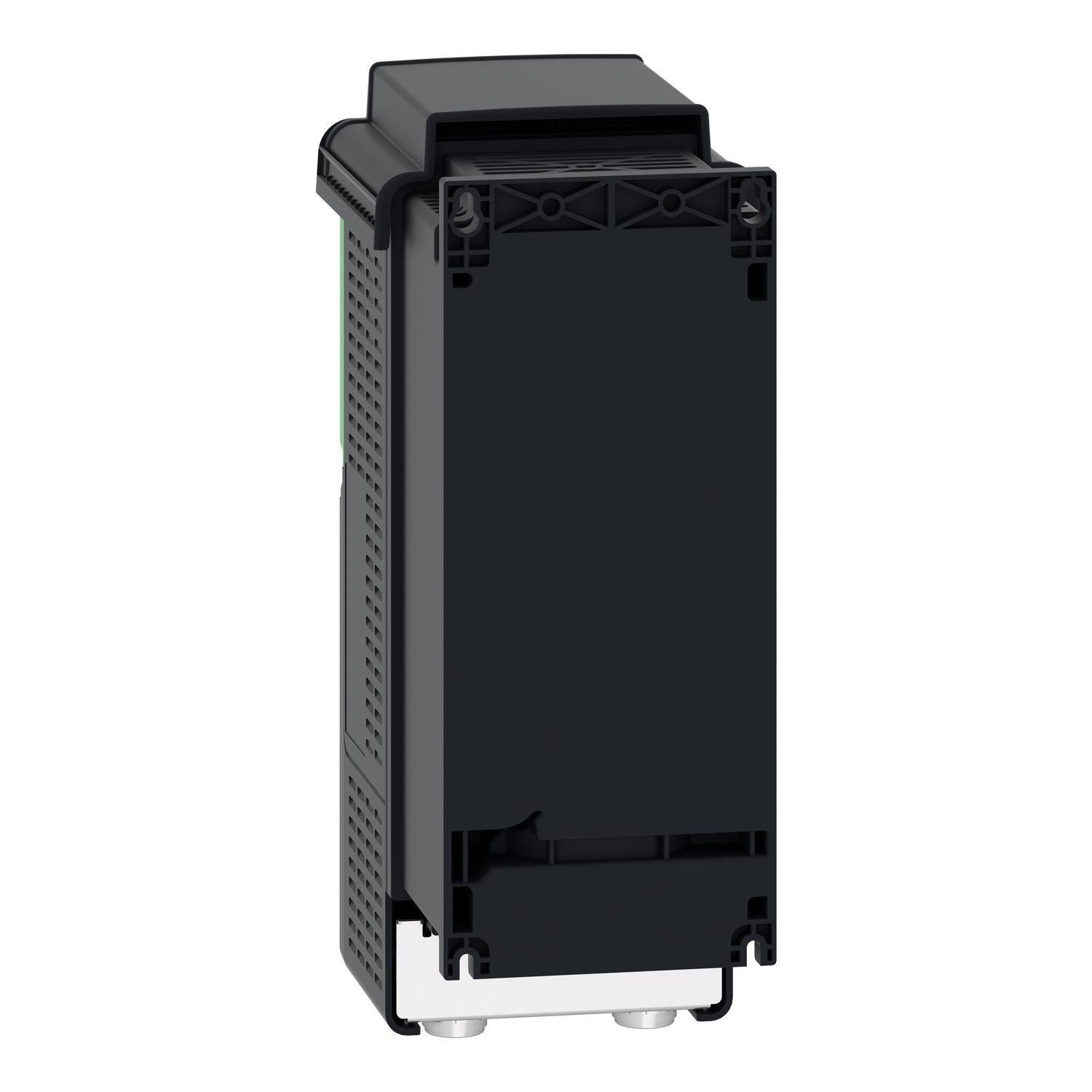

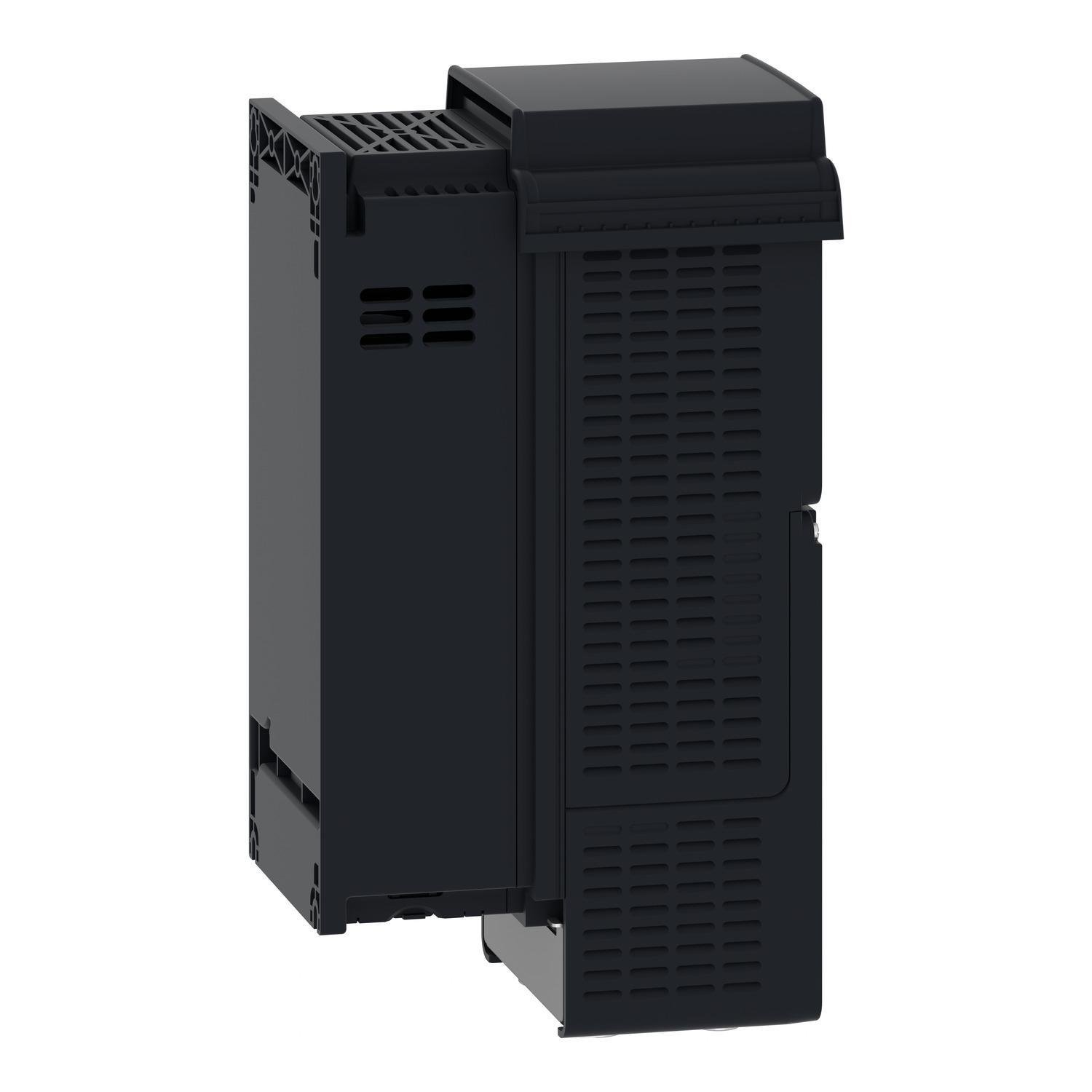

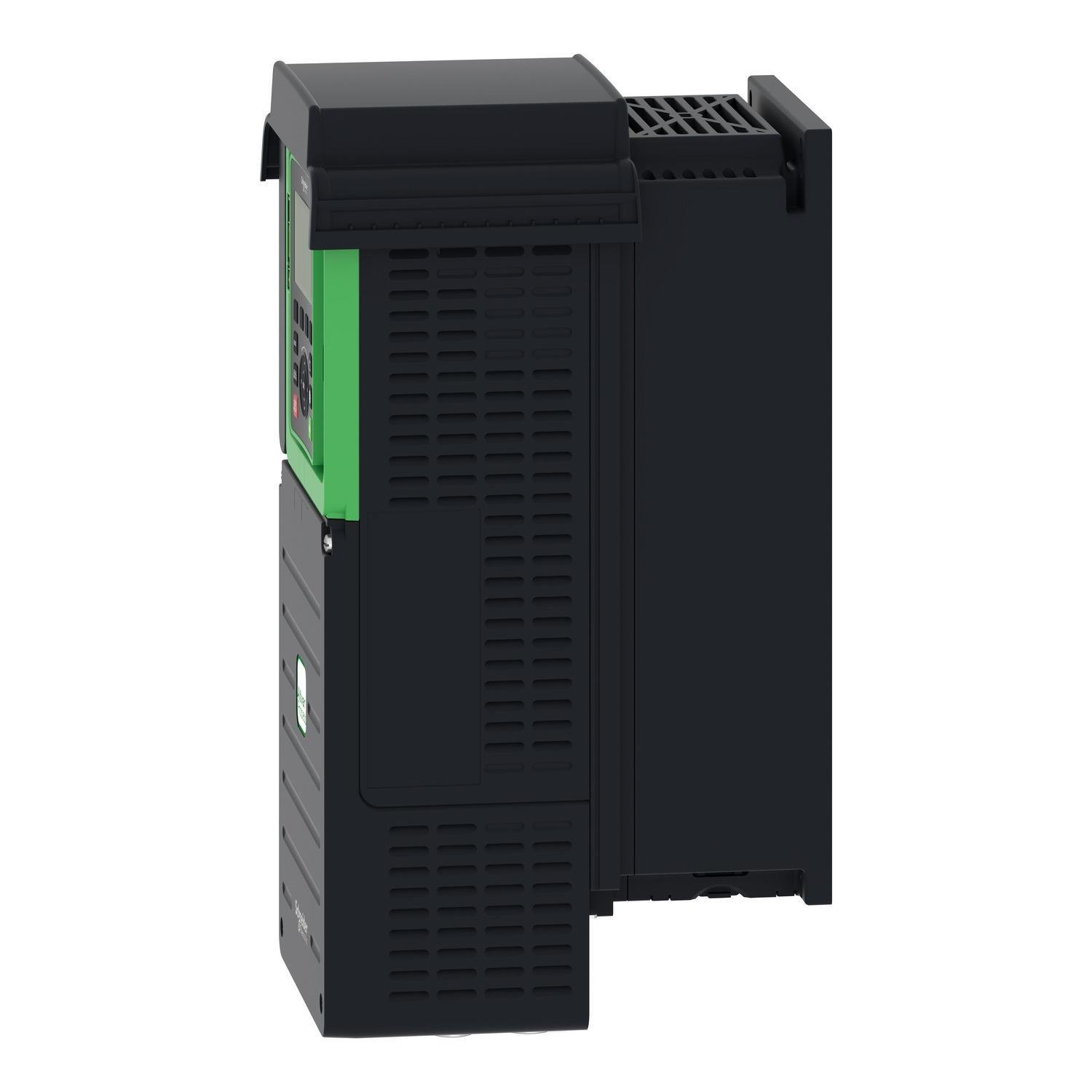

Picture of ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21 Picture of ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21
Picture of ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21 Picture of ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21
Picture of ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21 Picture of ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21
Picture of ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21 Picture of ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21
Picture of ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21 Picture of ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21
Schneider Electric

ATV930U75N4 - Variable Speed Drive, Altivar Process ATV900, ATV930, 7.5kW, 400 to 480V, with braking unit, IP21

Item Code: 1064060
Category AC Drives
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ATV930U75N4

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 7.5kW/10hp for applications requiring slight overload (up to 120%). It is suitable for motors w

Specifications

AD All Features

Embedded power measurement and energy dashboard

AD Application

Oil, Gas, Mining, Minerals, Metals, Food, Beverage, Waste Water Treatment Plants, Asynchronous, Synchronous and Special Motors Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

DRIVE SP VAR AC 400 TO 480VAC 6.73IN LED

AD Item Features 01

Embedded power measurement and energy dashboard

AD Item Features 02

Embedded process monitoring and control

AD Item Features 03

Stop and Go function to reduce energy consumption

AD Item Features 04

Easy maintenance via a dynamic QR code

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

Brand

Square D

Category

AC Drives

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

9.2/10.5/11.9/13.8

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

400 to 480

Spec 11 Attribute

Width

Spec 11 Attribute UOM

IN

Spec 11 Attribute Value

6.73

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

9.29

Spec 3 Attribute

Display Type

Spec 3 Attribute Value

Led

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1/IP20/IP21

Spec 5 Attribute

Height

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

16.1

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute Value

7-1/2 hp, 10 hp

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Wall

Spec 8 Attribute

Series

Spec 8 Attribute Value

Altivar® 630

Spec 9 Attribute

Type

Spec 9 Attribute Value

3-Phase Standard
