Square D

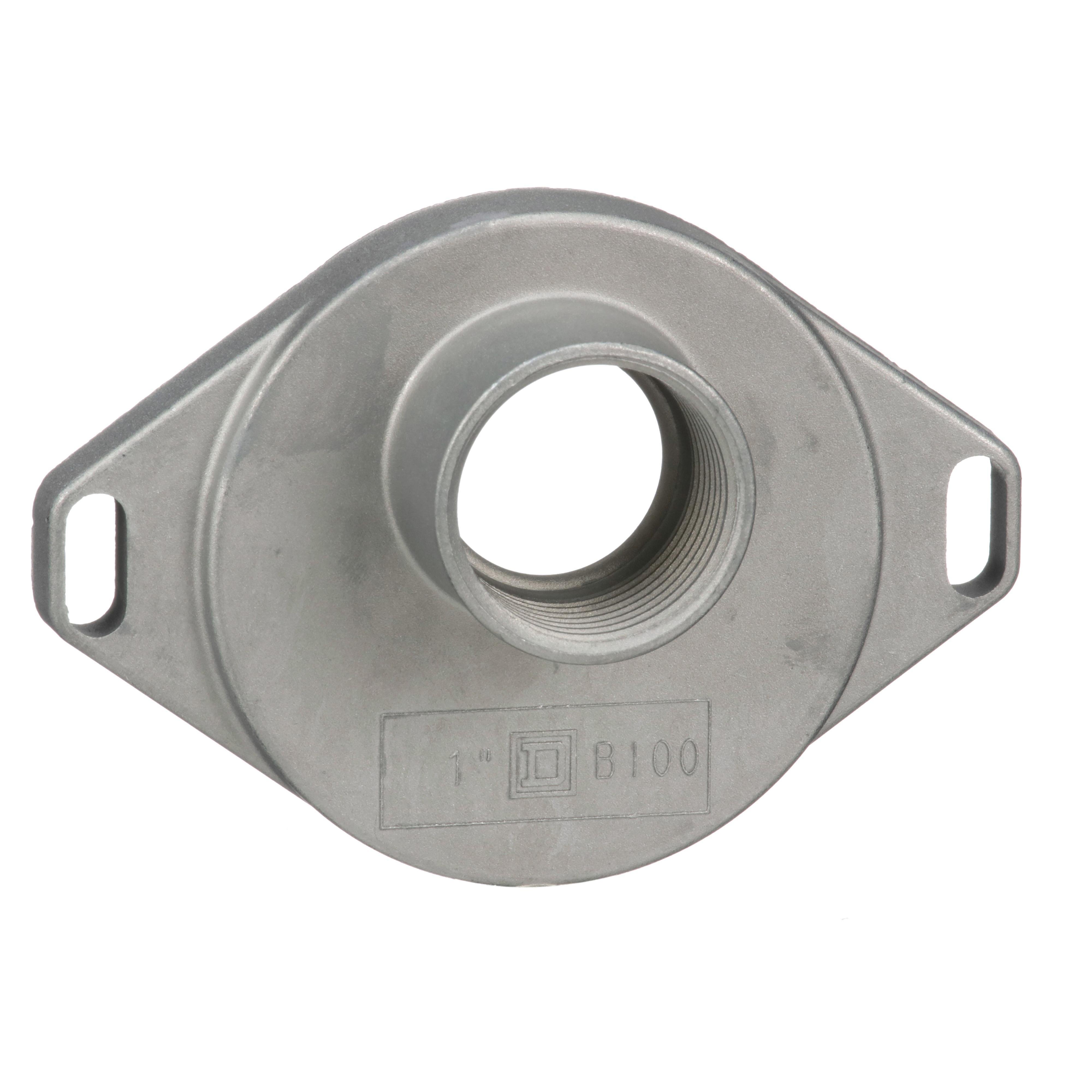

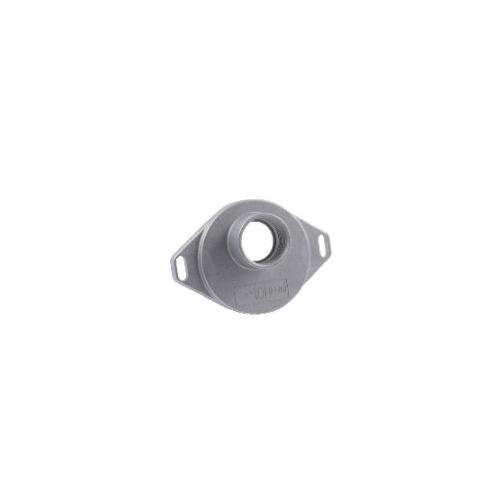

B100 - Accessory, bolt-on hub, 1.00in, rainproof

Category Load Centers & Accessories
Picture of B100 - Accessory, bolt-on hub, 1.00in, rainproof Picture of B100 - Accessory, bolt-on hub, 1.00in, rainproof
Picture of B100 - Accessory, bolt-on hub, 1.00in, rainproof Picture of B100 - Accessory, bolt-on hub, 1.00in, rainproof
Picture of B100 - Accessory, bolt-on hub, 1.00in, rainproof Picture of B100 - Accessory, bolt-on hub, 1.00in, rainproof
Picture of B100 - Accessory, bolt-on hub, 1.00in, rainproof Picture of B100 - Accessory, bolt-on hub, 1.00in, rainproof
Square D

B100 - Accessory, bolt-on hub, 1.00in, rainproof

Item Code: 17859
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref B100

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Industrial Circuit Breaker Enclosures are designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Allow breaker operation without removing cover. These units are UL Listed and CSA Certified. Square D equipment with “R’’ or “RB’’ suffix, designated NEMA 3R rainproof construction, utilizes bolt-on hubs listed below. “RB’’ devices will accept 3/4 in. through 2- 1/2 in. bolt-on hubs without the use of reducers. Off-center conduit thread openings and elongated mounting holes provide quick and easy adjustment to eliminate costly conduit offsets and bends. Load Center Hub, 1 in, rainproof, for RB devices is a conduit entry, and is used for conduit installation. This bolt-on accessory has a UL listed rating. The dimensions are 1.38 mm(H)4.44 mm(W)3.09 mm(D). This product comes with an 18 month warranty.

Specifications

Weight

0.35lb

Height

1.4mm

Width

4.4mm

Length

1.39mm

Depth

3.09mm

AD All Features

Industrial circuit breaker enclosure that easily joins hub to conduit

AD Application

RB Devices

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

IN

AD Invoice Description

HUB SKT TYPE B RAINPROOF 1IN BOLT-ON

AD Item Features 01

Industrial circuit breaker enclosure that easily joins hub to conduit

AD Item Features 02

Rainproof construction for tough and reliable performance

AD Item Features 03

Off center conduit thread openings

AD Item Features 04

Employs a clockwise three phase system to reduce cost and further the trip units precision

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.4000

AD Package Height UOM

IN

AD Package Length

1.3900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

41.8600

AD Package Volume UOM

cu-in

AD Package Weight

0.3500

AD Package Weight UOM

LB

AD Package Width

4.4000

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/dZfxxkYFDRQ

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

13.7 in L x 5 in W x 8.3 in H

Spec 2 Attribute

Mounting Type

Spec 2 Attribute Value

Bolt-on

Spec 3 Attribute

Size

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

1

Spec 4 Attribute

Suitable For Use With

Spec 4 Attribute Value

QO™ NEMA 3R Load Center and Meter Socket and RB Devices

Spec 5 Attribute

Type

Spec 5 Attribute Value

Type B Rainproof
