Schneider Electric

B125RB - Circuit breaker enclosure, PowerPacT B, 15A to 125A, 2 and 3 pole, NEMA 3R

Category Miscellaneous

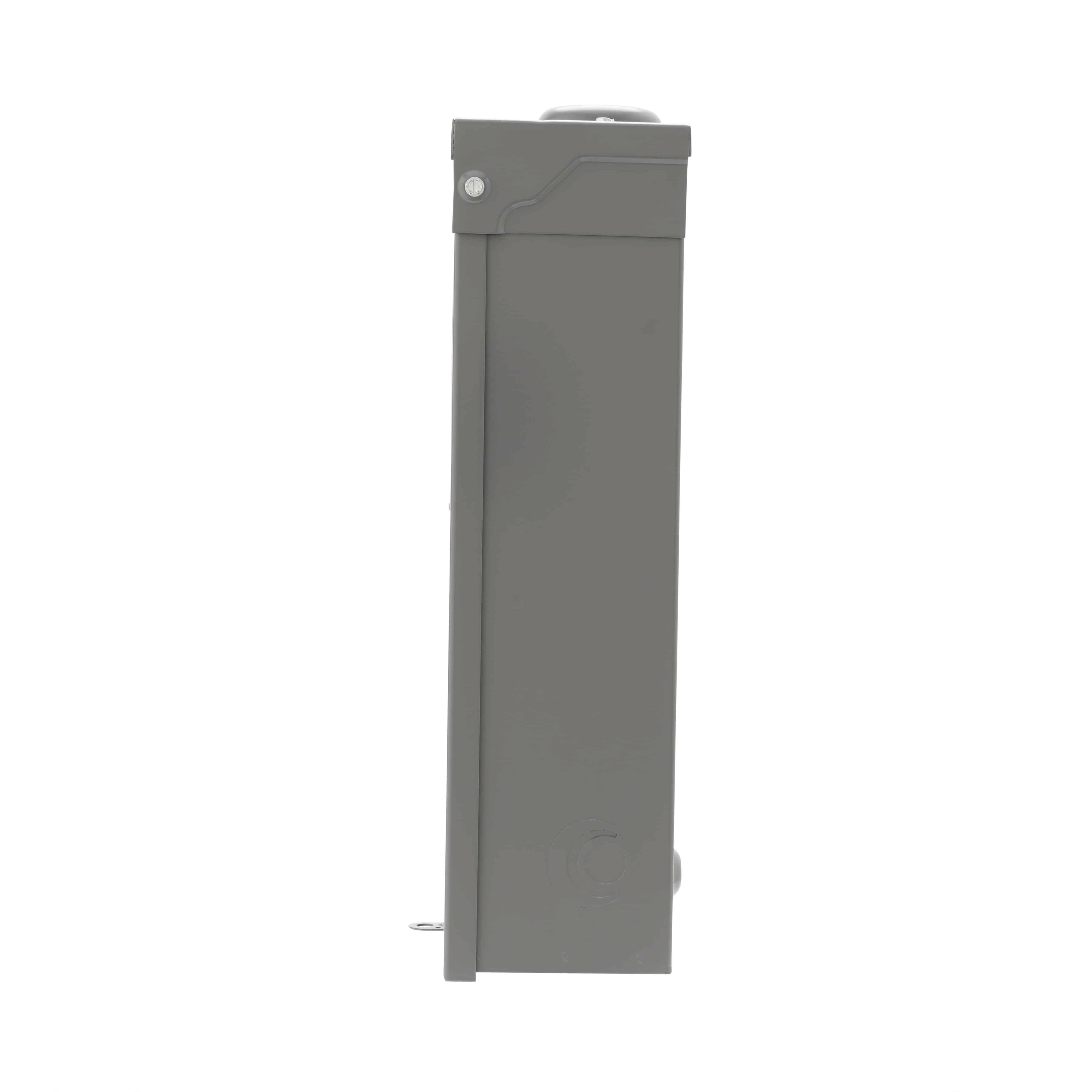

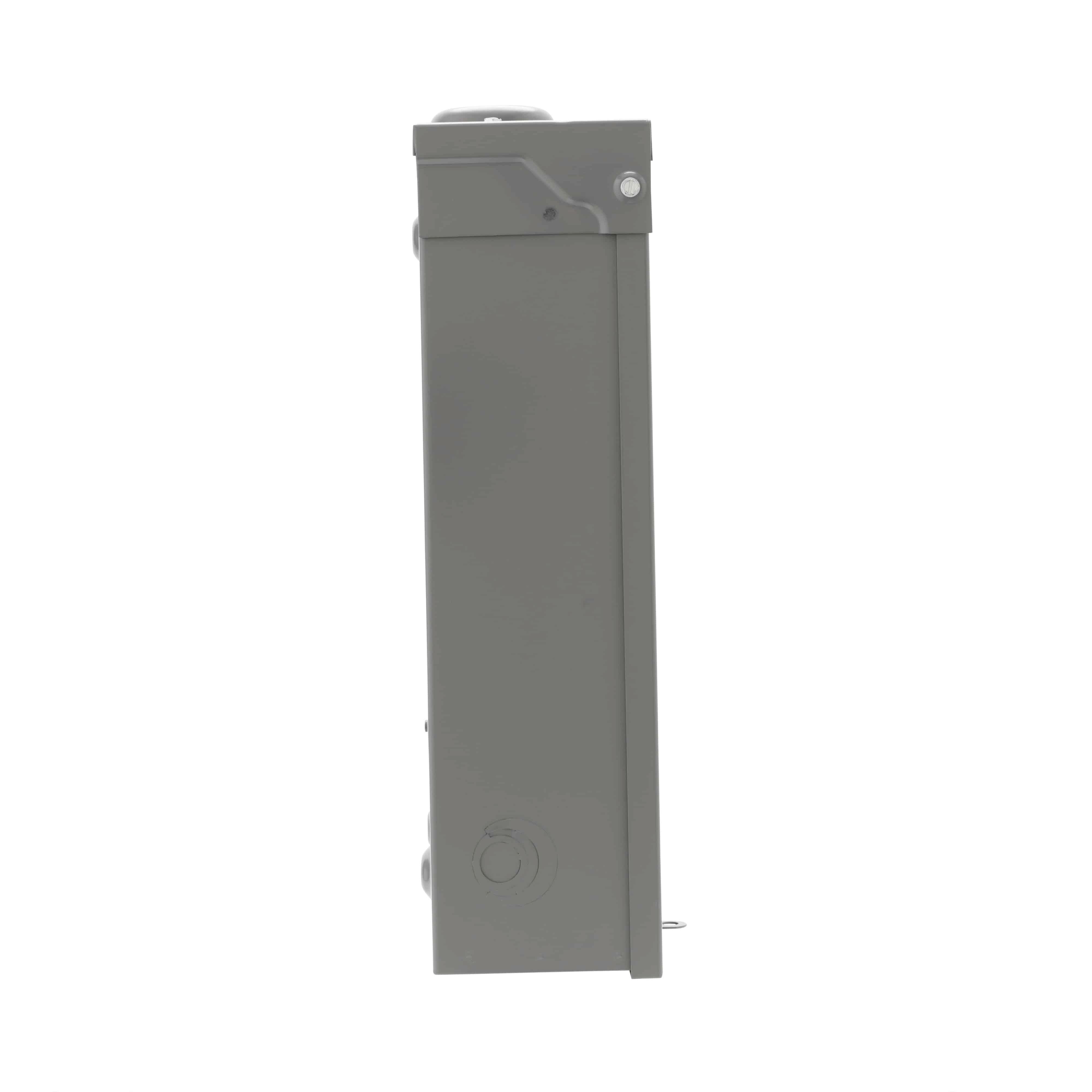

Picture of B125RB - Circuit breaker enclosure, PowerPacT B, 15A to 125A, 2 and 3 pole, NEMA 3R Picture of B125RB - Circuit breaker enclosure, PowerPacT B, 15A to 125A, 2 and 3 pole, NEMA 3R
Picture of B125RB - Circuit breaker enclosure, PowerPacT B, 15A to 125A, 2 and 3 pole, NEMA 3R Picture of B125RB - Circuit breaker enclosure, PowerPacT B, 15A to 125A, 2 and 3 pole, NEMA 3R
Picture of B125RB - Circuit breaker enclosure, PowerPacT B, 15A to 125A, 2 and 3 pole, NEMA 3R Picture of B125RB - Circuit breaker enclosure, PowerPacT B, 15A to 125A, 2 and 3 pole, NEMA 3R
Schneider Electric

B125RB - Circuit breaker enclosure, PowerPacT B, 15A to 125A, 2 and 3 pole, NEMA 3R

Item Code: 1057049
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref B125RB

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for PowerPact B circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Enclosure acceptes 100% and 80%% rated 2 or 3 poles 15A to 125A circuit breakers with different neutral assemly kits. The enclosures' maximum short circuit ratings are 65 kA at 600Y, 65 kA at 480 Vac, 100 kA at 240 Vac and 50 kA at 250 Vdc unless otherwise noted This NEMA 3R has dimensions as Height of 18.01 inch, Width of 8.88 inch and Depth of 4.88 inch. Provides NEC 100 compliant sealable equipment. Meet the lock out/tag out requirements of OSHA 29 CFR 1910.147 subpart S. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Complies with NEC 240.30. cULus listed. Protect breaker from physical damage. Allow breaker operation without removing cover

Specifications

Weight

12.94

Width

9.59

Length

19.81

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/b125rb/b125rb.spin

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Gtin

00785901280538

AD Invoice Description

ENCLOSURE BRKR CKT 8.9IN 4.88IN NEMA 3R

AD Item Features 01

Enclosure assepts BDL, BGL, BJL 2 and 3 poles breakers or BKL 2 poles breakers

AD Item Features 02

The short circuit current rating of the enclosed circuit breaker is equal to the rating of the circuit breaker installed

AD Item Features 03

Circuit breakers are ordered and shipped separately for field installation

AD Item Features 04

This enclosures are suitable for US service entrance equipment only

AD Keywords

Square D PowerPact B125RB Type S Circuit Breaker Enclosure, 8.9 in W x 4.88 in D x 17.99 in H, NEMA 3R, Stainless Steel ; Schneider Electric ; B125RB ; 785901280538 ; Circuit Breaker Enclosures

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

19.8100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

12.9400

AD Package Weight UOM

LB

AD Package Width

9.5900

AD Package Width UOM

IN

AD Part Number Keywords

B125RB ; 785901280538 ; 78590128053 ; 00785901280538

Brand

Square D

Spec 1 Attribute

Depth

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

4.88

Spec 2 Attribute

Electrical Ratings

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

600

Spec 3 Attribute

Frame

Spec 3 Attribute Value

B

Spec 4 Attribute

Height

Spec 4 Attribute UOM

IN

Spec 4 Attribute Value

17.99

Spec 5 Attribute

Material

Spec 5 Attribute Value

Stainless Steel

Spec 6 Attribute

NEMA Rating

Spec 6 Attribute Value

NEMA 3R

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Type

Spec 8 Attribute Value

Type S

Spec 9 Attribute

Width

Spec 9 Attribute UOM

IN

Spec 9 Attribute Value

8.9
