Schneider Electric

BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC

Category Miscellaneous

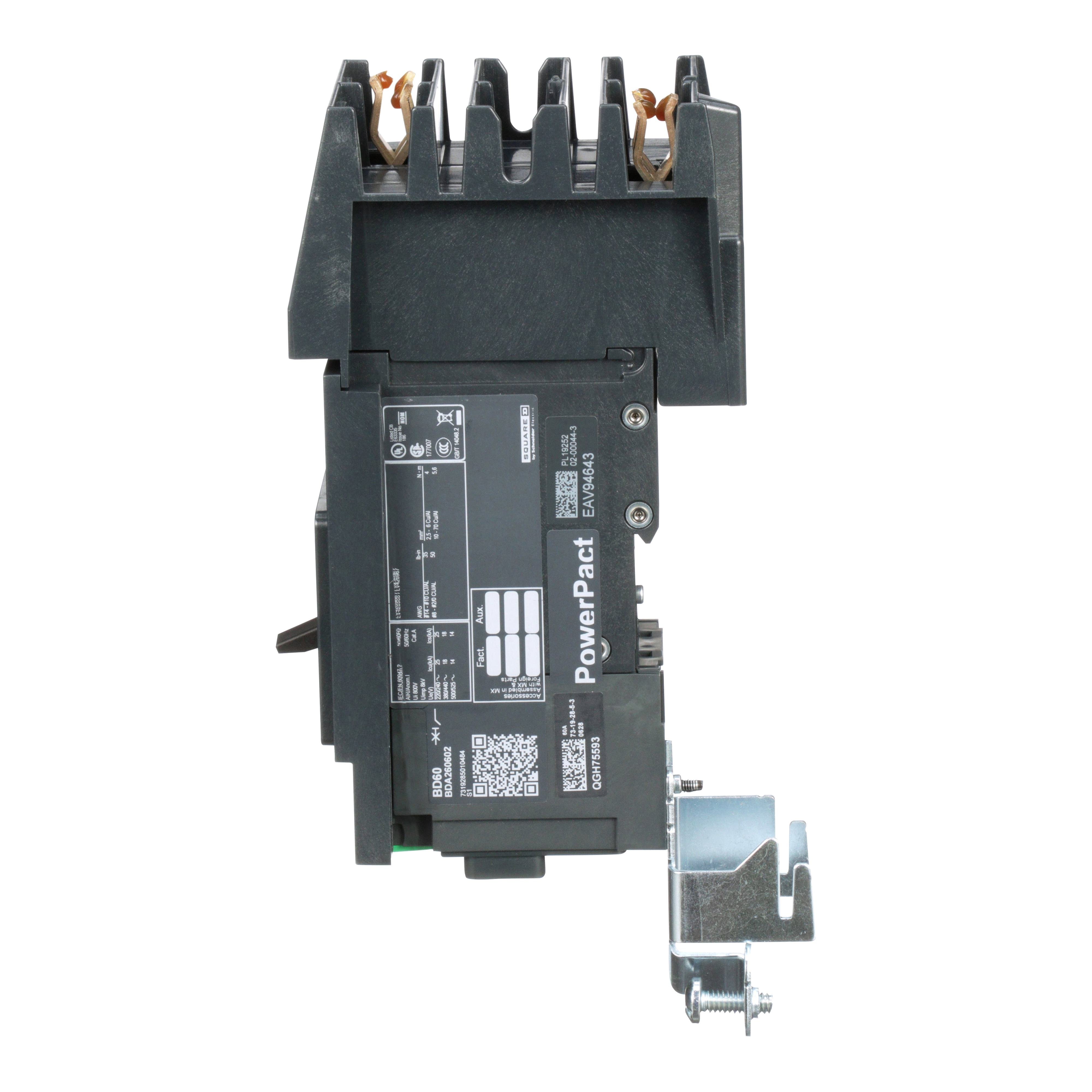

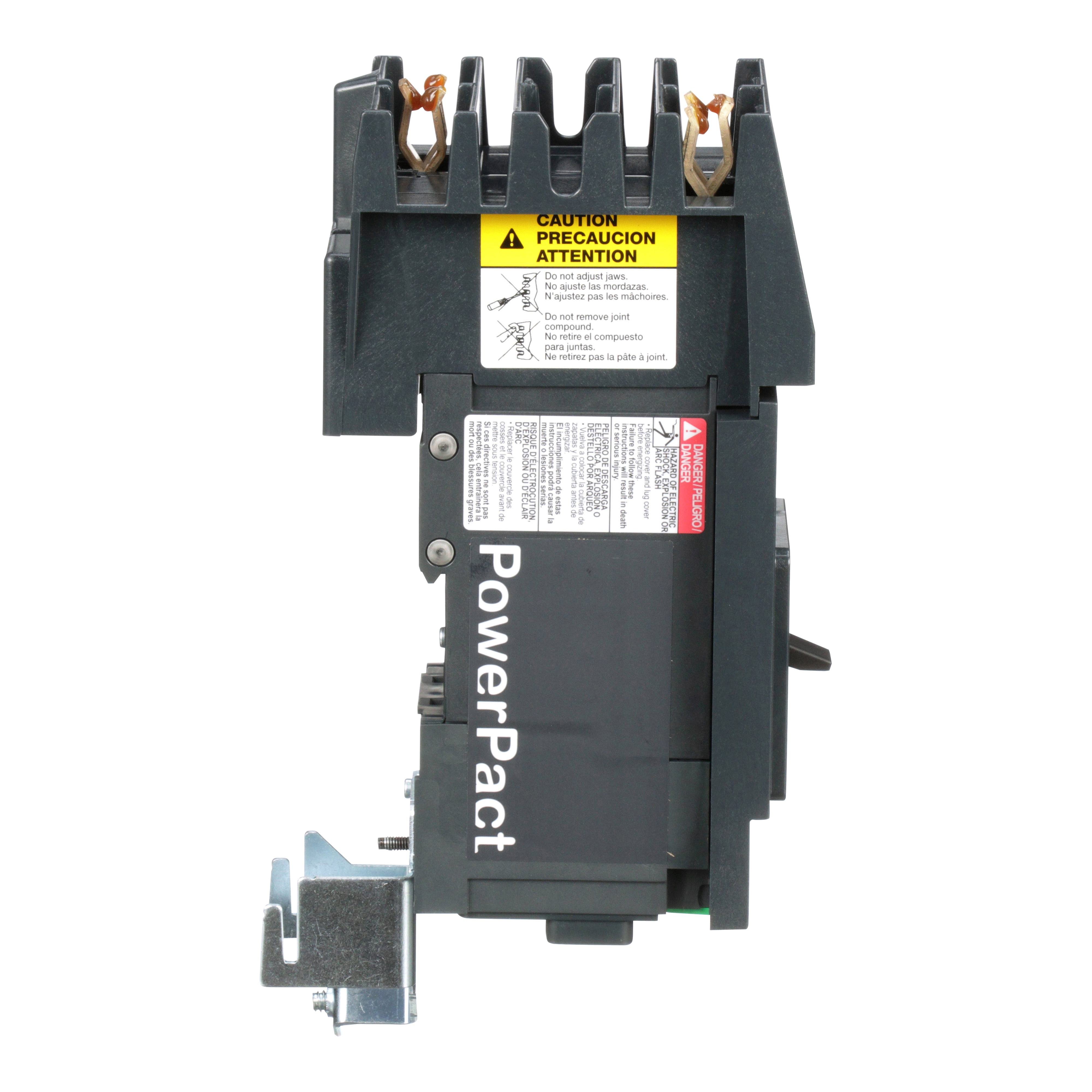

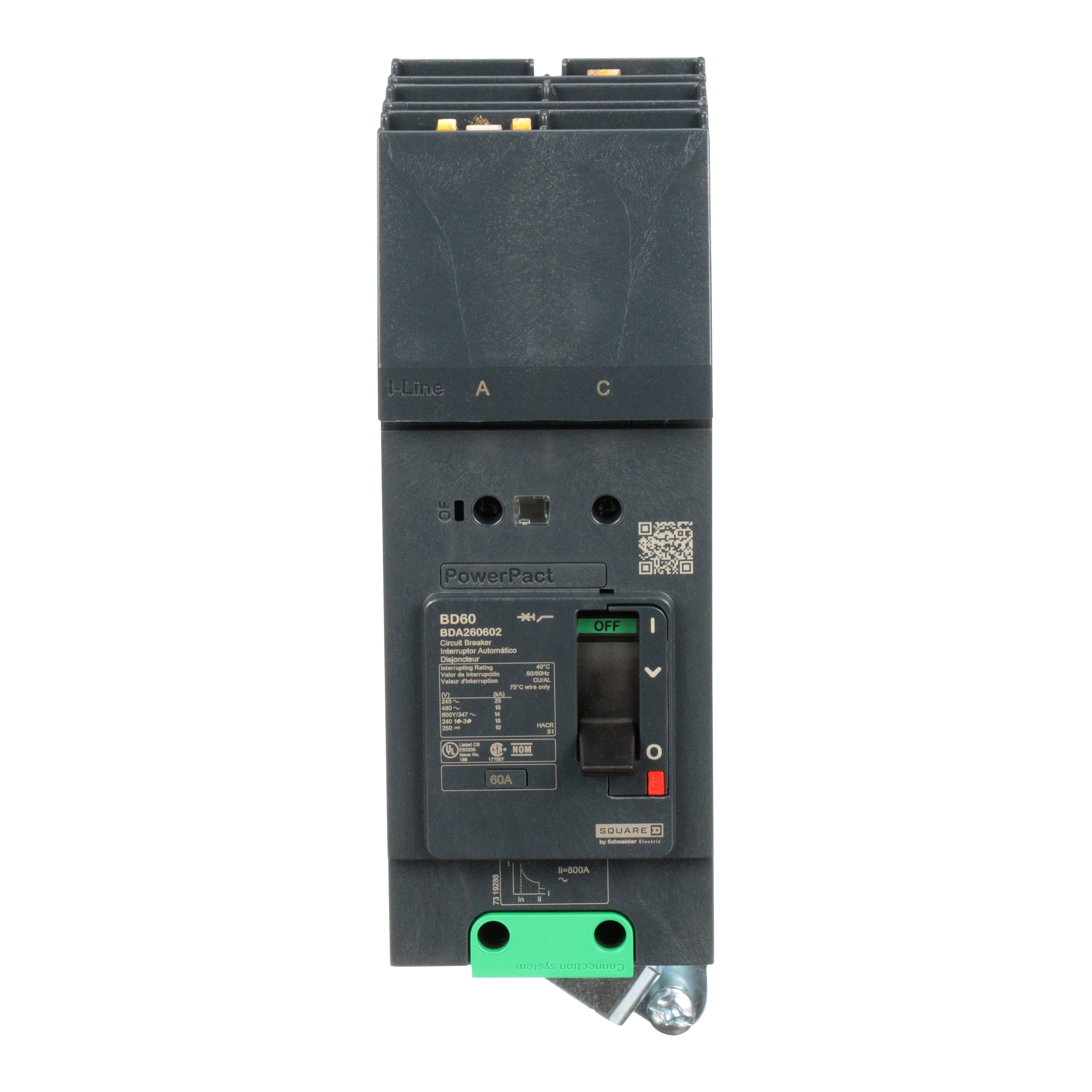

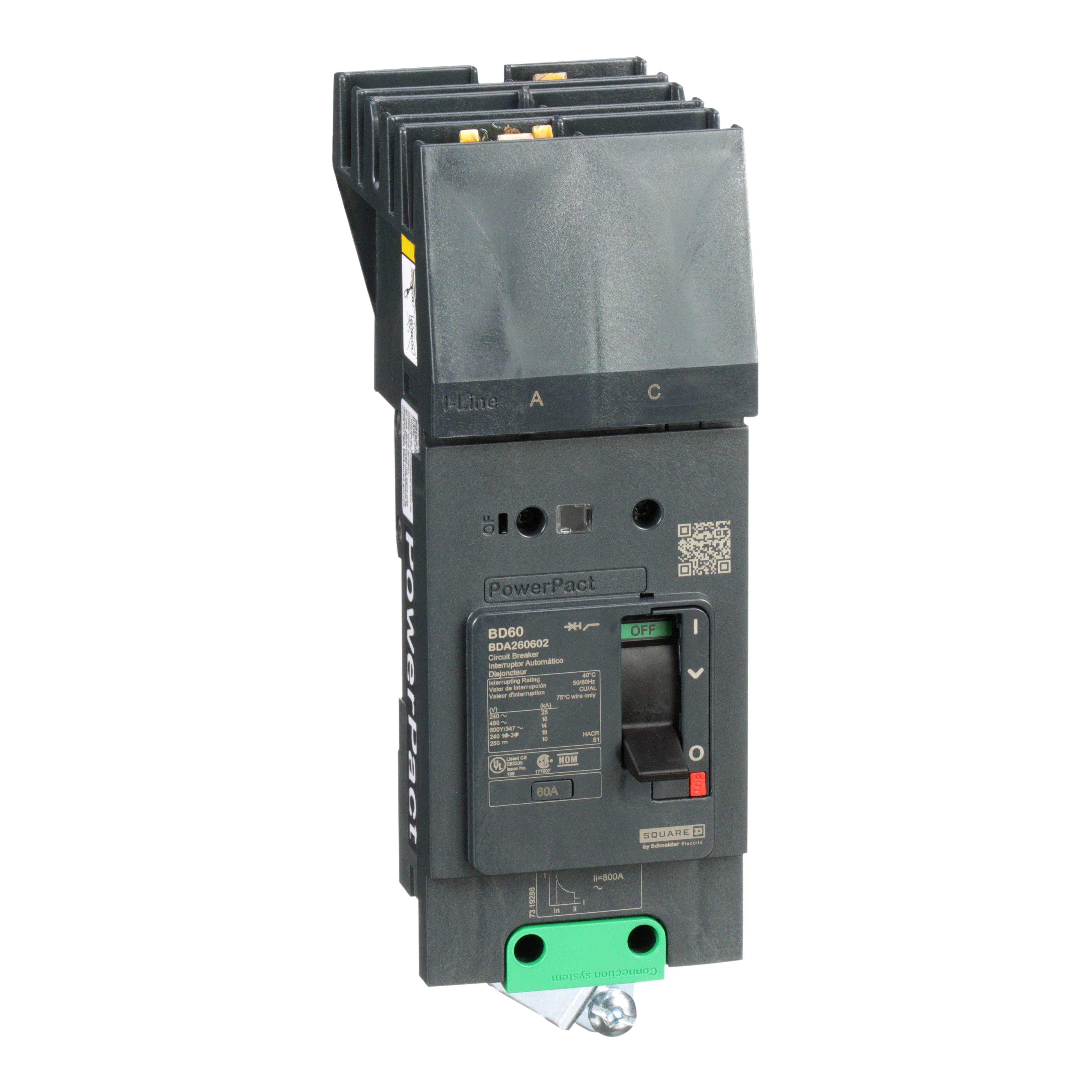

Picture of BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC Picture of BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC
Picture of BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC Picture of BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC
Picture of BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC Picture of BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC
Picture of BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC Picture of BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC
Picture of BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC Picture of BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC
Schneider Electric

BDA260602 - Circuit breaker, PowerPacT B, 60A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC

Item Code: 1002813
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BDA260602

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 60A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

3.15

Width

8.03

Length

12.6

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/bda24015y1/bda24015y1.spin

AD All Features

Available in 1, 2, 3, and 4 pole for unit mounts

AD Alternative Part Number

13924337

AD Application

Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

3606481152213

AD Gtin

03606481152213

AD IDEA Index ID

13924337

AD Invoice Description

BREAKER CKT CASE MLD 600Y/347VAC 60A 2 B

AD Item Features 01

Available in 1, 2, 3, and 4 pole for unit mounts

AD Item Features 02

Dual rated AC/DC with 3 levels of breaking capacity

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

12.6000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.1500

AD Package Weight UOM

LB

AD Package Width

8.0300

AD Package Width UOM

IN

AD Part Number Keywords

BDA260602 ; 13924337 ; 03606481152213 ; 3606481152213

Brand

Square D

Category

Miscellaneous

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

DIN Rail/Threaded

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

2

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

1

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg F

Spec 13 Attribute Value

-13 To 158

Spec 14 Attribute

Trip Range

Spec 14 Attribute UOM

A

Spec 14 Attribute Value

640 to 960

Spec 15 Attribute

Trip Type

Spec 15 Attribute Value

Thermal Magnetic

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

600Y/347

Spec 17 Attribute

Wire Size

Spec 17 Attribute Value

14 to 2/0 AWG Al/Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

60

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Line/Load Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

5.39 in H x 2.12 in W x 4.01 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA AB4/IP40

Spec 7 Attribute

Frame

Spec 7 Attribute Value

B

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute Value

25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600Y/347 VAC
