Schneider Electric

BDA34020Y - Circuit breaker, PowerPacT B, 20A, 3 pole, 480Y/277VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

Category Thermal Magnetic Trip Molded Case Circuit Breakers

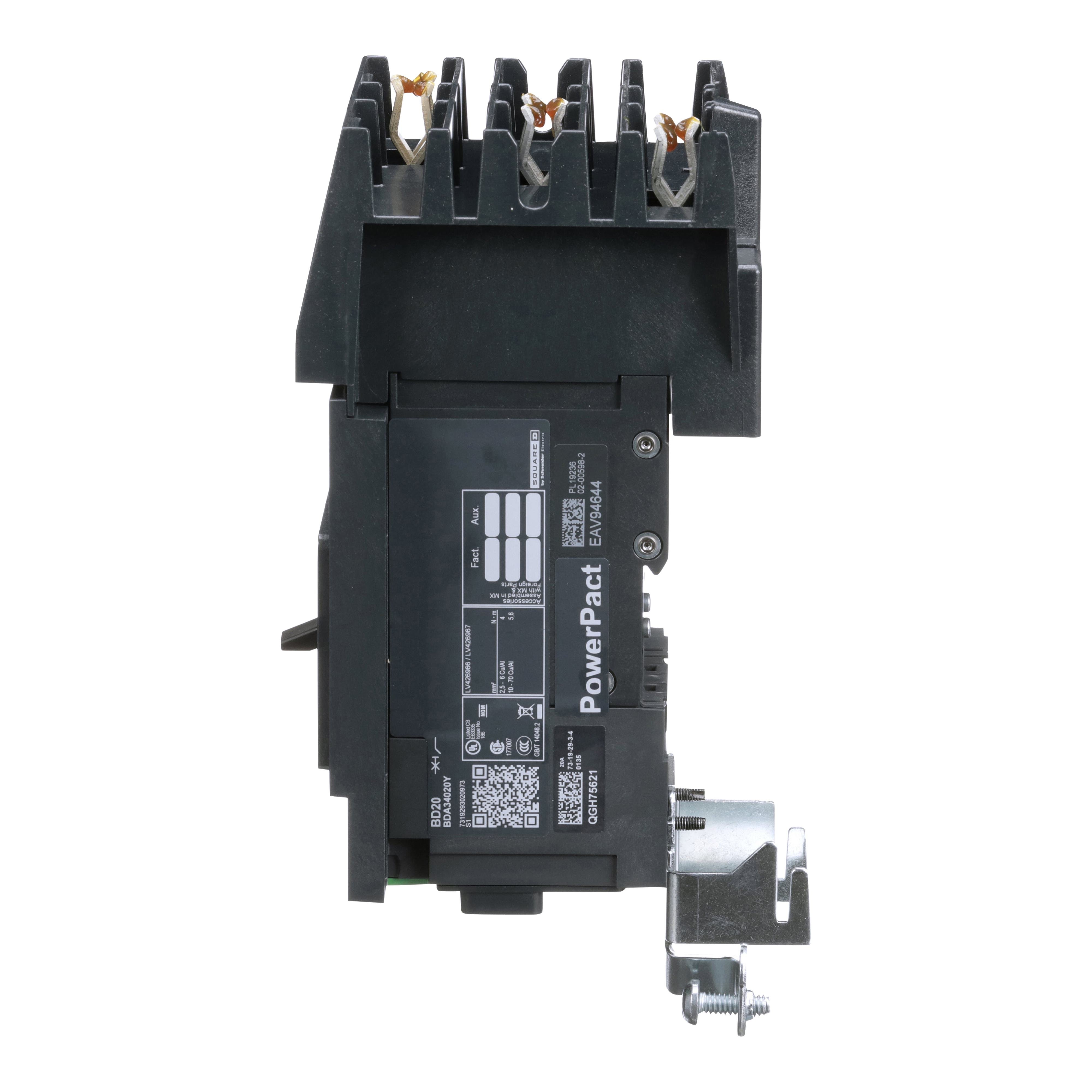

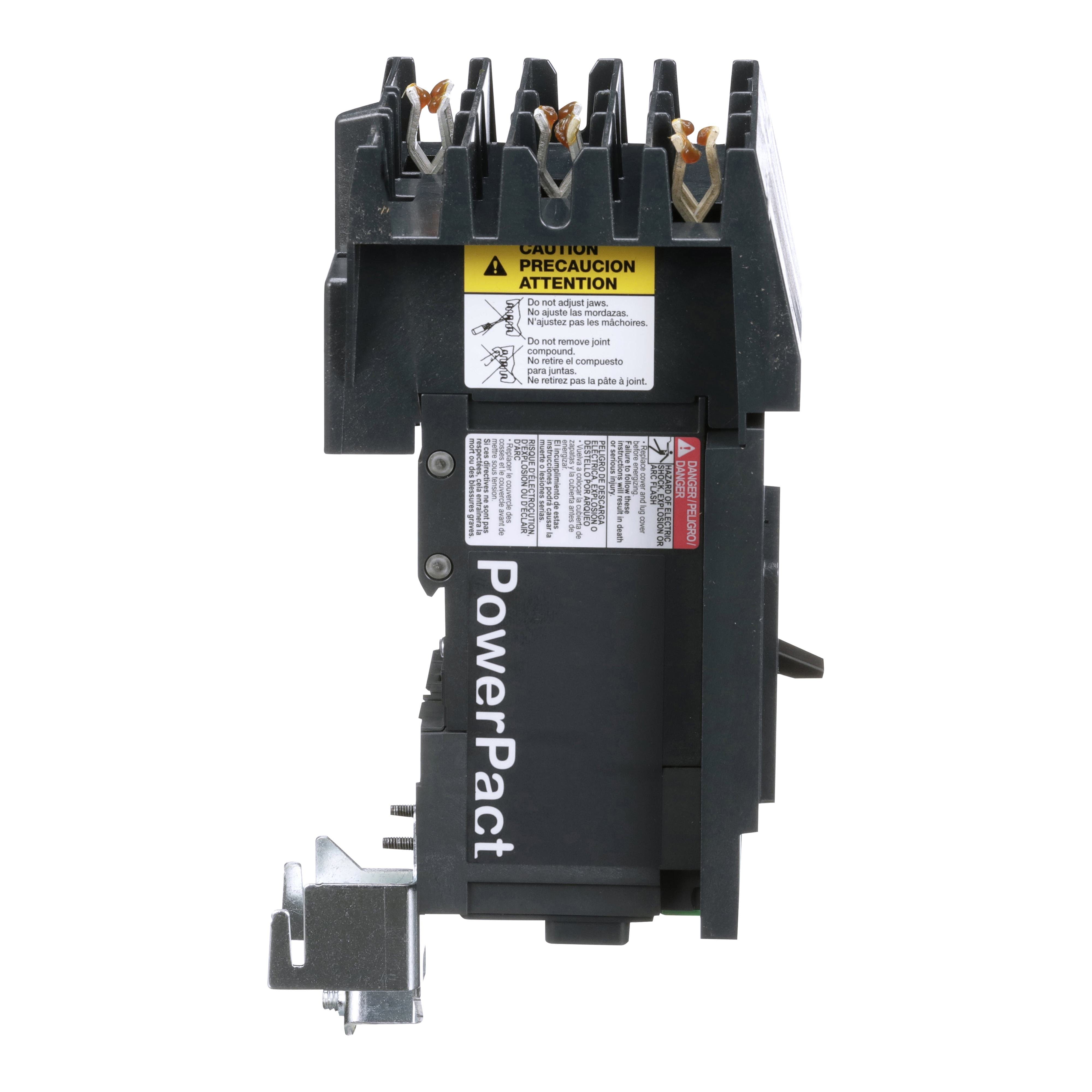

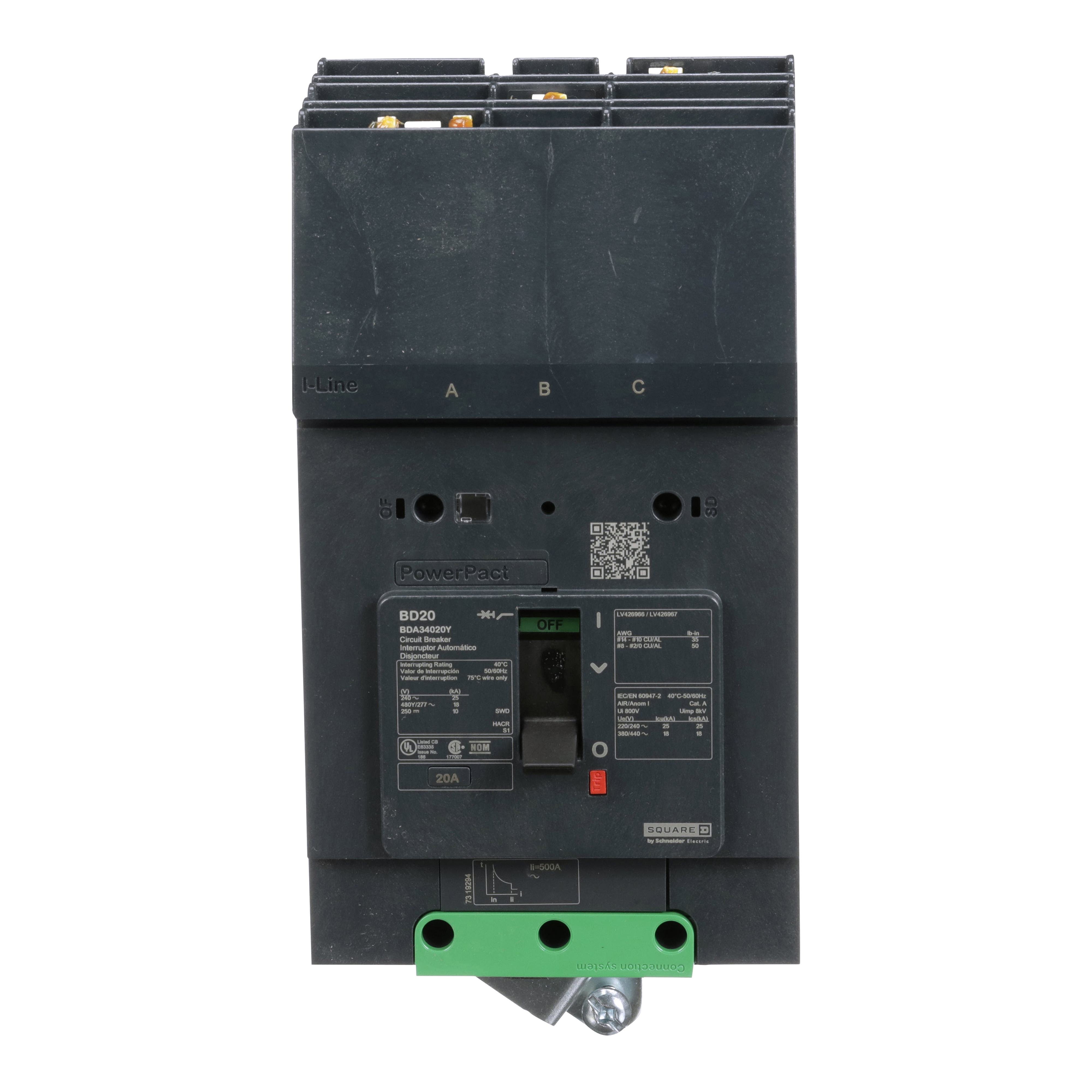

Picture of BDA34020Y - Circuit breaker, PowerPacT B, 20A, 3 pole, 480Y/277VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of BDA34020Y - Circuit breaker, PowerPacT B, 20A, 3 pole, 480Y/277VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
Picture of BDA34020Y - Circuit breaker, PowerPacT B, 20A, 3 pole, 480Y/277VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of BDA34020Y - Circuit breaker, PowerPacT B, 20A, 3 pole, 480Y/277VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
Picture of BDA34020Y - Circuit breaker, PowerPacT B, 20A, 3 pole, 480Y/277VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of BDA34020Y - Circuit breaker, PowerPacT B, 20A, 3 pole, 480Y/277VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
Picture of BDA34020Y - Circuit breaker, PowerPacT B, 20A, 3 pole, 480Y/277VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of BDA34020Y - Circuit breaker, PowerPacT B, 20A, 3 pole, 480Y/277VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
Schneider Electric

BDA34020Y - Circuit breaker, PowerPacT B, 20A, 3 pole, 480Y/277VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

Item Code: 999466
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BDA34020Y

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break

Specifications

Weight

4.2

Width

8.11

Length

12.68

AD All Features

Available in 1, 2, 3, and 4 pole for unit mounts

AD Application

Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER CKT CASE MLD 480Y/277VAC 20A 3 B

AD Item Features 01

Available in 1, 2, 3, and 4 pole for unit mounts

AD Item Features 02

Dual rated AC/DC with 3 levels of breaking capacity

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

12.6800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

4.2000

AD Package Weight UOM

LB

AD Package Width

8.1100

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/6DPLo1TPIb0

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

-13 To 158

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

A

Spec 12 Attribute Value

400 to 600

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Thermal Magnetic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type BDA

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

480Y/277

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

14 to 2/0 AWG Al/Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

20

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

I-Line™/Mechanical Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

5.39 in H x 3.19 in W x 3.5 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP40/IK07

Spec 7 Attribute

Frame

Spec 7 Attribute Value

B

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

18
