BDA36015 - Circuit breaker, PowerPacT B, 15A, 3 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, ABC

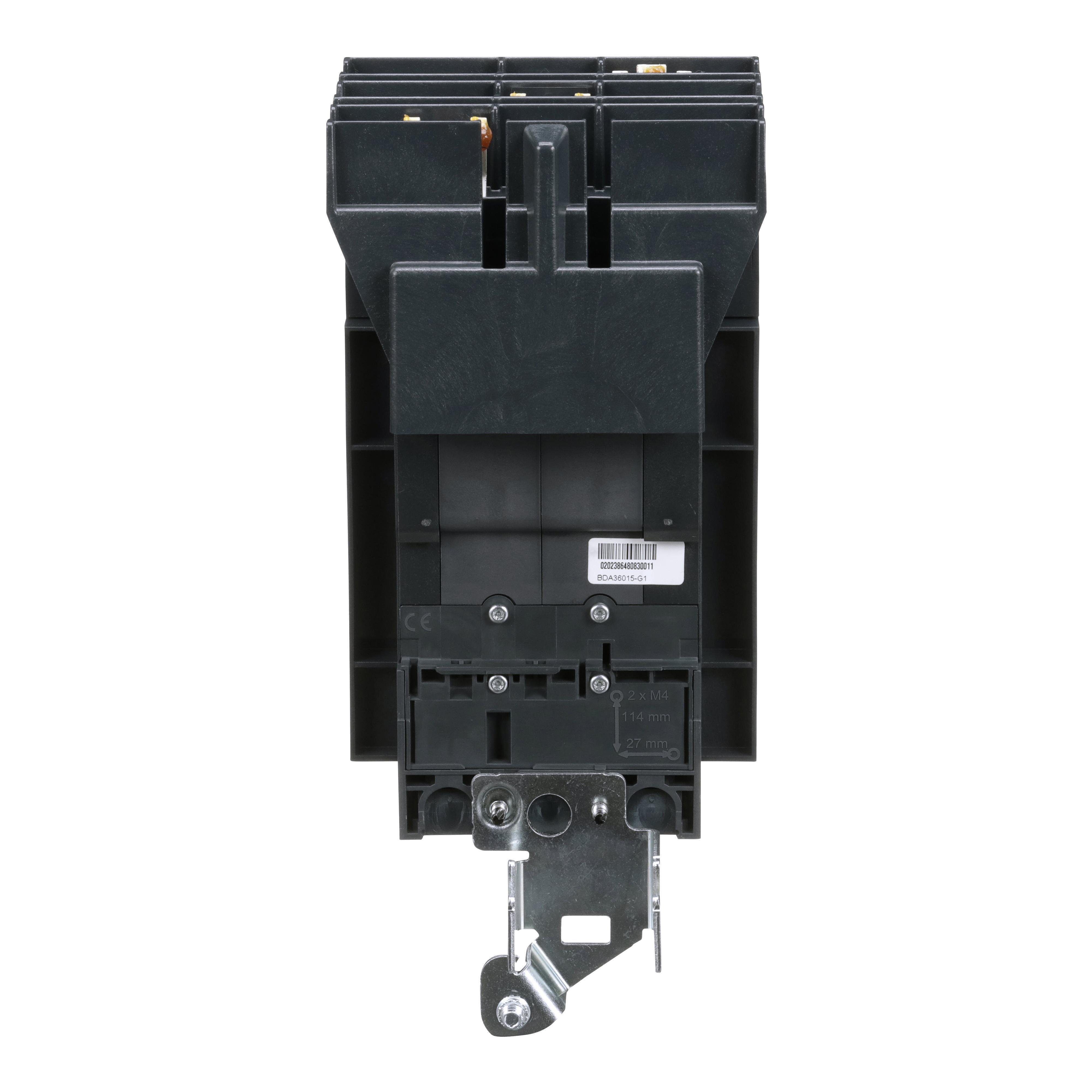

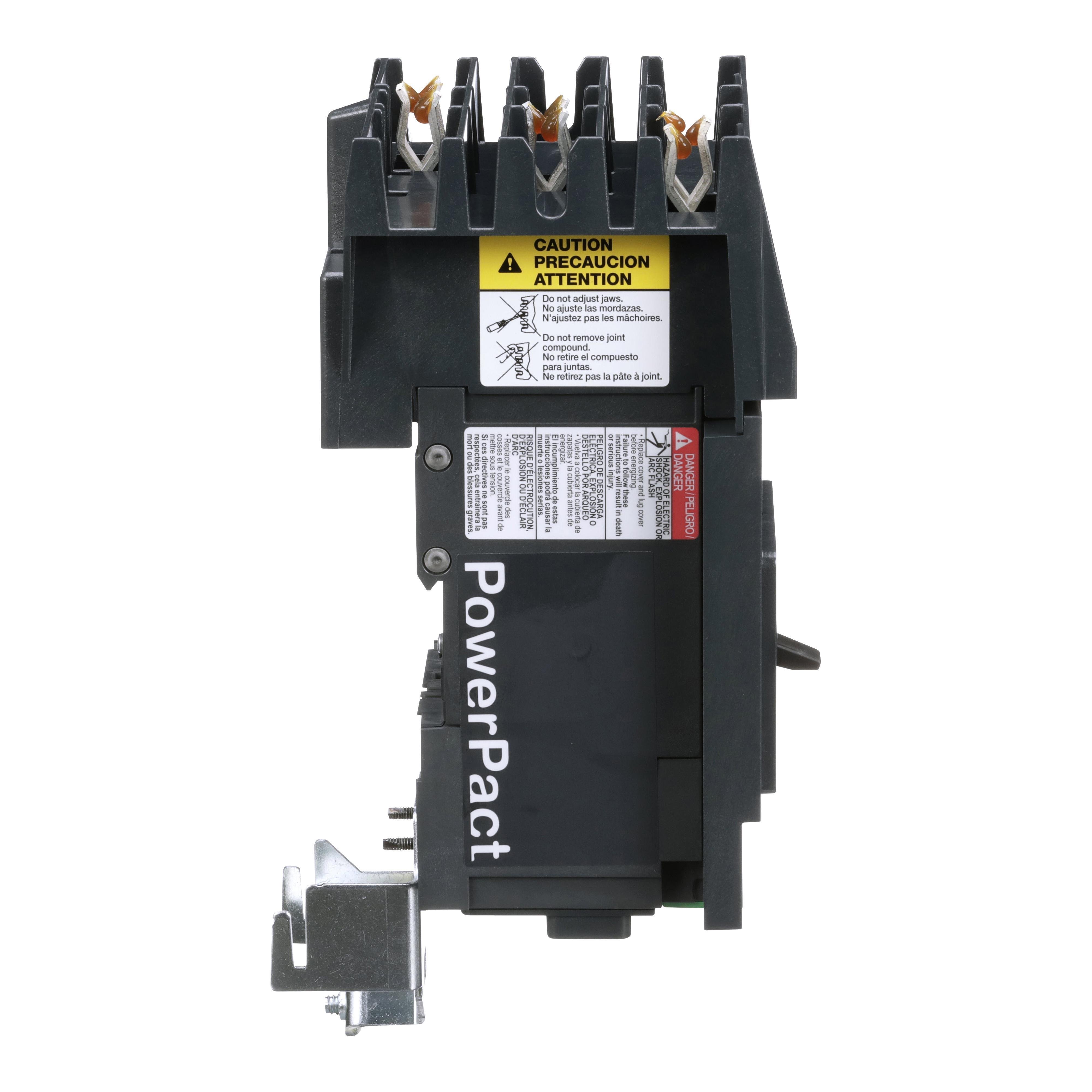

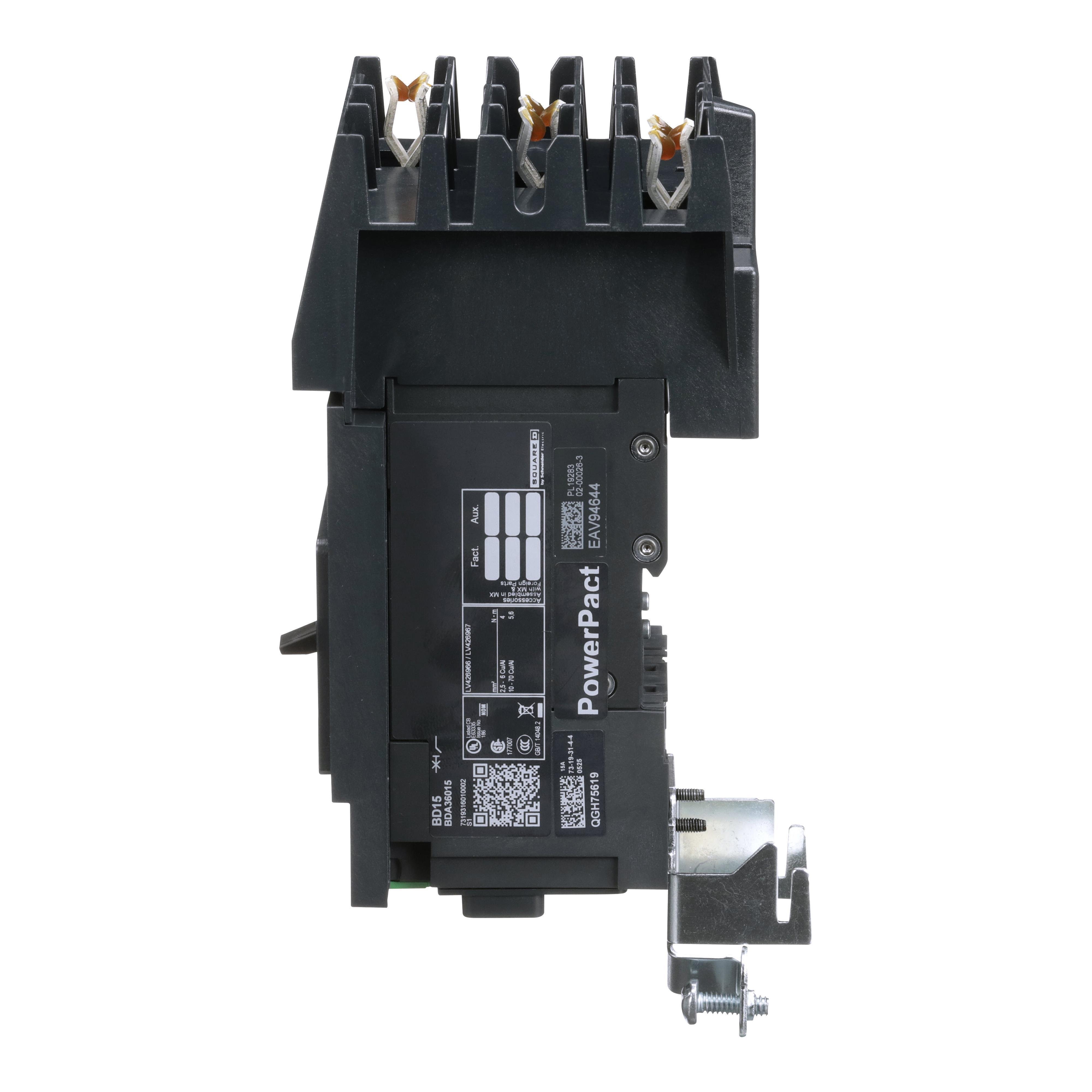

Picture of BDA36015 - Circuit breaker, PowerPacT B, 15A, 3 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, ABC

BDA36015 - Circuit breaker, PowerPacT B, 15A, 3 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, ABC

Item Code: 1002800
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BDA36015
Login for Pricing & Availability
Compare

Fetching product details


Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 15A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

  • Brand : Square D
  • Category : 3 POLE NON-INTERCHANGEABLE TRIP THERMAL MAGNETIC CIRCUIT BREAKERS
  • Certifications : UL
  • Color : Gray
  • Country of Origin : MX
  • Depth : 89 millimeters
  • Height : 137 millimeters
  • Line Rated Current : 15-15 amperes
  • Manufacturer ID : 123
  • Manufacturer Logo : https://media.distributordatasolutions.com/ManufacturerLogos/Schneider+Electric/_sized/primary_logo-large.png
  • Manufacturer Part Number : BDA36015
  • Mounting Type : I-Line
  • Net Weight : 1.315 kilograms
  • Order Minimum : 1
  • Standard : UL 489
  • Storage Temperature : -50-85 °C
  • Strip Length : 20 Millimeters
  • Width : 81 millimeters
