BDA36030 - Circuit breaker, PowerPacT B, 30A, 3 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, ABC

Category Thermal Magnetic Trip Molded Case Circuit Breakers

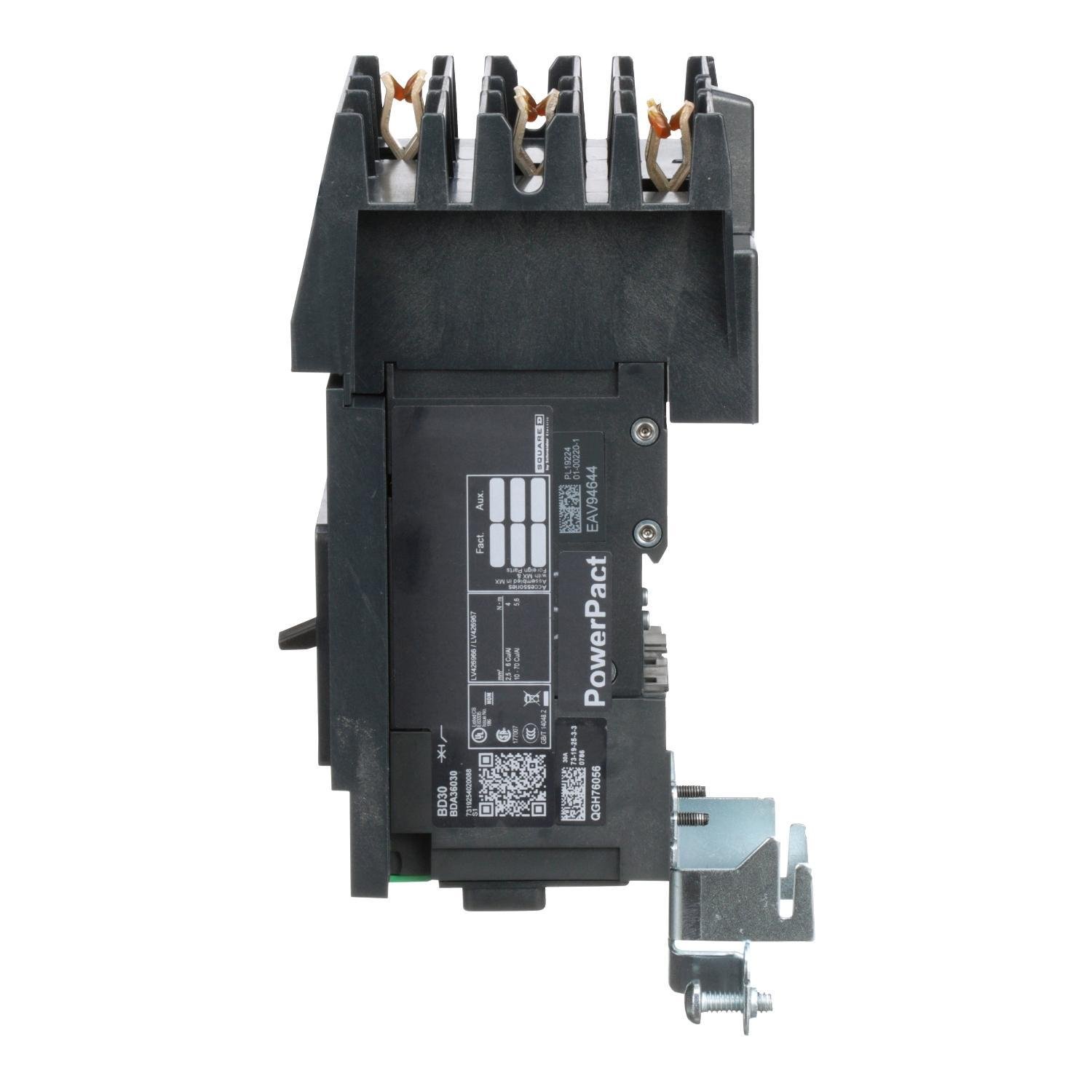

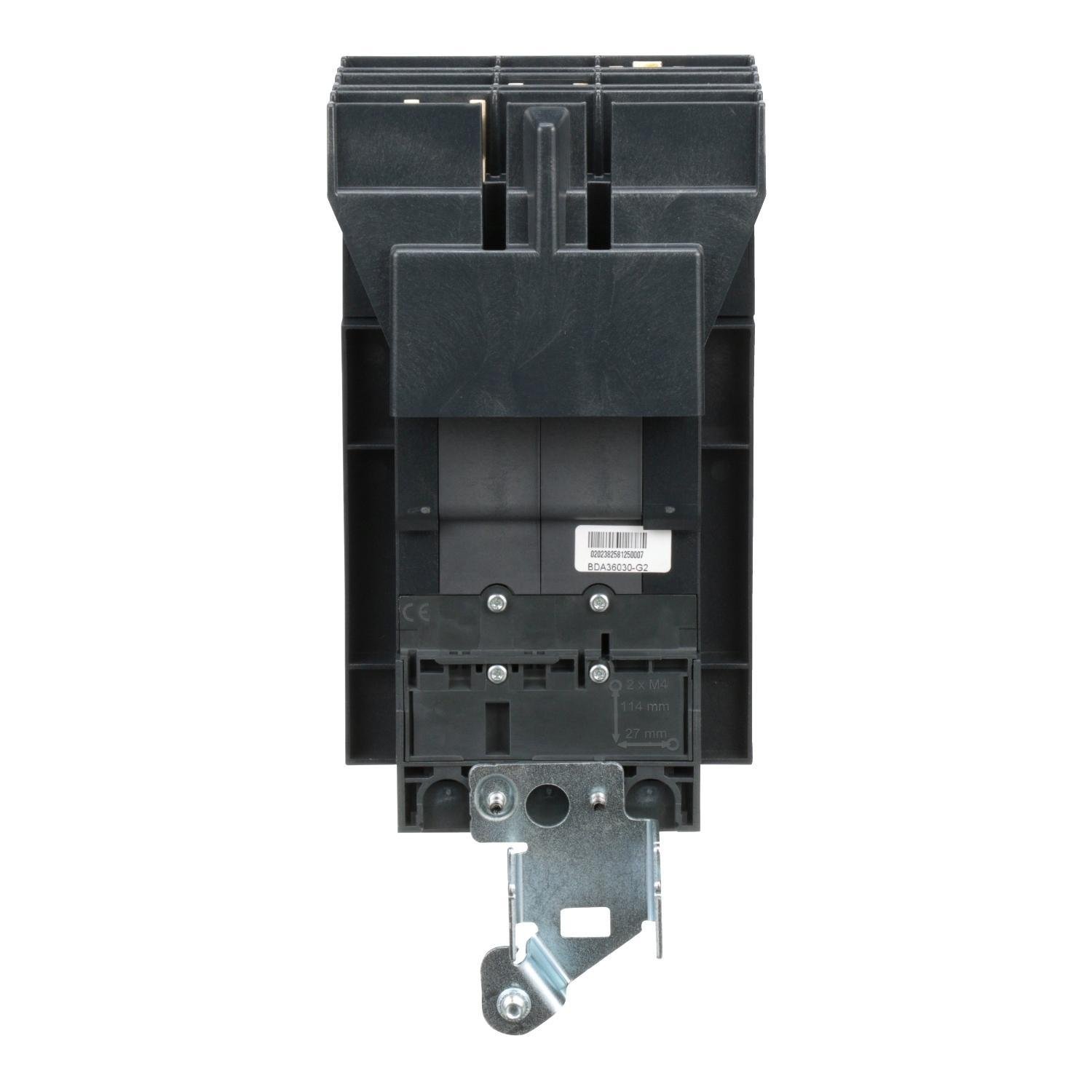

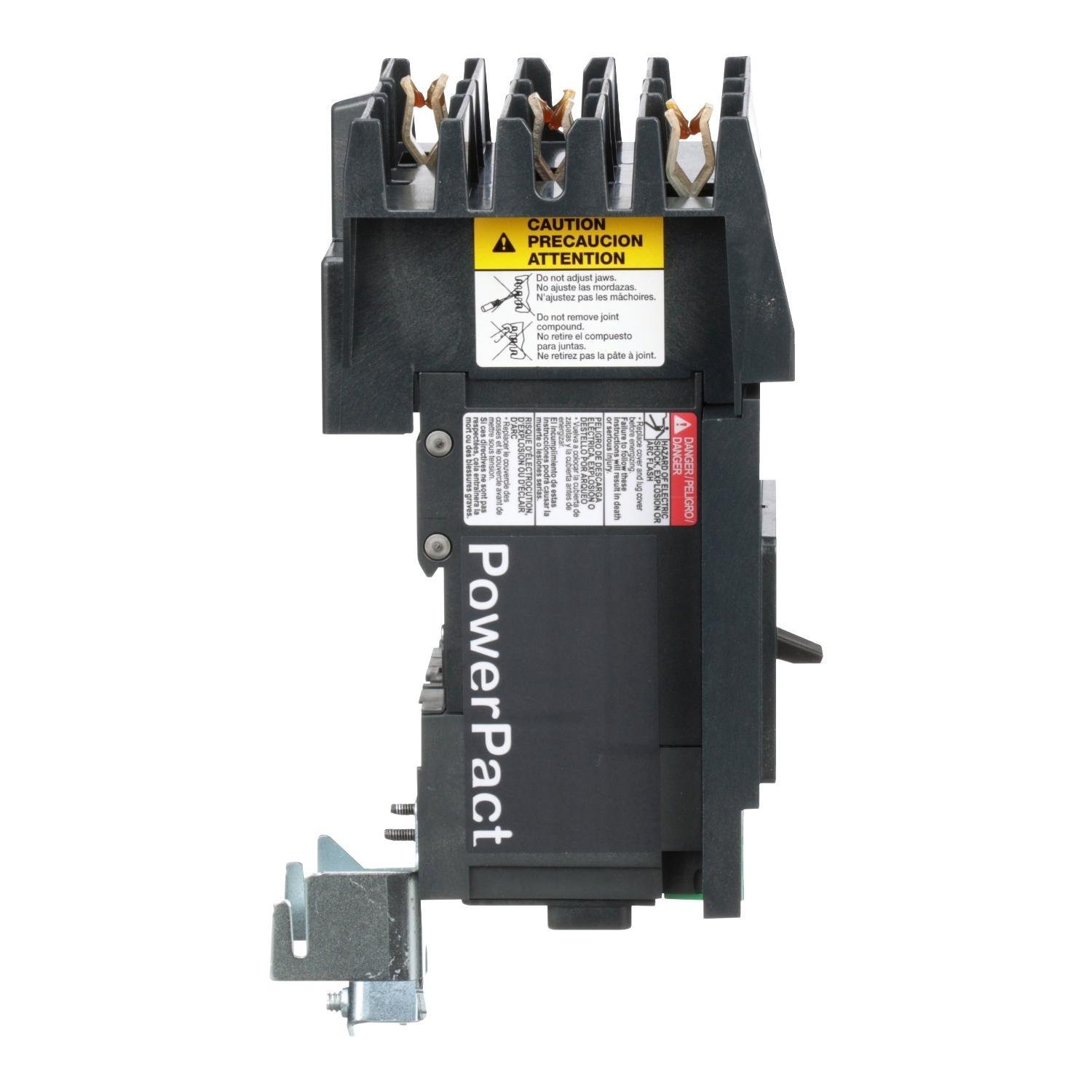

Picture of BDA36030 - Circuit breaker, PowerPacT B, 30A, 3 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, ABC
Schneider Electric

BDA36030 - Circuit breaker, PowerPacT B, 30A, 3 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, ABC

Item Code: 1002803
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BDA36030

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 30A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

4.2lb

Height

137mm

Width

8.03mm

Length

12.68mm

Depth

89mm

Actuator Type

Toggle Handle

Amperage Rating

30 A

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Color

Gray

Connection Type

I-Line™/Load Lug

Dimensions

2.12 in W x 4.01 in D x 5.39 in H

Enclosure Type

IP40/IK07

Frame

B

Frequency Rating

50/60 Hz

Interrupt Rating

10/14/18/25 kA

Mounting Type

DIN Rail/Threaded

Number Of Poles

3

Temperature Rating

-13 to 158 deg f

Trip Range

400 to 600 A

Trip Type

Thermal Magnetic

Type

Type BDA

Voltage Rating

600Y to 347 V AC/250 V DC

Wire Size

14 to 2/0 AWG Aluminum/Copper
