Square D

BDL36020 - Circuit breaker, PowerPacT B, 20A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%

Category Thermal Magnetic Trip Molded Case Circuit Breakers

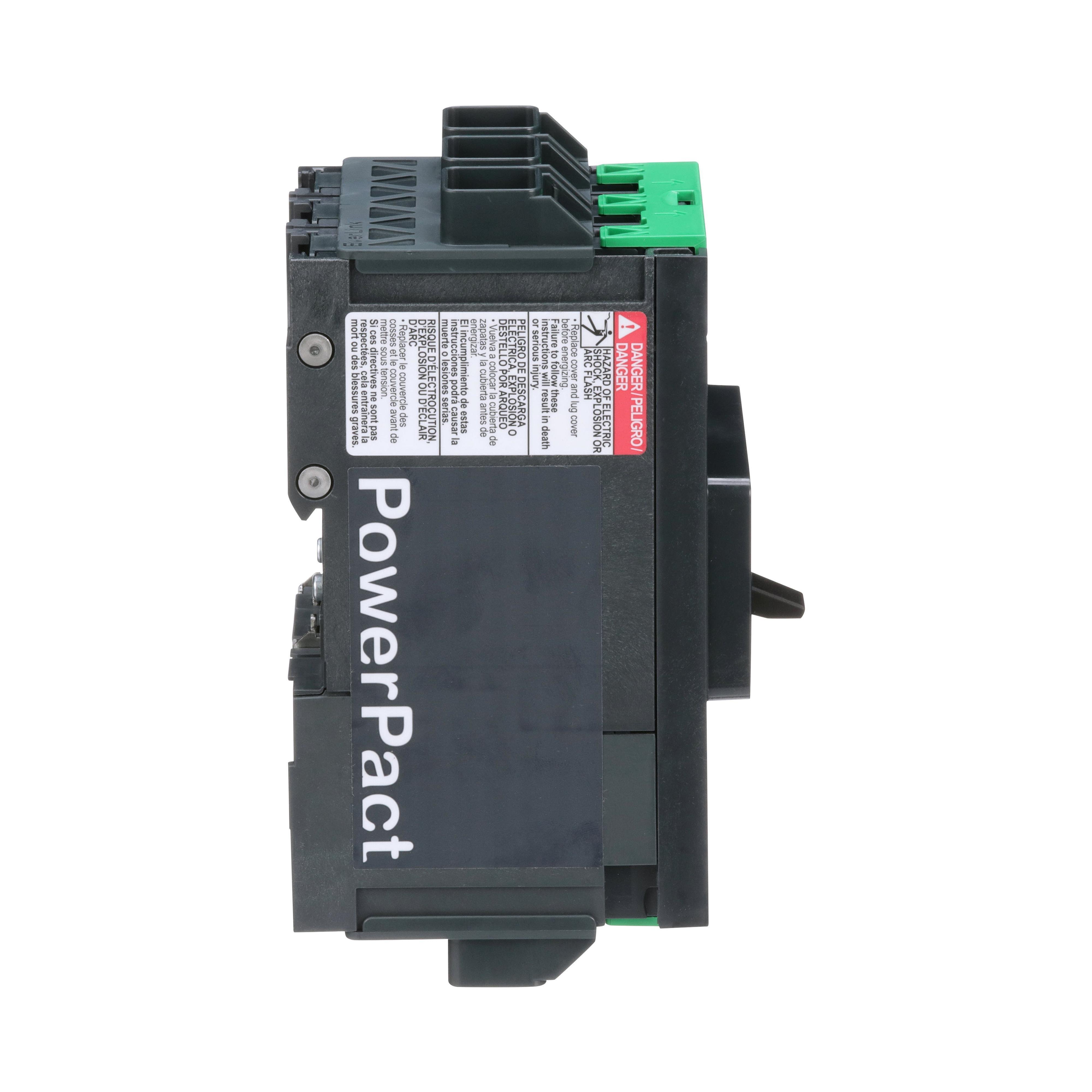

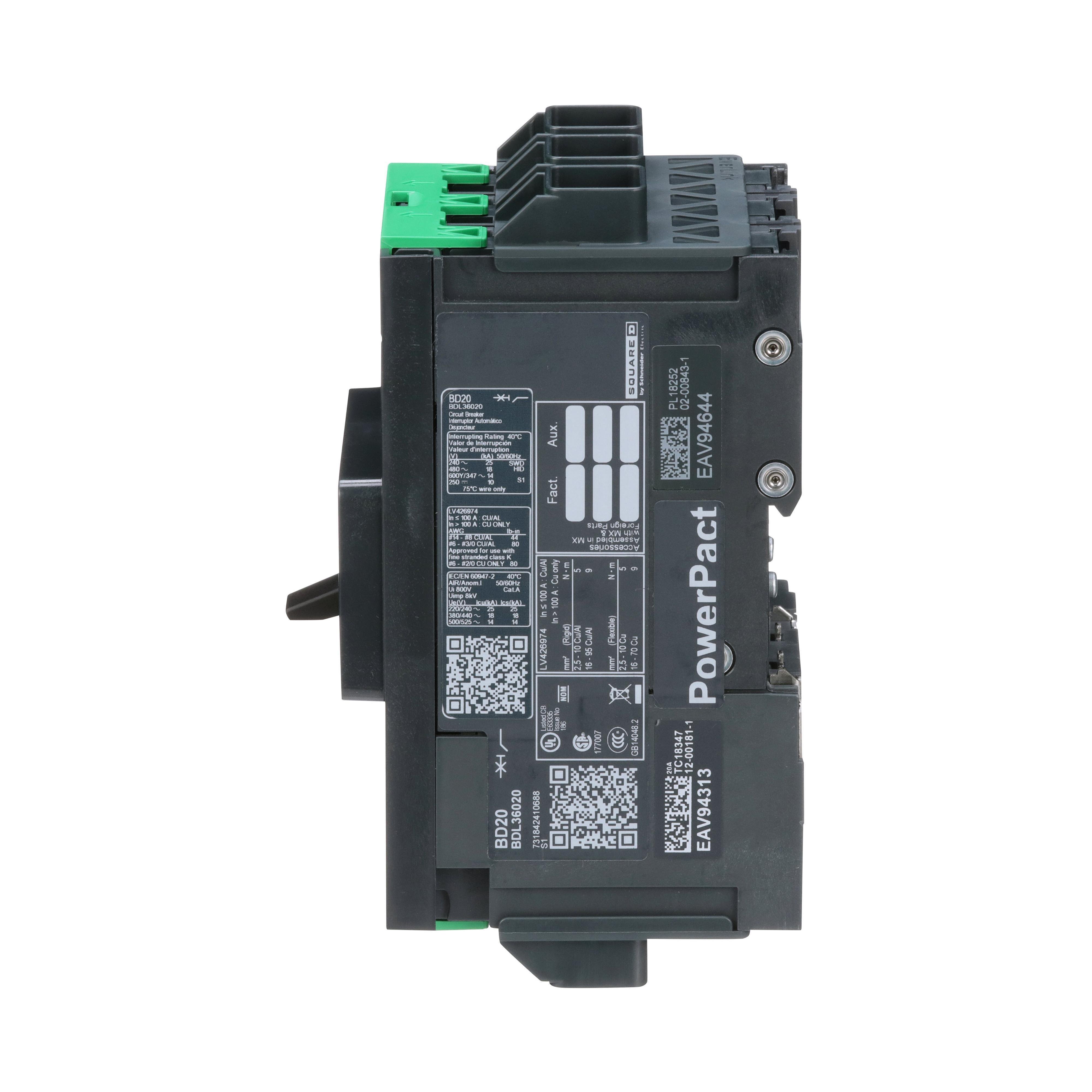

Picture of BDL36020 - Circuit breaker, PowerPacT B, 20A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%
Square D

BDL36020 - Circuit breaker, PowerPacT B, 20A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%

Item Code: 975137
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BDL36020

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 20A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

3.12lb

Height

137mm

Width

6.36mm

Length

10.1mm

Depth

80mm

Actuator Type

Push-Trip/Toggle Button

Amperage Rating

20 A

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Color

Gray

Connection Type

EverLink™ Lug

Dimensions

3.19 in L x 3.15 in W x 5.39 in H

Enclosure Type

IP40/IK07

Frame

B

Frequency Rating

50/60 Hz

Interrupt Rating

14-Oct kA

Mounting Type

DIN Rail/Surface/Threaded

Number Of Poles

3

Series

BD 020

Temperature Rating

-13 to 158 deg f

Trip Range

400 to 600 A

Trip Type

Thermal Magnetic

Type

80% rated

Voltage Rating

600Y to 347 V AC/250 V DC

Wire Size

6 to 2/0 AWG, 14 to 3/0 AWG
